MPP-62A0020M0C
SKU
243176

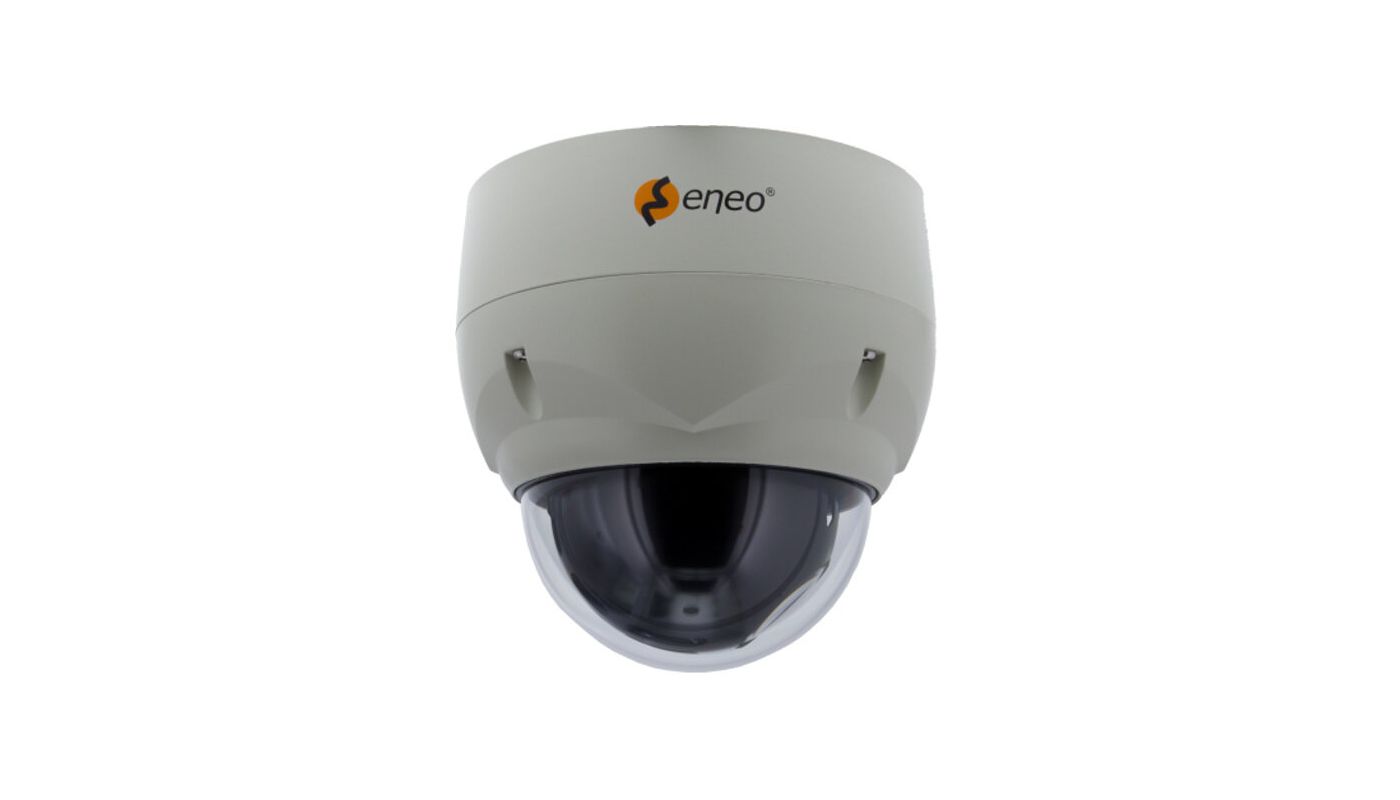

1/2,8" HD Analogue Dome, PTZ, Day&Night, 20x, 4,7-94mm, 1920x1080, WDR, IP66
Main Features
1/2,8" Sony STARVIS CMOS-Sensor
20x Auto Focus Zoom, 4.7 ~ 94mm / 16x Digital
Resolution max. 1920x1080 (Full HD)
Separate outputs for HD signals and composite
Signal formats: HD-TVI, AHD selectable, composite
Real time WDR (Wide Dynamic Range) 25 / 30fps
Compact design for in- and outdoor applications
3D DNR noise reduction, auto-calibration
Protected areas, Defog function
Alarm inputs and outputs, 12VDC/24VAC, IK10, IP66
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- DORI:
- Detect (25px/m)
- 70 - 1370 m
- Observe (62 px/m)
- 28 - 550 m
- Recognize (125 px/m)
- 13 - 270 m
- Identify (250 px/m)
- 7 - 130 m
- Other
- Brand
- ENEO
- Camera type
- PTZ
- Sensor size
- 1/2.8"
- Imager
- Sony STARVIS, Progressive scan, CMOS
- Sensitivity
- 0,35 Lux at F1,6, 50IRE
- System
- True Day&Night
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1/25 ~ 1/30.000sec
- Automatic electronic shutter (ESC)
- 1/25 ~ 1/30.000sec.
- Wide Dynamic Range (WDR)
- Real Time WDR 25/30fps, WDR 120dB
- Flickerless function
- yes
- Backlight compensation
- BLC, HLC
- Day&Night switch
- ICR
- Day&Night mode
- Automatic, Day, Night
- White balance
- Automatic, Manual, Light bulb, Fluorescent light, Outdoor
- Signal-to-noise ratio
- 50dB
- Signal format
- AHD @ 2MP, Composite (FBAS), HD-TVI @ 2MP
- Frame rate
- 25/30fps @ 1920x1080p, 50/60fps @ 1280x720p
- Synchronization
- internal
- Lens Type
- auto focus zoom
- Zoom Factor
- 20x
- Focal Length
- 4,7 - 94 mm
- Digital Zoom
- 16x
- MOD (Mininum Object Distance)
- 1 m
- Aperture range (F)
- F1.6~F3.0
- Resolution Pixels
- 1280x720, 1920x1080, 720x576
- Vertical Angle of View
- 32,4 - 1,7°
- Horizontal Angle of View
- 55,5 - 3°
- Video standard
- PAL/NTSC
- Motion detector
- yes
- Analysis functions
- Defog, DIS (digital image stabilisation)
- Presets
- 240 presets
- Pattern
- 8 pattern
- Home position
- selectable, Tour, Preset, Pattern
- Tours
- up to 8 user programmable guard tours
- Auto calibration
- yes
- Rotation range
- 360°
- Speed (manual)
- 380°/Sek.
- Speed (preset)
- 380°/Sek.
- OSD function control
- OSD camera setup
- Menu languages
- English, German, French, Italian, Spanish, Polish, Portugese
- Privacy zone masking
- Areas-ON/OFF switchable
- Mirror function
- H/V flip
- Digital Noise Reduction
- yes
- Video outputs
- AHD, Composite (CVBS), HD-TVI
- External connectors
- Alarm in/output, voltage input, RS-485, Composite (FBAS), HD-TVI / AHD BNC, connection cable approx.25cm
- Alarm inputs
- 4
- Alarm outputs
- 2
- Serial interfaces
- Coaxitron (HD Protocol), RS-485
- Serial interfaces protocols
- Fastrax, Fastrax IIIE, Pelco D, Pelco P, UTC (HD-Signal Format)
- Series
- eneo COAXIZE

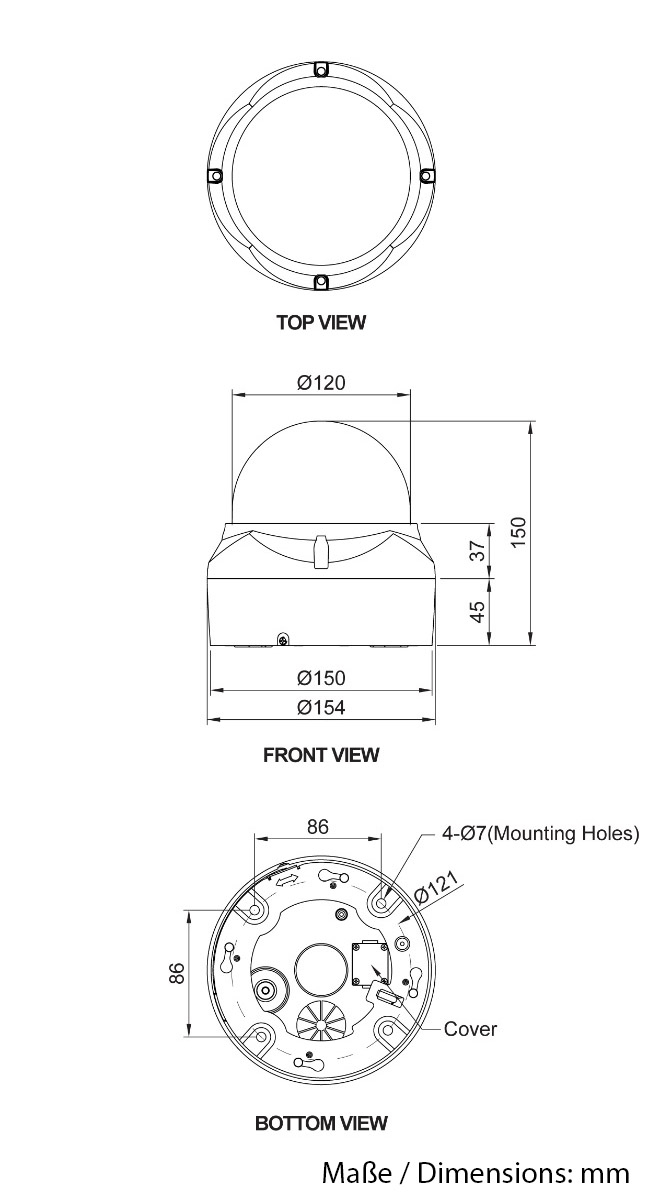

- Dimensions (HxWxD)
- 150x154mm
- Weight
- 1.6 kg
- Illumination
- no
- Color (housing)
- white
- Color (bubble)
- clear
- Housing
- Outdoor
- Hosuing material
- Aluminium
- Power consumption
- 12W
- Blower
- no
- Mounting
- Ceiling mount, Wall mount
- Window heater
- no
- Protection rating
- IP66
- Supply voltage
- 12VDC, 24VAC
- Operating temperature
- -10°C ~ +50°C, @ Humidity 10%-90% (non-condensing)
- Text display
- supplied
- Vandal proof
- yes
- Certifications
- IK10
- Parts supplied
- manual, plug set, bag of screws
- Special features
- To operate the PTZ dome menu via an MNR recorder, open the DIP switch cover on the bottom of the PTZ dome and set the DIP switch to the Pelco-C protocol according to the instructions.Select the Pelco-C protocol in the MNR menu. The PTZ dome menu can be opened with the Iris closed button.
- Manufacturer order number
- 243176
