• MPP-62A0020M0B
    • MPP-62A0020M0B



    Art. No.: 226625

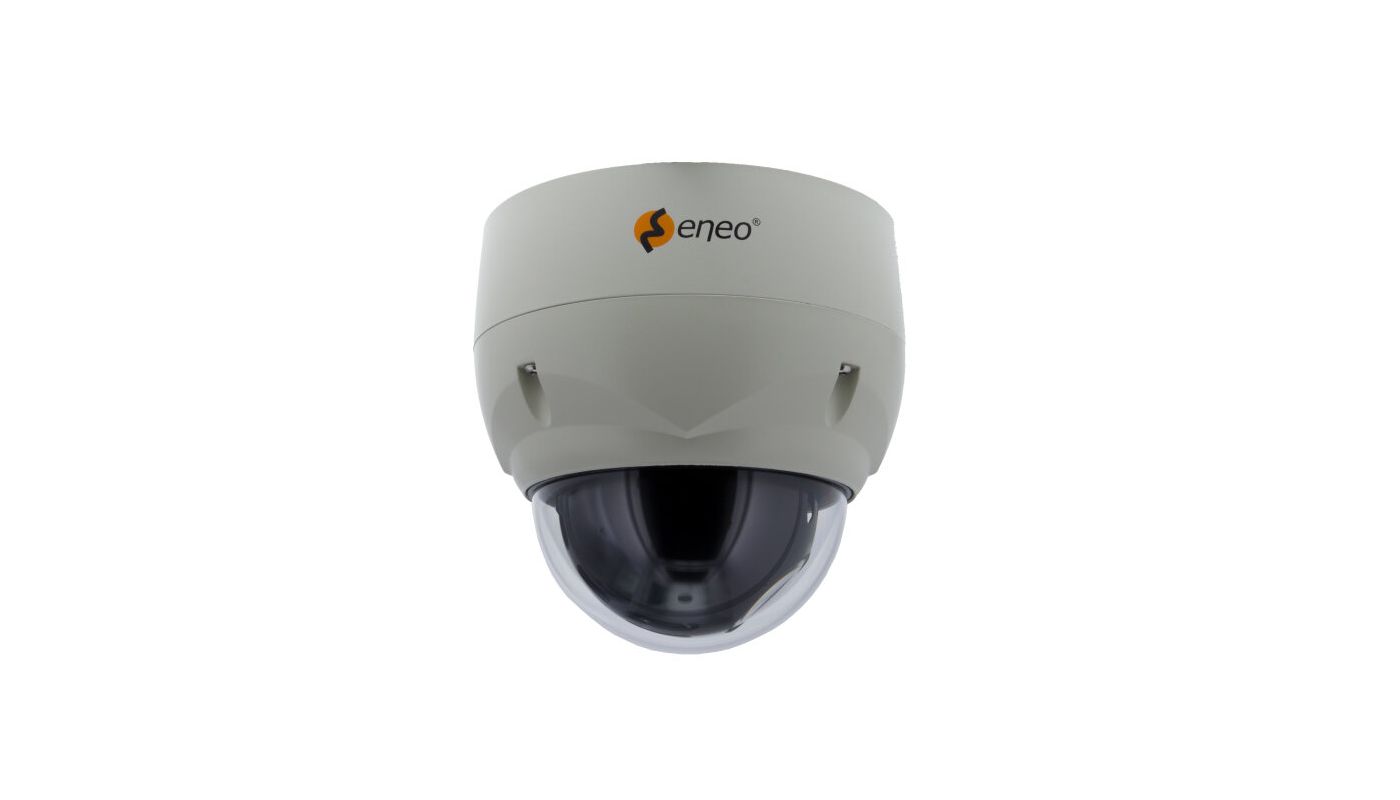

    1/2,8" HD Analogue Dome, PTZ, Day&Night, 20x, 4,7-94mm, 1920x1080, WDR, IP66


    • 1/2,8" Sony STARVIS CMOS-Sensor
    • 20x Auto Focus Zoom, 4.7 ~ 94mm / 16x Digital
    • Resolution max. 1920x1080 (Full HD)
    • Separate outputs for HD signals and composite
    • Signal formats: HD-TVI, AHD selectable, composite
    • Real time WDR (Wide Dynamic Range) 25 / 30fps
    • Compact design for in- and outdoor applications
    • 3D DNR noise reduction, auto-calibration
    • Protected areas, Defog function
    • Alarm inputs and outputs, 12VDC/24VAC, IK10, IP66


    Camera type PTZ
    Sensor size 1/2.8"
    Imager CMOS, Sony STARVIS, Sensor IMX291
    System True Day&Night
    Sensitivity 0,35 Lux, at F1.6, 50 IRE
    Low speed shutter yes, ON/OFF switchable
    Manual electronic shutter (MES) 1/25 ~ 1/30.000sec
    Automatic electronic shutter (ESC) 1/25 ~ 1/30.000sec.
    Wide Dynamic Range (WDR) WDR 120dB, Real Time WDR 25/30fps
    Flickerless function yes
    Backlight compensation BLC, HLC
    Day/Night switching auto, day, night
    IR cut filter switchable
    White balance automatic, manual, Light bulb, Fluorescent light, outdoor
    Signal-to-noise ratio 50dB
    Signal format Composite (FBAS), HD-TVI @ 2MP, AHD @ 2MP
    Frame rate 25/30fps @ 1920x1080p, 50/60fps @ 1280x720p
    Synchronization internal
    Lens type auto focus zoom
    Zoom factor 20x
    Focal length 4,7 - 94 mm
    Digital zoom 16x
    MOD (Minimum object distance) 1 m
    Aperture range (F) F1.6~F3.0
    Iris control DC
    Resolution pixels 1920x1080
    Vertical angle of view 32,4 - 1,7 °
    Horizontal angle of view 55,5 - 3 °
    Video standard PAL/NTSC
    Detection (25 px/m) 70 - 1370 m
    Observation (62 px/m) 28 - 550 m
    Recognition (125 px/m) 13 - 270 m
    Identification (250 px/m) 7 - 130 m
    Motion detector yes
    Analysis functions Defog, DIS (digital image stabilisation)
    Presets 240 presets
    Patterns 8 pattern
    Home position selectable, Tour, Preset, Pattern
    Tours up to 8 user programmable guard tours
    Auto calibration yes
    Rotation range 360 °
    Speed (manual control) 380 °/Sek.
    Preset speed 380 °/Sek.
    Tilt range -10°~190°
    OSD function control OSD camera setup
    Menu languages English, German, French, Italian, Spanish, Polish, Portugese
    Privacy zones masking Areas-ON/OFF switchable
    Mirror function H/V flip
    Digital Noise Reduction (DNR) yes
    Interfaces / Inputs / Outputs:
    Video outputs AHD, HD-TVI, composite (CVBS)
    External connections alarm in/output, voltage input, RS-485, Composite (FBAS), HD-TVI / AHD BNC, connection cable approx.25cm
    Alarm inputs 4
    Alarm outputs 2
    Serial interfaces RS-485, Coaxitron (HD Protocol)
    Serial interfaces protocols Fastrax, Fastrax IIE, Pelco D, Pelco P, UTC (HD signal format)
    Series eneo SX series, eneo COAXIZE
    Dimensions (HxWxD) 150x154mm
    Illumination no
    Colour (housing) white
    Colour (bubble) clear
    Housing outdoor, indoor
    Housing material aluminium
    Weight 1.6 kg
    Power consumption 12W
    Blower yes
    Mounting wall mount, ceiling mount, for wall mount optional accessories required, (mounting accessories not supplied)
    Window heater optional
    Protection rating IP66
    Supply voltage 12VDC, 24VAC
    Temperature range (operation) -20°C ~ +50°C
    Text display supplied
    Vandalism resistant yes
    Certificates IK10
    Scope of delivery:
    Parts supplied manual, plug set, bag of screws
