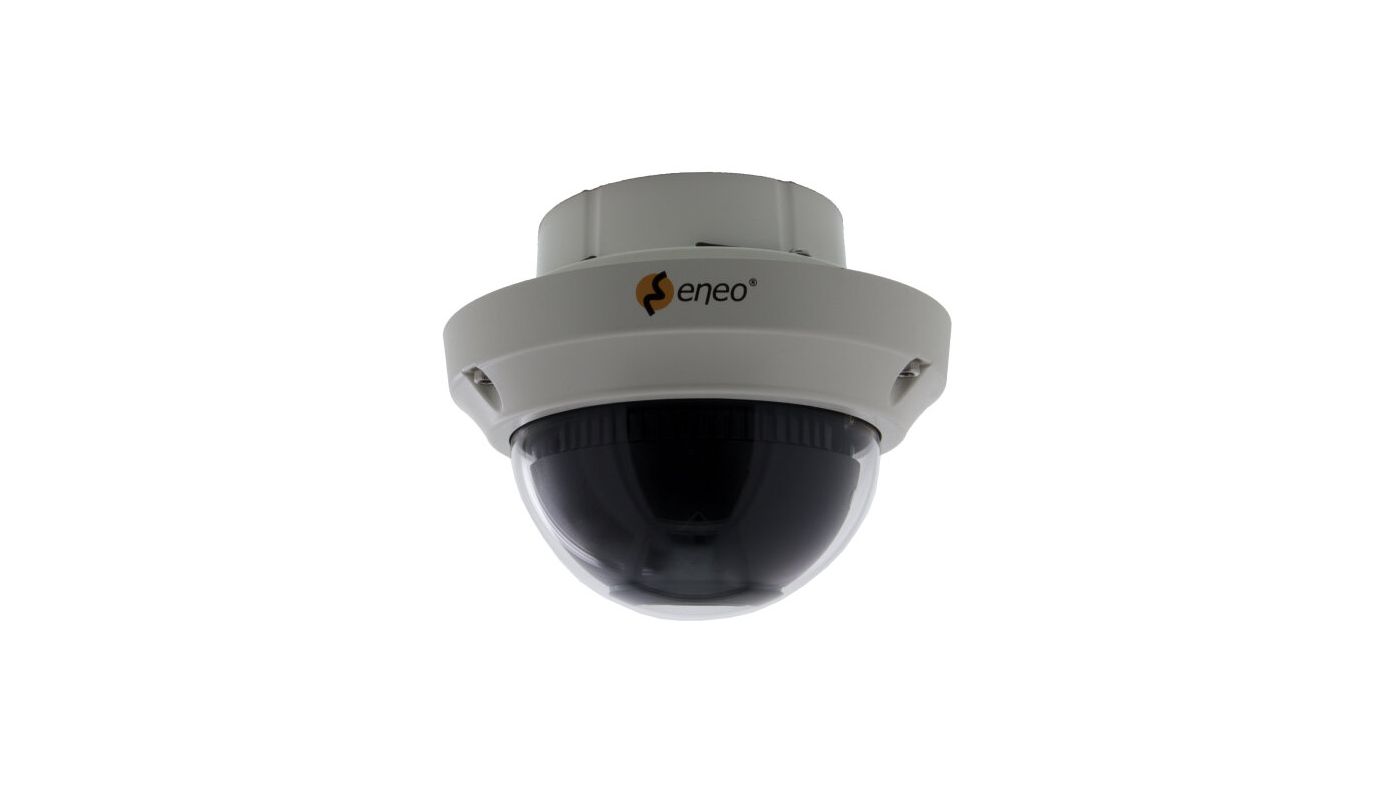

MPD-78M2713M0A

1/2,8" HD Dome Fix, Day&Night 3840x2160, Infrared, WDR, 2,7-13,5mm, 12/24V, IP67
Art. No.
226889
  • 1/2.8“ 8.64 Megapixel SONY STARVIS CMOS-Sensor
  • Resolution max. 3840x2160@15/12,5fps
  • Motorised varifocal lens 2,7~13,5mm
  • Separate outputs for digital and multi-signal
  • Multisignal: HD-TVI, AHD selectable, Composite SUB
  • Digital signal: EX-SDI, HD-SDI selectable
  • DOL-WDR by triple scan images at 30/25fps &
  • ROI (Region of Interest) WDR mode
  • DIS (Digital Image Stabilization) function
  • IP67, IK10, 3-Axis gimbal
  • For wall or ceiling flush mount
  • IR Illumination (2 x SMD High Power LED´s)
Special features
Hard Coated Bubble (Hardness grade - H) -- Anti Scratch Protection
Specifications
Series eneo KX-Series, eneo COAXIZE, eneo Callisto
Camera:
Camera type Dome
Sensor size 1/2.8"
Imager CMOS, Sony STARVIS, Sensor IMX415
System True Day&Night
Sensitivity 0,06 Lux, at F1.6, 40IRE
Low Speed Shutter yes
Low speed shutter 2x ~ 32x, @2MP & 4MP
Manual electronic shutter (MES) 1/25 ~ 1/25.600sec.
Automatic electronic shutter (ESC) 1/25 ~ 1/25.600sec.
Wide Dynamic Range (WDR) DOL-WDR 120dB, D-WDR
Flickerless function yes
Backlight Compensation BLC, HLC
Day&Night switch ICR
Day&Night mode auto, day, night, extern (built in Sensor), night-color mode
White balance automatic, AUTOext, Preset, manual
Signal-to-noise ratio 50dB
Video:
Signal format Composite (FBAS), HD-TVI @ 8MP, AHD @ 8MP, CVI @ 8MP, EX-SDI @ 8MP, HD-SDI (1.485 Gbps)
Frame rate 12,5/15fps @ 3640x2160p, 25/30fps @ 2560x1440p, 25/30fps @ 1920x1080p
Synchronization internal
Lens:
Lens Type Varifocal (motorized)
Zoom Factor 5x
Focal Length 2,7 - 13,5 mm
Digital Zoom yes
MOD (Mininum Object Distance) 0,5 m
Aperture range (F) F1.6
Iris Control DC
Resolution Pixels 3840x2160, 2560x1440, 1920x1080
Vertical Angle of View 59 - 25°
Horizontal Angle of View 105 - 45°
Video standard PAL/NTSC
Functions:
Motion Detector yes
Analysis functions Defog, Digital Image Stabilization
Rotation range +/-173°
Vertical tilt range 65 °(25 ~ 90°)
OSD function control OSD camera setup
Menu languages English, German, Japanese, Chinese, Korean
Privacy zone masking Areas-ON/OFF switchable
Mirror function mirror, H-flip
Digital Noise Reduction yes
Interfaces / Inputs/ Outputs:
Video outputs HD-TVI, AHD, CVI, composite (CVBS), EX-SDI, HD-SDI, composite (CVBS) SUB
External connectors voltage input, video (BNC), connection cable approx.15cm
Alarm inputs no
Alarm outputs no
Serial interfaces Coaxitron (HD Protocol)
Serial interfaces protocols UTC (HD-Signal Format)
General:
Dimensions (HxWxD) 119x140mm
Weight 1.0kg
llumination infrared
Illumination 2x High Power LEDs 850nm
Illumination range approx. 40m
Color (housing) Pantone Cool Gray 1C
Color (bubble) clear
Housing outdoor
Hosuing material aluminium
Heater no
Power consumption 12W
Blower no
Mounting wall mount, ceiling mount
Protection rating IP67
Supply voltage 12VDC, 24VAC
Operating temperature -50°C ~ +50°C
Text display ON/OFF switchable
Vandal proof yes
Certifications IK10
Parts supplied:
Parts supplied manual, Video sub-out cable, drilling template, bag of screws
Remarks NDAA compliance under Section 889, Part A.
