SKU 243651
1/2.8" HD Dome, Fixed, WDR, Day&Night, 1920x1080, 12/24V 2.7-13.5mm, Infrared, IP67

Main Features

1/2.8" 2 Megapixel SONY STARVIS CMOS sensor
Resolution max. 1920x1080 pixels (Full HD)
Separate outputs for digital and multi-signal
Multisignal: HD-TVI, AHD, CVI and Composite selectable
Digital signal: EX-SDI, HD-SDI selectable
Motorized vari-focal lens 2.7-13.5mm
Removable infrared cut filter
ROI (Region of Interest) WDR mode
Integrated motion detector, defog, privacy zones
IP67, built-in heater, 3-Axis gimbal
For wall or ceiling flush mount
Hard coated bubble, Anti-scratch protection
arrow-right Buy now You will be redirected to our shop on Videor.com for purchase.

More Information

DORI:

Detect (25px/m)
47 - 128 m
Observe (62 px/m)
18 - 52 m
Recognize (125 px/m)
8 - 25 m
Identify (250 px/m)
4 - 12 m
Other

Brand
ENEO
Camera type
Dome
Sensor size
1/2.8"
Imager
Sony STARVIS 2, Sony IMX-662, CMOS
System
True Day&Night
Low speed shutter
yes
Manual electronic shutter (MES)
1/30~1/30.000sec.
Automatic electronic shutter (ESC)
1/30~1/30.000sec.
Wide Dynamic Range (WDR)
Clear HDR, D-WDR, DOL, Inter Frame
Flickerless function
yes
Backlight compensation
BLC, HLC
Day&Night switch
ICR
Day&Night mode
Automatic, Day, Night, extern (Sensor)
White balance
Automatic, Preset, Manual, AUTOext
Signal-to-noise ratio
50dB
Signal format
AHD @ 2MP, CHD @ 2MP, Composite (FBAS), EX-SDI 1.0@270Mbps, EX-SDI 2.0@135Mbps, HD-SDI@1,485Gbps, non compressed, HD-TVI @ 2MP
Frame rate
25/30fps @ 1920x1080p, 50/60fps @ 1280x720p
Synchronization
internal
Lens Type
Varifocal (motorized)
Zoom Factor
4x
Focal Length
2,7 - 13,5 mm
Digital Zoom
yes
MOD (Mininum Object Distance)
0,5 m
Aperture range (F)
F1.6
Iris Control
DC
Resolution Pixels
1280x720, 1920x1080, 720x576
Vertical Angle of View
54 - 18°
Horizontal Angle of View
101 - 32°
Video standard
PAL/NTSC
Motion detector
yes
Analysis functions
Defog
OSD function control
OSD camera setup
Menu languages
German, English, French, Chinese, Japanese, Korean
Privacy zone masking
Areas-ON/OFF switchable
Mirror function
mirror, flip
Digital Noise Reduction
3D-NR, yes
Video outputs
AHD, CHD, Composite (CVBS), EX-SDI, HD-SDI, HD-TVI
External connectors
voltage input, 1x SDI Signal (BNC), 1x HD/SD Analog Signal (BNC), connection cable approx.15cm
Alarm inputs
nein
Alarm outputs
no
Serial interfaces
Coaxitron (HD Protocol)
Serial interfaces protocols
UTC (HD-Signal Format)
Series
eneo Callisto, eneo KX-Series

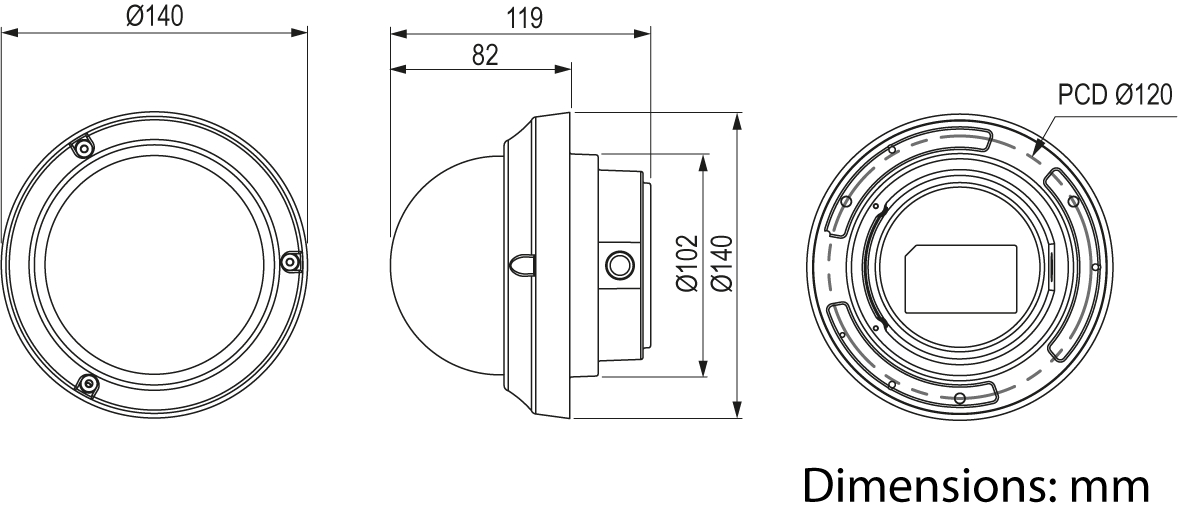

Dimensions (HxWxD)
119x140mm
Weight
1 kg
Illumination
2x High Power LEDs 850nm, Infrared
Illumination range
approx. 50m
Color (housing)
Pantone Cool Gray 1C
Housing
Outdoor
Hosuing material
Aluminium
Power consumption
7W
Mounting
Ceiling mount, Wall mount
Protection rating
IP67
Supply voltage
12VDC
Operating temperature
-30°C ~ +50°C
Text display
supplied
Vandal proof
yes
Certifications
IK10
Parts supplied
manual, drilling template, bag of screws
Remarks
NDAA compliance under Section 889
Manufacturer order number
243651

Downloads

Data sheet PDF
Data sheet with specifications generated live from the product database
Documents PDF
Quick reference guide for this product
Documents PDF
Kurz-Betriebsanleitung zum Produkt
Documents PDF
Declaration of Conformity in German and English
Media ZIP
Product Image in a high resolution for print
