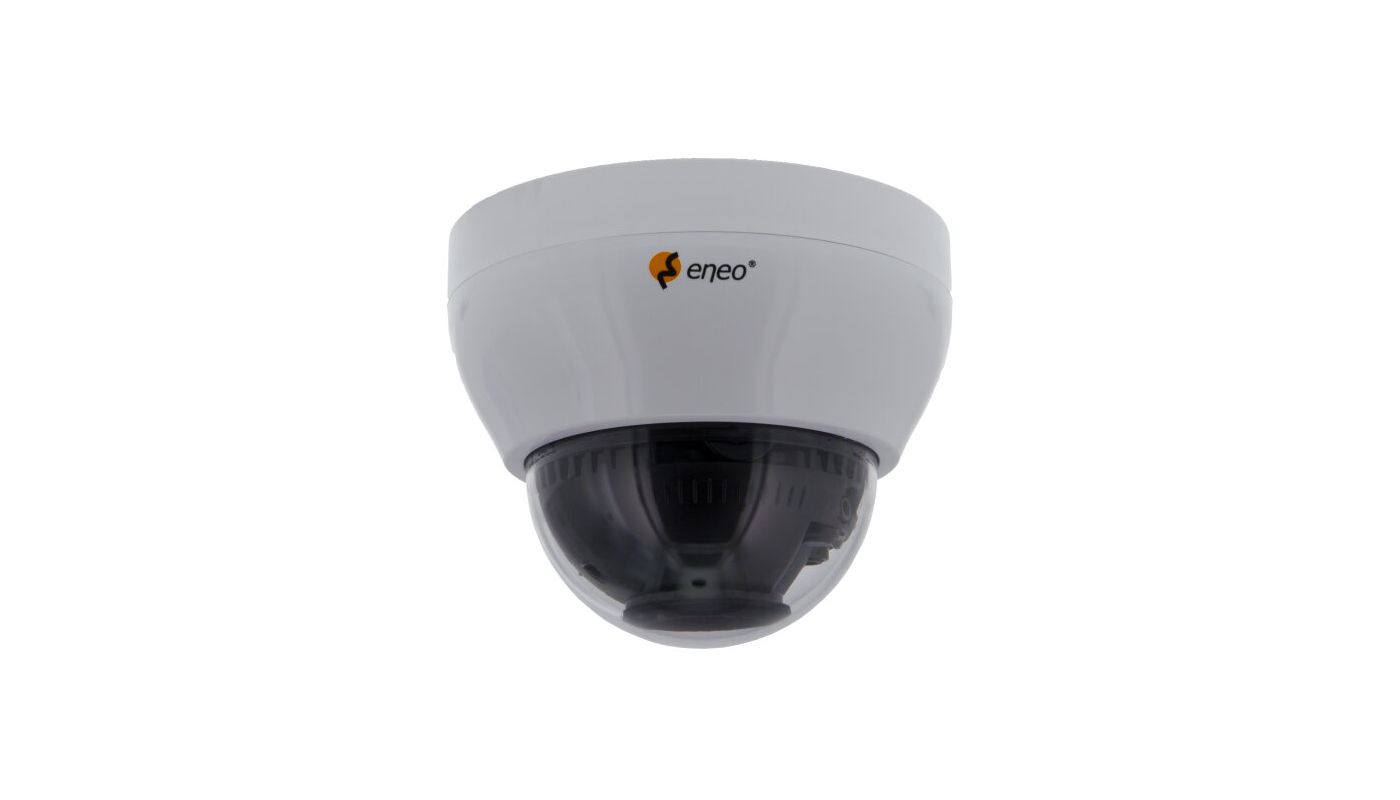

    MPD-68M2713P0A

    Art. No.: 226887

    1/2,8" HD Dome Fix, Day&Night 3840x2160, Infrared, WDR, 2,7-13,5mm, 12VDC, Indoor

    Mainfeatures

    • 1/2.8“ 8.64 Megapixel SONY STARVIS CMOS-Sensor
    • Resolution max. 3840x2160@15/12,5fps
    • Motorised varifocal lens 2,7~13,5mm
    • Separate outputs for digital and multi-signal
    • Multisignal: HD-TVI, AHD selectable, Composite SUB
    • Digital signal: EX-SDI, HD-SDI selectable
    • DOL-WDR by triple scan images at 30/25fps &
    • ROI (Region of Interest) WDR mode
    • DIS (Digital Image Stabilization) function
    • Wedge adapter included (10° inclination)
    • Scratch resistant hard coated bubble
    • Easy installation, 3-Axis gimbal

    Specifications

    Camera:
    Camera type Dome
    Sensor size 1/2.8"
    Imager CMOS, Sony STARVIS
    System True Day&Night
    Sensitivity 0,005 Lux, at F1.6, 40IRE
    Low speed shutter yes, 2x ~ 32x, @2MP & 4MP
    Manual electronic shutter (MES) 1/25 ~ 1/25.600sec.
    Automatic electronic shutter (ESC) 1/25 ~ 1/25.600sec.
    Wide Dynamic Range (WDR) DOL-WDR 120dB, D-WDR
    Flickerless function yes
    Backlight compensation BLC, HLC
    Day/Night switching auto, day, night, extern (built in Sensor), night-color mode
    IR cut filter switchable
    White balance automatic, AUTOext, Preset, manual
    Signal-to-noise ratio 50dB
    Video:
    Signal format Composite (FBAS), HD-TVI @ 8MP, AHD @ 8MP, CVI @ 8MP, EX-SDI @ 8MP, HD-SDI (1.485 Gbps)
    Frame rate 12,5/15fps @ 3640x2160p, 25/30fps @ 2560x1440p, 25/30fps @ 1920x1080p
    Synchronization internal
    Lens:
    Lens type Varifocal (motorized)
    Zoom factor 5x
    Focal length 2,7 - 13,5 mm
    Digital zoom yes
    MOD (Minimum object distance) 0,5 m
    Aperture range (F) F1.6
    Iris control DC
    Resolution pixels 3840x2160, 2560x1440, 1920x1080
    Vertical angle of view 59 - 25 °
    Horizontal angle of view 105 - 45 °
    Video standard PAL/NTSC
    Features:
    Motion detector yes
    Analysis functions Defog, Digital Image Stabilization
    Vertical tilt range +/-60°
    OSD function control OSD camera setup
    Menu languages English, German, Japanese, Chinese, Korean
    Privacy zones masking Areas-ON/OFF switchable
    Mirror function mirror, H-flip
    Digital Noise Reduction (DNR) yes
    Interfaces / Inputs / Outputs:
    Video outputs HD-TVI, AHD, CVI, composite (CVBS), EX-SDI, HD-SDI, composite (CVBS) SUB
    External connections 12VDC input (DC plug), video (BNC), connection cable approx.15cm
    Alarm inputs no
    Alarm outputs no
    Serial interfaces Coaxitron (HD Protocol)
    Serial interfaces protocols UTC (HD signal format)
    General:
    Series eneo KX-Series, eneo COAXIZE, eneo Callisto Indoor
    Dimensions (HxWxD) 100x116mm
    Illumination infrared, 2x High Power LEDs 850nm
    Illumination range approx. 30m
    Colour (housing) white
    Colour (bubble) clear
    Housing indoor
    Housing material plastic
    Weight 260g
    Heater no
    Power consumption 8W
    Blower no
    Mounting wall mount, ceiling mount
    Supply voltage 12VDC
    Temperature range (operation) -10°C ~ +50°C
    Text display ON/OFF switchable
    Vandalism resistant no
    Scope of delivery:
    Parts supplied manual, Video sub-out cable, drilling template, bag of screws
