    MPD-64A0003P0A

    Art. No.: 218771

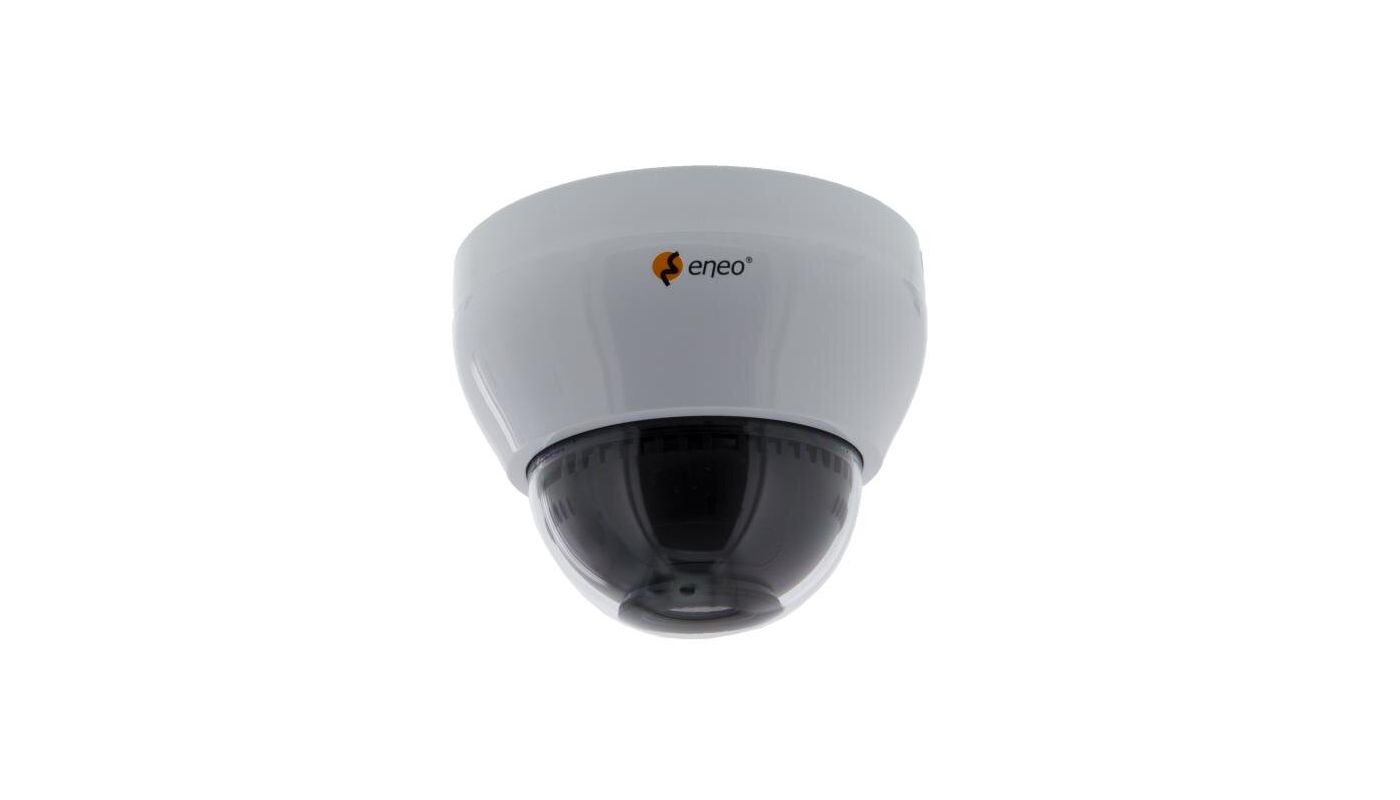

    1/2,9" HD Dome, Fixed 2560x1440, Day&Night, AF Zoom, WDR, 3,2-9mm, Infrared, Indoor

    Mainfeatures

    • 1/2,9“ 6,64 Megapixel SONY STARVIS CMOS-Sensor
    • Resolution max. 2560x1440@25/30fps
    • Optical 3x auto focus zoom, 3,2~9mm
    • Separate outputs for digital and multi-signal
    • Multisignal: HD-TVI, AHD selectable, Composite SUB
    • Digital signal: EX-SDI, HD-SDI selectable
    • DOL-WDR by triple scan images at 30/25fps &
    • ROI (Region of Interest) WDR mode
    • Point of Interest & Smart Motion Zoom
    • Wedge adapter included (10° inclination)
    • Scratch resistant hard coated bubble
    • Easy installation, 3-Axis gimbal

    Specifications

    Camera:
    Sensor size 1/2.9"
    Resolution pixels 2560x1440, 1920x1080, 1280x720
    Imager CMOS, Sony STARVIS, Sensor IMX326
    System True Day&Night
    Sensitivity 0,1 Lux, at F1.6, 40IRE
    Low speed shutter yes, 2x ~ 32x
    Manual electronic shutter (MES) 1/25 ~ 1/30.000sec
    Automatic electronic shutter (ESC) 1/25 ~ 1/30.000sec.
    Wide Dynamic Range (WDR) DOL-WDR 120dB, D-WDR, WDR 113dB, Real Time WDR 25/30fps
    Flickerless function yes
    Backlight compensation BLC, HLC
    Day/Night switching auto, day, night
    IR cut filter switchable
    White balance AUTO, AUTOext, manual, Preset
    Signal-to-noise ratio 50dB
    Video:
    Video standard PAL/NTSC
    Signal format HD-TVI @ 4MP, AHD @ 4MP, EX-SDI @ 4MP, HD-SDI (1.485 Gbps)
    Frame rate 25/30fps @ 1440p, 25/30fps @ 1080p, 50/60fps @ 720p
    Lens:
    Lens type auto focus zoom
    Zoom factor 3x
    Focal length 3,2 - 9 mm
    Digital zoom yes
    MOD (Minimum object distance) 0,5 m
    Aperture range (F) F1.6
    Iris control DC
    Vertical angle of view 42 - 3 °
    Horizontal angle of view 78 - 6 °
    Features:
    Motion detector yes
    Vertical tilt range 65 °(25 ~ 90°)
    OSD function control OSD camera setup
    Menu languages English, German, Japanese, Chinese, Korean
    Privacy zones masking Areas-ON/OFF switchable
    Mirror function V flip, H-flip, H/V flip
    Digital Noise Reduction (DNR) yes
    Interfaces / Inputs / Outputs:
    Video outputs HD-TVI, AHD, composite (CVBS) SUB, EX-SDI, HD-SDI
    External connections voltage input, 1x SDI Signal (BNC), 1x HD Analog Signal (BNC), connection cable approx.15cm
    Alarm inputs no
    Alarm outputs no
    Serial interfaces protocols Pelco C (UTC / HD-TVI)
    General:
    Dimensions (HxWxD) 94x116mm
    Illumination infrared, 2x High Power LEDs 850nm
    Illumination range approx. 30m
    Colour (housing) white
    Colour (bubble) clear
    Housing indoor
    Housing material plastic
    Weight 260g
    Heater no
    Power consumption 7W
    Blower no
    Mounting wall mount, ceiling mount
    Supply voltage 12VDC
    Temperature range (operation) -10°C ~ +50°C
    Text display supplied
    Vandalism resistant no
    Scope of delivery:
    Parts supplied manual, Video sub-out cable, bag of screws

    Special features

    Smart Motion Zoom--Zoom on defined ROI on motion
    Hard Coated Bubble (Hardness grade - H) -- Anti Scratch Protection
    Pointing Zoom -- enables the flexible zooming at any area
    Preset Zoom (4 adjustable positions)

    Drawings
