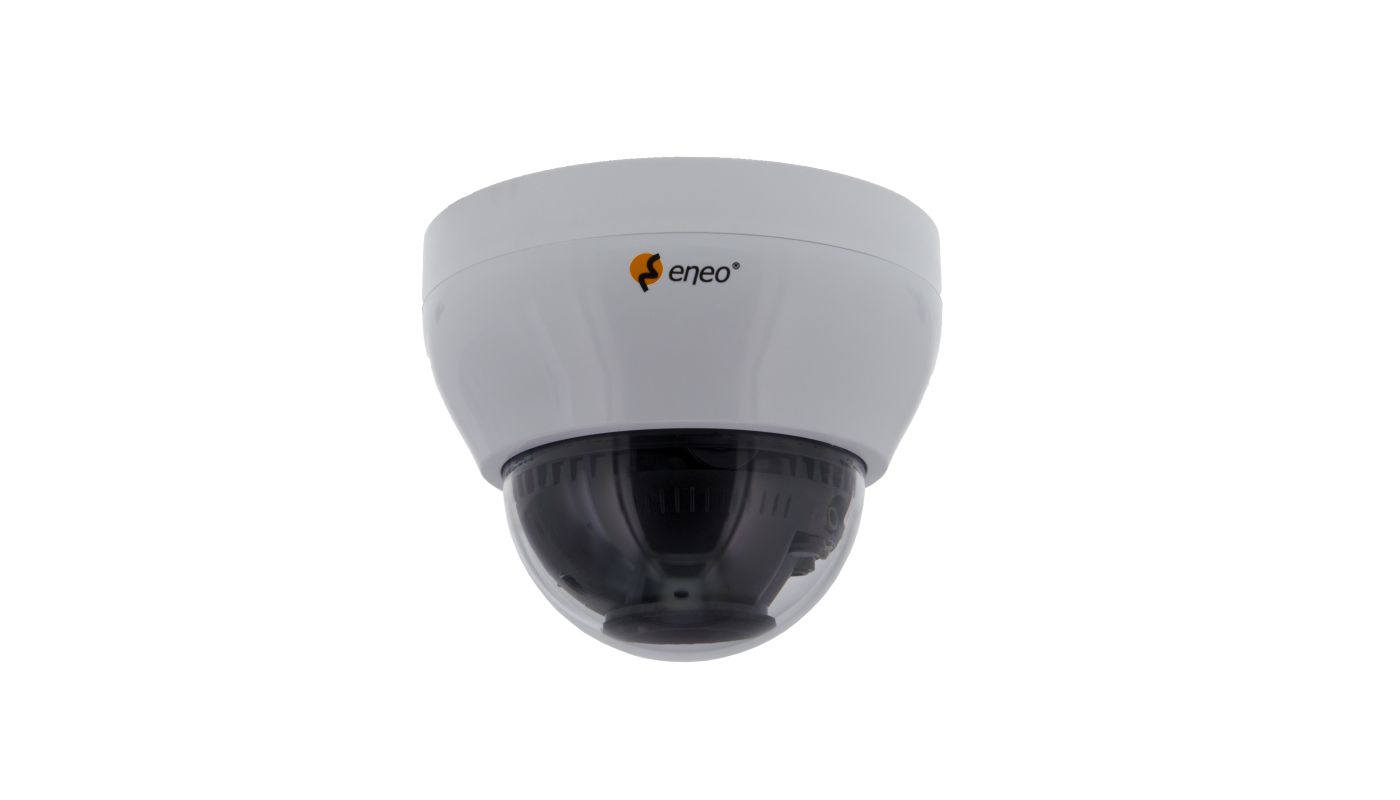

MPD-62M2713P0B
SKU
243652
1/2.8" HD Dome Fixed, WDR, Day&Night, 2.7-13,5mm, Infrare 1920x1080, 12VDC, Indoor
Main Features
1/2.8" 2 Megapixel SONY STARVIS 2 CMOS sensor
Resolution max. 1920x1080 pixels (Full HD)
Super low light performance by Sony STARVIS 2 technology
Multisignal: HD-TVI, AHD, CVI and Composite selectable
Digital signal: EX-SDI, HD-SDI selectable
Motorized vari-focal lens 2.7~13.5mm
Removable infrared cut filter
ROI (Region of Interest) WDR mode
Integrated motion detector, defog, privacy zones
Wedge adapter included (10° inclination)
Scratch resistant hard coated bubble
Easy installation, 3-Axis gimbal
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- DORI:
- Detect (25px/m)
- 47 - 128 m
- Observe (62 px/m)
- 18 - 52 m
- Recognize (125 px/m)
- 8 - 25 m
- Identify (250 px/m)
- 4 - 12 m
- Other
- Brand
- ENEO
- Camera type
- Dome
- Sensor size
- 1/2.8"
- Imager
- Sony STARVIS 2, Sony IMX-662, CMOS
- System
- True Day&Night
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1/30~1/30.000sec.
- Automatic electronic shutter (ESC)
- 1/30~1/30.000sec.
- Wide Dynamic Range (WDR)
- D-WDR, DOL, Clear HDR, Inter Frame
- Flickerless function
- yes
- Backlight compensation
- BLC, HLC
- Day&Night switch
- ICR
- Day&Night mode
- Automatic, Day, Night, extern (Sensor)
- White balance
- Automatic, Preset, Manual, AUTOext
- Signal-to-noise ratio
- 50dB
- Signal format
- AHD @ 2MP, CHD @ 2MP, Composite (FBAS), EX-SDI 1.0@270Mbps, EX-SDI 2.0@135Mbps, HD-SDI@1,485Gbps, non compressed, HD-TVI @ 2MP
- Frame rate
- 25/30fps @ 1920x1080p, 50/60fps @ 1280x720p
- Synchronization
- internal
- Lens Type
- Varifocal (motorized)
- Zoom Factor
- 4x
- Focal Length
- 2,7 - 13,5 mm
- Digital Zoom
- yes
- MOD (Mininum Object Distance)
- 0,5 m
- Aperture range (F)
- F1.6
- Iris Control
- DC
- Resolution Pixels
- 1280x720, 1920x1080, 720x576
- Vertical Angle of View
- 54 - 18°
- Horizontal Angle of View
- 101 - 32°
- Video standard
- PAL/NTSC
- Motion detector
- yes
- Analysis functions
- Defog
- OSD function control
- OSD camera setup
- Menu languages
- German, English, French, Chinese, Japanese, Korean
- Privacy zone masking
- Areas-ON/OFF switchable
- Mirror function
- mirror, flip
- Digital Noise Reduction
- 3D-NR, yes
- Video outputs
- AHD, CHD, Composite (CVBS), EX-SDI, HD-SDI, HD-TVI
- External connectors
- voltage input, 1x SDI Signal (BNC), 1x HD/SD Analog Signal (BNC), connection cable approx.15cm
- Serial interfaces
- Coaxitron (HD Protocol)
- Serial interfaces protocols
- UTC (HD-Signal Format)
- Series
- eneo Callisto Indoor, eneo KX-Series
- Dimensions (HxWxD)
- 94x116mm
- Weight
- 260g
- Illumination
- 4x High Power LED 850nm, Infrared
- Illumination range
- approx. 30m
- Color (housing)
- white
- Housing
- Indoor
- Hosuing material
- Plastic
- Power consumption
- 6W
- Mounting
- Ceiling mount, Wall mount
- Supply voltage
- 12VDC
- Operating temperature
- -10°C ~ +50°C
- Text display
- supplied
- Vandal proof
- no
- Parts supplied
- manual, drilling template, bag of screws
- Remarks
- NDAA compliance under Section 889
- Manufacturer order number
- 243652
Further product information
Sony STARVIS 2 Improved low-light performance (especially with HDR)STARVIS 2 offers significantly improved performance in low light, especially with high dynamic range (HDR). It has been specially optimised for backlit situations and night scenes with high contrast. Higher dynamic range (High Dynamic Range)STARVIS 2 achieves up to 88 dB real dynamic range (Single Exposure) according to Sony - that's more than the original STARVIS. This helps to better display details in dark AND bright areas at the same time - without ‘burning out’ or ‘drowning out’ the image areas. Uniform brightness across the image fieldSTARVIS 2 reduces the so-called vignetting effect (edge darkening) that can occur with BSI sensors. This means a more even image brightness, even in poorly lit conditions. Better colour reproduction in low lightSTARVIS 2 offers a more natural colour reproduction at night - colours appear less washed out or monochromatic. Particularly relevant for forensic applications (e.g. clothing, vehicles, skin tones).Downloads
