MPC-54A0003M0A
SKU
218643

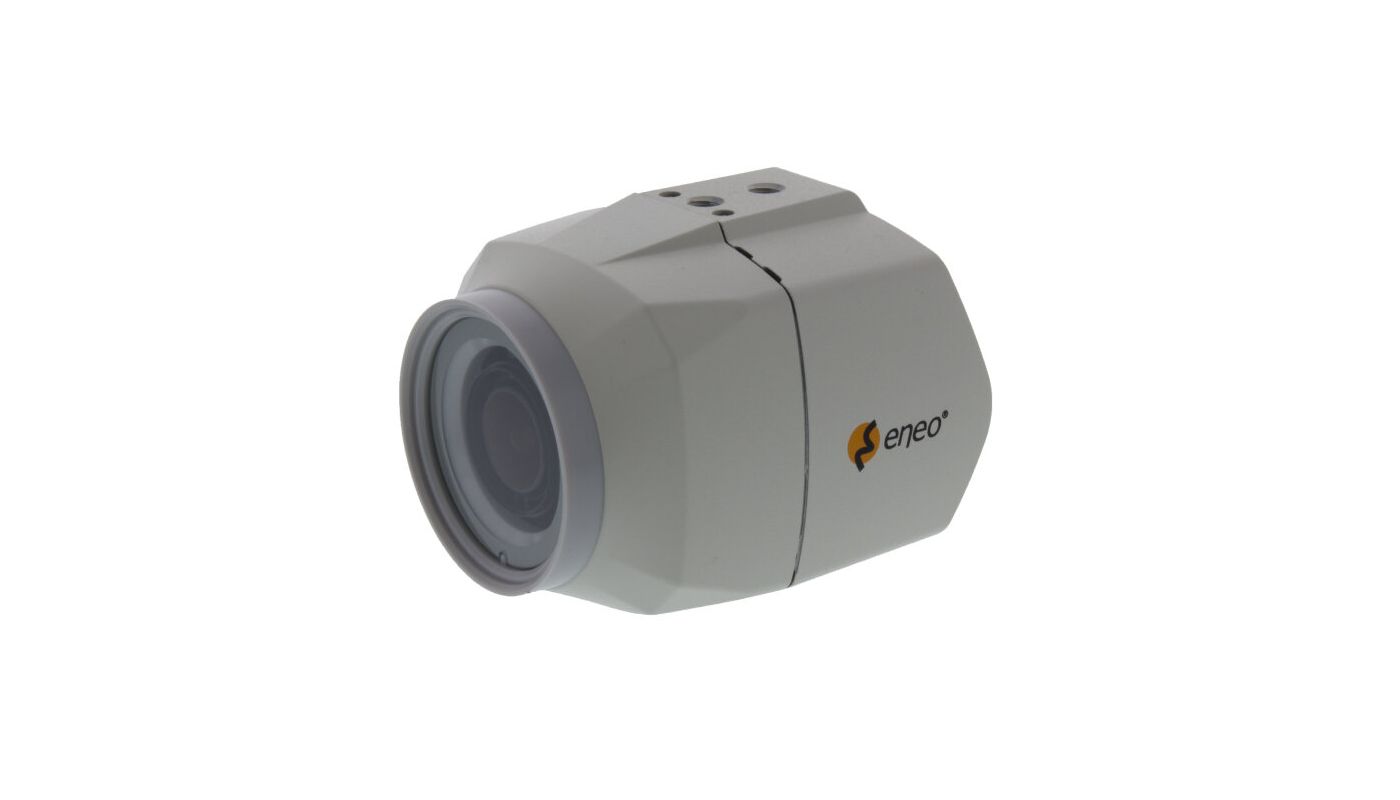

1/2,9" HD Camera 2560x1440, Day&Night, AF Zoom, WDR, 3,2-9 mm, Indoor
Main Features
1/2,9“ 6,64 Megapixel SONY STARVIS CMOS-Sensor
Resolution max. 2560x1440@25/30fps
Optical 3x auto focus zoom, 3,2~9mm
Separate outputs for digital and multi-signal
Multisignal: HD-TVI, AHD selectable
Digital signal: EX-SDI, HD-SDI selectable
DOL-WDR by triple scan images at 30/25fps &
ROI (Region of Interest) WDR mode
Point of Interest & Smart Motion Zoom
Compact design
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Camera:
- Camera type
- Zoom Camera
- Sensor size
- 1/2.9"
- Imager
- Sony STARVIS, Sensor IMX326, CMOS
- Sensitivity
- 0,1 Lux at F1,6, 40 IRE
- System
- True Day&Night
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1/25 ~ 1/30.000sec
- Automatic electronic shutter (ESC)
- 1/25 ~ 1/30.000sec.
- Wide Dynamic Range (WDR)
- Real Time WDR 25/30fps, D-WDR, WDR 113dB
- Flickerless function
- yes
- Backlight compensation
- BLC, HLC
- Day&Night switch
- ICR
- Day&Night mode
- Automatic, Day, Night, night-color mode
- White balance
- AUTO, AUTOext, Manual, Preset
- Signal-to-noise ratio
- 50dB
- Video:
- Signal format
- AHD @ 4MP, EX-SDI @ 4MP, HD-SDI (1.485 Gbps), HD-TVI @ 4MP
- Frame rate
- 25/30fps @ 1920x1080p, 25/30fps @ 2560x1440p, 50/60fps @ 1280x720p
- Synchronization
- internal
- Lens:
- Lens Type
- auto focus zoom
- Zoom Factor
- 3x
- Focal Length
- 3,2 - 9 mm
- Digital Zoom
- yes
- MOD (Mininum Object Distance)
- 0,5 m
- Aperture range (F)
- F1.6
- Iris Control
- DC
- DORI:
- Detect (25px/m)
- 80 - 215 m
- Observe (62 px/m)
- 32 - 88 m
- Recognize (125 px/m)
- 14 - 43 m
- Identify (250 px/m)
- 6,6 - 21 m
- Functions:
- Motion detector
- yes
- Analysis functions
- Defog, Digital image stabilization
- OSD function control
- OSD camera setup
- Menu languages
- English, German, Japanese, Chinese, Korean
- Privacy zone masking
- Areas-ON/OFF switchable
- Mirror function
- V flip, H-flip, H/V flip
- Digital Noise Reduction
- yes
- Interfaces / Inputs/ Outputs:
- Video outputs
- AHD, EX-SDI, HD-SDI, HD-TVI
- External connectors
- voltage input, 1x SDI Signal (BNC), 1x HD Analog Signal (BNC)
- Alarm inputs
- no
- Alarm outputs
- no
- Serial interfaces
- Coaxitron (HD Protocol), RS-485
- Serial interfaces protocols
- UTC (HD-Signal Format)
- General:
- Brand
- ENEO
- Series
- eneo Candid Box, eneo COAXIZE, eneo KX-Series

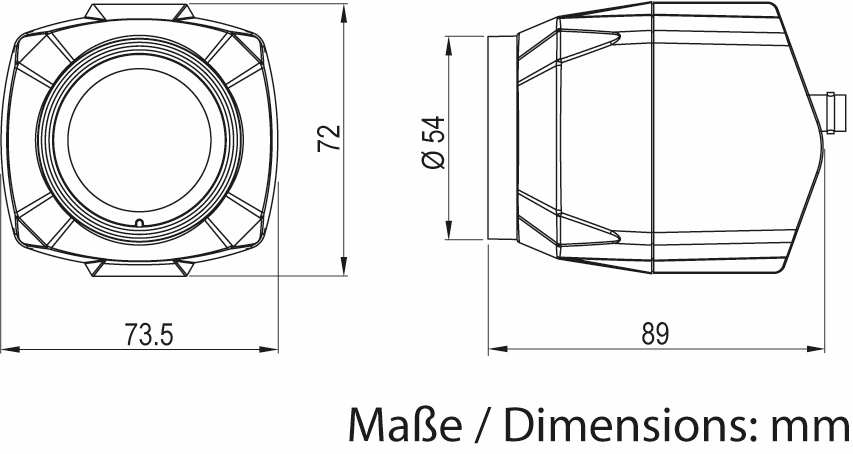

- Dimensions (HxWxD)
- 73.5x72x89mm
- Weight
- 300g
- Color (housing)
- Pantone Cool Gray 1C
- Housing
- Indoor
- Hosuing material
- Aluminium
- Power consumption
- 6W
- Supply voltage
- 12VDC, 24VAC
- Operating temperature
- -10°C ~ +50°C
- Text display
- supplied
- Vandal proof
- no
- Parts supplied:
- Parts supplied
- manual
- Other
- Imager
- CMOS
- Low Speed Shutter
- yes
- Backlight Compensation
- BLC, HLC
- Wide Dynamic Range (WDR)
- D-WDR, DOL-WDR 120dB, WDR 113dB
- Motion Detector
- yes
- Resolution Pixels
- 1280x720, 1920x1080, 2560x1440
- Vertical Angle of View
- 41 - 15°
- Horizontal Angle of View
- 75 - 26°
- Video standard
- PAL/NTSC
- Remarks
- NDAA compliance under Section 889
- Special features
- Pointing Zoom -- enables the flexible zooming at any area, Preset Zoom (4 adjustable positions)
- Manufacturer order number
- 218643
