MPC-52A0030M0A
SKU
233052

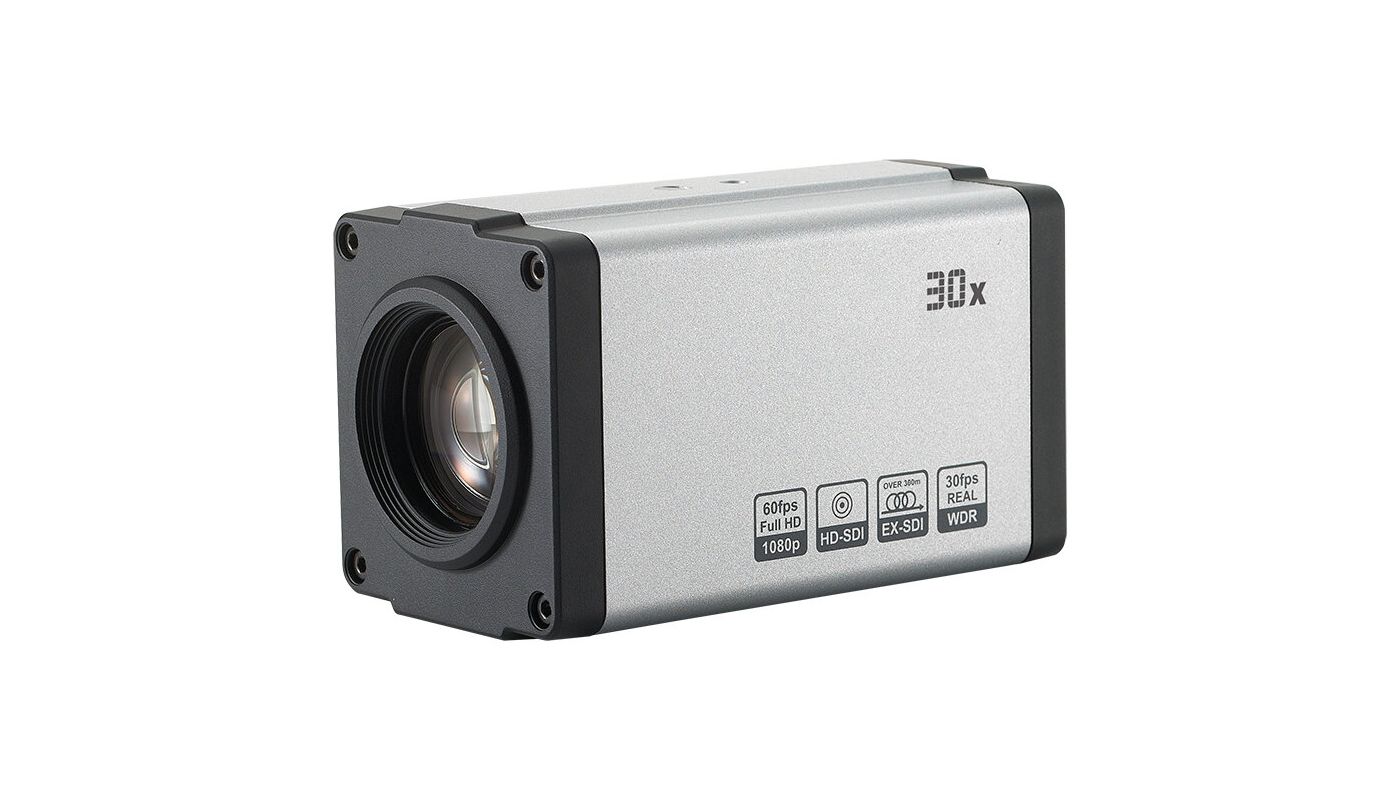

1/3“ HD Camera, 1920x1080, 30x AF Zoom 4,3-129mm, T-WDR, HD-SDI, EX-SDI, TVI, Composite
Main Features
1/3“ 2,0 Megapixel Panasonic CMOS-Sensor
Resolution max. 1920x1080, 1080p@60/50fps
Optical 30x Auto Focus Zoom, 4,3~129mm
Multisignal Output HD-SDI, EX-SDI, TVI, Composite
Real time True WDR
Digital Noise Reduction(2D+3D)
Digital Image Stabilization
Privacy Masking, Defog
Slow Speed Shutter
Compact Housing
Power Supply 12VDC
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Camera:
- Camera type
- Zoom Camera
- Sensor size
- 1/3"
- Imager
- Panasonic MN34422, CMOS
- Sensitivity
- 0,5 Lux at F1,6, 50 IRE
- System
- True Day&Night
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1/25 ~ 1/30.000sec
- Automatic electronic shutter (ESC)
- 1/25 ~ 1/30.000sec.
- Wide Dynamic Range (WDR)
- Real Time WDR 25/30fps, WDR 120dB
- Flickerless function
- yes
- Backlight compensation
- BLC, HLC
- Day&Night switch
- ICR
- Day&Night mode
- Automatic, Day, Night, extern (Sensor)
- White balance
- AUTO, One push, Manual, Indoor, Outdoor
- Signal-to-noise ratio
- 50dB
- Video:
- Signal format
- Composite (FBAS), EX-SDI (270 Mbps), HD-SDI (1.485 Gbps), HD-TVI @ 2MP
- Horizontal resolution
- 700 TVL
- Frame rate
- 25/30fps @ 1280x720p, 25/30fps @ 1920x1080p, 50/60fps @ 1280x720p, 50/60fps @ 1920x1080p
- Synchronization
- internal
- Lens:
- Lens Type
- auto focus zoom
- Zoom Factor
- 30x
- Focal Length
- 4,3 - 129 mm
- Digital Zoom
- yes
- MOD (Mininum Object Distance)
- 0,1 m
- Aperture range (F)
- F1.6~F4,7
- Iris Control
- DC
- DORI:
- Detect (25px/m)
- 71,2 - 2061,3 m
- Observe (62 px/m)
- 28,1 - 842,7 m
- Recognize (125 px/m)
- 13,6 - 411,5 m
- Identify (250 px/m)
- 6,6 - 208 m
- Functions:
- Motion detector
- yes
- Analysis functions
- Motion detection
- OSD function control
- OSD camera setup
- Menu languages
- English, Japanese, Chinese
- Privacy zone masking
- Areas-ON/OFF switchable
- Mirror function
- V flip, H-flip, H/V flip
- Digital Noise Reduction
- yes
- Digital noise reduction (DNR)
- yes
- Interfaces / Inputs/ Outputs:
- Video outputs
- Composite (CVBS), EX-SDI, HD-SDI, HD-TVI
- External connectors
- 1x SDI Signal (BNC), 1x HD/SD Analog Signal (BNC), 12VDC power input, RS-485, external day&night switching, Alarm output
- Alarm outputs
- 1
- Serial interfaces
- Coaxitron (HD Protocol), RS-485
- Serial interfaces protocols
- Pelco P, Pelco D, UTC (HD-Signal Format)
- General:
- Brand
- ENEO
- Dimensions (HxWxD)
- 74x67x121,5mm
- Weight
- 610g
- Illumination
- no
- Color (housing)
- black, silbermetallic
- Housing
- Indoor
- Hosuing material
- Aluminium
- Integrated wall mount
- no
- Power consumption
- 6W
- Supply voltage
- 12VDC
- Operating temperature
- -10°C ~ +50°C
- Text display
- supplied
- Vandal proof
- no
- Parts supplied:
- Parts supplied
- manual
- Other
- Imager
- CMOS
- Low Speed Shutter
- yes
- Backlight Compensation
- BLC, HLC
- Wide Dynamic Range (WDR)
- WDR 120dB
- Motion Detector
- yes
- Objektiv Typ
- auto focus zoom
- llumination
- no
- Resolution Pixels
- 1280x720, 1920x1080
- Vertical Angle of View
- 2,11 - 1,61°
- Horizontal Angle of View
- 58,9 - 45,3°
- Video standard
- PAL/NTSC
- Manufacturer order number
- 233052
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Documents PDF
- Detailed manual for this product
- Documents PDF
- Declaration of Conformity in German and English
- Media ZIP
- Product Image in a high resolution for print
