MPC-52A0010M0B
SKU
241967

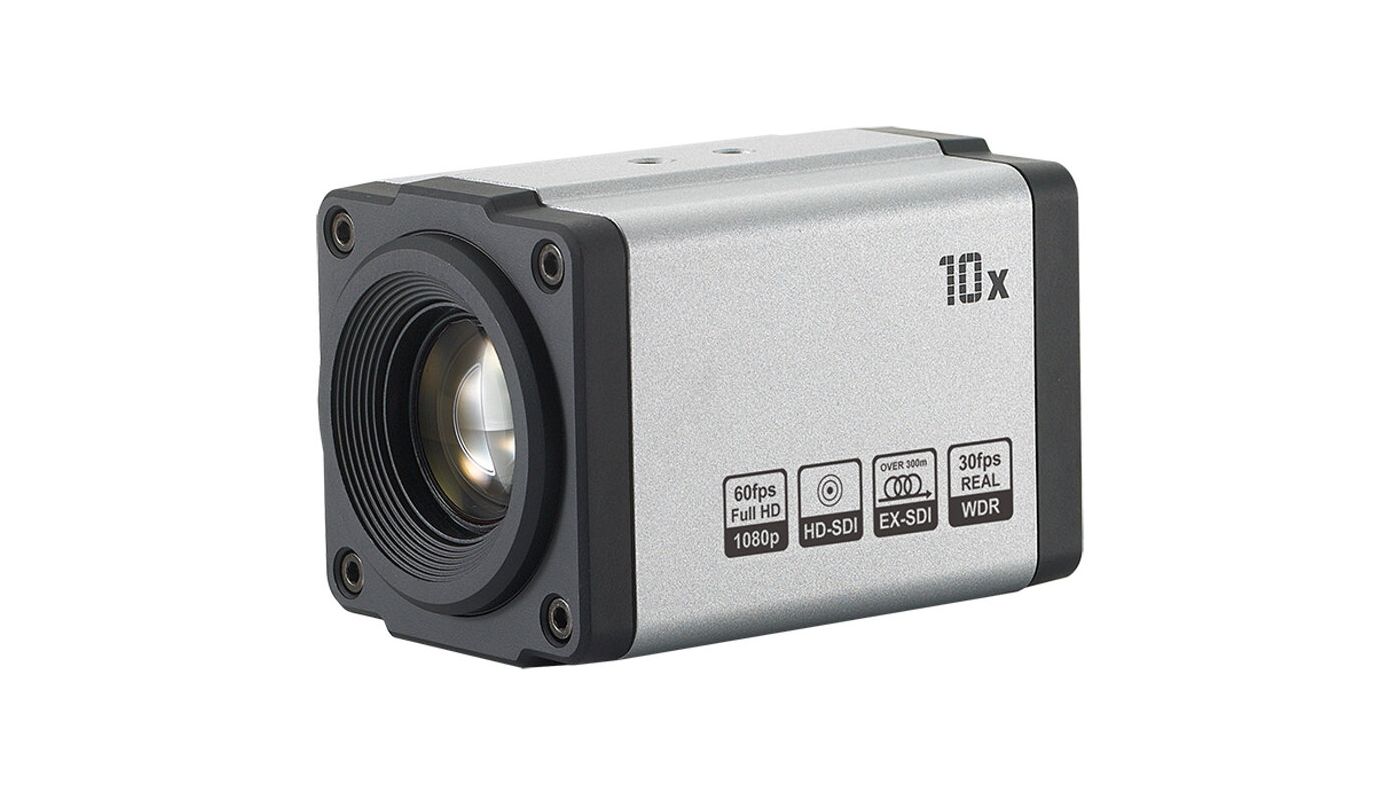

1/3" HD Camera, 1920x1080, 10x AF Zoom 5,1-51mm, T-WDR, HD-SDI, EX-SDI, TVI, Composite
Main Features
1/2,8" 2,0 Megapixel Sony CMOS-Sensor
Resolution max. 1920x1080, 1080p@60/50fps
Optical 10x Auto Focus Zoom, 5,1~51mm
Multisignal Output HD-SDI, EX-SDI, TVI, Composite
WDR 120dB, DNR, motion detector
Digital noise reduction (2D+3D)
Image stabilization, privacy masking, defog
Privacy Masking, Defog
Slow Speed Shutter
Compact Housing
Power Supply 12VDC
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- DORI:
- Detect (25px/m)
- 78 - 763 m
- Observe (62 px/m)
- 31,3 - 302,4 m
- Recognize (125 px/m)
- 15,2 - 150,3 m
- Identify (250 px/m)
- 7,5 - 75,5 m
- Other
- Brand
- ENEO
- Camera type
- Zoom Camera
- Sensor size
- 1/2.8"
- Resolution Pixels
- 1280x720, 1920x1080
- Imager
- Sony IMX462, CMOS
- Sensitivity
- 0,003 Lux
- System
- True Day&Night
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1/25 ~ 1/30.000sec
- Automatic electronic shutter (ESC)
- 1/25 ~ 1/30.000sec.
- Wide Dynamic Range (WDR)
- WDR 120dB
- Flickerless function
- yes
- Imager
- CMOS
- Backlight compensation
- BLC, HLC
- Day&Night switch
- ICR
- Day&Night mode
- Automatic, Day, Night, extern (Sensor)
- White balance
- AUTO
- Signal-to-noise ratio
- 50dB
- Low Speed Shutter
- yes
- Signal format
- Composite (FBAS), EX-SDI (270 Mbps), HD-SDI (1.485 Gbps), HD-TVI @ 2MP
- Backlight Compensation
- BLC, HLC
- Wide Dynamic Range (WDR)
- WDR 120dB
- Motion Detector
- yes
- Horizontal resolution
- 700 TVL
- Frame rate
- 25/30fps @ 1280x720p, 25/30fps @ 1920x1080p, 50/60fps @ 1280x720p, 50/60fps @ 1920x1080p
- Synchronization
- internal
- Lens Type
- auto focus zoom
- llumination
- no
- Zoom Factor
- 10x
- Focal Length
- 5,1 - 51 mm
- Digital Zoom
- yes
- MOD (Mininum Object Distance)
- 0,1 m
- Aperture range (F)
- F1.6~F1.8
- Iris Control
- DC
- Resolution Pixels
- 1280x720, 1920x1080
- Vertical Angle of View
- 34 - 3,5°
- Horizontal Angle of View
- 57 - 6,2°
- Video standard
- PAL/NTSC
- Motion detector
- yes
- Analysis functions
- Motion detection
- OSD function control
- OSD camera setup
- Menu languages
- English, Japanese, Chinese
- Privacy zone masking
- Areas-ON/OFF switchable
- Mirror function
- V flip, H-flip, H/V flip
- Digital Noise Reduction
- yes
- Video outputs
- Composite (CVBS), EX-SDI, HD-SDI, HD-TVI
- External connectors
- 1x SDI Signal (BNC), 1x HD/SD Analog Signal (BNC), 12VDC power input, RS-485, external day&night switching, Alarm output
- Alarm outputs
- 1
- Serial interfaces
- Coaxitron (HD Protocol), RS-485
- Serial interfaces protocols
- Pelco P, Pelco D, UTC (SD- Signal Format)
- Dimensions (HxWxD)
- 62,2x59,2x99,6mm
- Weight
- 360 g
- Illumination
- no
- Color (housing)
- black, silbermetallic
- Housing
- Indoor
- Hosuing material
- Aluminium
- Integrated wall mount
- no
- Power consumption
- 3W
- Supply voltage
- 12VDC
- Operating temperature
- -10°C ~ +50°C, @ Humidity 90% or less (non-condensing)
- Text display
- supplied
- Vandal proof
- no
- Parts supplied
- manual
- Manufacturer order number
- 241967
