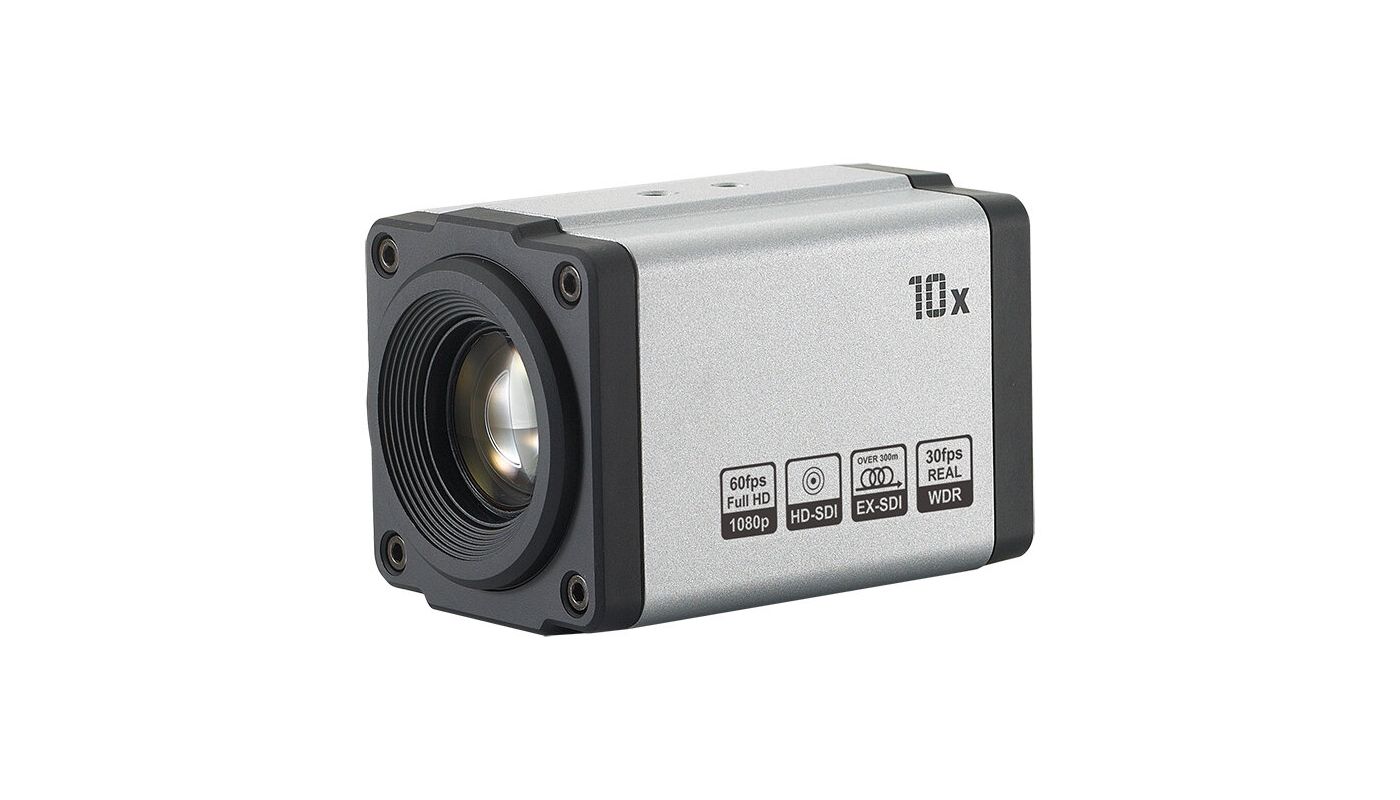

MPC-52A0010M0A
1/3“ HD Camera, 1920x1080, 10x AF Zoom 5,1-51mm, T-WDR, HD-SDI, EX-SDI, TVI, Composite
Art. No.
233051
- 1/3“ 2,0 Megapixel Panasonic CMOS-Sensor
- Resolution max. 1920x1080, 1080p@60/50fps
- Optical 10x Auto Focus Zoom, 5,1~51mm
- Multisignal Output HD-SDI, EX-SDI, TVI, Composite
- Real time True WDR
- Digital Noise Reduction(2D+3D)
- Digital Image Stabilization
- Privacy Masking, Defog
- Slow Speed Shutter
- Compact Housing
- Power Supply 12VDC
| Camera: | |
|---|---|
| Camera type | Zoom Camera |
| Sensor size | 1/3" |
| Imager | CMOS, Panasonic MN34422 |
| System | True Day&Night |
| Sensitivity | 0,5 Lux, at F1.6, 50 IRE |
| Low Speed Shutter | yes |
| Low speed shutter | automatic |
| Manual electronic shutter (MES) | 1/25 ~ 1/30.000sec |
| Automatic electronic shutter (ESC) | 1/25 ~ 1/30.000sec. |
| Wide Dynamic Range (WDR) | WDR 120dB, Real Time WDR 25/30fps |
| Flickerless function | yes |
| Backlight Compensation | BLC, HLC |
| Day&Night switch | ICR |
| Day&Night mode | Automatic, Day, Night, extern (Sensor) |
| White balance | AUTO, One push, Manual, Indoor, Outdoor |
| Signal-to-noise ratio | 50dB |
| Video: | |
| Signal format | HD-TVI @ 2MP, EX-SDI (270 Mbps), HD-SDI (1.485 Gbps), Composite (FBAS) |
| Horizontal resolution | 700 TVL |
| Frame rate | 50/60fps @ 1920x1080p, 25/30fps @ 1920x1080p, 50/60fps @ 1280x720p, 25/30fps @ 1280x720p |
| Synchronization | internal |
| Lens: | |
| Lens Type | auto focus zoom |
| Zoom Factor | 10x |
| Focal Length | 5,1 - 51 mm |
| Digital Zoom | yes |
| MOD (Mininum Object Distance) | 0,1 m |
| Aperture range (F) | F1.6~F1.8 |
| Iris Control | DC |
| Resolution Pixels | 1920x1080, 1280x720 |
| Vertical Angle of View | 31 - 4,0° |
| Horizontal Angle of View | 54 - 4,9° |
| Video standard | PAL/NTSC |
| DORI: | |
| Detect (25px/m) | 83,2 - 816 m |
| Observe (62 px/m) | 33,2 - 326 m |
| Recognize (125 px/m) | 16,4 - 164 m |
| Identify (250 px/m) | 8,1 - 82 m |
| Functions: | |
| Motion Detector | yes |
| Analysis functions | Motion detection |
| OSD function control | OSD camera setup |
| Menu languages | English, Japanese, Chinese |
| Privacy zone masking | Areas-ON/OFF switchable |
| Mirror function | V flip, H-flip, H/V flip |
| Digital Noise Reduction | yes |
| Interfaces / Inputs/ Outputs: | |
| Video outputs | HD-TVI, HD-SDI, EX-SDI, composite (CVBS) |
| External connectors | 1x SDI Signal (BNC), 1x HD/SD Analog Signal (BNC), 12VDC power input, RS-485, external day&night switching, Alarm output |
| Alarm outputs | 1 |
| Serial interfaces | RS-485, Coaxitron (HD Protocol) |
| Serial interfaces protocols | Pelco P, Pelco D, UTC (HD-Signal Format) |
| General: | |
| Dimensions (HxWxD) | 62x59x100mm |
| Weight | 420g |
| llumination | no |
| Color (housing) | silbermetallic, black |
| Housing | Indoor |
| Hosuing material | Aluminium |
| Integrated wall mount | no |
| Power consumption | 3W |
| Supply voltage | 12VDC |
| Operating temperature | -10°C ~ +50°C |
| Text display | supplied |
| Vandal proof | no |
| Parts supplied: | |
| Parts supplied | manuals |
