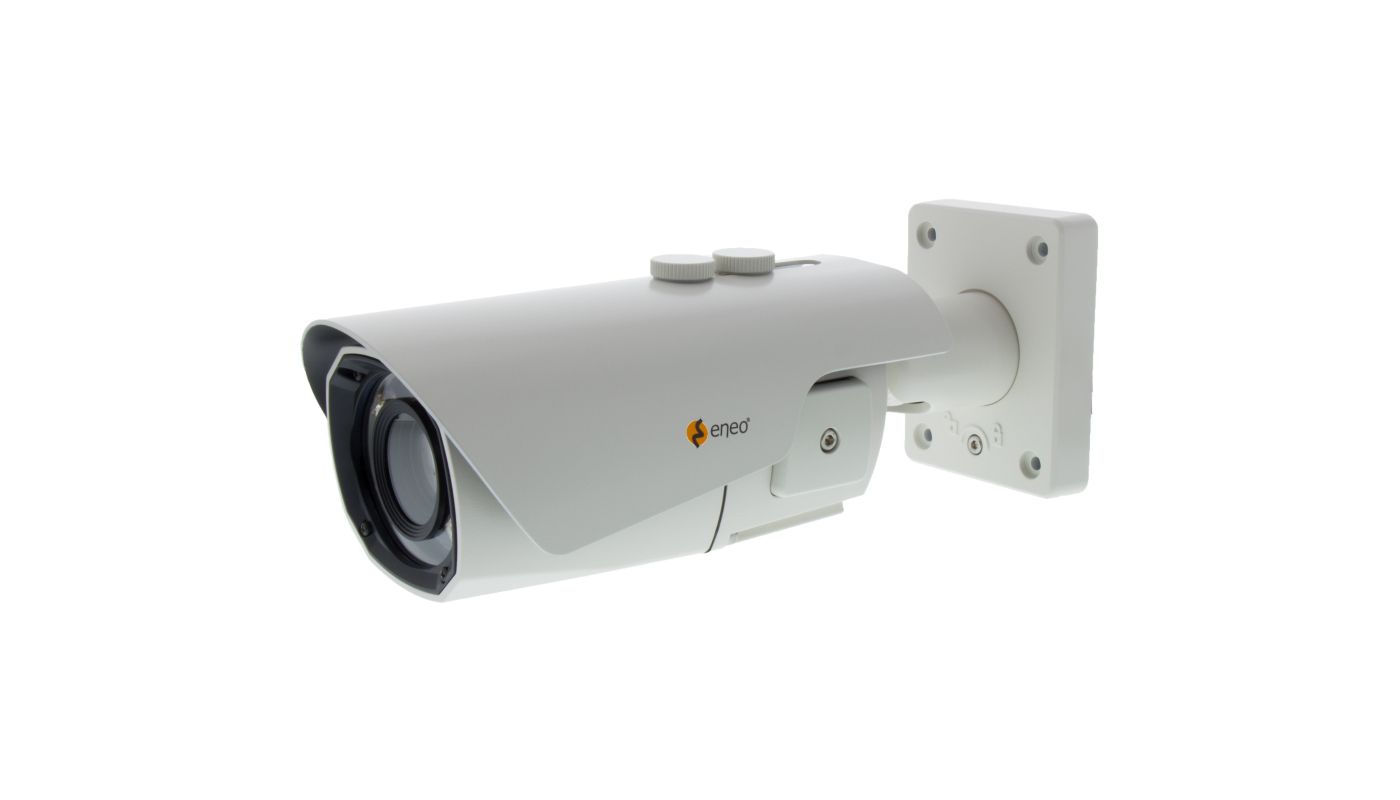

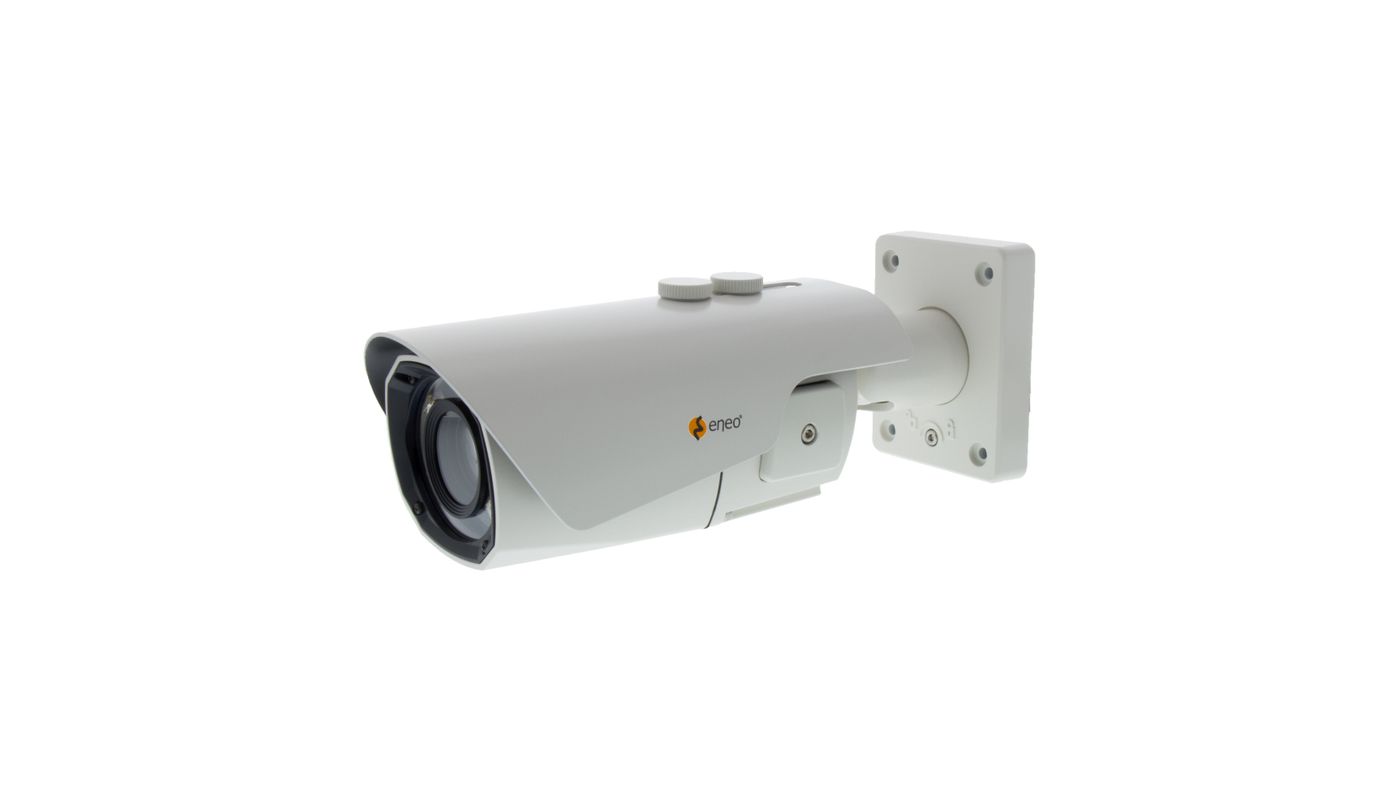

eneo MPB-72M2713M0B
Main Features
More Information
- Manufacturer order number
- 243648
- Brand
- ENEO
- Series
- eneo COAXIZE
Camera
- Camera shape
- Bullet
- Chip size
- 1/2,8"
- Recording sensor
- CMOS
- Photosensitivity
- 0.005Lux(Day mode),0.0005Lux(Night mode)
- System
- True Day&Night
- Low Speed Shutter
- Yes
- Flickerless function
- Yes
- Backlight compensation
- Yes
- Day/night switching
- Switchable IR Filter (ICR)
- Day/night mode
- Automatic,Day,Night,extern (Sensor)
- White balance
- Automatic,Preset,Manual,AUTOext
- Signal-to-noise ratio
- 50 dB
Video
- Signal Format
- AHD @ 2MP, Composite (FBAS), EX-SDI @ 2MP, HD-SDI @ 2MP, HD-TVI @ 2MP
- Resolution (extended)
- 1920x1080,1280x720,720x576,720x480
Lens
- Lens Type
- Varifocal (motorized)
- Focal length
- 2,7 - 13,5 mm
- Zoom Factor (Digital)
- 0
- Aperture Range (F)
- F1.6
- Vertical angle of view
- 54 - 18°
- Horizontal angle of view
- 101 - 32°
- Zoomfactor (optical)
- 4
Display
- Image resolution max.
- 1920x1080
DORI
- Perceiving (25px/m)
- 47 - 128 m
- Watch (62px/m)
- 18 - 52 m
- Detect (125px/m)
- 8 - 25 m
- Identify (250px/m)
- 4 - 12 m
Functions
- Motion detector
- Yes
- Menu languages
- Chinese, English, French, German, Japanese, Korean
- Digital Noise Reduction (DNR)
- Yes
Interfaces / Inputs/ Outputs
- Video Outputs
- Composite (FBAS)
- External connections
- voltage input,1x SDI Signal (BNC),1x HD/SD Analog Signal (BNC),connection cable approx.100cm
- Alarm inputs
- 0
- Number of alarm outputs
- 0
- Control Interfaces
- Coaxitron (HD Protocol)
- Interface Protocols
- UTC (HD Signal Format)
General
- Wide Dynamic Range (WDR)
- D-WDR
- Lighting
- Infrared
- Dimensions (WxHxD) (extended)
- 100x108x267mm
- Weight
- 1.35 kg
- Illumination range
- ca. 60m
- Color (Housing)
- Pantone Cool Gray 1C
- Housing type
- Outside
- Housing material
- Aluminium
- Heating
- No
- Integrated wall mount
- Yes
- Power consumption
- 8.5 W
- Mounting type
- Ceiling, Wall
- Protection
- IP67
- Sunshade canopy
- Yes
- Power supply
- 12VDC
- Temperature Range (Operating)
- -30°C ~ +50°C,@ Luftfeuchtigkeit 20%-80% (nicht kondensierend)
- Text overlay
- available
Parts supplied
- Scope of delivery
- Quick installation guide,drilling template,Easy Bracket,4x wall plugs with screws,video sub-output cable,4x M4x15mm screws,1x Allen wrench
Notes
- Remark
- NDAA compliance under Section 889
Further product information
Sony STARVIS 2
Improved low-light performance (especially with HDR)
STARVIS 2 offers significantly improved performance in low light, especially with high dynamic range (HDR). It has been specially optimised for backlit situations and night scenes with high contrast.
Higher dynamic range (High Dynamic Range)
STARVIS 2 achieves up to 88 dB real dynamic range (Single Exposure) according to Sony - that&039;s more than the original STARVIS. This helps to better display details in dark AND bright areas at the same time - without ‘burning out’ or ‘drowning out’ the image areas.
Uniform brightness across the image field
STARVIS 2 reduces the so-called vignetting effect (edge darkening) that can occur with BSI sensors. This means a more even image brightness, even in poorly lit conditions.
Better colour reproduction in low light
STARVIS 2 offers a more natural colour reproduction at night - colours appear less washed out or monochromatic. Particularly relevant for forensic applications (e.g. clothing, vehicles, skin tones).
