MNR-18N04000A
SKU
233903

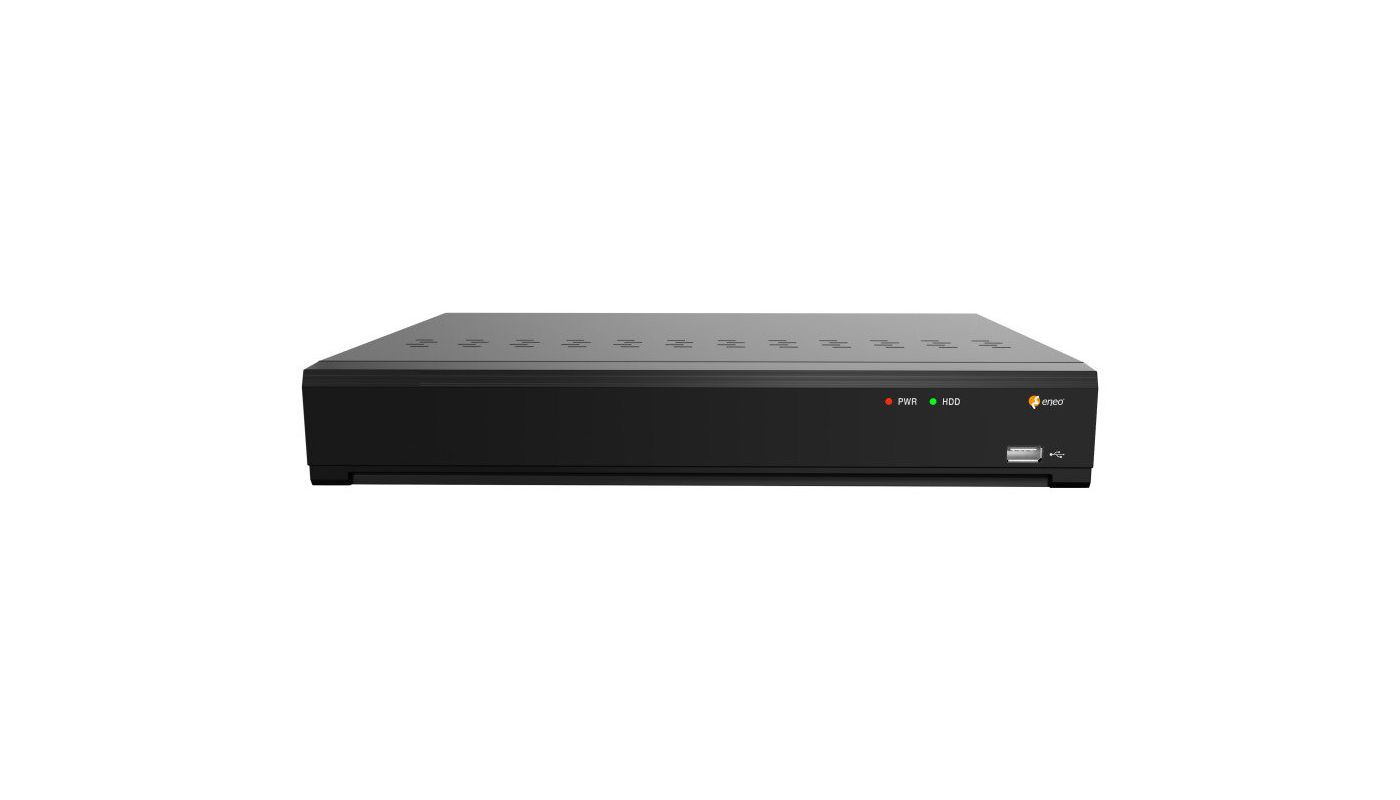

Hybrid HD Video Recorder 4-channel analogue, 2-ch. IP, HDMI, 1xSATA, w/o HDD
Main Features
4-channel pentaplex multisignal recorder
Supports IP, HD-TVI, AHD, CVBS signals
Max. 6 channels (4x analog + 2x IP)
Recording speed 28fps@8MP,48fps@5MP,120fps@2MP
Monitor outputs HDMI (4K),VGA and spot monitor CVBS
Maximum 1 internal hard disk possible
PTZ control via coaxial (UTC)
Audio/alarm inputs and outputs
USB 2.0 and RS-485 interface
Compression methods: H.264, H.265
Remote access via app, browser and CMS
USB mouse included
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Video:
- Signal format
- AHD @ 8MP, Composite (FBAS), HD-TVI @ 8MP, IP @ 8MP
- Compression
- H.264, H.265
- Display:
- Playback
- 4 channel split, full screen
- Zoom functions
- in full screen mode (live and playback operation)
- Live display
- 28fps @ 3840x2160 , 48fps @ 2592x1944, 60fps @ 2592x1520 , 120fps @ 1920x1080
- Video standard
- PAL/NTSC
- Recording:
- Operation mode
- Pentaplex
- Max. recording resolution
- 3840x2160
- Recording speed
- 28 fps @ 3840x2160 , 48 fps @ 2560x1920 , 60 fps @ 2560x1440 , 120 fps @ 1920x1080
- Recording rate max.
- @1920x1080
- Recording
- permanent, manual, movement, AI, event
- Pre-alarm recording
- up to 5sec.
- Post-alarm recording
- up to 5min.
- Functions:
- Motion detector
- Free selectable areas
- Analysis functions
- Intrusion, Line detection, Object classification (person / vehicle), Obstruction detection, The recorder hardware (on board) provides the following analysis functions for analog cameras
- Alarm notification
- e-mail notification, alarm output, remote software, Live Popup, Spot Popup, Buzzer, FTP, PTZ Preset, Push (Mobile)
- Alarm triggers
- contact, motion detection, video loss, disk error, AI
- Password protection
- administrator & users
- HDD hotswap
- no
- Menu languages
- English, German, French, Spanish, Italian, Russian, Portugese, Polish, Turkish, Romanian, Danish, Dutch, Finnish, Bulgarian, Greek, Japanese, Korean, Thai, Arabic, Hebrew, Hindi
- Remote access
- Microsoft Internet Explorer, remote software
- Mobiel access
- iPhone, Android OS
- Search function
- date/time, event, text, Thumbnail, Instant Playback
- Time synchronization
- NTP
- Covert camera mode
- yes
- Network:
- Network
- 10/100 Base-Tx, RJ45
- Network protocols
- TCP/IP, DHCP, RTP, RTSP, SMTP, NTP, HTTP, HTTPS, FTP, DDNS, UPnP, DNS, SNMP
- Data tranfer rate max.
- 48 Mbps
- Data transfer rate incoming
- 12 Mbps
- Data transfer rate outgoing
- 36 Mbps
- Interfaces / Inputs/ Outputs:
- IP channels
- 2 (6 IP only)
- Channels total
- 6
- Video inputs (amount)
- 4
- Video inputs
- BNC-female, automatic resolution and signal detection
- Main video outputs
- HDMI (4K), VGA
- Spot monitor
- composite (CVBS)
- Interfaces external storage
- USB
- Interfaces external storage
- 1x NetHDD (SMB,NFS), Google Drive 2 channels, Dropbox 2 channels
- Alarm inputs
- 4
- Alarm outputs
- 1
- Audio inputs
- 4
- Audio inputs
- RCA, 4
- Audio output
- RCA
- Serial interfaces
- Coaxitron (HD Protocol), RS-485
- Serial interfaces protocols
- Pelco D, Pelco P, coax1, coax2
- General:
- Brand
- ENEO
- Series
- eneo IN-Series
- Dimensions (HxWxD)
- 300X227X53mm
- Weight
- 1,03kg
- 19" rack mount
- no
- HDD slots
- 1x SATA
- Control units (external)
- mouse
- Color
- black
- Internal HDD capacity
- 0 TB
- Max. internal HDD capacity
- 10 TB
- Housing
- Metal/Plastic
- Integrated writer
- no
- Power consumption
- 4.7W, without HDD
- Blower
- no
- ONVIF
- ONVIF Profile S, yes
- RAID
- n/a
- Supply voltage
- 12VDC
- Operating temperature
- 0°C ~ +40°C
- EAN/GTIN
- 4260229840252
- Parts supplied:
- Parts supplied
- PSU, HDD assembly-kit, mouse, manual
- Other
- Recording rate max.
- 120 fps
- Alarmeingänge
- 4
- Operation mode
- Pentaplex
- Operating system
- Linux
- Remarks
- NDAA compliance under Section 889, Note: For two freely definable channels, the alarm recording can be saved in the cloud., To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
- Special features
- Channels can be assigned with IP or different HD / SD signal formats (mixed operation possible)
- Farbe
- black
- Gehäuse
- Metal/Plastic
- Manufacturer order number
- 233903
