SKU 230039
Hybrid HD Video Recorder, 8-ch. analogue, 240fps, HD-TVI AHD, IP, 2xSATA, HDMI, w/o HDD

Main Features

8-Channel Pentaplex Multisignal Recorder
IP, HD-TVI, AHD, CVBS signals supported
Max. 16-Channel (e.g., 8x IP + 8x analogue or 16x IP)
Recording speed IP 240fps@8MP, 240fps@5MP, 480fps@2MP
Monitor output HDMI (4K), VGA and Spot CVBS
Easy installation of the hard disk(s)
PTZ control via coax (UTC)
Audio/Alarm In- and Output
USB 2.0 and RS-485 interface
Compression Method: H.264, H.265

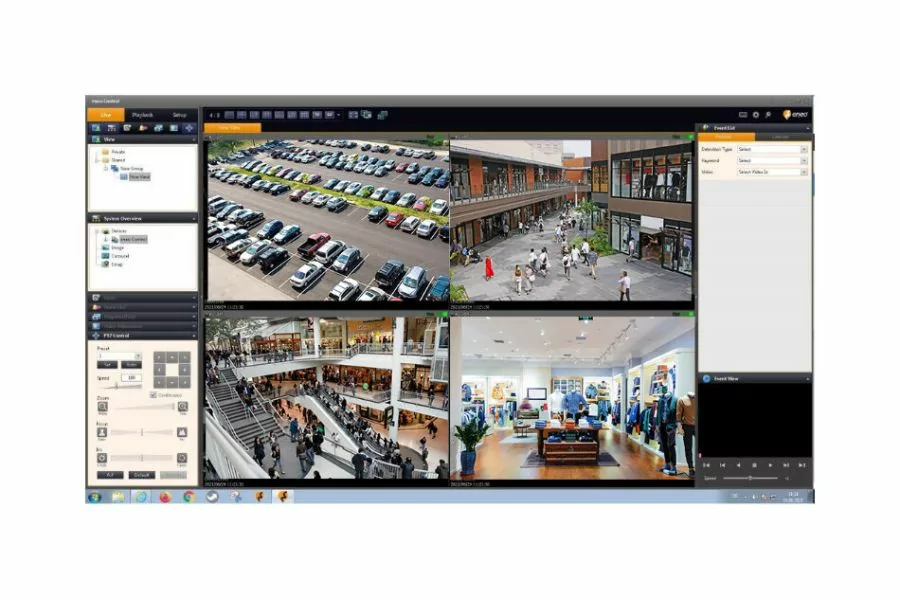

Remote access via App, Browser and CMS
IR remote control and USB-Mouse included
arrow-right Buy now You will be redirected to our shop on Videor.com for purchase.

More Information

Video:

Signal format
AHD @ 8MP, Composite (FBAS), HD-TVI @ 8MP, IP @ 8MP
Compression
H.264, H.265
Display:

Playback
16 channel split, 4 channel split, 9 channel split, full screen
Zoom functions
in full screen mode (live and playback operation)
Live display
3840x2160, 1920x1080, 1280x720, max. 240fps
Video standard
PAL/NTSC
Recording:

Operation mode
Pentaplex
Max. recording resolution
3840x2160
Recording speed
64 fps @ 3840x2160 Analog, 80 fps @ 2560x1920 Analog, 120 fps @ 2560x1440 Analog, 144 fps @ 1984x1488 Analog, 240 fps @ 1920x1080, 240 fps @ 3840x2160 IP, 240 fps @ 2560x1920 IP, 480 fps @ 2560x1440 IP, 480 fps @ 1984x1488 IP, 240 fps @ 1920x1080 IP
Recording rate max.
@1920x1080
Recording
permanent, timer, movement, contact, PoS-Text, panic
Pre-alarm recording
up to 15sec.
Post-alarm recording
up to 180sec.
Functions:

Motion detector
Free selectable areas
Alarm notification
e-mail notification, alarm output, Live Popup, Buzzer, FTP, PTZ Preset
Alarm triggers
contact, motion detection, video loss, PoS-Text, eystem error, Panic Record
Password protection
administrator & users
Digital signature
watermark
HDD hotswap
no
Menu languages
English, German
Remote access
Microsoft Internet Explorer, remote software
Mobiel access
iPhone, Android OS
Search function
date/time, event, calendar, text, Thumbnail, Instant Playback, bookmark
Time synchronization
NTP
Covert camera mode
yes
Patrol mode
yes
Network:

Network
10/100/1000 Base-Tx, RJ45
Network protocols
TCP/IP, DHCP, IPv4, IPv6, RTP, RTCP, SMTP, NTP, HTTP, HTTPS, FTP, DDNS, UPnP
Data tranfer rate max.
192 Mbps
Data transfer rate incoming
96 Mbps
Data transfer rate outgoing
96 Mbps
Interfaces / Inputs/ Outputs:

IP channels
16
Channels total
16
Video inputs (amount)
8
Video inputs
BNC-female, automatic resolution and signal detection
Main video outputs
HDMI (4K), VGA
Spot monitor
composite (CVBS)
Interfaces external storage
USB
Alarm outputs
1x NO/NC contact
Audio inputs
1
Audio inputs
RCA, 4
Audio output
HDMI, RCA
Serial interfaces
Coaxitron (HD Protocol), RS-485
Serial interfaces protocols
Fastrax IIE, Pelco D, Pelco P, UTC (HD-Signal Format)
General:

Brand
ENEO
Dimensions (HxWxD)
44x380x314,6mm
Weight
2.5kg
19" rack mount
yes
HDD slots
2x SATA
Control units (external)
mouse, remote control
Color
anthracite / black
Internal HDD capacity
0 TB
Max. internal HDD capacity
32 TB
Housing
Metal/Plastic
Integrated writer
no
Power consumption
13W, without HDD
Blower
yes
RAID
n/a
Operating temperature
0°C ~ +40°C
Parts supplied:

Parts supplied
IR remote controller, PSU, HDD assembly-kit, mouse, 19" rack mount angle, manual
Other

Recording rate max.
480 fps
Alarmeingänge
8x TTL, programmierbar als Öffner / Schließer
Operation mode
Pentaplex
Operating system
Linux
Special features
16 universal analogue inputs plus 8 fixed IP channels allow the connection of up to 16 cameras., The existing analogue channels support SD & HD signal standards for connecting analogue cameras or serve as defined IP channels for connecting IP cameras., (Examples: 8x IP + 8x Analog; 10x IP + 6x Analog; 16x IP)
Farbe
anthracite / black
Gehäuse
Metal/Plastic
Manufacturer order number
230039

Further product information

  8 Kanal Hybrid Rekorder für das Upgrade von BestandssystemenMit dem leistungsstarken 8 Kanal Hybrid Rekorder MHR-28N08005A binden Sie bis zu 8 IP-Kameras und bis zu 8 weitere HD Analog, HD-TVI oder Analog-Kameras in Ihre Videosicherheitslösung ein. Für Videoaufzeichnungen von herausragender Bildqualität sowohl in reinen IP-Anwendungen als auch im Mischbetrieb sorgt die maximale Videoauflösung von bis zu 8 Megapixeln pro Kanal. Maßgeschneiderte Videosicherheit Mit dem eneo Hybrid Rekorder haben Sie vielfältige Möglichkeiten, um Bestandssysteme zu einer Hybridlösung weiterzuentwickeln, die Videoansichten und Videoaufzeichnungen von überragender Bildqualität liefert. Dabei verarbeitet der eneo 8 Kanal Hybrid Rekorder IP-Signale ebenso problemlos wie die Signale von AHD-Kameras, HD-TVI-Kameras und herkömmlichen analogen Videoüberwachungskameras. Und dank der automatischen Videosignalerkennung ist der MHR-28N08005A im Nu einsatzbereit. Anwenderfreundlicher und leistungsfähiger MultitaskerDie Pentaplex-Funktion erlaubt die gleichzeitige Nutzung der Live-Anzeige sowie der Aufnahme-, Wiedergabe- und Backup-Funktion. Zudem ermöglichen die verschiedenen Wiedergabemodi (16-Kanal Split, 9-Kanal Split, 4-Kanal Split, Vollbild) und Suchfunktionen des Hybrid Rekorders eine komfortable Live-Ansicht sowie die gezielten Sichtung der Aufzeichnungen. So können Sie gespeicherte Videos nach Ereignissen, Textmerkmalen oder anhand von Datum und Uhrzeit durchsuchen. Dabei können Sie exakt steuern, wann und was aufgezeichnet wird. Sie entscheiden, ob die Videodaten permanent oder zeitplangesteuert gespeichert werden oder ob die Aufzeichnung bei Bewegung im Überwachungsbereich oder durch bestimmten PoS-Text ausgelöst wird. Remote Verwaltung mit lizenzfreier Steuerungs-SoftwareMit der Client-basierten Steuerungs-Software eneo Control und der App eneo Control mobile können Sie den eneo Hybridrekorder per Fernzugriff steuern und verwalten. Die Software stellt eneo kostenlos zur Verfügung. Die Bedienoberfläche können Sie an Ihre persönlichen Präferenzen anpassen. Außerdem können Sie die Videoansichten im Drag-and-Drop-Verfahren organisieren und die PTZ-Funktion von Kameras mit der Computer-Maus steuern. Und ein zweistufiges Authentifizierungsverfahren schützt die auf dem Hybrid Rekorder gespeicherten Daten vor unautorisierten Zugriffen.
