MED-65M2812M0A
SKU
233706

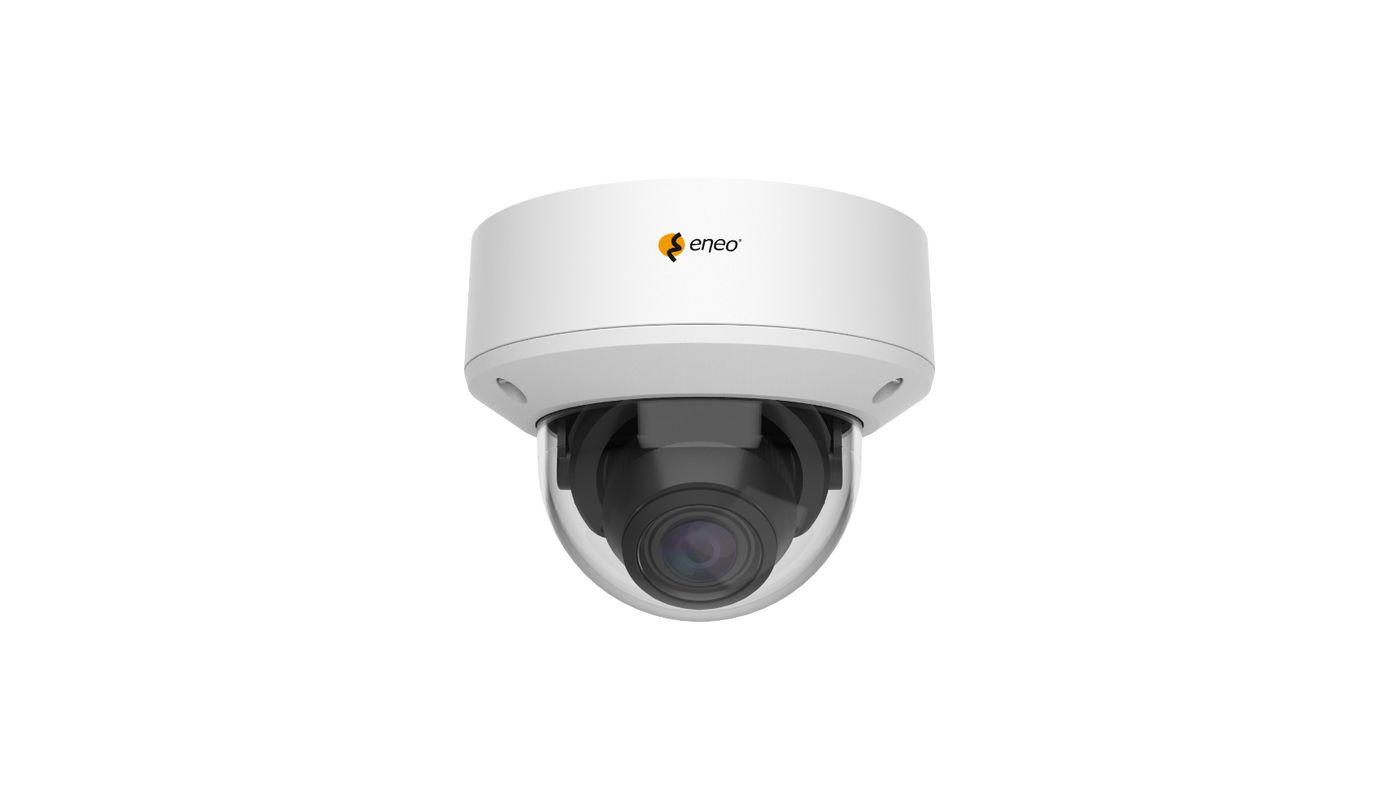

1/2,8" HD Dome, Fix, Day&Night, 2592x1944, Infrared 2,7-13,5mm, 12VDC, IP67
Main Features
1/2.8" CMOS Image Sensor
Resolution max. 2592x1944
multi-signal: HD-TVI, AHD, CVI, CVBS
2,7-13,5 mm lens with variable focal length (motorized)
Day/night switching (ICR)
2D+3D DNR (Digital Noise Reduction)
Automatic exposure control (1/30s~1/50,000s)
Lens shading correction
IR LED illumination integrated
For outdoor use degree of protection IP67
12VDC power supply
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Camera:
- Camera type
- Dome
- Sensor size
- 1/2.8"
- Imager
- Sony, Sensor IMX335, CMOS
- Sensitivity
- 0,05 Lux at F1,2
- System
- True Day&Night
- Low speed shutter
- no
- Manual electronic shutter (MES)
- 1/30 ~ 1/50.000sec.
- Automatic electronic shutter (ESC)
- 1/30 ~ 1/50.000sec.
- Wide Dynamic Range (WDR)
- WDR 120dB
- Backlight compensation
- BLC
- Day&Night switch
- ICR
- Day&Night mode
- Automatic, Day, Night
- White balance
- Manual, Automatic
- Signal-to-noise ratio
- 50dB
- Video:
- Signal format
- AHD @ 2MP, AHD @ 4MP, AHD @ 5MP, Composite (FBAS), CVI @ 2MP, CVI @ 4MP, HD-TVI @ 2MP, HD-TVI @ 4MP, HD-TVI @ 5MP
- Frame rate
- 20fps @ 2592x1944p, 25/30fps @ 1920x1080p, 25/30fps @ 2560x1440p
- Synchronization
- internal
- Lens:
- Lens Type
- Varifocal (motorized)
- Zoom Factor
- 4x
- Focal Length
- 2,7 - 13,5 mm
- Digital Zoom
- no
- MOD (Mininum Object Distance)
- 0,8 m
- Aperture range (F)
- F1.8~F3.3
- Iris Control
- DC
- DORI:
- Detect (25px/m)
- 62,5 - 260,3 m
- Observe (62 px/m)
- 24,3 - 104,5 m
- Recognize (125 px/m)
- 11,5 - 52,2 m
- Identify (250 px/m)
- 5,2 - 25,6 m
- Functions:
- Motion detector
- no
- Menu languages
- English, French, Italian, Spanish, Polish, Russian, Portugese, Chinese, Japanese
- Privacy zone masking
- Areas-ON/OFF switchable
- Mirror function
- mirror, V flip
- Digital Noise Reduction
- 2D-DNR, 3D-DNR
- Digital noise reduction (DNR)
- 2D-DNR, 3D-DNR
- Interfaces / Inputs/ Outputs:
- Video outputs
- AHD, Composite (CVBS), HD-TVI
- External connectors
- 12VDC power input, video (BNC)
- Alarm inputs
- no
- Alarm outputs
- no
- Serial interfaces
- Coaxitron (HD Protocol)
- General:
- Brand
- ENEO
- Series
- eneo COAXIZE, eneo IN-Series
- Dimensions (HxWxD)
- 148.0x109.0mm
- Weight
- 875g
- Illumination
- 4x LED 850nm, Infrared
- Illumination range
- approx. 35m
- Color (housing)
- Pantone P 179-1, RAL9003
- Housing
- Outdoor
- Hosuing material
- Aluminium
- Heater
- no
- Power consumption
- 6.5W
- Mounting
- Ceiling mount, Wall mount
- Protection rating
- IP67
- Supply voltage
- 12VDC
- Operating temperature
- -30°C ~ +55°C
- Text display
- supplied
- Vandal proof
- yes
- Certifications
- IK10
- EAN/GTIN
- 4260229840337
- Parts supplied:
- Parts supplied
- manual, bag of screws
- Notes:
- Remarks
- NDAA compliance under Section 889
- Other
- Imager
- CMOS
- Low Speed Shutter
- no
- Backlight Compensation
- BLC
- Wide Dynamic Range (WDR)
- WDR 120dB
- Motion Detector
- no
- Objektiv Typ
- Varifocal (motorized)
- llumination
- Infrared
- Resolution Pixels
- 1920x1080, 2560x1440, 2592x1944, 960x540
- Vertical Angle of View
- 57,3 - 18,3°
- Horizontal Angle of View
- 110,6 - 32,6°
- Video standard
- PAL/NTSC
- Manufacturer order number
- 233706
