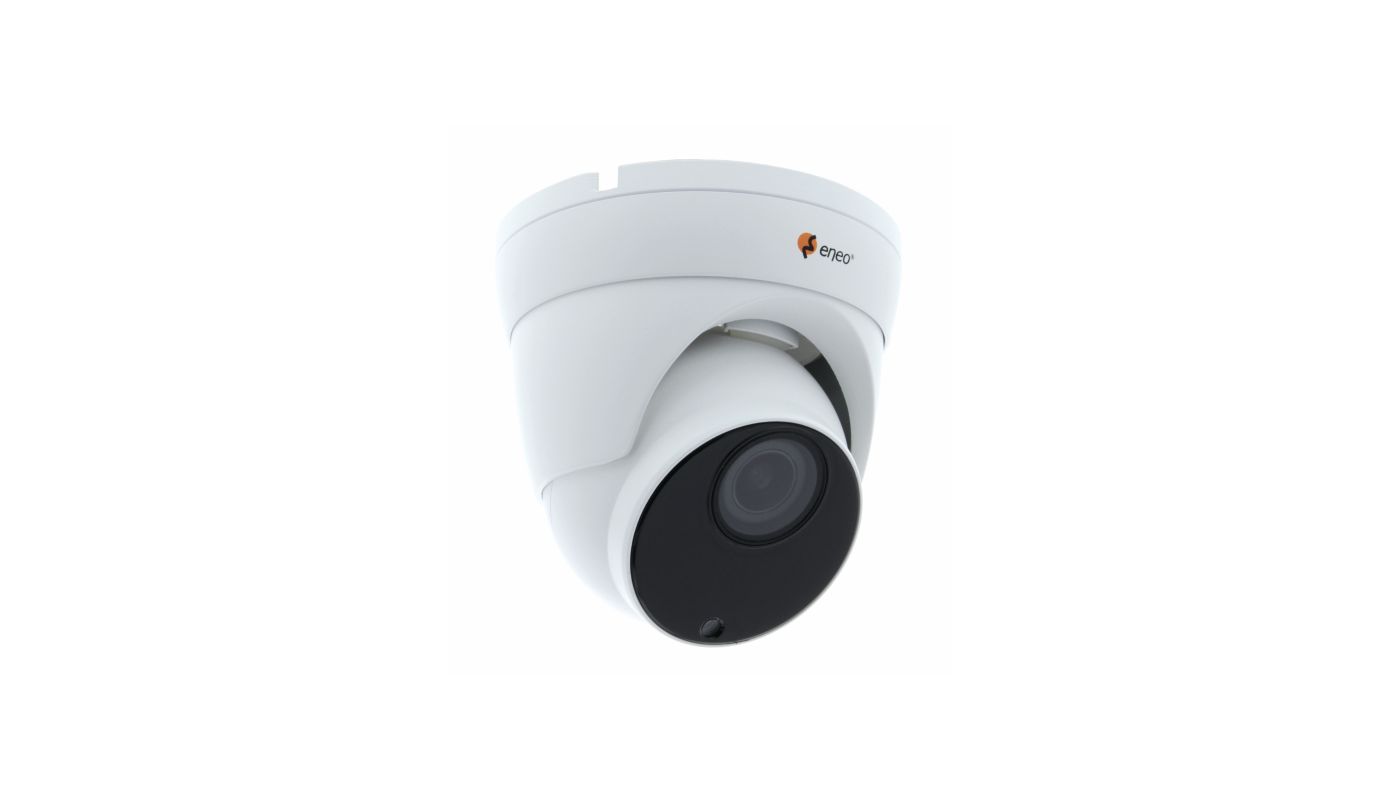

MED-65M2713MBA

1/2,7" HD Dome, Fix, Day&Night, 2592x1944, Infrared 2,7-13mm, 12VDC, IP66
Art. No.
225248
  • 1/2,7" CMOS Image Sensor
  • Resolution max. 2592x1944
  • Multisignal: HD-TVI, AHD, CVI, CVBS
  • Motorised varifocal 2.7~13mm
  • Removable infrared cut filter
  • 2D/-3D-DNR noise reduction
  • Digital Wide Dynamic Range (D-WDR), Defog
  • LDC function(Lens Distortion Correction)
  • OSD menu control and signal switching possible via joystick in the cable feed
  • Compact housing for outdoor IP66
Specifications
Series EX-Series, eneo COAXIZE
Camera:
Camera type Dome
Sensor size 1/2.7"
Resolution Pixels 960x576, 2592x1944, 2560x1440
Imager CMOS, SmartSens, SC5235
System True Day&Night
Sensitivity 0,05 Lux, at F1.6, 50 IRE
Low Speed Shutter no
Manual electronic shutter (MES) 1/15 ~ 1/50.000sec..
Automatic electronic shutter (ESC) 1/15 ~ 1/50.000sec.
Wide Dynamic Range (WDR) D-WDR
Flickerless function yes
Backlight Compensation BLC
Day&Night switch ICR
Day&Night mode auto, day, night
White balance automatic
Signal-to-noise ratio 50dB
Video:
Signal format Composite (FBAS), HD-TVI @ 5MP, AHD @ 5MP, CVI @ 4MP
Frame rate 20fps @ 2592x1944p, 25/30fps @ 2560x1440p
Synchronization internal
Lens:
Lens Type Varifocal (motorized)
Zoom Factor 4x
Focal Length 2,7 - 13,5 mm
Digital Zoom no
MOD (Mininum Object Distance) 0,8 m
Iris Control DC
Vertical Angle of View 59,5 - 19°
Horizontal Angle of View 115,9 - 33,8°
Video standard PAL/NTSC
DORI:
Detect (25px/m) 55 - 170 m
Observe (62 px/m) 22 - 68 m
Recognize (125 px/m) 10 - 34 m
Identify (250 px/m) 3 - 16 m
Functions:
Motion Detector no
Menu languages German, English, French, Italian, Spanish, Turkish, Dutch, Portugese, Polish, Chinese, Russian
Privacy zone masking no
Mirror function mirror, V flip, rotation
Digital Noise Reduction yes
Interfaces / Inputs/ Outputs:
Video outputs HD-TVI, AHD, CVI, composite (CVBS)
External connectors video (BNC), 12VDC power input
Alarm inputs no
Alarm outputs no
Serial interfaces Coaxitron (HD Protocol)
Serial interfaces protocols TVI-UTC
General:
Dimensions (HxWxD) 135.4 x 127.7mm
Weight 770 g
llumination infrared
Illumination 40x IR-LEDs 850nm, 60°
Illumination range approx. 30m
Color (housing) RAL9016
Color (bubble) clear
Housing outdoor
Hosuing material aluminium
Heater no
Power consumption 5.3W
Blower no
Mounting wall mount, ceiling mount
Protection rating IP66
Supply voltage 12VDC
Operating temperature -20°C ~ +50°C
Text display supplied
Vandal proof no
Parts supplied:
Parts supplied manuals, bag of screws
More Choices:
  1. PS12DC-11
    Art. No.: 218653 PS12DC-11
    Plug-in Power Supply Unit, 100-240VAC/12VDC (1,0A), regulated, with DC Plug
  2. TVA-1201TRA
    Art. No.: 212984 TVA-1201TRA
    UTP Transmitter+Receiver, UTP, BNC, 250m, Indoor, HD TVI CVI, AHD, CVBS, Active, 12V

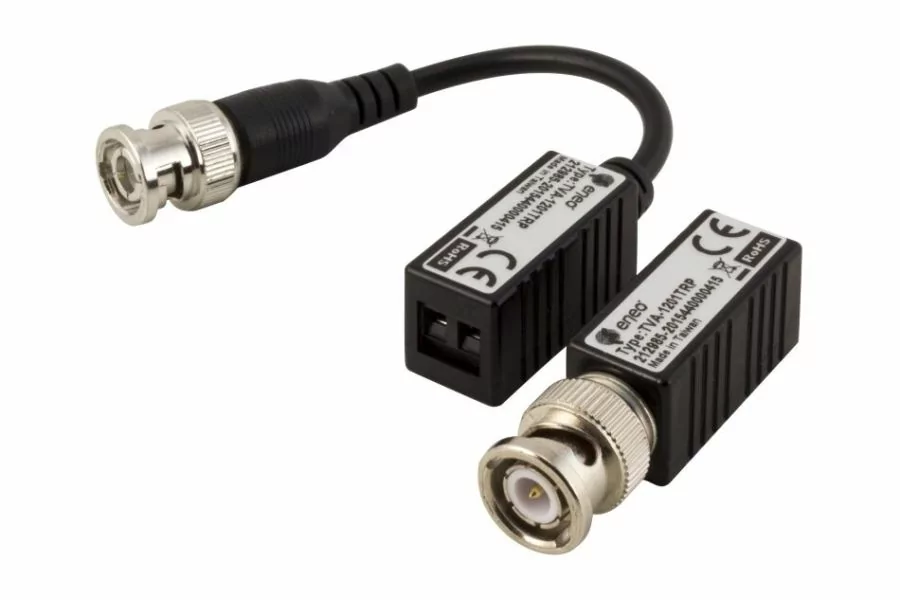

  3. TVA-1201TRP
