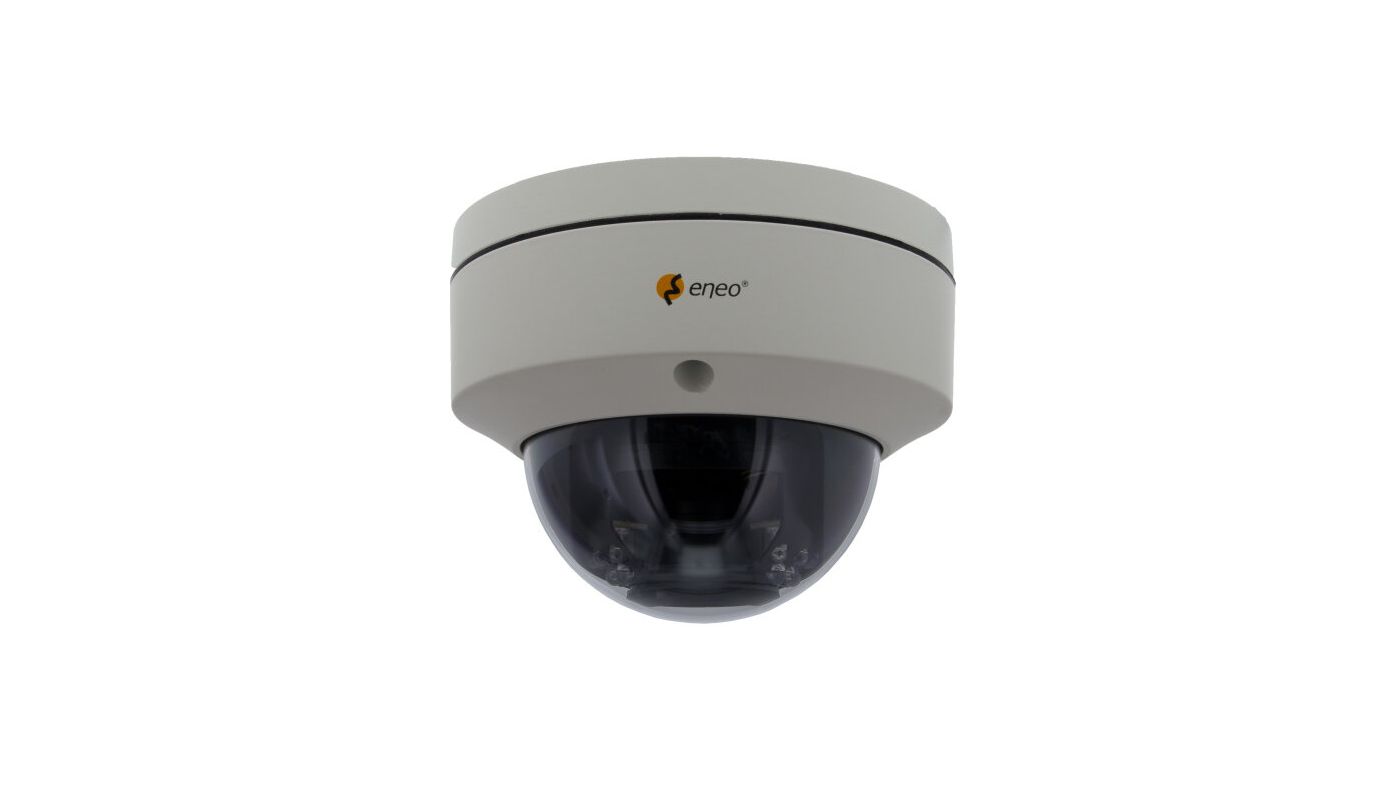

MED-62V2713M0A
1/2,8" HD Dome, Fix, Day&Night 1920x1080, Lens 2,7-13,5mm, IR LED, 12VDC, IP66
Art. No.
233015
- 1/2.8" 2.3 Megapixel progressive scan CMOS sensor
- Compact metal housing for outdoor use
- Resolution max. 1920x1080 (Full HD)
- Multisignal: HD-TVI, AHD, CVI, Composite selectable
- Variofocal 2.8~12mm day&night lens
- LSC (Lens shading compensation)
- Removable infrared cut filter
- RS-485 control in-output
- 3D-DNR noise reduction
- Integral motion detection
- Scratch resistant hard coated bubble
- Easy installation, 3-Axis gimbal
| Series | eneo KX-Series |
|---|---|
| Camera: | |
| Camera type | Dome |
| Sensor size | 1/2.8" |
| Resolution Pixels | 960x576, 1920x1080 |
| Imager | CMOS, Sony, Sensor IMX323 |
| System | True Day&Night |
| Sensitivity | 0,3 Lux, at F1.3, 40IRE |
| Low Speed Shutter | yes |
| Low speed shutter | automatic |
| Manual electronic shutter (MES) | 1/25 ~ 1/50.000sec. |
| Automatic electronic shutter (ESC) | 1/25 ~ 1/50.000sec.. |
| Wide Dynamic Range (WDR) | D-WDR |
| Flickerless function | yes |
| Backlight Compensation | BLC, HLC |
| Day&Night switch | ICR |
| White balance | ATW, AWB, Manual, Outdoor, Indoor, AWC |
| Signal-to-noise ratio | 52db |
| Video: | |
| Signal format | Composite (FBAS), HD-TVI @ 2MP, AHD @ 2MP, CVI @ 2MP |
| Frame rate | 25/30fps @ 1920x1080p |
| Synchronization | internal |
| Lens: | |
| Lens Type | Varifocal |
| Zoom Factor | 4x |
| Focal Length | 2,7 - 13,5 mm |
| Digital Zoom | no |
| MOD (Mininum Object Distance) | 0,5 m |
| Aperture range (F) | F1,3 |
| Iris Control | DC |
| Vertical Angle of View | 49 - 15° |
| Horizontal Angle of View | 95 - 27° |
| Video standard | PAL/NTSC |
| DORI: | |
| Detect (25px/m) | 44 - 198 m |
| Observe (62 px/m) | 16,6 - 80,5 m |
| Recognize (125 px/m) | 8,2 - 40,1 m |
| Identify (250 px/m) | 3,9 - 20,1 m |
| Functions: | |
| Motion Detector | yes |
| Analysis functions | Defog |
| Vertical tilt range | 65 °(25 ~ 90°) |
| OSD function control | OSD camera setup |
| Menu languages | German, English, French, Italian, Spanish, Turkish, Dutch, Portugese, Polish, Chinese, Russian |
| Privacy zone masking | Areas-ON/OFF switchable |
| Mirror function | rotation, mirror, V flip |
| Digital Noise Reduction | yes |
| Interfaces / Inputs/ Outputs: | |
| Video outputs | HD-TVI, AHD, CVI, composite (CVBS) |
| External connectors | video (BNC), 12VDC power input, connection cable approx.40cm |
| Alarm inputs | no |
| Alarm outputs | no |
| Serial interfaces | Coaxitron (HD Protocol) |
| Serial interfaces protocols | UTC (HD-Signal Format) |
| General: | |
| Dimensions (HxWxD) | 108x144,4mm |
| Weight | 1.0kg |
| llumination | infrared |
| Illumination | 30x LED 850nm |
| Illumination range | approx. 30m |
| Color (housing) | Pantone Cool Gray 1C |
| Color (bubble) | clear |
| Housing | Outdoor |
| Hosuing material | Aluminium |
| Heater | no |
| Power consumption | 6W |
| Blower | no |
| Mounting | Wall mount, Ceiling mount |
| Protection rating | IP66 |
| Supply voltage | 12VDC |
| Operating temperature | -20°C ~ +50°C |
| Text display | supplied |
| Vandal proof | yes |
| Certifications | IK10 |
| Parts supplied: | |
| Parts supplied | manual, allen key, screw set, Video sub-out cable, drilling template, bag of screws |
| Notes: | |
| Remarks | NDAA compliance under Section 889, Part A. |
