MEB-62V2713P0A
SKU
233016

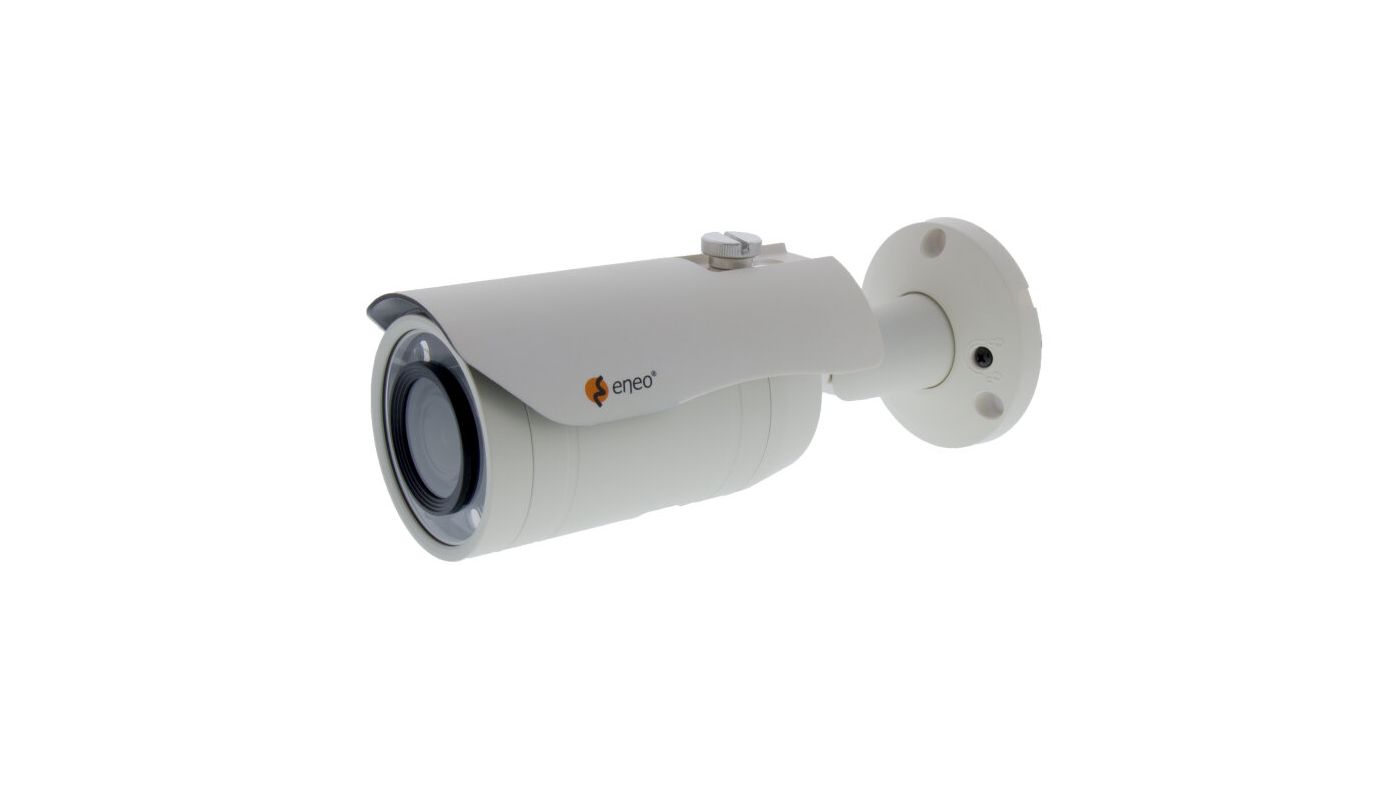

1/2.8" HD Bullet, Day&Night, 1920x1080, Lens 2,7-13,5mm, IR LED, 12VDC, IP66
Main Features
1/2.8" 2.3 Megapixel progressive scan CMOS sensor
Compact housing for outdoor use
Resolution max. 1920x1080 (Full HD)
Multisignal: HD-TVI, AHD, CVI, Composite selectable
Variofocal 2.8~12mm day&night lens
LSC (Lens shading compensation)
Removable infrared cut filter
3D-DNR noise reduction
Digital Wide Dynamic Range (D-WDR)
Integral motion detection
4x High Power LED
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Camera:
- Camera type
- Bullet
- Sensor size
- 1/2.8"
- Resolution Pixels
- 960x576
- Imager
- Sony, Sensor IMX323, CMOS
- Sensitivity
- 0,3 Lux at F1,6, 40 IRE
- System
- True Day&Night
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1/25 ~ 1/50.000sec.
- Automatic electronic shutter (ESC)
- 1/25 ~ 1/50.000sec..
- Wide Dynamic Range (WDR)
- D-WDR
- Flickerless function
- yes
- Backlight compensation
- BLC, HLC
- Day&Night switch
- ICR
- White balance
- ATW, AWB, Manual, Outdoor, Indoor, AWC
- Signal-to-noise ratio
- 52db
- Video:
- Signal format
- AHD @ 2MP, Composite (FBAS), CVI @ 2MP, HD-TVI @ 2MP
- Frame rate
- 25/30fps @ 1920x1080p
- Synchronization
- internal
- Lens:
- Lens Type
- Varifocal
- Zoom Factor
- 4x
- Focal Length
- 2,7 - 13,5 mm
- Digital Zoom
- no
- MOD (Mininum Object Distance)
- 0,5 m
- Aperture range (F)
- F1.6
- Iris Control
- DC
- DORI:
- Detect (25px/m)
- 44 - 198 m
- Observe (62 px/m)
- 16,6 - 80,5 m
- Recognize (125 px/m)
- 8,2 - 40,1 m
- Identify (250 px/m)
- 3,9 - 20,1 m
- Functions:
- Motion detector
- yes
- Analysis functions
- Defog
- OSD function control
- OSD camera setup
- Menu languages
- German, English, French, Italian, Spanish, Turkish, Dutch, Portugese, Polish, Chinese, Russian
- Privacy zone masking
- Areas-ON/OFF switchable
- Mirror function
- rotation, mirror, V flip
- Digital Noise Reduction
- yes
- Digital noise reduction (DNR)
- yes
- Interfaces / Inputs/ Outputs:
- Video outputs
- AHD, Composite (CVBS), CVI, HD-TVI
- External connectors
- video (BNC), 12VDC power input, connection cable approx.40cm
- Alarm inputs
- no
- Alarm outputs
- no
- Serial interfaces
- Coaxitron (HD Protocol)
- Serial interfaces protocols
- UTC (HD-Signal Format)
- General:
- Brand
- ENEO
- Dimensions (HxWxD)
- 78,5x78,5x214mm
- Weight
- 520g
- Illumination
- 4x High Power LED 850nm, Infrared
- Illumination range
- approx. 30m
- Color (housing)
- Pantone Cool Gray 1C
- Housing
- Outdoor
- Hosuing material
- Aluminium, Plastic
- Integrated wall mount
- yes
- Power consumption
- 6.5W
- Mounting
- Ceiling mount, Wall mount
- Protection rating
- IP66
- Sunshield
- yes
- Supply voltage
- 12VDC
- Operating temperature
- -20°C ~ +50°C
- Text display
- supplied
- Parts supplied:
- Parts supplied
- manual, drilling template, bag of screws
- Other
- Imager
- CMOS
- Low Speed Shutter
- yes
- Backlight Compensation
- BLC, HLC
- Wide Dynamic Range (WDR)
- D-WDR
- Motion Detector
- yes
- Objektiv Typ
- Varifocal
- llumination
- Infrared
- Resolution Pixels
- 1920x1080, 960x576
- Vertical Angle of View
- 49 - 15°
- Horizontal Angle of View
- 95 - 27°
- Video standard
- PAL/NTSC
- Remarks
- NDAA compliance under Section 889
- Manufacturer order number
- 233016
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Documents PDF
- Quick reference guide for this product
- Documents PDF
- Kurz-Betriebsanleitung zum Produkt
- Documents PDF
- Declaration of Conformity in German and English
- Media ZIP
- Product Image in a high resolution for print
- Marketing Infos PDF | 202.9 kB
- NDAA konforme Produkte
