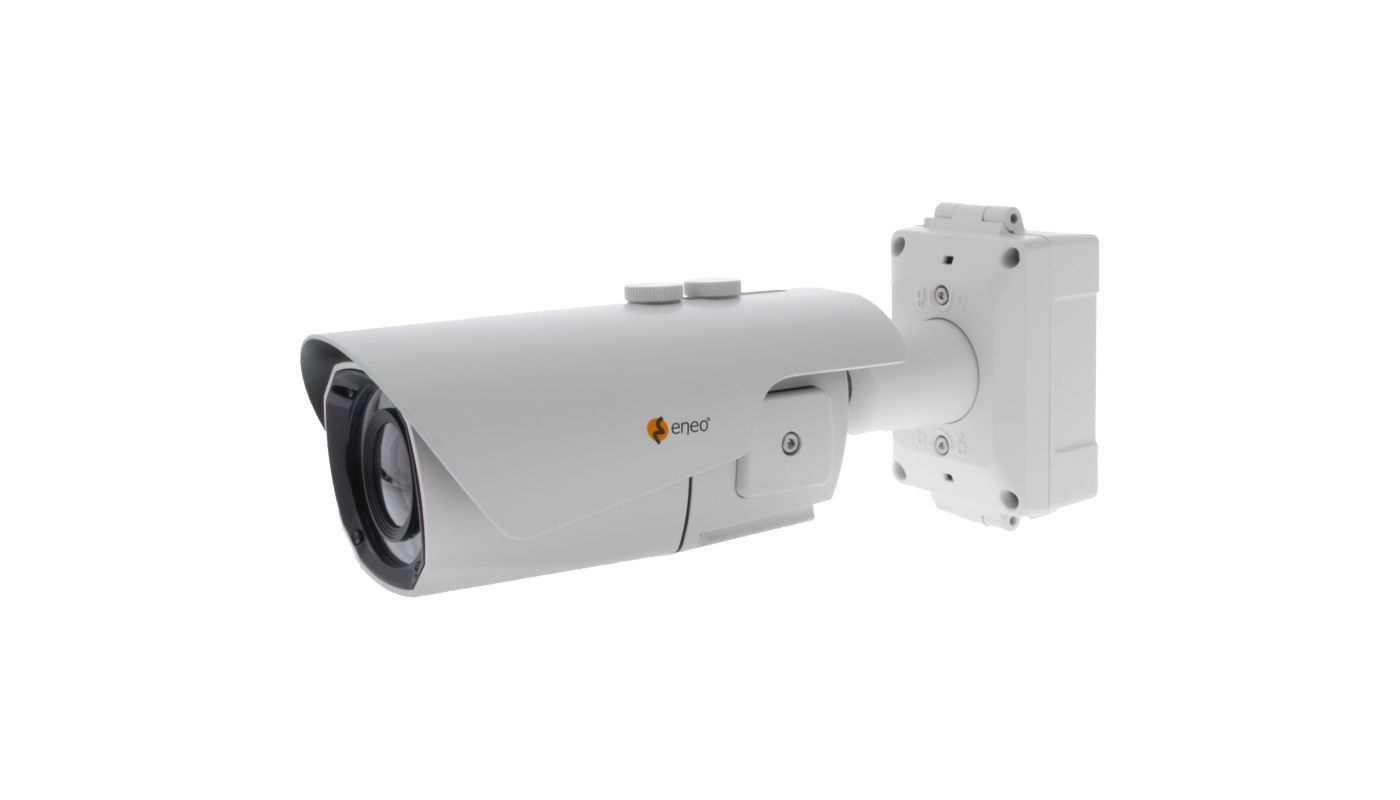

eneo MCB-72M2713M0B
Main Features
More Information
- Brand
- ENEO
- EAN/GTIN
- 4260229841389
- Manufacturer order number
- 243650
- Series
- eneo COAXIZE
Camera
- Backlight compensation
- Yes
- Camera shape
- Bullet
- Chip size
- 1/2,8"
- Day/night mode
- Automatic,Day,Night,extern (Sensor)
- Day/night switching
- Switchable IR Filter (ICR)
- Flickerless function
- Yes
- Low Speed Shutter
- Yes
- Photosensitivity
- 0.005Lux(Day mode),0.0005Lux(Night mode)
- Recording sensor
- CMOS
- Signal-to-noise ratio
- 50 dB
- System
- True Day&Night
- White balance
- Automatic,Preset,Manual,AUTOext
DORI
- Detect (125px/m)
- 6,6 - 24,6 m
- Identify (250px/m)
- 3,2 - 12,2 m
- Perceiving (25px/m)
- 35,9 - 123,3 m
- Watch (62px/m)
- 14 - 49,8 m
Lens
- Aperture Range (F)
- F1.6
- Focal length
- 2,7 - 13,5 mm
- Horizontal angle of view
- 101 - 32°
- Lens Type
- Varifocal (motorized)
- Vertical angle of view
- 54 - 18°
- Zoom Factor (Digital)
- 0
- Zoomfactor (optical)
- 4
Video
- Resolution (extended)
- 1920x1080,1280x720,720x576,720x480
- Signal Format
- AHD @ 2MP, Composite (FBAS), EX-SDI @ 2MP, HD-SDI @ 2MP, HD-TVI @ 2MP
Display
- Image resolution max.
- 1920x1080
Functions
- Digital Noise Reduction (DNR)
- Yes
- Menu languages
- Chinese, English, French, German, Japanese, Korean
- Motion detector
- Yes
Interfaces / Inputs/ Outputs
- Alarm inputs
- 0
- Control Interfaces
- Coaxitron (HD Protocol)
- External connections
- voltage input,1x SDI Signal (BNC),1x HD/SD Analog Signal (BNC),connection cable approx.100cm
- Interface Protocols
- UTC (HD Signal Format)
- Number of alarm outputs
- 0
- Video Outputs
- AHD, Composite (FBAS)
General
- Color (Housing)
- Pantone Cool Gray 1C
- Dimensions (WxHxD) (extended)
- 130,5x108x318,4
- Heating
- No
- Housing material
- Aluminium
- Housing type
- Outside
- Illumination range
- ca. 60m
- Integrated wall mount
- Yes
- Lighting
- Infrared
- Mounting type
- Ceiling, Wall
- Power consumption
- 8.5 W
- Power supply
- 12VDC
- Protection
- IP67
- Sunshade canopy
- Yes
- Temperature Range (Operating)
- -30°C ~ +50°C,@ Luftfeuchtigkeit 20%-80% (nicht kondensierend)
- Text overlay
- available
- Weight
- 1.65 kg
- Wide Dynamic Range (WDR)
- D-WDR
Parts supplied
- Scope of delivery
- Quick installation guide,drilling template,4 wall plugs with screws,2 grommets,1 Allen wrench,4-pin terminal block,video sub-output cable,1 hinge pin,cable mounting plate with mounting screw,2 cable ties
Notes
- Remark
- NDAA compliance under Section 889
Further product information
Sony STARVIS 2
Improved low-light performance (especially with HDR)
STARVIS 2 offers significantly improved performance in low light, especially with high dynamic range (HDR). It has been specially optimised for backlit situations and night scenes with high contrast.
Higher dynamic range (High Dynamic Range)
STARVIS 2 achieves up to 88 dB real dynamic range (Single Exposure) according to Sony - that&039;s more than the original STARVIS. This helps to better display details in dark AND bright areas at the same time - without ‘burning out’ or ‘drowning out’ the image areas.
Uniform brightness across the image field
STARVIS 2 reduces the so-called vignetting effect (edge darkening) that can occur with BSI sensors. This means a more even image brightness, even in poorly lit conditions.
Better colour reproduction in low light
STARVIS 2 offers a more natural colour reproduction at night - colours appear less washed out or monochromatic. Particularly relevant for forensic applications (e.g. clothing, vehicles, skin tones).
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Manual PDF | 2.4 MB
- Quick reference guide for this product (multilingual)
- Manual PDF | 2.4 MB
- Quick reference guide for this product (multilingual)
- Manual JPG | 214.6 kB
- Technical Drawing
- Marketing PDF | 211.9 kB
- Accessories Overview eneo
- Marketing PDF | 446.4 kB
- Mounting Template - Junction Box
- Marketing PDF | 242 kB
- NDAA compliant products
- Hi-Res images ZIP | 80.6 kB
- Product image in a high resolution
- Declaration of conformity PDF | 111.2 kB
- Declaration of conformity (german and english)
