KBD-2USB

    KBD-2USB

    Art. No.: 217652

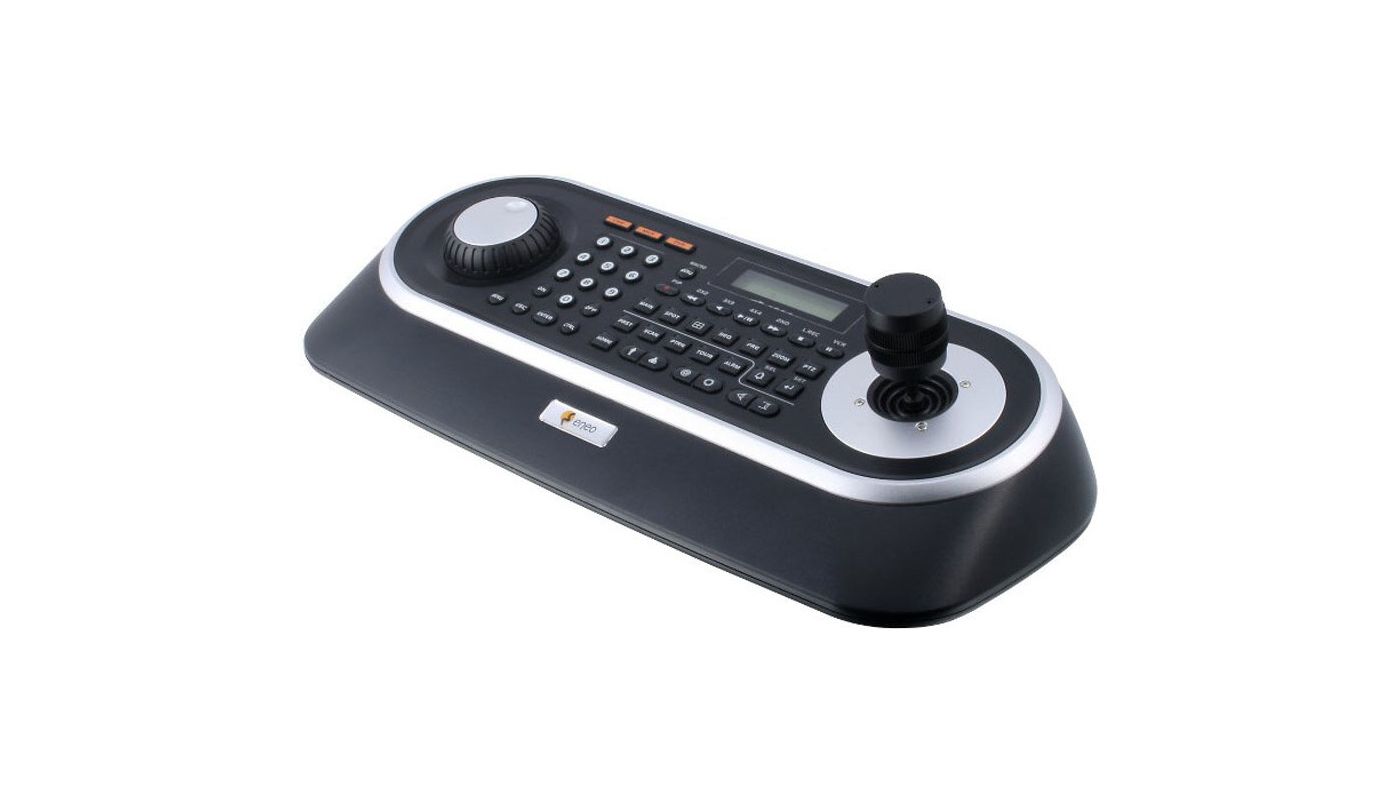

    System Keyboard with 3-Axis Joystick, Jog Shuttle, USB, RS-485, 12VDC

    Mainfeatures

    • Control unit for eneo cameras and recorders
    • Connection via USB, RS-232 and RS-485 interfaces
    • Multi-protocol selection ensures system compatibility
    • Multi-function buttons and LCD display
    • Jog shuttle to control video recorders
    • 3-Axis joystick for PTZ control
    • Control with fixed and variable speed
    • Preset position and pattern control
    • Master / Slave operation

    Specifications

    Control eneo camera and recorder series
    Jog shuttle yes
    Joystick 3-axis
    Password protection administrator & users
    Macro function no
    Menu languages English
    Ethernet interface no
    Serial interfaces RS-485, RS-232, USB
    Serial interfaces protocols Fastrax IIE, Fastrax, Pelco D, Pelco P
    Dimensions (HxWxD) 176x405x107mm
    Colour black
    Housing plastic
    Weight approx. 1.2kg
    Power consumption 6W
    Supply voltage 12VDC
    Parts supplied Power supply unit 100 ~ 240VAC / 12VDC, 50/60Hz, Manual

    Downloads

    Label Format File size Description download
    Documents
    Data sheet PDF <350 KB Data sheet with specifications, generated live from the product database Start Download
    Tender Document DOC <50 KB Technical data as a Microsoft Word document, generated live from the product database Start Download
    EN - Manual PDF 3017.3 KB Detailed manual for this product Start Download
    Declaration of Conformity PDF 126.74 KB Declaration of Conformity in German and English Start Download
