SKU 234668

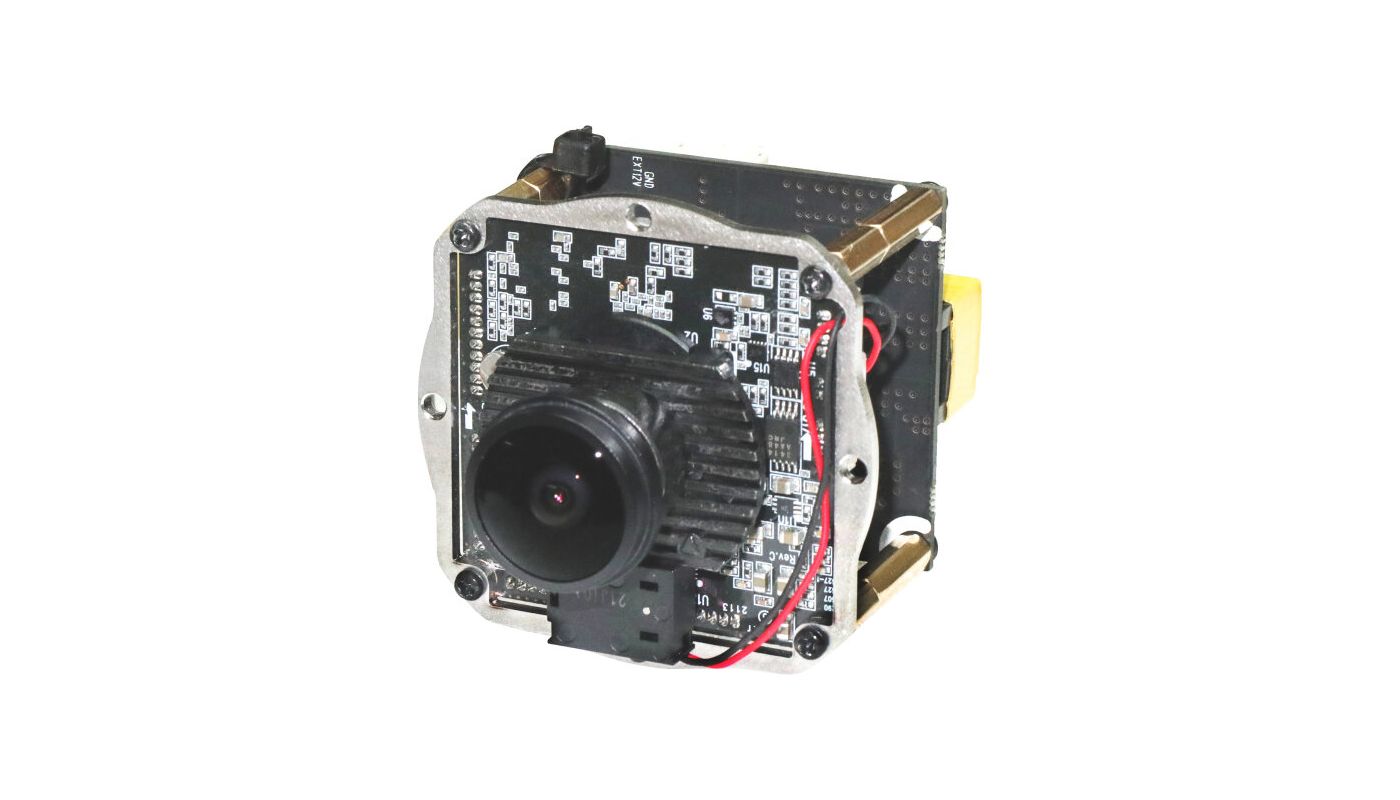

1/2.8" Network Module Camera, 1920x1080, Day&Night, WDR, 2.1mm, H.265, PoE, 12VDC

Main Features

1/2.8" Sony STARVIS CMOS Sensor
Excellent light sensitivity
Resolution max. 1920x1080 (Full HD)
Lens fixed focal length 2.1mm
DOL-WDR (120dB) by triple scan images at 30/25fps
Motion Detection, Privacy Zones, Slow Shutter
Browser independent (IE, Edge, Safari, Firefox, Chrome)
Smart Codec H.265 ROI (Region of Interest)
Supports ONVIF Profile S and Profile T
Operating temperature -20°C ~ +50°C
Dimensions 50x50x64mm
Power supply PoE or 12VDC
arrow-right Buy now You will be redirected to our shop on Videor.com for purchase.

More Information

Camera:

Camera type
Platine
Sensor size
1/2.8"
Resolution Standard
HD 1080p
Imager
Sony STARVIS, Sensor IMX307, CMOS
System
True Day&Night
Low speed shutter
yes
Manual electronic shutter (MES)
1/25 ~ 1/25.000sec
Automatic electronic shutter (ESC)
1/25 ~ 1/25.000sec
Wide Dynamic Range (WDR)
D-WDR
Flickerless function
yes
Backlight compensation
BLC, HLC
Day&Night switch
ICR
Day&Night mode
Automatic, Day, Night, extern (Sensor)
White balance
Automatic, Outdoor, Light bulb, Fluorescent light, Clear Sky, Shade, Manual
Signal-to-noise ratio
50dB
Video:

Resolution
1920x1080 (16:9), 1280x720 (16:9)
Image resolution max.
1920x1080
Image display
VerticalView 90°/270°, 16:9
Stream types
Multi Streaming
Image Transmission Rate
30 fps
Video compression
H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Lens:

Lens Type
fixed focal length
Focal Length
2,1 mm
Digital Zoom
yes
MOD (Mininum Object Distance)
0,5 m
Iris control
DC
DORI:

Detect (25px/m)
36,6 m
Observe (62 px/m)
13,8 m
Recognize (125 px/m)
6,5 m
Identify (250 px/m)
3 m
Functions:

Multicast compliant
yes
Motion detector
yes
Analysis functions
Motion detection, Tampering Detection (TD)
Alarm processing
E-Mail, HTTP, FTP, Boost, TCP, UDP, Onvif Event Mapping
Audio support
no
Password protection
administrator & users
e-PTZ support
yes
Internal storage
no
Menu languages
English, German, French, Korean
Privacy zone masking
Areas-ON/OFF switchable
Remote configuration
Browser
Web browser
MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG, Mozilla: MJPEG, Google Chrome: MJPEG, Edge: MJPEG
User interface
Type A (orange / grey)
Mirror function
mirror, flip
Digital noise reduction (DNR)
yes
Network:

Network protocols
TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, SNMP
Interfaces / Inputs/ Outputs:

Ethernet interface
100Base-TX, 10Base-T
Alarm inputs
no
Alarm outputs
no
Serial interfaces
Ethernet
General:

Brand
ENEO
Series
eneo AN-Series
Dimensions (HxWxD)
63x50x50mm
Weight
112g
Housing
without housing
Camera Type
Board Camera
Power consumption
4.5W
Blower
yes
Mounting
Flush mount
ONVIF
ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3af
Supply voltage
PoE, 12VDC
Operating temperature
-20°C ~ +50°C
Text display
supplied
Parts supplied:

Parts supplied
manual, Connection cable set
Notes:

Remarks
NDAA compliance under Section 889
Other

Imager
CMOS
Low Speed Shutter
yes
Digital Noise Reduction
yes
Backlight Compensation
BLC, HLC
Wide Dynamic Range (WDR)
D-WDR, DOL-WDR 120dB
Motion Detector
yes
Objektiv Typ
fixed focal length
Iris Control
DC
Vertical Angle of View
78,4°
Horizontal Angle of View
148,3°
Supply voltage
12VDC, PoE
Manufacturer order number
234668

Downloads

Data sheet PDF
Data sheet with specifications generated live from the product database
Documents PDF
Quick reference guide for this product
Documents PDF
Kurz-Betriebsanleitung zum Produkt
Documents PDF
Detailed manual for this product
Documents PDF
Declaration of Conformity in German and English
Media ZIP
Product Image in a high resolution for print
Marketing Infos PDF | 220.3 kB
RTSP Streams Konfiguration für eneo Kameras und Rekorder
Tools HTML | 914 B
eneoSite ManagerTool
Firmware HTML | 835 B
Produkt Firmware_CAD Files
Marketing Infos PDF | 72.2 kB
Open Source Software License Information
Marketing Infos PDF | 202.9 kB
NDAA konforme Produkte
