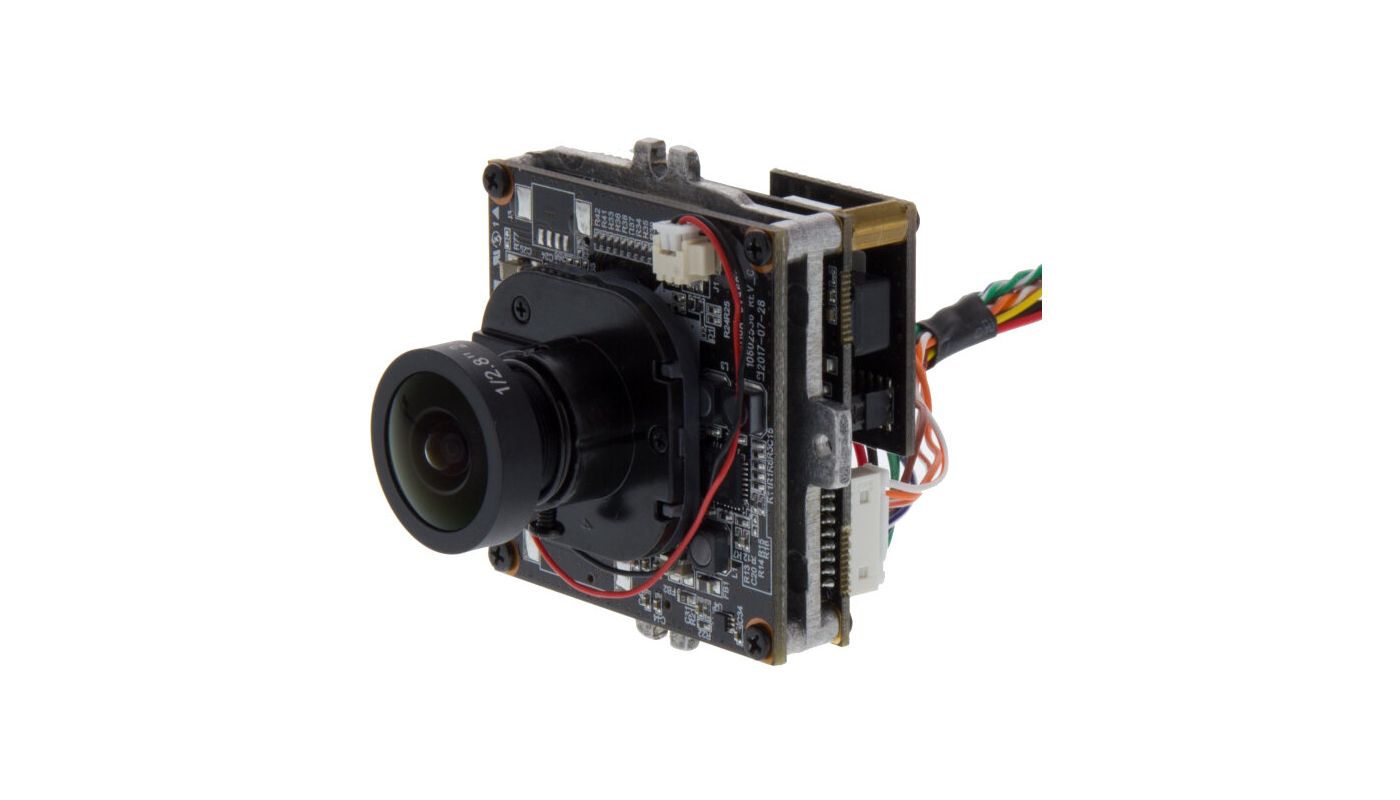

ISM-54F0023W0A
- 1/3" 4.0 MP Omnivision CMOS-Sensor
- Resolution max. 2592x1520
- Board Camera 50x50x60,4mm
- Quad Streaming (H.265, H.264, MJPEG)
- True Day & Night (TDN)
- Noise Reduction (2D-/3D-DNR)
- WDR 120dB, Smart BLC
- Slot for Micro SD memory card
- ONVIF conformance, PoE IEEE802.af, 12VDC
- Audio-, Alarm- In- and Outputs
- Privacy zones, password protection, Cross Web-Browsing
- Framerate increase on motion detection
Hochauflösende Platinenkamera für den Einsatz in Logistik und Verkehrswesen
eneo Platinenkameras kommen in zahlreichen Branchenlösungen zum Einsatz. Die netzwerkbasierte, hochauflösende Platinenkamera ISM-54F0023W0A sogt unter anderem für Transparenz in Logistikprozessen und für die Fahrgastsicherheit im öffentlichen Personennahverkehr. So winzig die eneo IP-Platinenkamera mit ihren 50 x 50 x 60,4mm ist, so groß ist ihre Auflösung: beeindruckende 4 Megapixel beträgt die maximale Auflösung der True Day & Night Kamera.
Videoanalysefunktionen und Schutz sensibler Bildbereiche
Die eneo Platinenkamera ISM-54F0023W0A unterstützt Anwender mit den Videoanalysefunktionen Bewegungsanalyse, Defog, Detektion von Eindringlingen (Intrusionserkennung) und Manipulationsschutz. Detektiert die Kamera eine Bewegung, hebt sie die Bildwiederholrate automatisch an. Durch die Privatzonenmaskierungsfunktion ermöglicht die hochauflösende Platinenkamera von eneo den Schutz sensibler Bildbereiche. Dank 2-Wege-Audio können Anwender Personen im Bereich der Kamera nicht nur hören, sondern auch mit ihnen sprechen.
Optimale Bildqualität und simultane Streams
Die hochauflösende Platinenkamera ISM-54F0023W0A ist mit digitaler Rauschunterdrückung (2D-/3D-DNR), Gegenlichtkompensation und Wide Dynamic Range (WDR) ausgestattet. Diese Bildoptimierungsfunktionen gewährleisten auch bei ungünstigen Lichtverhältnissen ein gleichmäßiges Bild. Die Quad-Streaming-Technologie an Bord der eneo Platinenkamera ermöglicht die gleichzeitige Ausgabe mehrerer H.264- / H.265.Streams und eines MJPEG-Streams.
Bandbreitenschonendes Streaming
Die hochauflösenden Platinenkamera überträgt Bilder mit einer maximalen Rate 30fps. Die Videokompressionsformate H.264, H.264+, H.265, H.265+ und M-JPEG reduzieren den Bandbreitenbedarf und ermöglichen eine sparsame Speicherbelegung.
Lizenzfreie Service-Software und hohe Integrationsfähigkeit
Für die Verwaltung der hochauflösenden Platinenkamera stellt eneo die lizenzfreie Service-Software eneo Site Manager bereit. Der eneo Site Manager bietet schnellen Zugriff auf das Web-Interface und unterstützt u. a. die Multi-Anzeige verschiedener IP-Kameras, parallele Massen-Updates sowie die Speicherung und Wiederherstellung von Kameraeinstellungen. Wie alle eneo IP-Geräte unterstützt die hochauflösende Platinenkamera die ONVIF Profile S & T und kann daher mit einer breiten Palette an ONVIF-konformen Drittherstellerprodukten eingesetzt werden. Diese Integrationsfähigkeit bietet Anwendern ein hohes Maß an Flexibilität.
Camera: | |
---|---|
Camera type | Platine |
Sensor size | 1/3" |
Resolution Standard | 4 Megapixel |
Imager | CMOS, OmniVision Sensor 4689 |
System | True Day&Night |
Sensitivity | 0,25 Lux, bei F2,2, 40IRE |
Low Speed Shutter | yes |
Low speed shutter | automatic |
Manual electronic shutter (MES) | 1~1/10000Sek. |
Automatic electronic shutter (ESC) | 1~1/10.000sec. |
Wide Dynamic Range (WDR) | WDR 120dB |
Flickerless function | yes |
Backlight Compensation | Smart BLC |
Day&Night switch | ICR |
Day&Night mode | auto, day, night |
White balance | automatic, manual |
Signal-to-noise ratio | 50dB |
Video: | |
Resolution | 2592x1520 (16:9), 2560x1440 (16:9), 2304x1296 (16:9), 1920x1080 (16:9), 1440x1080 (4:3), 1280x1024 (5:4), 1024x768 (4:3), 1280x720 (16:9), 800x600 (4:3), 800x480 (16:9), 720x576 (4:3), 720x480 (4:3), 704x576 (4:3), 704x480 (4:3), 640x480 (4:3), 400x240 (4:3), 352x288 (4:3), 352x256 (4:3), 352:240 (4:3), 320x240 (4:3) |
Image resolution max. | 2592x1520 |
Image display | VerticalView 90°/270°, 4:3, 16:9, 5:4 |
Stream types | Quad Streaming |
Image Transmission Rate | 30 fps |
Video compression | H.264, H.265, H.264+ (Smart Stream), H.265+ (Smart Stream), M-JPEG |
Lens: | |
Lens Type | fixed focal length |
Focal Length | 2,3 mm |
Digital Zoom | yes |
MOD (Mininum Object Distance) | 0,3 m |
Iris Control | no |
Vertical Angle of View | 75° |
Horizontal Angle of View | 130° |
DORI: | |
Detect (25px/m) | 28 m |
Observe (62 px/m) | 11 m |
Recognize (125 px/m) | 5 m |
Identify (250 px/m) | 2,5 m |
Functions: | |
Multicast compliant | yes |
Motion Detector | yes |
Analysis functions | motion analysis, intrusion, tampering protection, Defog |
Alarm processing | recording internal storage, E-Mail, FTP, Boost, HTTP, TCP, UDP, HTTPS, XML, alarm out |
Audio support | yes |
Audio | 2 Way Audio |
Password protection | administrator & users |
e-PTZ support | yes |
Internal storage | microSDHC card, microSDXC card |
Menu languages | English, German, French, Russian, Chinese, Korean, Japanese |
Privacy zone masking | Areas-ON/OFF switchable |
Remote configuration | web browser |
Web browser | MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG setup limited, Mozilla: MJPEG setup limited, Google: MJPEG setup limted, Edge: MJPEG setup limited |
User interface | Type B (white / blue) |
Mirror function | H-flip, mirror |
Digital Noise Reduction | yes |
Network: | |
Network protocols | TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, RTP, UPnP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, QoS, OpenVPN |
Interfaces / Inputs/ Outputs: | |
Video outputs | no |
External connectors | alarm output, alarm input, audio input/output, RJ-45, 12VDC input (DC plug), connection cable approx.55cm |
Ethernet interface | 10Base-T, 100Base-TX |
Alarm inputs | 1 |
Alarm outputs | 1 |
Serial interfaces | Ethernet |
General: | |
Dimensions (HxWxD) | 50x50x60,4mm |
Weight | 70g |
llumination | no |
Housing | without housing |
Power consumption | 4.8W |
Blower | no |
Mounting | Einbaumodul |
ONVIF | ONVIF Profile S, ONVIF Profile T |
Power over Ethernet | IEEE 802.3af |
SDK | upon request |
Supply voltage | 12VDC, PoE |
Operating temperature | 0°C ~ +40°C |
Text display | supplied |
Vandal proof | no |
Parts supplied: | |
Parts supplied | manual, Connection cable set |
