ISM-52F0021WMA
SKU
235524

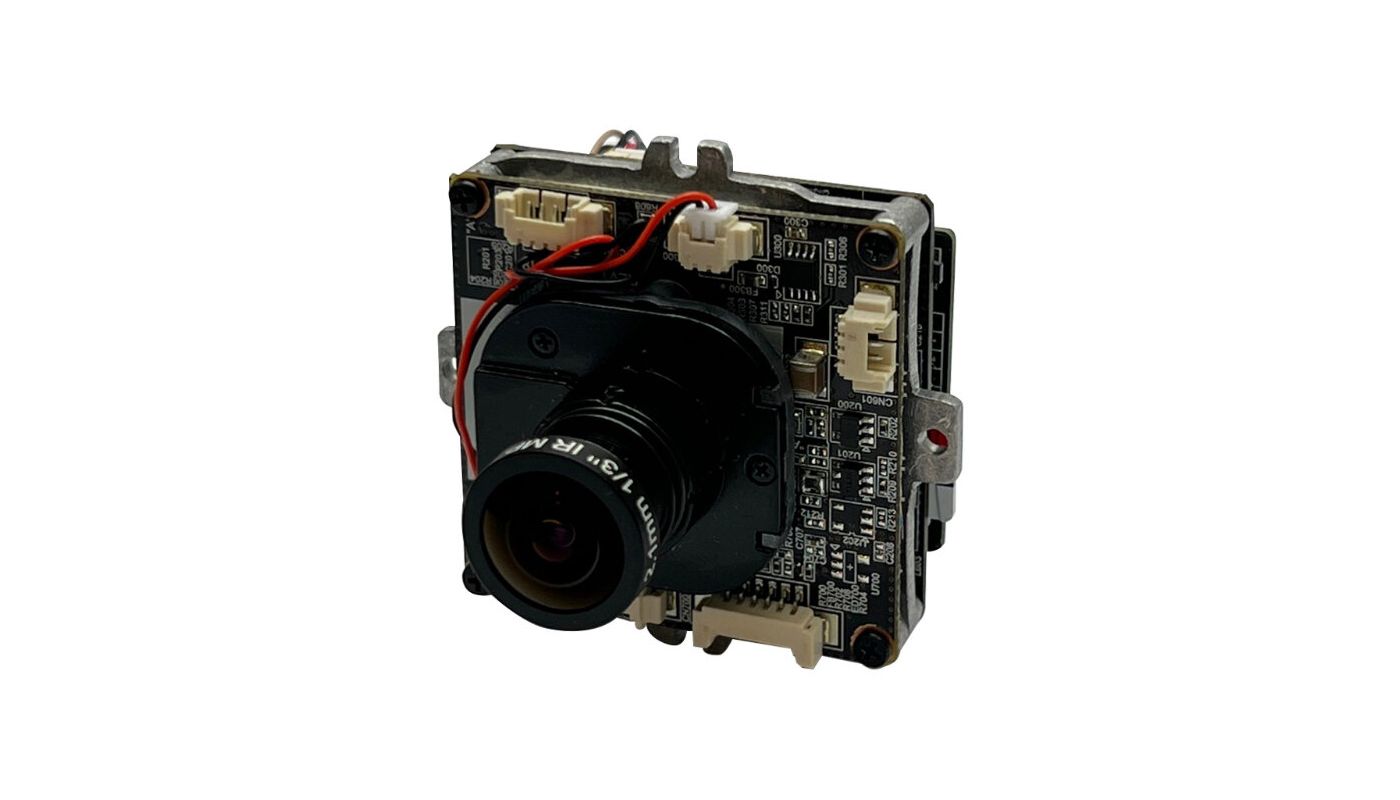

1/2,8" Network Module Camera, 1920x1080, Day&Night,, WDR, 2,1mm, H.265, PoE, 12VDC
Main Features
1/2,8" 2.0 MP CMOS-Sensor
Resolution max. 1920x1080 (Full HD)
Board Camera 50x50x50mm
Quad Streaming (H.265, H.264, MJPEG)
True Day & Night (TDN)
Noise Reduction (2D-/3D-DNR)
WDR 120dB, Smart BLC
Slot for Micro SD memory card
ONVIF conformance, PoE IEEE802.af, Cross Web-Browsing
Audio-, Alarm- In- and Outputs
Privacy zones, password protection, Cross Web-Browsing
NDAA compliant
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Camera:
- Camera type
- Platine
- Sensor size
- 1/2.8"
- Resolution Standard
- HD 1080p
- Imager
- SmartSens, SC200AI, CMOS
- System
- True Day&Night
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1~1/100.000Sek.
- Automatic electronic shutter (ESC)
- 1~1/100.000Sek.
- Wide Dynamic Range (WDR)
- TWDR 120dB, True WDR
- Flickerless function
- yes
- Backlight compensation
- BLC
- Day&Night switch
- ICR
- Day&Night mode
- Automatic, Day, Night
- White balance
- Automatic
- Signal-to-noise ratio
- 50dB
- Video:
- Resolution
- 1920x1080 (16:9), 1280x720 (16:9), 704x480 (4:3), 640x480 (4:3), 352x288 (4:3)
- Image resolution max.
- 1920x1080
- Image display
- VerticalView 90°/270°
- Stream types
- Quad Streaming
- Image Transmission Rate
- 30 fps
- Video compression
- H.264, H.265, MJPEG
- Lens:
- Lens Type
- fixed focal length
- Focal Length
- 2,1 mm
- Digital Zoom
- yes
- MOD (Mininum Object Distance)
- 0,3 m
- Iris Control
- no
- DORI:
- Detect (25px/m)
- 36,5 m
- Observe (62 px/m)
- 14 m
- Recognize (125 px/m)
- 6,5 m
- Identify (250 px/m)
- 2,9 m
- Functions:
- Multicast compliant
- yes
- Motion detector
- yes
- Analysis functions
- Motion detection, Perimeter Intrusion Detection (PID), Tampering Detection (TD)
- Alarm processing
- recording internal storage (SD card), E-Mail, FTP, HTTP, HTTPS, alarm out
- Audio support
- yes
- Audio
- 2 Way Audio
- Password protection
- administrator & users
- e-PTZ support
- yes
- Internal storage
- microSDXC card
- Menu languages
- English, German, French, Russian, Chinese, Korean, Japanese
- Privacy zone masking
- Areas-ON/OFF switchable
- Remote configuration
- Browser
- Web browser
- MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG setup limited, Mozilla: MJPEG setup limited, Google: MJPEG setup limted, Edge: MJPEG setup limited
- User interface
- Type B (white / blue)
- Mirror function
- flip, mirror
- Digital Noise Reduction
- yes
- Network:
- Network protocols
- IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DVRNS, NTP, FTP, HTTP, HTTPS, SMTP, SSL, Zeroconf
- Interfaces / Inputs/ Outputs:
- Video outputs
- no
- External connectors
- Alarm output, Alarm input, Audio input/output, RJ-45, 12VDC input (DC plug)
- Ethernet interface
- 100Base-TX, 10Base-T
- Alarm inputs
- 1
- Alarm outputs
- 1
- Serial interfaces
- Ethernet
- General:
- Brand
- ENEO
- Dimensions (HxWxD)
- 50x50x50mm
- Weight
- 125g
- Illumination
- no
- Housing
- without housing
- Camera Type
- Board Camera
- Power consumption
- 4.3W
- Blower
- no
- Mounting
- Einbaumodul
- ONVIF
- ONVIF Profile S, ONVIF Profile T
- Power over Ethernet
- IEEE 802.3af
- SDK
- upon request
- Supply voltage
- 12VDC, PoE
- Operating temperature
- 0°C ~ +40°C
- Text display
- supplied
- Vandal proof
- no
- Parts supplied:
- Parts supplied
- manual, Connection cable set
- Notes:
- Remarks
- NDAA compliance under Section 889, To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
- Other
- Imager
- CMOS
- Low Speed Shutter
- yes
- Backlight Compensation
- BLC
- Wide Dynamic Range (WDR)
- True WDR
- Motion Detector
- yes
- llumination
- no
- Vertical Angle of View
- 78°
- Horizontal Angle of View
- 140°
