ISM-42F0037MMB
SKU
243236

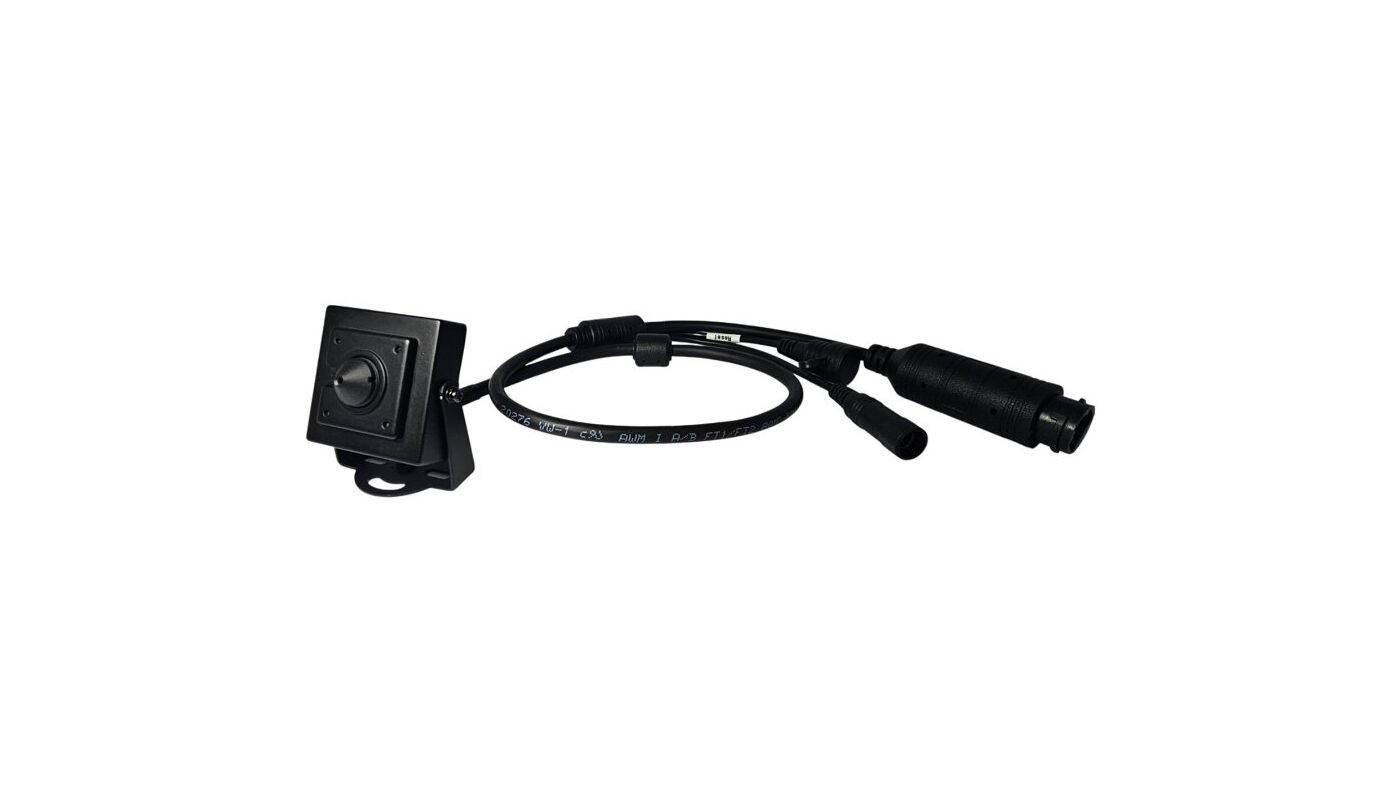

1/2,8" Mini Network Modul Camera, 1920x1080, Day&Night, 3DNR, 3,7mm, Pinhole, 12VDC, PoE, Indoor
Main Features
1/2.8" Sony STARVIS CMOS image sensor
Resolution max. 1920x1080 (Full HD)
Video Compression Format: H.264/MJPEG
Motion Detection, Low Speed Shutter
Built in SD micro card slot
Backlight compensation 3DNR and D-WDR
Supports privacy zones and corridor mode
Lens 3.6mm (further lenses upon request)
Power Supply 12VDC (1.8W) or PoE (IEEE802.3af)
Connection cable (RJ45) for PoE and power supply
Operation Temperature -20°C - +50°C
Supports ONVIF Profile S
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- DORI:
- Detect (25px/m)
- 57,5 m
- Observe (62 px/m)
- 23 m
- Recognize (125 px/m)
- 11,1 m
- Identify (250 px/m)
- 5,4 m
- Other
- Brand
- ENEO
- Camera type
- Modul, Platine
- Sensor size
- 1/2.8"
- Resolution Standard
- HD 1080p
- Imager
- Sony STARVIS, Progressive scan, CMOS
- System
- electronic Day&Night
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1/30~1/30.000sec.
- Automatic electronic shutter (ESC)
- 1/30~1/30.000sec.
- Wide Dynamic Range (WDR)
- D-WDR
- Imager
- CMOS
- Backlight compensation
- BLC
- Day&Night switch
- Electronic
- Day&Night mode
- Automatic, Day, Night, Time
- White balance
- Automatic, Manual
- Low Speed Shutter
- yes
- Resolution
- 1920x1080 (16:9), 1280x720 (16:9), 960x540 (16:9), 640x480 (4:3), 320x240 (4:3)
- Backlight Compensation
- BLC
- Image resolution max.
- 1920x1080
- Wide Dynamic Range (WDR)
- D-WDR
- Motion Detector
- yes
- Stream types
- 2x H.264, 1x H.264 or MJPEG simultan
- Image Transmission Rate
- 30 fps
- Video compression
- H.264, M-JPEG
- Lens Type
- fixed focal length
- Focal Length
- 3,7 mm
- MOD (Mininum Object Distance)
- 0,3 m
- Iris Control
- no
- Vertical Angle of View
- 36,87°
- Horizontal Angle of View
- 69,38°
- Motion detector
- yes
- Analysis functions
- Motion detection
- Audio support
- no
- Password protection
- administrator & users
- Internal storage
- microSD-Kartenslot
- Menu languages
- English, Korean, Japanese, German
- Privacy zone masking
- Areas-ON/OFF switchable
- Remote configuration
- Browser
- Web browser
- Google Chrome , Edge , Firefox , Opera
- Mirror function
- mirror, V flip, rotation
- Digital Noise Reduction
- 3D-DNR, yes
- Network protocols
- TCP/IP, HTTP, HTTPS, RTP, RTSP, UTP, DHCP, FTP, NTP, ARP, ICMP
- Video outputs
- no
- External connectors
- RJ-45, 12VDC power input, connection cable approx.15cm, Micro SD card slot 512 GB
- Ethernet interface
- 100Base-TX, 10Base-T
- Alarm inputs
- nein
- Alarm outputs
- no
- Series
- eneo ISM-Serie
- Dimensions (HxWxD)
- 36x36x14mm
- Weight
- 45g
- Color (housing)
- black
- Housing
- Indoor
- Hosuing material
- Metal
- Heater
- no
- Integrated wall mount
- no
- Power consumption
- 1,4W at 12VDC, 2,5W at PoE
- Blower
- no
- Mounting
- Ceiling mount, Wall mount
- ONVIF
- ONVIF Profile S
- Power over Ethernet
- IEEE 802.3af
- Supply voltage
- 12VDC, PoE
- Operating temperature
- -20°C ~ +50°C
- Text display
- supplied
- Vandal proof
- no
- Parts supplied
- manual, bag of screws, wall bracket
- Remarks
- To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
- Manufacturer order number
- 243236
