ISM-42F0036MMB
SKU
239240

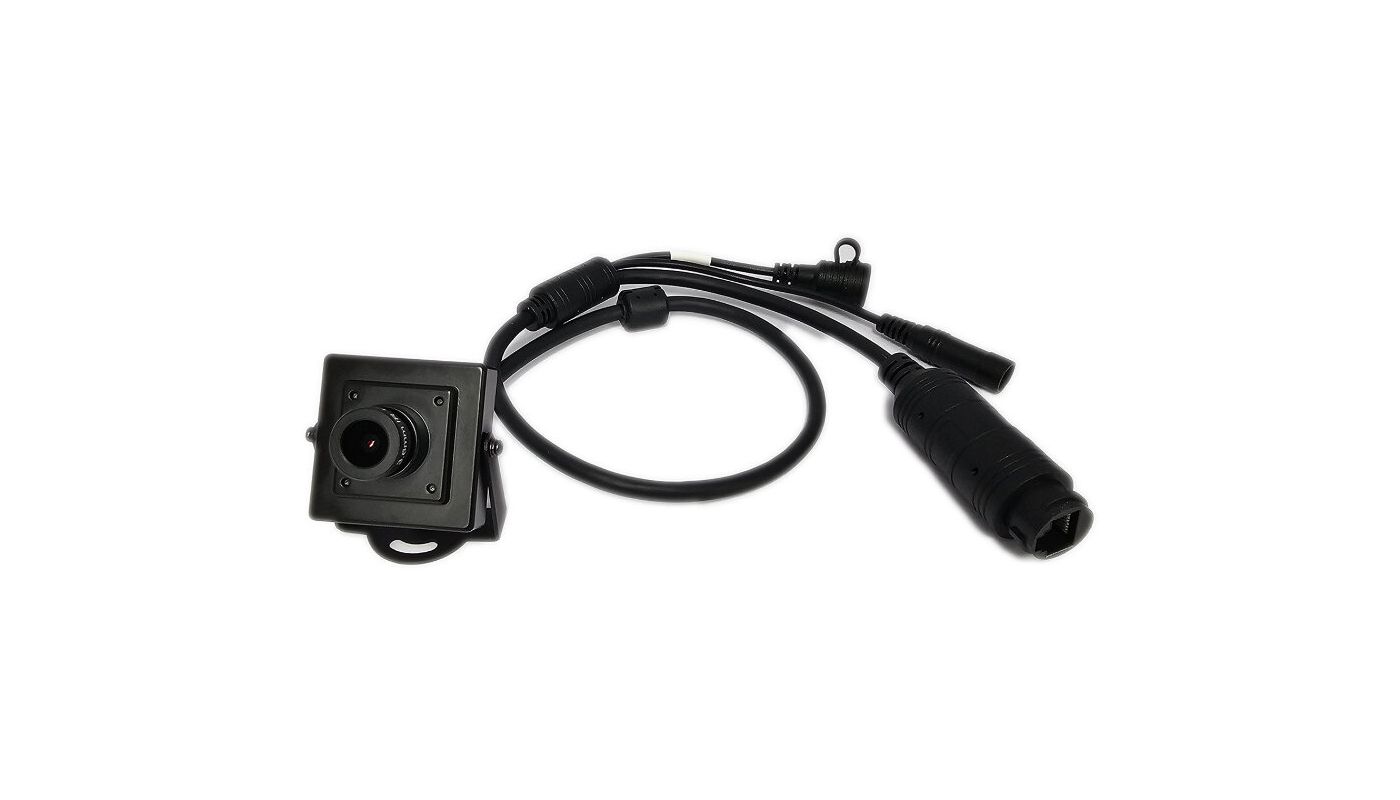

1/2,8" Mini Network Modul Camera, 1920x1080, Day&Night, 3DNR, 3,6mm, 12VDC, PoE, Indoor
Main Features
1/2.8" Sony STARVIS CMOS image sensor
Resolution max. 1920x1080 (Full HD)
Video Compression Format: H.264/MJPEG
Motion Detection, Low Speed Shutter
Built in SD micro card slot
Backlight compensation 3DNR and D-WDR
Supports privacy zones and corridor mode
Lens 3.6mm (further lenses upon request)
Power Supply 12VDC (1.8W) or PoE (IEEE802.3af)
Connection cable (RJ45) for PoE and power supply
Operation Temperature -20°C - +50°C
Supports ONVIF Profile S
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- DORI:
- Detect (25px/m)
- 56 m
- Observe (62 px/m)
- 22,6 m
- Recognize (125 px/m)
- 10,8 m
- Identify (250 px/m)
- 5,2 m
- Other
- Brand
- ENEO
- Sensor size
- 1/2.8"
- Resolution Standard
- HD 1080p
- Imager
- Sony STARVIS, CMOS
- System
- electronic Day&Night
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1/25 ~ 1/25.000sec
- Automatic electronic shutter (ESC)
- 1/25 ~ 1/25.000sec
- Wide Dynamic Range (WDR)
- D-WDR
- Imager
- CMOS
- Backlight compensation
- BLC
- Day&Night switch
- Electronic
- Day&Night mode
- Automatic, Day, Night, Time
- White balance
- Automatic, Manual
- Low Speed Shutter
- yes
- Resolution
- 1920x1080 (16:9), 1280x720 (16:9), 960x540 (16:9), 640x480 (4:3), 320x240 (4:3)
- Backlight Compensation
- BLC
- Image resolution max.
- 1920x1080
- Wide Dynamic Range (WDR)
- D-WDR
- Motion Detector
- yes
- Stream types
- 2x H.264, 1x H.264 or MJPEG simultan
- Image Transmission Rate
- 30 fps
- Video compression
- H.264, MJPEG
- Lens Type
- fixed focal length
- Focal Length
- 3,6 mm
- MOD (Mininum Object Distance)
- 0,3 m
- Iris Control
- no
- Vertical Angle of View
- 47,8°
- Horizontal Angle of View
- 89,6°
- Motion detector
- yes
- Analysis functions
- Motion detection
- Audio support
- no
- Password protection
- administrator & users
- Internal storage
- microSD-Kartenslot
- Menu languages
- English, Korean, Japanese, German
- Privacy zone masking
- Areas-ON/OFF switchable
- Remote configuration
- Browser
- Web browser
- Google Chrome , Edge , Firefox , Opera
- Mirror function
- mirror, V flip, rotation
- Digital Noise Reduction
- 3D-DNR, yes
- Network protocols
- TCP/IP, HTTP, HTTPS, RTP, RTSP, UTP, DHCP, FTP, NTP, ARP, ICMP
- Video outputs
- no
- External connectors
- RJ-45, 12VDC power input, connection cable approx.15cm, micro SD card slot 256 GB
- Ethernet interface
- 100Base-TX, 10Base-T
- Alarm inputs
- nein
- Alarm outputs
- no
- Series
- eneo ISM-Serie

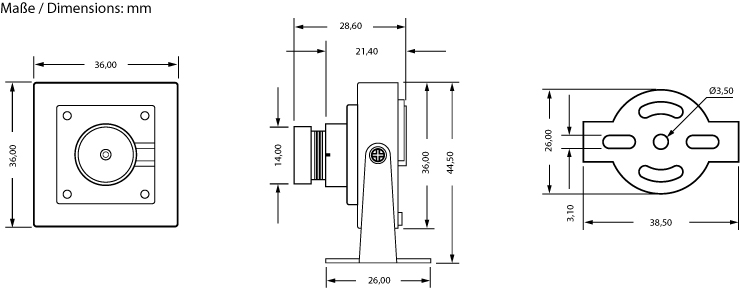

- Dimensions (HxWxD)
- 36x36x14mm
- Weight
- 45g
- Color (housing)
- black
- Housing
- Indoor
- Hosuing material
- Metal
- Heater
- no
- Integrated wall mount
- no
- Power consumption
- 1.4W
- Blower
- no
- Mounting
- Ceiling mount, Wall mount
- ONVIF
- ONVIF Profile S
- Power over Ethernet
- IEEE 802.3af
- Supply voltage
- 12VDC, PoE
- Operating temperature
- -20°C ~ +50°C
- Text display
- supplied
- Vandal proof
- no
- Parts supplied
- manual, bag of screws, wall bracket
- Remarks
- To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
- Manufacturer order number
- 239240
Further product information
Kleine und kompakte IP-Video-Sicherheitskameras sind vielseitig einsetzbar und können in verschiedenen Umgebungen zur Überwachung und Sicherheit genutzt werden.Aufgrund Ihrer kompakten Baugröße können diese Kameras überall dort eingesetzt werden, wo nur geringer Platz zur Verfügung steht oder eine möglichst diskrete Überwachung stattfinden soll. Hier sind einige mögliche Anwendungsbereiche:Industrielle Überwachung von Maschinen und ProduktionsprozessenAbwasser KanalüberwachungPlatzsparende Überwachung von Geschäftsräumen und oder PrivathaushaltenEinsatz in Mobilen Anwendungen wie z. B. Fahrzeugen, LKW´s, Busse & BahnenKundenspezifische Anpassungen für spezielle Anwendungen möglichDownloads
