eneo ISM-42F0036MCB
SKU
239241

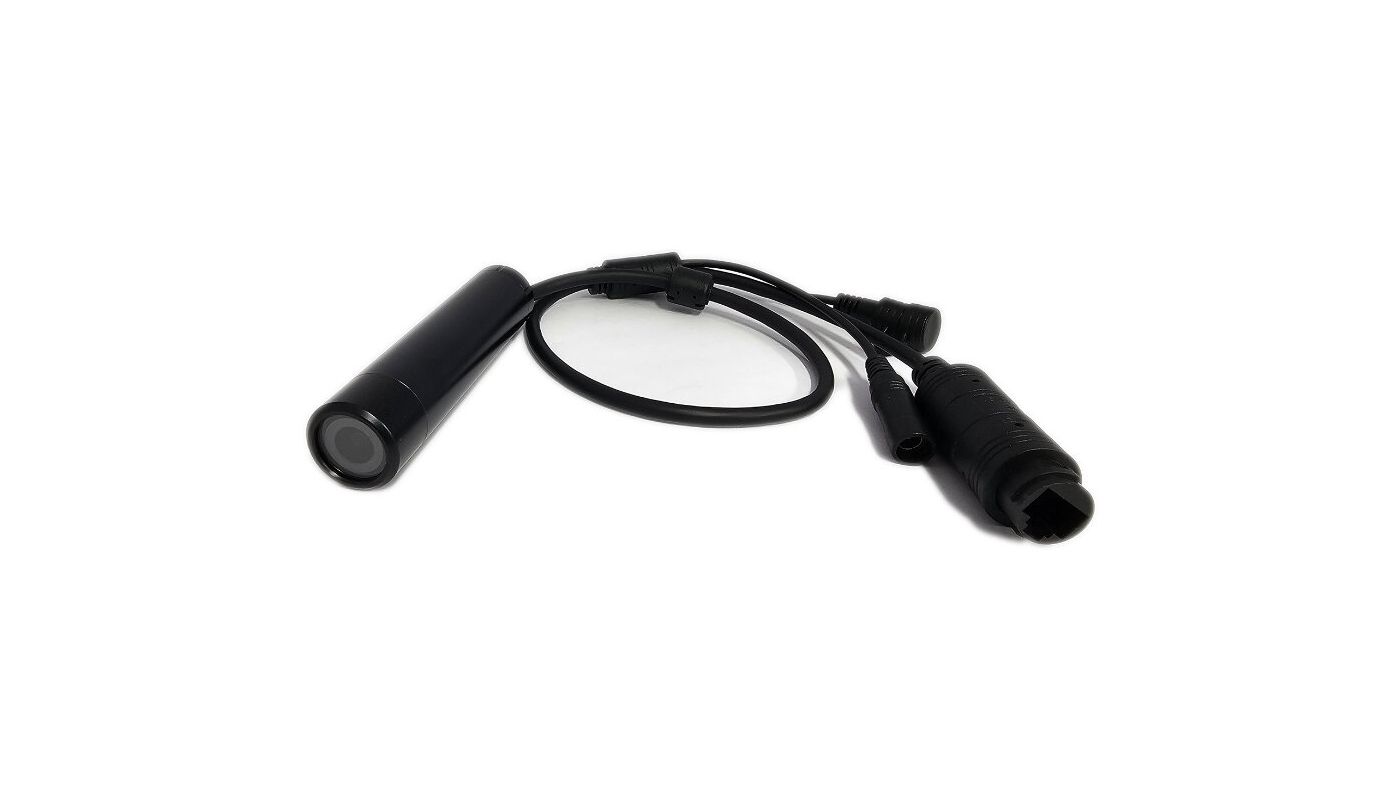

1/2.8" Mini Network Tube Camera, 1920x1080, Day&Night, 3DNR, 3.6mm, 12VDC, PoE, IP66
Main Features
1/2.8" Sony STARVIS CMOS image sensor
Resolution max. 1920x1080 (Full HD)
Video Compression Format: H.264/MJPEG
Motion Detection, Low Speed Shutter
Built in SD micro card slot
Backlight compensation 3DNR and D-WDR
Supports privacy zones and corridor mode
Lens 3.6mm (further lenses upon request)
Power Supply 12VDC (1.8W) or PoE (IEEE802.3af)
Connection cable (RJ45) for PoE and power supply
Operation Temperature -20°C - +50°C, IP66
Supports ONVIF Profile S
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Manufacturer order number
- 239241
- Brand
- ENEO
- Series
- eneo ISM-Serie
Camera
- Camera shape
- Module, Printed circuit board
- Chip size
- 1/2,8"
- Resolution standard
- 2 MP
- Recording sensor
- CMOS
- System
- Electronic Day&Night
- Low Speed Shutter
- Yes
- Backlight compensation
- Yes
- Day/night switching
- Electronic
- Day/night mode
- Automatic,Day,Night,Time
- White balance
- Automatic,Manual
Video
- Resolution (extended)
- 1920x1080 (16:9),1280x720 (16:9),960x540 (16:9),640x480 (4:3),320x240 (4:3)
- Video Compression
- MJPEG
- Data stream types
- 2x H.264,1x H.264 oder MJPEG simultan
- Image transfer rate max.
- 30 fps
Lens
- Lens Type
- Prime lens
- Focal length
- 3,6 mm
- MOD (Minimum Object Distance)
- 0.3 m
- Vertical angle of view
- 47,8°
- Horizontal angle of view
- 89,6°
- Iris Control
- No
Display
- Image resolution max.
- 1920x1080
DORI
- Perceiving (25px/m)
- 56 m
- Watch (62px/m)
- 22,6 m
- Detect (125px/m)
- 10,8 m
- Identify (250px/m)
- 5,2 m
Functions
- Motion detector
- Yes
- Analysis
- Motion Detection
- Audio support
- No
- Password
- Administrator and User
- Internal memory
- microSD card slot
- Menu languages
- English, German, Japanese, Korean
- Browser
- Edge, Firefox, Google Chrome, Opera
- Digital Noise Reduction (DNR)
- Yes
Interfaces / Inputs/ Outputs
- External connections
- RJ-45,12VDC power input,connection cable approx.15cm,Micro SD card slot 512 GB
- Alarm inputs
- 0
General
- Wide Dynamic Range (WDR)
- D-WDR
- Dimensions (WxHxD) (extended)
- 21,5x94,5
- Weight
- 0.095 kg
- Color (Housing)
- black
- Housing type
- Inside, Outside
- Housing material
- Metal
- Heating
- No
- Camera Type
- Board Camera, Cylinder camera
- Power consumption
- 2.5 W
- Mounting type
- Ceiling, Wall
- ONVIF
- ONVIF Profile S
- Power over Ethernet
- IEEE 802.3af
- Protection
- IP67
- Power supply
- 12VDC, Poe
- Temperature Range (Operating)
- -20°C ~ +50°C
- Text overlay
- available
Parts supplied
- Scope of delivery
- Quick installation guide,mounting bracket,3x mounting screws for the bracket,1x Allen wrench,1x waterproof cover for the RJ45 connector
Notes
- Remark
- This model is also available with a resolution of 4/5MP on request.
Further product information
Kleine und kompakte IP-Video-Sicherheitskameras sind vielseitig einsetzbar und können in verschiedenen Umgebungen zur Überwachung und Sicherheit genutzt werden.
Aufgrund Ihrer kompakten Baugröße können diese Kameras überall dort eingesetzt werden, wo nur geringer Platz zur Verfügung steht oder eine möglichst diskrete Überwachung stattfinden soll.
Hier sind einige mögliche Anwendungsbereiche:
Industrielle Überwachung von Maschinen und Produktionsprozessen
Abwasser Kanalüberwachung
Platzsparende Überwachung von Geschäftsräumen und oder Privathaushalten
Einsatz in Mobilen Anwendungen wie z. B. Fahrzeugen, LKW´s, Busse & Bahnen
Kundenspezifische Anpassungen für spezielle Anwendungen möglich
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Manual PDF | 872.4 kB
- Quick reference guide for this product (multilingual)
- Manual PDF | 3.2 MB
- Manual for this product (german)
- Manual JPG | 62.3 kB

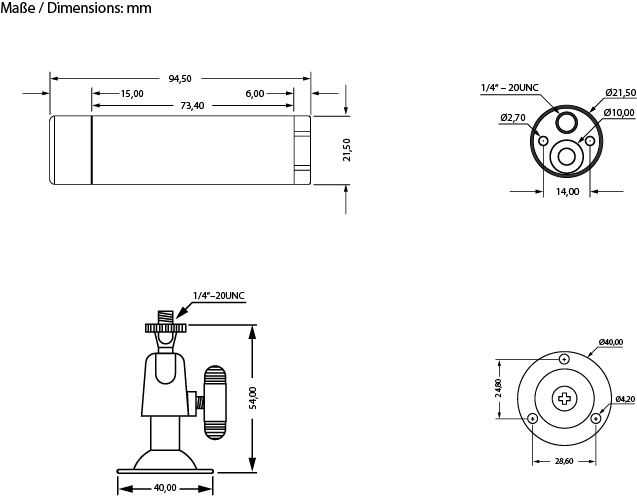

- Technical Drawing
- Manual PDF | 872.4 kB
- Quick reference guide for this product (multilingual)
- Manual PDF | 2.5 MB
- Manual for this product (english)
- Firmware HTML | 835 B
- Product Firmware CAD Files
- Software HTML | 823 B
- eneo Product Software Download Portal
- Software HTML | 914 B
- eneoSite ManagerTool
- Marketing PDF | 165.3 kB
- NDAA compliant products
- Marketing PDF | 72.2 kB
- Open Source Software License Information
- Marketing PDF | 218 kB
- RTSP Streams Configuration for eneo cameras and recorders
- Hi-Res images ZIP | 47.3 kB
- Product image in a high resolution
- Declaration of conformity PDF | 114.3 kB
- Declaration of conformity (german and english)
