ISM-32F0036M00
This article is no longer available
SKU
234978

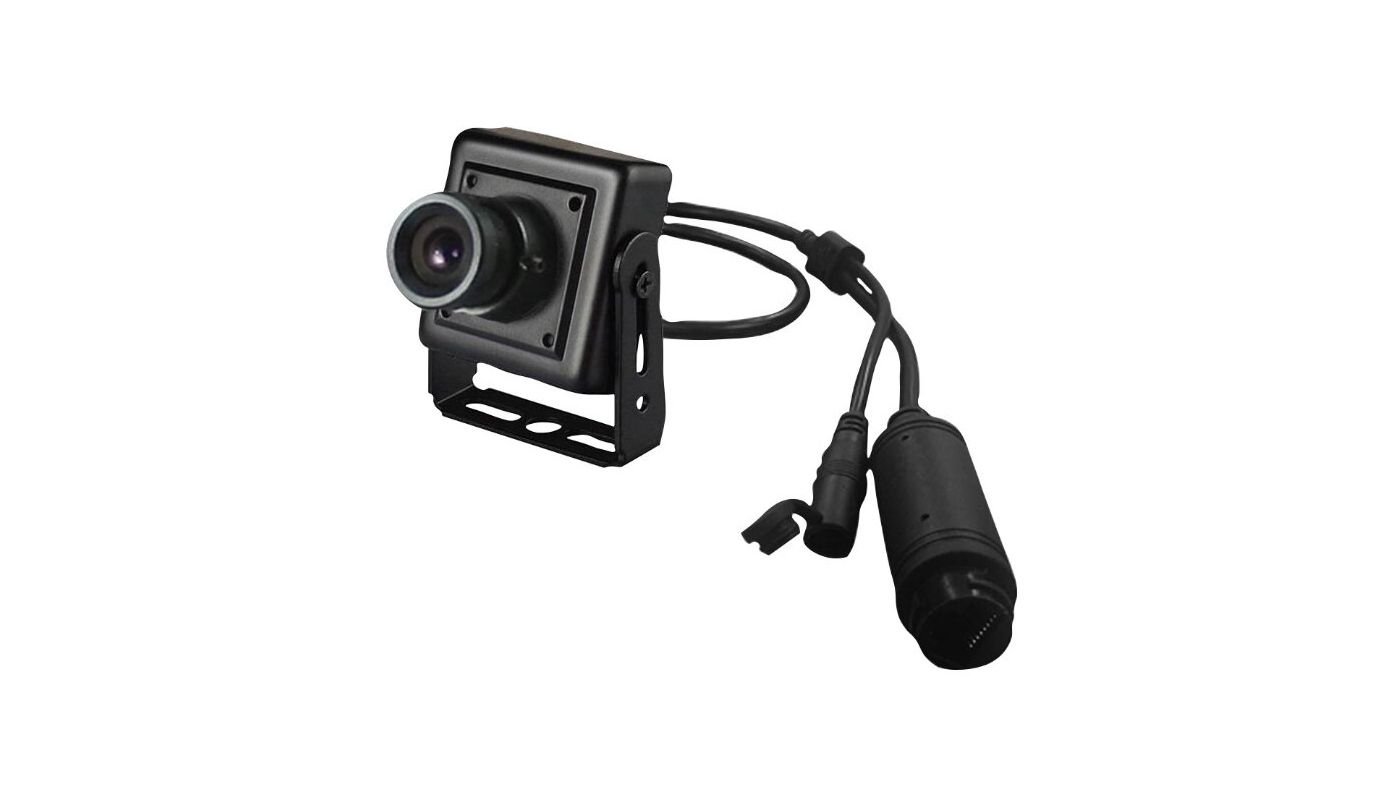

1/2,8" Mini Network Modul, 1920x1080, Day&Night, 3DNR, 3,6mm, 12VDC, PoE, Indoor
Main Features
Sony STARVIS 2MP Image Sensor
Resolution max. 1920x1080 (Full HD)
Video Compression Format: H.264/MJPEG
Motion Detection
Built in SD micro slot
Low Speed Shutter
2DNR, 3DNR and WDR support
PoE Cable
Lens 3.6mm (further lenses upon request)
Power Supply 12VDC (1.8W) or PoE (IEEE802.3af)
Operation Temperature -10°C - +50°C
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Camera:
- Camera type
- Modul
- Sensor size
- 1/2.8"
- Resolution Standard
- HD 1080p
- Imager
- Sony STARVIS, Sensor IMX327, CMOS
- Sensitivity
- 0,1 Lux at F2,5, 30 IRE
- System
- electronic Day&Night
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1/30~1/30.000sec.
- Automatic electronic shutter (ESC)
- 1/30~1/30.000sec.
- Wide Dynamic Range (WDR)
- WDR 100dB
- Flickerless function
- yes
- Backlight compensation
- BLC, HLC
- Day&Night switch
- Electronic
- Day&Night mode
- Automatic, Day, Night
- White balance
- Indoor, Outdoor, User defined, Push
- Signal-to-noise ratio
- 50dB
- Video:
- Resolution
- 1920x1080 (16:9), 1280x720 (16:9), 800x600 (4:3), 704x480 (4:3), 640x480 (4:3), 320x240 (4:3)
- Image resolution max.
- 1920x1080
- Stream types
- 2x H.264, 1x MJPEG multiple
- Image Transmission Rate
- 30 fps
- Video compression
- H.264, M-JPEG
- Lens:
- Focal Length
- 3,6 mm
- Digital Zoom
- no
- Iris Control
- no
- DORI:
- Detect (25px/m)
- 56,6 m
- Observe (62 px/m)
- 22 m
- Recognize (125 px/m)
- 9,9 m
- Identify (250 px/m)
- 3,6 m
- Functions:
- Motion detector
- yes
- Analysis functions
- Motion detection
- Alarm processing
- FTP
- Audio support
- no
- Password protection
- administrator & users
- Internal storage
- microSD-Kartenslot
- Menu languages
- English
- Privacy zone masking
- Areas-ON/OFF switchable
- Web browser
- MS Internet Explorer vers. 9.0 or higher, Safari: MJPEG, Mozilla: MJPEG, Edge: MJPEG
- Mirror function
- mirror, flip
- Digital Noise Reduction
- yes
- Network:
- Network protocols
- TCP/IP, UDP, DHCP, JGMP, ICMP, HTTP, UPnP, FTP, SMTP, SNTP, DNX, RTSP, RTMP
- Interfaces / Inputs/ Outputs:
- External connectors
- RJ-45, connection cable approx.15cm
- Ethernet interface
- 100Base-TX
- Alarm inputs
- nein
- Alarm outputs
- no
- Serial interfaces
- Ethernet
- General:
- Brand
- ENEO
- Dimensions (HxWxD)
- 35x35mm
- Weight
- 200g
- Illumination
- no
- Color (housing)
- black
- Housing
- Indoor
- Hosuing material
- Metal
- Camera Type
- Board Camera
- Power consumption
- 1.8W
- Blower
- no
- Mounting
- Ceiling mount, Wall mount
- Power over Ethernet
- IEEE 802.3af
- Supply voltage
- 12VDC
- Operating temperature
- -10°C ~ +50°C
- Text display
- supplied
- Vandal proof
- no
- Certifications
- IK08
- Parts supplied:
- Parts supplied
- manual, bag of screws, mounting bracket
- Notes:
- Remarks
- To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
- Other
- Vertical Angle of View
- 49°
- Horizontal Angle of View
- 92°
- Manufacturer order number
- 234978
