ISD-59P0010P0A

SKU 220196

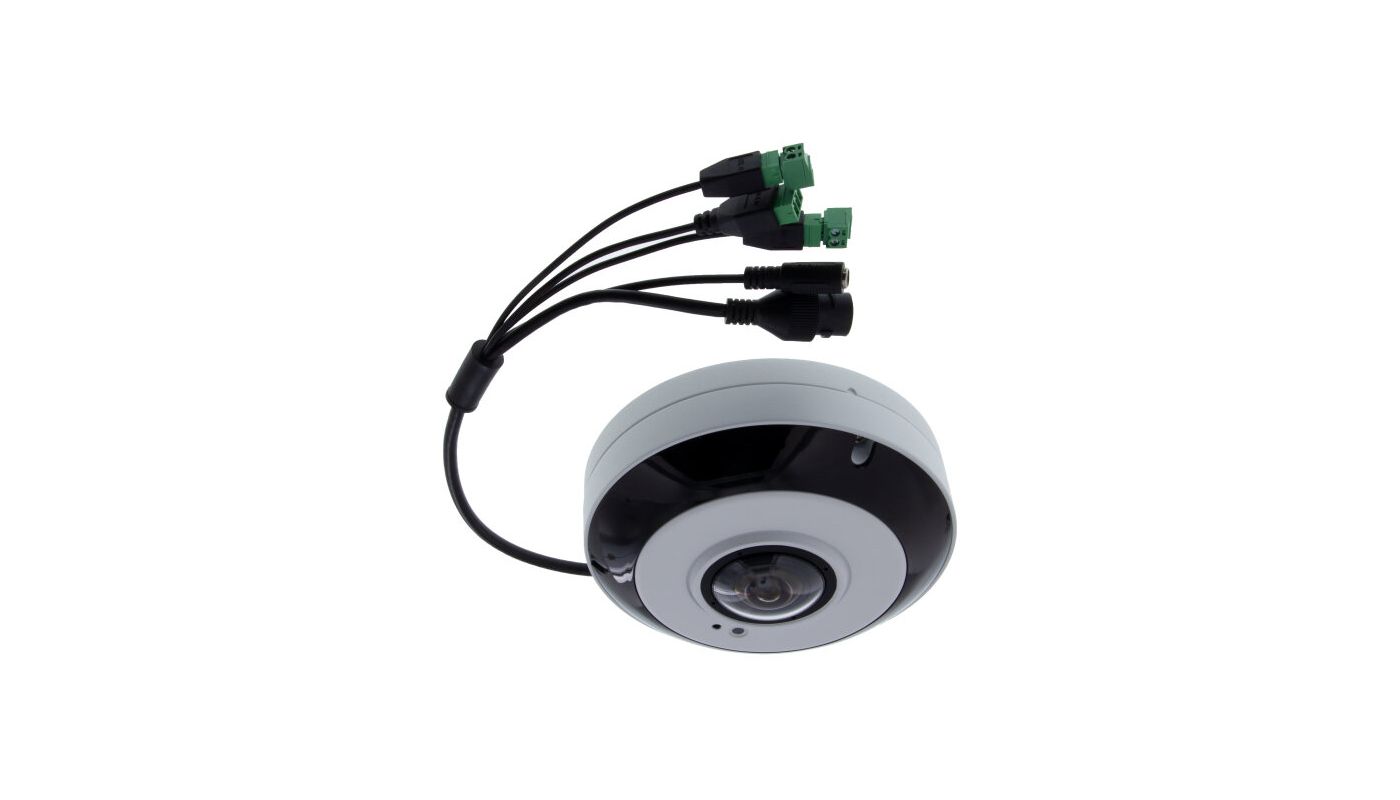

1/1,7" Network Dome, fixed, Day/Night, 4000x3000, H.265, 1,29mm, 360°, infrared, IP66

Main Features

1/1.7” Sony STARVIS CMOS-Sensor
1,29mm Festbrennweite FishEye Kamera
360° Panorama-, Korridor-, Quad-, Panomorph-Ansicht, Decke, Wand
Integration in eneo Center Software
True Day&Night
Auflösung max. 4000x3000@20fps
Quad Stream(H.264/H.265x3, MJPEGx1)
Browserunabhängig (IE, Safari, Firefox, Chrome)
True-WDR (Digital Wide Dynamic Range)
Anhebung der Bildwiederholrate bei Bewegung (Smart Codec)
IR-LED Beleuchtung integriert
Kompaktes Gehäusedesign für Außenanwendung, IP66

More Information

Camera:

Camera type
Dome
Sensor size
1/1,7"
Resolution Standard
8 Megapixel
Imager
Sony STARVIS, Sensor IMX226, CMOS
System
True Day&Night
Sensitivity
0,3 Lux
Low speed shutter
automatic, yes
Manual electronic shutter (MES)
1~1/20.000sec.
Automatic electronic shutter (ESC)
1~1/20.000sec.
Wide Dynamic Range (WDR)
WDR 120dB
Backlight compensation
BLC
Day&Night switch
Schaltbarer IR-Filter (ICR)
Day&Night mode
Automatic, Day, Night
White balance
Automatic, fluorescent, Manual, Outdoor, incandescent
Video:

Resolution
4000x3000 (4:3), 3000x3000, 2560x2560,, 2160x2160, 2048x2048, 1280x1280, 640x640, 480x480
Image resolution max.
4000x3000
Image display
360° Panorama, 2x 180° Panorama, 360° +3PTZ, VerticalView 90°
Stream types
Quad Streaming
Image Transmission Rate
30 fps
Video compression
H.264, H.264+, H.265, H.265+, M-JPEG
Lens:

Lens Type
Festbrennweite
Focal Length
1,29 mm
Digital Zoom
ja
Iris control
DC
DORI:

Detect (25px/m)
60 m
Observe (62 px/m)
25 m
Recognize (125 px/m)
11 m
Identify (250 px/m)
5 m
Functions:

Multicast compliant
yes
Motion detector
yes
Analysis functions
Bewegungsanalyse, Bewegungserkennung (Motion Detection), Defog, Eindringen (Intrusion), Loitering Detektion, Manipulationsschutz, Personenerkennung, Richtungserkennung (Trip Wire) mit Objektzähler
Alarm processing
recording internal storage, E-Mail, FTP, Boost, HTTP, TCP, UDP, HTTPS, XML, alarm out
Audio support
ja
Audio
2 Wege Audio
Password protection
yes
Internal storage
microSD-Karte, microSDXC-Karte
Menu languages
English, German, French, Russian, Chinese, Korean, Japanese
Remote configuration
Browser
Web browser
MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG setup limited, Mozilla: MJPEG setup limited, Google: MJPEG setup limted, Edge: MJPEG setup limited
Digital noise reduction (DNR)
yes
Network:

Network protocols
TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, QoS
Interfaces / Inputs/ Outputs:

External connectors
Alarm output, Alarm input, Audio input/output, RJ-45, 12VDC input (DC plug), connection cable approx.40cm
Ethernet interface
100Base-TX, 10Base-T
Alarm inputs
1
Alarm outputs
1
Serial interfaces
Ethernet
General:

Series
eneo SN-Serie
Dimensions (HxWxD)
58,7x151,4mm
Weight
750g
Illumination
6x LEDs 850nm, infrared
Illumination range
ca. 10m
Color (housing)
weiß
Hosuing material
Metall
Heater
nein
Camera Type
Fisheye Kamera
Power consumption
12.5W @ PoE,, 15W @ VDC12V
Blower
nein
Mounting
Deckenmontage, Wandmontage
ONVIF
ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3af
Protection rating
IP66
Supply voltage
12VDC, PoE
Operating temperature
-20°C ~ +50°C
Text display
supplied
Vandal proof
ja
Certifications
IK10
Parts supplied:

Parts supplied
manual, bag of screws
Other

Brand
ENEO
Aufnahmesensor
CMOS
Lichtempfindlichkeit
bei F2,8
Low Speed Shutter
ja
Digitale Rauschunterdrückung
ja
Gegenlichtkompensation
BLC
Wide Dynamic Range (WDR)
WDR 120dB
Bewegungsmelder
ja
Objektiv Typ
Festbrennweite
Blendensteuerung
DC
Beleuchtung
Infrarot
Horizontal Angle of View
360°
Stromversorgung
12VDC, PoE
Hersteller-Nummer
220196
