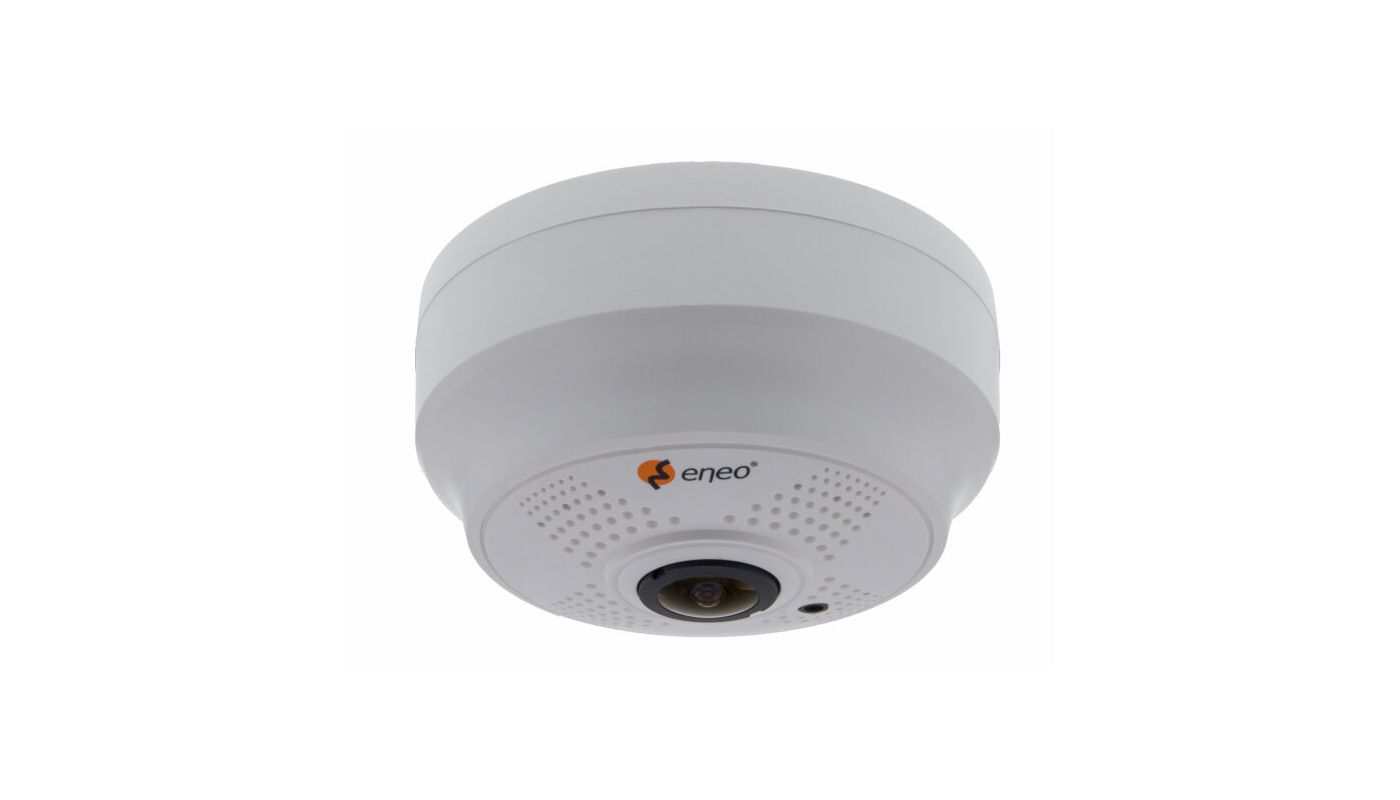

Mainfeatures
- 1/1.8" Sony STARVIS CMOS-Sensor
- 1.05mm fixed lens FishEye camera
- 360° Panorama view
- Integration in eneo Center Software
- True Day&Night
- Resolution max. 2048x1536@15fps
- Compression H.264/MJPEG, Web Casting
- Cross Web-Browsing
- D-WDR (Digital Wide Dynamic Range)
- Framerate increase on motion detection
- OpenVPN support
- Compact design for indoor application
Specifications
| Camera type | Dome |
| Camera: | |
| Sensor size | 1/1.8" |
| Resolution standard | 5 Megapixel |
| Imager | CMOS, Sony STARVIS |
| System | True Day&Night |
| Sensitivity | 0,3 Lux, at F2.8 |
| Low speed shutter | no |
| Manual electronic shutter (MES) | 1~1/10000Sek. |
| Automatic electronic shutter (ESC) | 1~1/10.000sec. |
| Wide Dynamic Range (WDR) | D-WDR |
| Backlight compensation | BLC, HLC |
| Day/Night switching | auto, day, night |
| IR cut filter | switchable |
| White balance | automatic, fluorescent, outdoor, manual, Light bulb |
| Video: | |
| Resolution | 2592x1944 (4:3), 2048x1536 (4:3), 1944x1944, 1440x1440, 1280x1024 (5:4), 1280x960 (4:3), 1024x1024, 1024x768 (4:3), 720x720, 704x576 (4:3), 640x480 (4:3) |
| Resolution max. | 2592x1944 |
| Stream types | 2x H.264, 1x MJPEG multiple |
| Image transmission rate max. | 15 fps |
| Compression standard | H.264, M-JPEG |
| Lens: | |
| Lens type | fixed focal length |
| Focal length | 1,05 mm |
| Digital zoom | yes |
| Vertical angle of view | 360 ° |
| Horizontal angle of view | 360 ° |
| DORI: | |
| Detection (25 px/m) | 36 m |
| Observation (62 px/m) | 14 m |
| Recognition (125 px/m) | 6 m |
| Identification (250 px/m) | 4 m |
| Features: | |
| Multicast compliant | yes |
| Motion detector | yes |
| Analysis functions | Defog, tampering protection |
| Alarm processing | recording internal storage, E-Mail, FTP, Boost, HTTP, TCP, UDP, HTTPS, XML, alarm out |
| Audio | 2 Way Audio |
| Audio support | yes |
| Password protection | yes |
| Internal storage | microSDHC card, microSDXC card |
| Menu languages | English, German, French, Russian, Chinese, Korean, Japanese |
| Privacy zones masking | Areas-ON/OFF switchable |
| Remote configuration | web browser |
| Web browser | MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG setup limited, Mozilla: MJPEG setup limited, Google: MJPEG setup limted, Edge: MJPEG setup limited |
| User interface | Type B (white / blue) |
| Mirror function | H-flip, mirror |
| Digital Noise Reduction (DNR) | yes |
| Network: | |
| Network protocols | TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, QoS |
| Interfaces / Inputs / Outputs: | |
| External connections | alarm output, alarm input, audio input/output, RJ-45, 12VDC input (DC plug), connection cable approx.40cm |
| Ethernet interface | 10Base-T, 100Base-TX |
| Alarm inputs | 1 |
| Alarm outputs | 1 |
| Serial interfaces | Ethernet |
| General: | |
| Series | eneo SN-Series |
| Dimensions (HxWxD) | 63,8x119mm |
| Illumination | no |
| Colour (housing) | white |
| Housing | indoor |
| Housing material | plastic |
| Weight | 270g |
| Heater | no |
| Power consumption | 5.3W |
| Blower | no |
| Mounting | wall mount, ceiling mount |
| ONVIF | ONVIF Profile S |
| Power over Ethernet | IEEE 802.3af |
| SDK | upon request |
| Supply voltage | 12VDC, PoE |
| Temperature range (operation) | -10°C ~ +50°C |
| Text display | supplied |
| Vandalism resistant | no |
| Scope of delivery: | |
| Parts supplied | manual, eneo Site Manager, bag of screws |
| Notes: | |
Special features
ImmerVision certificate
