ISD-52F0023WSA
SKU
227007

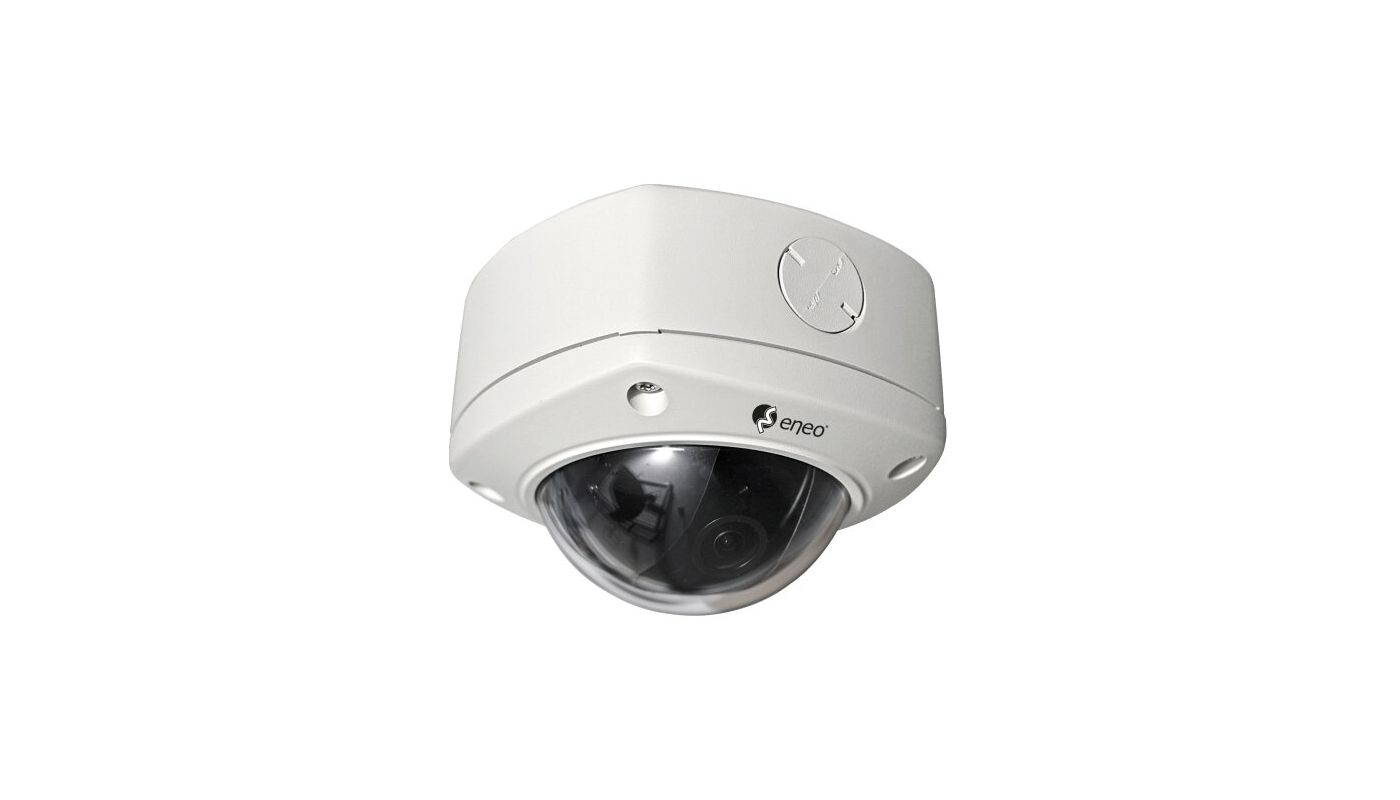

1/2,8" Netzwork Dome, WDR, 1920x1080, Day&Night, 2,3mm H.265, PoE, 12VDC, Surface
Main Features
1 / 2.8 "2.0 MP Sony STARVIS CMOS sensor
Resolution max. 1920x1080 (Full HD)
Fixed focal length 2.3mm, day / night lens (HFoV 135 °!)
Quad Streaming (H.265, H.264, MJPEG)
Intelligent self-learning video analysis (IntelliVision inside)
WDR 120dB, Smart BLC
Slot for micro SD memory card
ONVIF compliance, PoE IEEE802.af, 12VDC
Audio, alarm inputs and outputs
Privacy zones, password protection, browser-independent
Increasing the refresh rate when moving
Suitable for indoor and outdoor use IP66
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Camera:
- Camera type
- Dome
- Sensor size
- 1/2.8"
- Resolution Standard
- HD 1080p
- Imager
- Sony STARVIS, Sensor IMX290, CMOS
- Sensitivity
- 0,08 Lux at F2,2, 40 IRE
- System
- True Day&Night
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1~1/10000Sek.
- Automatic electronic shutter (ESC)
- 1~1/10.000sec.
- Wide Dynamic Range (WDR)
- WDR 120dB
- Flickerless function
- yes
- Backlight compensation
- BLC
- Day&Night switch
- ICR
- Day&Night mode
- Automatic, Day, Night
- White balance
- Automatic, Manual
- Signal-to-noise ratio
- 48dB
- Video:
- Resolution
- 1920x1080 (16:9), 1440x1080 (4:3), 1280x1024 (5:4), 1024x768 (4:3), 1280x720 (16:9), 800x600 (4:3), 800x480 (16:9), 704x576 (4:3), 704x480 (4:3), 640x480 (4:3), 400x240 (4:3), 352x288 (4:3), 352x256 (4:3), 352:240 (4:3), 320x240 (4:3)
- Image resolution max.
- 1920x1080
- Image display
- 5:4
- Stream types
- Quad Streaming
- Image Transmission Rate
- 30 fps
- Video compression
- H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
- Lens:
- Lens Type
- fixed focal length
- Focal Length
- 2,3 mm
- Digital Zoom
- yes
- MOD (Mininum Object Distance)
- 0,3 m
- Iris Control
- no
- DORI:
- Detect (25px/m)
- 35 m, 33,2 m
- Observe (62 px/m)
- 14 m, 13,4 m
- Recognize (125 px/m)
- 8 m, 6,6 m
- Identify (250 px/m)
- 4 m, 3,4 m
- Functions:
- Multicast compliant
- yes
- Motion detector
- yes
- Analysis functions
- Defog, DIS (digital image stabilisation), Motion detection, Perimeter Intrusion Detection (PID), Tampering Detection (TD)
- Alarm processing
- recording internal storage (SD card), E-Mail, FTP, Boost, HTTP, TCP, UDP, HTTPS, XML, alarm out
- Audio support
- yes
- Audio
- 2 Way Audio
- Password protection
- administrator & users
- e-PTZ support
- yes
- Internal storage
- microSDHC card, microSDXC card
- Menu languages
- English, German, French, Russian, Chinese, Korean, Japanese
- Privacy zone masking
- Areas-ON/OFF switchable
- Remote configuration
- Browser
- Web browser
- MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG setup limited, Mozilla: MJPEG setup limited, Google: MJPEG setup limted, Edge: MJPEG setup limited
- User interface
- Type B (white / blue)
- Mirror function
- H-flip, mirror
- Digital Noise Reduction
- yes
- Network:
- Network protocols
- TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, RTP, UPnP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, QoS, OpenVPN
- Interfaces / Inputs/ Outputs:
- External connectors
- Alarm output, Alarm input, Audio input/output, RJ-45, 12VDC input (DC plug), connection cable approx.55cm
- Ethernet interface
- 100Base-TX, 10Base-T
- Alarm inputs
- 1
- Alarm outputs
- 1
- General:
- Brand
- ENEO
- Series
- eneo SN-Series
- Dimensions (HxWxD)
- 91,5x120mm
- Weight
- 880g
- Illumination
- no
- Color (housing)
- white
- Color (bubble)
- clear
- Housing
- Outdoor
- Hosuing material
- Aluminium
- Heater
- no
- Power consumption
- 4.8W
- Blower
- no
- Mounting
- Ceiling mount, Wall mount
- ONVIF
- ONVIF Profile S, ONVIF Profile T
- Power over Ethernet
- IEEE 802.3af
- Protection rating
- IP66
- SDK
- upon request
- Supply voltage
- 12VDC, PoE
- Operating temperature
- -20°C ~ +50°C
- Text display
- supplied
- Vandal proof
- yes
- Certifications
- IK10
- Parts supplied:
- Parts supplied
- manual, bag of screws
- Notes:
- Remarks
- To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
- Other
- Vertical Angle of View
- 75°
- Horizontal Angle of View
- 135°
- Manufacturer order number
- 227007
