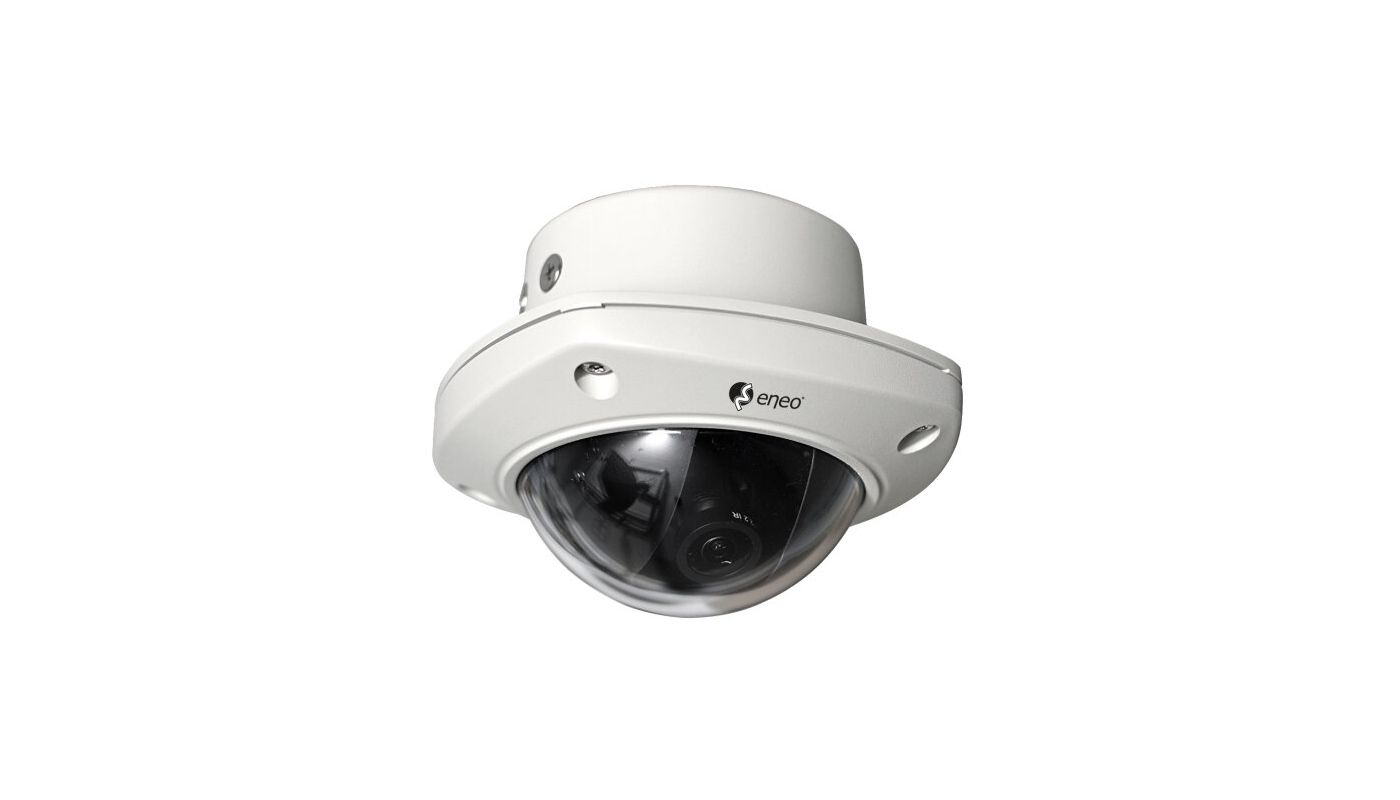

ISD-52F0023WFA

1/2,8" Network Dome, WDR, 1920x1080, Day&Night, 2,3mm, H.265, PoE, 12VDC, Flush Mount
Art. No.
227008
  • 1 / 2.8 "2.0 MP Sony STARVIS CMOS sensor
  • Resolution max. 1920x1080 (Full HD)
  • Fixed focal length 2.3mm, day / night lens (HFoV 135 °!)
  • Quad Streaming (H.265, H.264, MJPEG)
  • Intelligent self-learning video analysis (IntelliVision inside)
  • WDR 120dB, Smart BLC
  • Slot for micro SD memory card
  • ONVIF compliance, PoE IEEE802.af, 12VDC
  • Audio, alarm inputs and outputs
  • Privacy zones, password protection, browser-independent
  • Increasing the refresh rate when moving
  • Suitable for indoor and outdoor use IP66, flush mount
Specifications
Series eneo SN-Series
Camera:
Camera type Dome
Sensor size 1/2.8"
Resolution Standard HD 1080p
Imager CMOS, Sony STARVIS, Sensor IMX290
System True Day&Night
Sensitivity 0,08 Lux, bei F2,2, 40IRE
Low Speed Shutter yes
Low speed shutter automatic
Manual electronic shutter (MES) 1~1/10000Sek.
Automatic electronic shutter (ESC) 1~1/10.000sec.
Wide Dynamic Range (WDR) WDR 120dB
Flickerless function yes
Backlight Compensation Smart BLC
Day&Night switch ICR
Day&Night mode auto, day, night
White balance automatic, manual
Signal-to-noise ratio 48dB
Video:
Resolution 1920x1080 (16:9), 1440x1080 (4:3), 1280x1024 (5:4), 1024x768 (4:3), 1280x720 (16:9), 800x600 (4:3), 800x480 (16:9), 704x576 (4:3), 704x480 (4:3), 640x480 (4:3), 400x240 (4:3), 352x288 (4:3), 352x256 (4:3), 352:240 (4:3), 320x240 (4:3)
Image resolution max. 1920x1080
Image display 5:4
Stream types Quad Streaming
Image Transmission Rate 30 fps
Video compression H.264, H.265, H.264+ (Smart Stream), H.265+ (Smart Stream), M-JPEG
Lens:
Lens Type fixed focal length
Focal Length 2,3 mm
Digital Zoom yes
MOD (Mininum Object Distance) 0,3 m
Iris Control no
Vertical Angle of View 75°
Horizontal Angle of View 135°
DORI:
Detect (25px/m) 35 m, 33,2 m
Observe (62 px/m) 14 m, 13,4 m
Recognize (125 px/m) 8 m, 6,6 m
Identify (250 px/m) 4 m, 3,4 m
Functions:
Multicast compliant yes
Motion Detector yes
Analysis functions motion detection, motion analysis, intrusion, tampering protection, Defog, Digital Image Stabilization
Alarm processing recording internal storage, E-Mail, FTP, Boost, HTTP, TCP, UDP, HTTPS, XML, alarm out
Audio support yes
Audio 2 Way Audio
Password protection yes
e-PTZ support yes
Internal storage microSDHC card, microSDXC card
Menu languages English, German, French, Russian, Chinese, Korean, Japanese
Privacy zone masking Areas-ON/OFF switchable
Remote configuration web browser
Web browser MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG setup limited, Mozilla: MJPEG setup limited, Google: MJPEG setup limted, Edge: MJPEG setup limited
User interface Type B (white / blue)
Mirror function H-flip, mirror
Digital Noise Reduction yes
Network:
Network protocols TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, RTP, UPnP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, QoS, OpenVPN
Interfaces / Inputs/ Outputs:
External connectors alarm output, alarm input, audio input/output, RJ-45, 12VDC input (DC plug), connection cable approx.55cm
Ethernet interface 10Base-T, 100Base-TX
Alarm inputs 1
Alarm outputs 1
General:
Dimensions (HxWxD) 95x120mm
Weight 650g
llumination no
Color (housing) white
Color (bubble) clear
Housing outdoor
Hosuing material aluminium
Heater no
Power consumption 4.8W
Blower no
Mounting ceiling/wall flush mount
ONVIF ONVIF Profile S, ONVIF Profile T
Power over Ethernet IEEE 802.3af
Protection rating IP66
SDK upon request
Supply voltage 12VDC, PoE
Operating temperature -20°C ~ +50°C
Text display supplied
Vandal proof yes
Certifications IK10
Parts supplied:
Parts supplied manual, bag of screws
