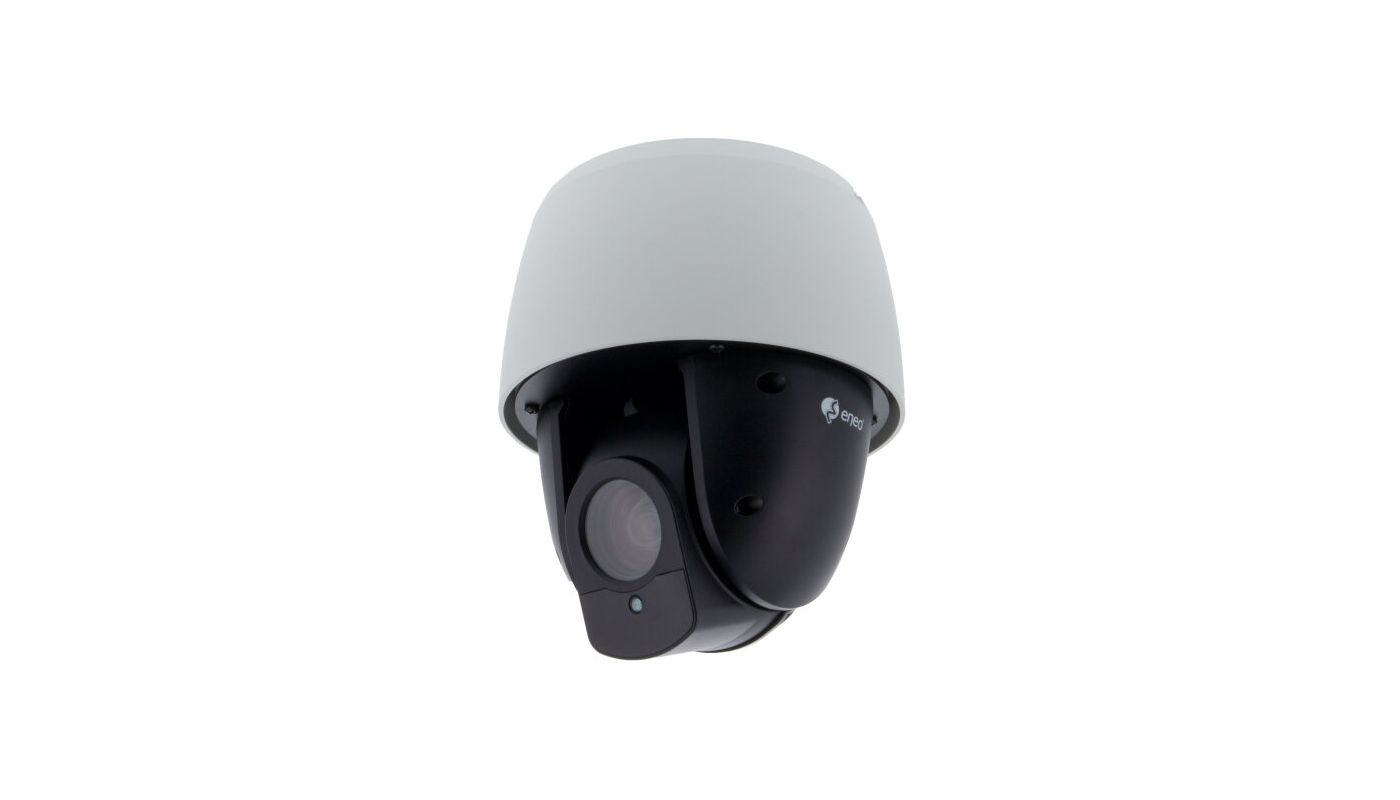

IPP-72A0023MIA

1/2,8" Network Dome, PTZ, Day&Night, 23x, H.265, WDR, 1920x1080, Infrared, IP66
Art. No.
220201
  • 1/2.8" Sony STARVIS CMOS-Sensor
  • Full HD 1920x1080 Pixel, 25/30fps
  • 23x AF Zoom, 5~117mm
  • Quad Stream H.265, H.264, MJPEG (Smart Codec)
  • Real time WDR (Wide Dynamic Range) 25/30fps
  • Intelligent self learning video analysis
  • Digital Noise Reduction (2DNR/3DNR)
  • Audio support including audio alarm
  • Infrared illumination up to 60m
  • Alarm in- and outputs, micro SD-card
  • Power supply 12VDC or HPoE
  • Support ONVIF Profile S und Profile T
Specifications
Series eneo SN-Series
Camera:
Camera type PTZ
Sensor size 1/2.8"
Resolution Standard HD 1080p
Imager CMOS, Sony STARVIS, Sensor IMX290
System True Day&Night
Sensitivity 0,35 Lux, at F1.6, 50 IRE
Low Speed Shutter yes
Low speed shutter automatic
Manual electronic shutter (MES) 1~1/20.000sec.
Automatic electronic shutter (ESC) 1~1/20.000sec.
Wide Dynamic Range (WDR) WDR 120dB
Backlight Compensation Smart BLC
Day&Night switch ICR
Day&Night mode day, night, auto
White balance automatic, manual
Signal-to-noise ratio 50dB
Video:
Resolution 1920x1080 (16:9), 1440x1080 (4:3), 1280x1024 (5:4), 1024x768 (4:3), 1280x720 (16:9), 800x600 (4:3), 800x480 (16:9), 720x576 (4:3), 720x480 (4:3), 704x576 (4:3), 704x480 (4:3), 640x480 (4:3), 400x240 (4:3), 352x288 (4:3), 352x256 (4:3), 352:240 (4:3), 320x240 (4:3)
Image resolution max. 1920x1080
Image display 4:3, 16:9, 5:4
Stream types Quad Streaming
Image Transmission Rate 30 fps
Video compression H.264, H.265, H.264+ (Smart Stream), H.265+ (Smart Stream), M-JPEG
Lens:
Lens Type auto focus zoom
Zoom Factor 23x
Focal Length 5 - 117 mm
Digital Zoom yes
MOD (Mininum Object Distance) 3 m
Iris Control DC
Vertical Angle of View 31,8 - 1,6°
Horizontal Angle of View 56,6 - 3°
DORI:
Detect (25px/m) 71 - 1400 m
Observe (62 px/m) 27 - 590 m
Recognize (125 px/m) 14 - 290 m
Identify (250 px/m) 7 - 140 m
Functions:
Multicast compliant yes
Motion Detector yes
Analysis functions motion analysis, tampering protection, Trip wire plus object counting, loitering detection, intrusion, Person recognition, Defog, Digital Image Stabilization, motion detection
Alarm processing recording internal storage, E-Mail, FTP, Boost, HTTP, TCP, UDP, HTTPS, XML, alarm out
Presets 255 presets
Patterns 8 pattern
Home position selectable, Tour, Preset, Pattern
Tours up to 8 user programmable guard tours
Rotation range 360°
Speed (manual) 380°/Sek.
Speed (preset) 380°/Sek.
Vertical tilt range -10° ~ +90°
Audio support yes
Audio 2 Way Audio
Password protection administrator & users
Internal storage microSDHC card, microSDXC card
Menu languages English, German, French, Russian, Japanese, Chinese, Korean
Privacy zone masking Areas-ON/OFF switchable
Remote configuration web browser
Web browser MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG setup limited, Mozilla: MJPEG setup limited, Google: MJPEG setup limted, Edge: MJPEG setup limited
User interface Type B (white / blue)
Mirror function H/V flip
Digital Noise Reduction yes
Network:
Network protocols TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, QoS, OpenVPN
Interfaces / Inputs/ Outputs:
Video outputs no
External connectors alarm output, alarm input, audio input/output, RJ-45, 12VDC input (DC plug), connection cable approx.40cm
Ethernet interface 10Base-T, 100Base-TX
Alarm inputs 4
Alarm outputs 1
Serial interfaces Ethernet
General:
Dimensions (HxWxD) 208,3x182,4mm
Weight 2.8kg
llumination infrared
Illumination 4x High Power LEDs 850nm
Illumination range approx. 60m
Color (housing) white, black
Housing outdoor
Hosuing material aluminium
Heater no
Power consumption 22W
Blower yes
Mounting wall mount, ceiling mount, for wall mount optional accessories required, (mounting accessories not supplied)
ONVIF ONVIF Profile S, ONVIF Profile T
Power over Ethernet IEEE 802.3at
Protection rating IP66
SDK upon request
Supply voltage PoE, 12VDC
Operating temperature -20°C ~ +50°C
Text display supplied
Vandal proof no
Parts supplied:
Parts supplied manual, plug set, bag of screws
