• IPP-62A0020M0B
    • IPP-62A0020M0B


    Art. No.: 222184

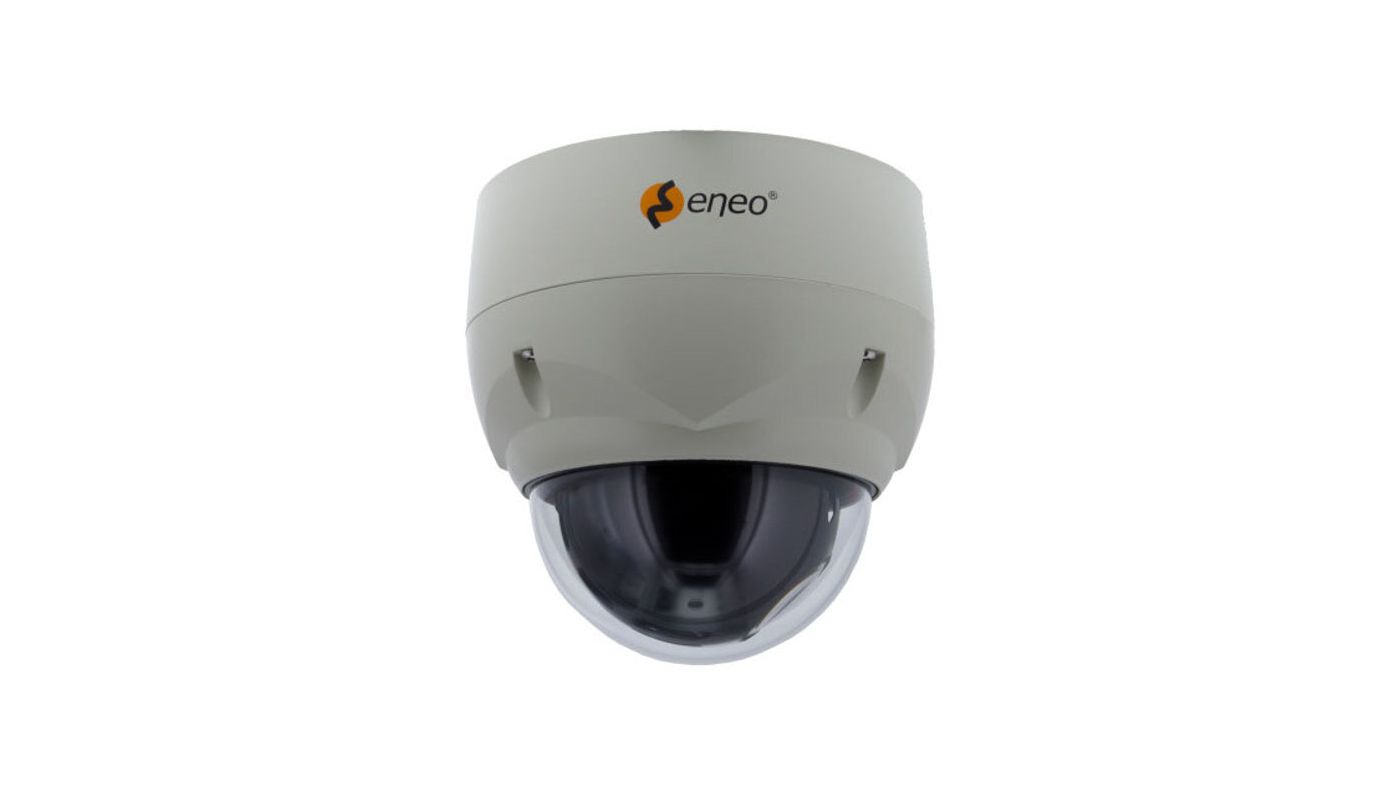

    1/2,8" Network Dome, PTZ, Day&Night, 20x, H.265, WDR, 1920x1080, PoE, IP66


    • 1/2.8" Sony STARVIS CMOS-Sensor
    • Full HD 1920x1080 Pixel, 25/30fps
    • 23x AF Zoom, 4.7~94mm
    • Quad Stream H.265, H.264, MJPEG (Smart Codec)
    • Real time WDR (Wide Dynamic Range) 25/30fps
    • Intelligent motion detector
    • Digital Noise Reduction (2DNR/3DNR)
    • Audio support including audio alarm
    • Alarm in- and outputs, micro SD-card slot
    • Power supply 12VDC, 24VAC or PoE
    • IK10 IK shock resistance degree
    • Support ONVIF Profile S und Profile T


    Camera type PTZ
    Sensor size 1/2.8"
    Resolution standard HD 1080p
    Imager CMOS, Sony STARVIS, Sensor IMX291
    System True Day&Night
    Sensitivity 0,2 Lux, at F1.6, 50 IRE
    Low speed shutter yes, ON/OFF switchable
    Manual electronic shutter (MES) 1/25 ~ 1/30.000sec
    Automatic electronic shutter (ESC) 1/25 ~ 1/30.000sec.
    Wide Dynamic Range (WDR) WDR 120dB, Real Time WDR 25/30fps
    Flickerless function yes
    Backlight compensation BLC, HLC
    Day/Night switching day, night, auto
    IR cut filter switchable
    White balance automatic, manual
    Signal-to-noise ratio 50dB
    Resolution 1920x1080 (16:9), 1440x1080 (4:3), 1280x1024 (5:4), 1024x768 (4:3), 1280x720 (16:9), 800x600 (4:3), 800x480 (16:9), 704x576 (4:3), 704x480 (4:3), 640x480 (4:3), 400x240 (4:3), 352x288 (4:3), 352x256 (4:3), 352:240 (4:3), 320x240 (4:3)
    Resolution max. 1920x1080
    Resolution max. [#1] 4:3, 16:9, 5:4
    Stream types Quad Streaming
    Image transmission rate max. 30 fps
    Compression standard H.264, H.265, H.264+ (Smart Stream), H.265+ (Smart Stream), M-JPEG
    Lens type auto focus zoom
    Zoom factor 20x
    Focal length 4,7 - 94 mm
    Digital zoom 16x
    MOD (Minimum object distance) 1 m
    Iris control DC
    Vertical angle of view 32,4 - 1,7 °
    Horizontal angle of view 55,5 - 3 °
    Detection (25 px/m) 70 - 1370 m
    Observation (62 px/m) 28 - 550 m
    Recognition (125 px/m) 13 - 270 m
    Identification (250 px/m) 7 - 130 m
    Multicast compliant yes
    Motion detector yes
    Analysis functions motion analysis, intrusion, tampering protection, Defog, Digital Image Stabilization
    Alarm processing recording internal storage, E-Mail, FTP, Boost, HTTP, TCP, UDP, HTTPS, XML, alarm out
    Presets 256 presets
    Patterns 8 pattern
    Home position selectable, Tour, Preset, Pattern
    Tours up to 8 user programmable guard tours
    Rotation range 360 °
    Speed (manual control) 380 °/Sek.
    Preset speed 380 °/Sek.
    Vertical tilt range -10° ~ 190°
    Audio 2 Way Audio
    Audio support yes
    Password protection yes
    Internal storage microSDHC card, microSDXC card
    Menu languages English, German, French, Russian, Japanese, Chinese, Korean
    Privacy zones masking Areas-ON/OFF switchable
    Remote configuration web browser
    Web browser MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG setup limited, Mozilla: MJPEG setup limited, Google: MJPEG setup limted, Edge: MJPEG setup limited
    User interface Type B (white / blue)
    Mirror function H-flip
    Digital Noise Reduction (DNR) yes
    Network protocols TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, QoS, OpenVPN
    Interfaces / Inputs / Outputs:
    Video outputs no
    External connections alarm output, alarm input, audio in/output, RJ-45, voltage input
    Ethernet interface 10Base-T, 100Base-TX
    Alarm inputs 4
    Alarm outputs 1
    Serial interfaces Ethernet
    Series eneo SN-Series
    Dimensions (HxWxD) 150x154mm
    Illumination no
    Colour (housing) white
    Colour (bubble) clear
    Housing outdoor, indoor
    Housing material aluminium
    Weight 1.6 kg
    Heater optional
    Power consumption 12W
    Blower yes
    Mounting wall mount, ceiling mount
    ONVIF ONVIF Profile S, ONVIF Profile T
    Power over Ethernet IEEE 802.3af
    Window heater optional
    Protection rating IP66
    SDK upon request
    Supply voltage 12VDC, 24VAC, PoE
    Temperature range (operation) -20°C ~ +50°C
    Text display supplied
    Vandalism resistant yes
    Certificates IK10
    Scope of delivery:
    Parts supplied manual, plug set, bag of screws
