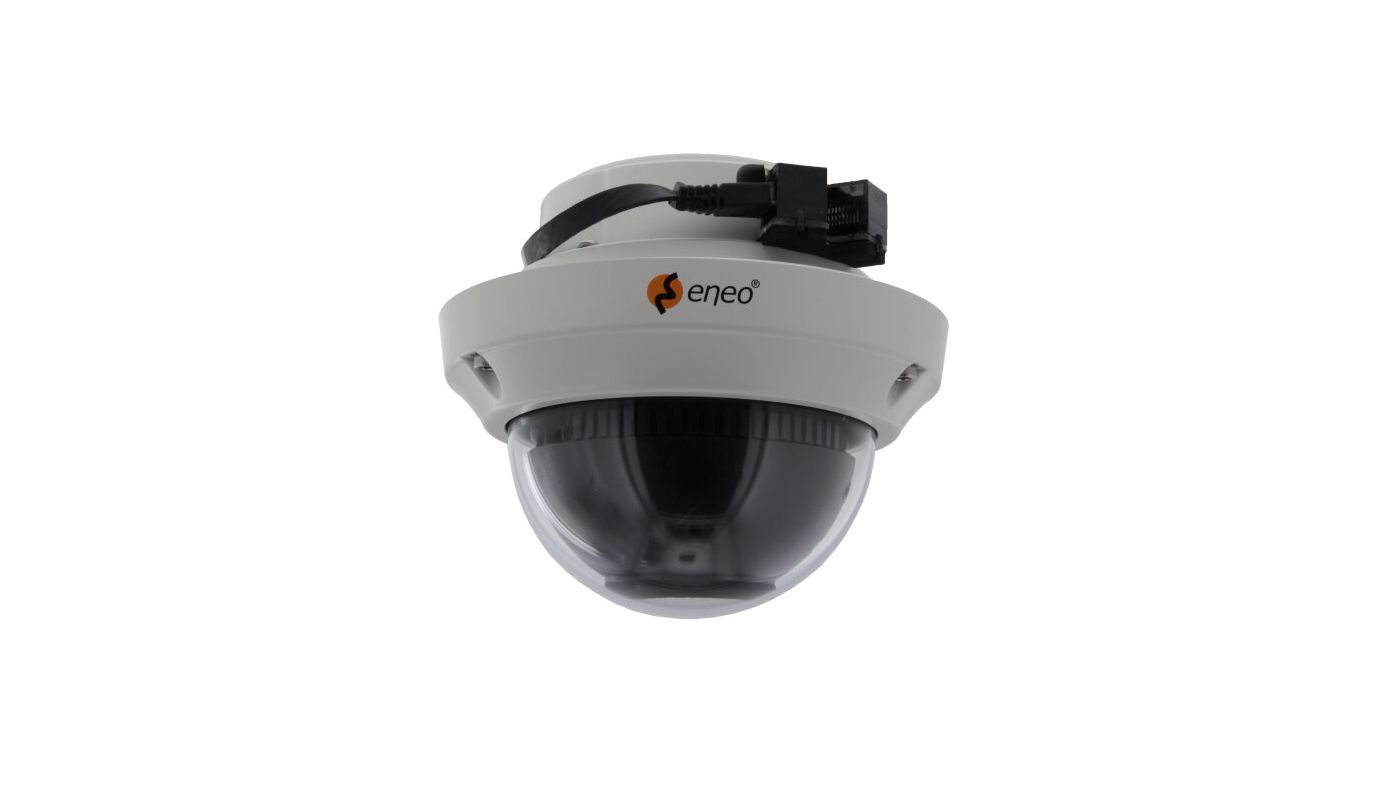

IPD-78M3611M5A

SKU 220930
1/2,5" Network Dome, Fix, 3840x2160, Day&Night, DOL-WDR 3,6-11mm, Infrared, IP67

Main Features

1/2,5" Sony STARVIS CMOS-Sensor
4K UHD Auflösung (3840x2160) @25/30fps
Motorisiertes Varifocal Objektiv 3,6~11mm
DOL-WDR (120dB) 3 Fach Scan der Bilder @25/30fps
VCA (Video Content Analyse), ONVIF Event Mapping
Browserunabhängig (IE, Edge, Safari, Firefox, Chrome)
Smart Codec H.265 ROI (Region of interest)
Quad Smart Streaming: H.265(+), H.264(+), MJPEG
Steckplatz für Micro SD Karte, HTML5 Wiedergabe, Audio, Alarm
Spannungsversorgung PoE, 12VDC oder 24VAC
Für Außeneinsatz IP66, Vandalismus geschützt IK10
Unterstützt ONVIF Profile S und Profile T

More Information

Camera:

Camera type
Dome
Sensor size
1/2,5"
Resolution Standard
8 Megapixel
Imager
Sony STARVIS, Sensor IMX274, CMOS
System
True Day&Night
Sensitivity
0,2 Lux
Low speed shutter
1x~10x, yes
Manual electronic shutter (MES)
1/25 ~ 1/10000sec.
Automatic electronic shutter (ESC)
1/25 ~ 1/10.000sec.
Wide Dynamic Range (WDR)
D-WDR
Flickerless function
yes
Backlight compensation
BLC, HLC
Day&Night switch
Schaltbarer IR-Filter (ICR)
Day&Night mode
Automatic, Day, Night, night-color mode, extern (Sensor)
White balance
ATW-Indoor, ATW-Outdoor, Manual, Fluorescent light, Light bulb, Shade, Clear Sky, Flammes
Signal-to-noise ratio
50dB
Video:

Resolution
3840x2160 (16:9), 2592x1520 (16:9), 1920x1080 (16:9), 1600x900 (16:9), 1280x720 (16:9), 960x540 (16:9), 640x360 (16:9), 320x180 (16:9)
Image resolution max.
3840x2160
Stream types
Multi Streaming
Image Transmission Rate
30 fps
Video compression
H.264, H.264+, H.265, H.265+, M-JPEG
Lens:

Lens Type
Varifokal (motorisiert)
Zoom Factor
3x
Focal Length
3,6 - 11 mm
Digital Zoom
ja
Iris control
DC
DORI:

Detect (25px/m)
104 - 295 m
Observe (62 px/m)
40,4 - 119 m
Recognize (125 px/m)
20,2 - 59,2 m
Identify (250 px/m)
9,8 - 28,8 m
Functions:

Multicast compliant
yes
Motion detector
yes
Analysis functions
Bereichsüberwachung, Bewegungserkennung (Motion Detection), Defog, Hinzugefügte/Entfernte Objekte, Trip wire Detektion (Stolperdraht)
Alarm processing
recording internal storage, E-Mail, HTTP, FTP, Boost, TCP, UDP, Onvif Event Mapping, alarm out
Rotation range
+/-173°
Vertical tilt range
65 °(25 ~ 90°)
Audio support
ja
Audio
2 Wege Audio
Password protection
administrator & users
e-PTZ support
yes
Internal storage
microSDHC-Karte, microSDXC-Karte
Menu languages
English, German, French, Korean
Privacy zone masking
Areas-ON/OFF switchable
Remote configuration
Browser
Web browser
MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG, Mozilla: MJPEG, Google Chrome: MJPEG, Edge: MJPEG
User interface
Type A (orange / grey)
Mirror function
mirror, flip
Digital noise reduction (DNR)
yes
Network:

Network protocols
TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour
Interfaces / Inputs/ Outputs:

External connectors
micro SD card slot, Alarm in/output, RJ-45, Combi connector, connection cable approx.15cm
Ethernet interface
100Base-TX, 10Base-T
Alarm inputs
1
Alarm outputs
1
Serial interfaces
Ethernet
General:

Series
eneo Callisto, eneo LN-Serie
Dimensions (HxWxD)
119x140mm
Weight
1,00 kg
Illumination
2x High Power LEDs 850nm, infrared
Illumination range
ca. 40m
Color (housing)
Pantone Cool Gray 1C
Color (bubble)
klar
Housing
Außen, Innen
Hosuing material
Aluminium
Heater
nein
Power consumption
10,8W
Blower
ja
Mounting
Deckenmontage, Wandmontage
ONVIF
ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3af
Protection rating
IP67
SDK
upon request
Supply voltage
12VDC, 24VAC, PoE
Operating temperature
-50°C ~ +50°C
Text display
supplied
Vandal proof
ja
Certifications
IK10
Parts supplied:

Parts supplied
manual, bag of screws
Notes:

Brand
ENEO
Aufnahmesensor
CMOS
Lichtempfindlichkeit
40IRE, bei F1,5
Low Speed Shutter
ja
Digitale Rauschunterdrückung
ja
Gegenlichtkompensation
BLC, HLC
Wide Dynamic Range (WDR)
D-WDR, DOL-WDR 120dB
Bewegungsmelder
ja
Objektiv Typ
Varifokal (motorisiert)
Blendensteuerung
DC
Beleuchtung
Infrarot
Vertical Angle of View
46 - 21°
Horizontal Angle of View
84 - 40°
Videoausgänge
nein
Stromversorgung
12VDC, 24VAC, PoE
Hersteller-Nummer
220930
Other


Downloads

Data sheet PDF
Data sheet with specifications generated live from the product database
Documents PDF
Quick reference guide for this product
Documents PDF
Kurz-Betriebsanleitung zum Produkt
Documents PDF
Mode d'emploi succincte pour ce produit
Documents PDF
Istruzioni d'uso brevi sul prodotto
Documents PDF
Detailed manual for this product
Documents PDF
Declaration of Conformity in German and English
Media ZIP
Product Image in a high resolution for print
Marketing Infos PDF | 229.6 kB
Accessories Overview eneo
Tools HTML | 914 B
eneoSite ManagerTool
Firmware HTML | 835 B
eneo Firmware Download Porta
Marketing Infos PDF | 72.2 kB
Open Source Software License Information
Marketing Infos PDF | 217.8 kB
RTSP Streams Konfiguration für eneo Kameras und Rekorder

Accessory

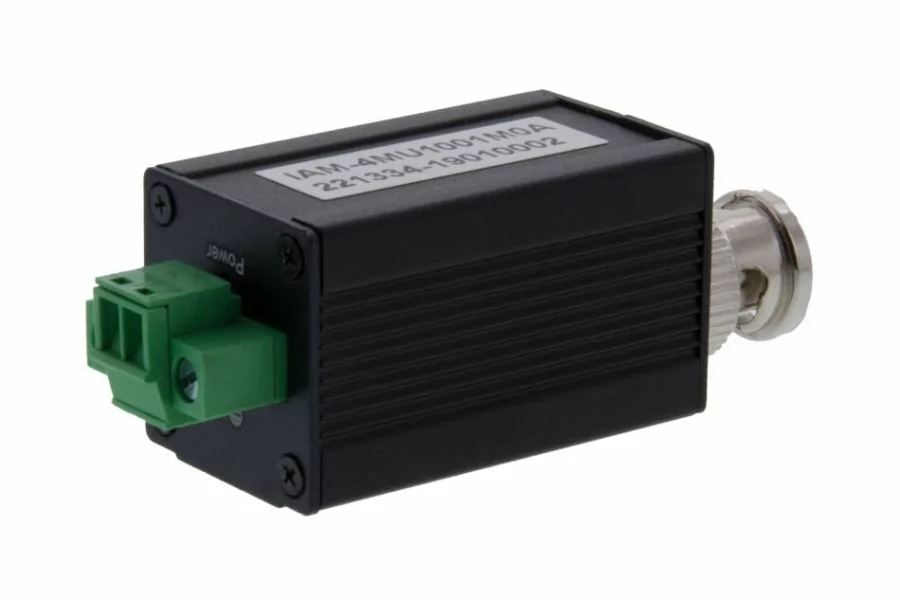

IAM-4MU1001M0A
