SKU 227055
1/2,8" Network Dome, Fixed, 1920x1080, Day&Night, DOL-WDR, 2,7-12mm, Infrared, IP67

Main Features

1/2.8" Sony STARVIS CMOS sensor
Resolution max. 1920x1080 (Full HD)
Motorised varifocal lens 2,7~12mm
DOL-WDR (120dB) by triple scan images at 30/25fps
Motion Detection, Privacy Zones, Defog
Browser independent (IE, Edge, Safari, Firefox, Chrome)
Smart Codec H.265 ROI (Region of interest)
Triple Smart Streaming: H.265(+), H.264(+), MJPEG
Micro SD Card, HTML5 replay, Audio, Alarm
Power supply PoE, 12VDC or 24VAC
For outdoor use IP67, vandal proofed IK10
Supports ONVIF Profile S and Profile T
arrow-right Buy now You will be redirected to our shop on Videor.com for purchase.

More Information

Camera:

Camera type
Dome
Sensor size
1/2.8"
Resolution Standard
HD 1080p
Imager
Sony STARVIS, Sensor IMX307, CMOS
Sensitivity
0,06 Lux at F1,3, 40 IRE
System
True Day&Night
Low speed shutter
1x~10x, yes
Manual electronic shutter (MES)
1/25 ~ 1/10000sec.
Automatic electronic shutter (ESC)
1/25 ~ 1/10.000sec.
Wide Dynamic Range (WDR)
D-WDR
Flickerless function
yes
Backlight compensation
BLC, HLC
Day&Night switch
ICR
Day&Night mode
Automatic, Day, Night, night-color mode, extern (Sensor)
White balance
ATW-Indoor, ATW-Outdoor, Manual, Fluorescent light, Light bulb, Shade, Clear Sky, Flammes
Signal-to-noise ratio
50dB
Video:

Resolution
1920x1080 (16:9), 1600x900 (16:9), 1280x720 (16:9), 960x540 (16:9), 640x360 (16:9), 320x180 (16:9)
Image resolution max.
1920x1080
Image display
VerticalView 90°/270°, 4:3, 16:9
Stream types
Multi Streaming
Image Transmission Rate
30 fps
Video compression
H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Lens:

Lens Type
Varifocal (motorized)
Zoom Factor
4x
Focal Length
2,7 - 12 mm
Digital Zoom
yes
MOD (Mininum Object Distance)
0,5 m
Iris Control
DC
DORI:

Detect (25px/m)
42,6 - 137,2 m
Observe (62 px/m)
17,1 - 55,3 m
Recognize (125 px/m)
8,5 - 27,6 m
Identify (250 px/m)
4,2 - 13,8 m
Functions:

Multicast compliant
yes
Motion detector
yes
Analysis functions
Defog, Motion detection
Alarm processing
recording internal storage (SD card), E-Mail, HTTP, FTP, Boost, TCP, UDP, Onvif Event Mapping, alarm out
Rotation range
+/-173°
Vertical tilt range
65 °(25 ~ 90°)
Audio support
yes
Audio
2 Way Audio
Password protection
administrator & users
e-PTZ support
yes
Internal storage
microSDHC card, microSDXC card
Menu languages
English, German, French, Korean
Privacy zone masking
Areas-ON/OFF switchable
Remote configuration
Browser
Web browser
MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG, Mozilla: MJPEG, Google Chrome: MJPEG, Edge: MJPEG
User interface
Type A (orange / grey)
Mirror function
mirror, flip
Digital Noise Reduction
yes
Network:

Network protocols
TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour
Interfaces / Inputs/ Outputs:

Video outputs
no
External connectors
micro SD card slot, Alarm in/output, RJ-45, Combi connector, connection cable approx.15cm
Ethernet interface
100Base-TX, 10Base-T
Alarm inputs
1
Alarm outputs
1
Serial interfaces
Ethernet
General:

Brand
ENEO
Series
eneo Callisto, eneo LN-Series
Dimensions (HxWxD)
119x140mm
Weight
1 kg
Illumination
2x High Power LEDs 850nm, infrared
Illumination range
approx. 40m
Color (housing)
Pantone Cool Gray 1C
Color (bubble)
clear
Housing
Indoor, Outdoor
Hosuing material
Aluminium
Heater
no
Power consumption
10,8W
Blower
yes
Mounting
Ceiling mount, Wall mount
ONVIF
ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3af
Protection rating
IP67
SDK
upon request
Supply voltage
12VDC, 24VAC, PoE
Operating temperature
-50°C ~ +50°C
Text display
supplied
Vandal proof
yes
Certifications
IK10
Parts supplied:

Parts supplied
manual, bag of screws
Notes:

Imager
CMOS
Low Speed Shutter
yes
Backlight Compensation
BLC, HLC
Wide Dynamic Range (WDR)
D-WDR, DOL-WDR 120dB
Motion Detector
yes
llumination
Infrared
Vertical Angle of View
54 - 18°
Horizontal Angle of View
103 - 33°
Manufacturer order number
227055

Further product information

  Robuste Full HD Kamera IK10 im modularen Dome-DesignWenn Sie eine widerstandsfähige und universal verwendbare Full HD Kamera für den Tag- und Nachteinsatz benötigen, liegen Sie mit dem Netzwerk-Dome IPD-72M2712M5A aus der eneo Callisto Serie goldrichtig. Bestückt mit einem Sony STARVIS CMOS-Sensor und einem motorisierten Varifokalobjektiv, generiert diese vandalismusgeschützte und IP67-konforme Überwachungskamera Videostreams mit einer maximalen Auflösung von 1920 x 1080 Pixeln. Nach Einbruch der Dunkelheit sorgen zwei integrierte High-Power-Infrator-LEDs mit einer Reichweite von rund 40m für die richtige Beleuchtung des Überwachungsbereichs. Geeignet für die Innen- und AußenüberwachungDie Full HD Kamera IK10 kommt in einem soliden Aluminiumgehäuse und kann bei Temperaturen von -50°C bis 50°C eingesetzt werden. Sie könne die IP-Kamera daher ohne Vorbehalte in harschen und rauen Umgebungen einsetzen. Außerdem können Sie sie die IK10-konforme Full HD Kamera dank dem modularen Design, das typisch für die eneo Callisto Serie ist, flexibel montieren. So können Sie das Modell IPD-72M2712M5A mit Installationszubehör wie Aufputzringen, Keiladaptern, Wandarmen und Anschlussboxen optimal an die Gegebenheiten des jeweiligen Einsatzortes anpassen. Die Kamera unterstützt auch die bidirektionale Audioübertragung, so dass auch eine mündliche Kontaktaufnahme mit Personen im Überwachungsbereich möglich ist. Bildoptimierung für den Einsatz auf der VerkaufsflächeZu den technischen Merkmalen der Full HD Kamera IK10 zählen Bildoptimierungsfunktionen wie Gegenlichtkompensation (BLC, HLC) und DOL-WDR, eine Funktion, die durch einen dreifachen Bildscan eine hohe Videoqualität auch unter schwierigen Lichtbedingungen sicherstellt. Im Falle von Nebel, Niesel oder Smog optimiert die Defog-Funktion die Bildqualität automatisch. Außerdem verfügt der Dome über eine Bewegungserkennung, die das Sicherheitspersonal unterstützt, während die Privatzonenmaskierung zu einer datenschutzkonformen Videoüberwachung beiträgt. Smart Codec ROI und ONVIFMithilfe der Smart-Codec-Funktion der Full HD Kamera IK10 können Sie diejenigen Bildbereiche definieren, die für Sie besonders relevant sind und daher mit der höchsten verfügbaren Qualität aufgenommen werden sollen. Bildbereiche von geringerem Interesse werden dagegen mit geringerer Qualität aufgezeichnet. So können Sie die verfügbare Netzwerkbandbreite optimal nutzen und Speicherplatz schonen. Darüber hinaus unterstützt die Full HD Kamera IK10 die ONVIF Profile S und T, sodass sie ohne Weiteres mit ONVIF-konformen IP-Geräten anderer Hersteller kombiniert werden kann.

Downloads

Data sheet PDF
Data sheet with specifications generated live from the product database
Documents PDF
Quick reference guide for this product
Documents PDF
Kurz-Betriebsanleitung zum Produkt
Documents PDF
Mode d'emploi succincte pour ce produit
Documents PDF
Istruzioni d'uso brevi sul prodotto
Documents PDF
Detailed manual for this product
Documents PDF
Declaration of Conformity in German and English
Media ZIP
Product Image in a high resolution for print

Accessory

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.

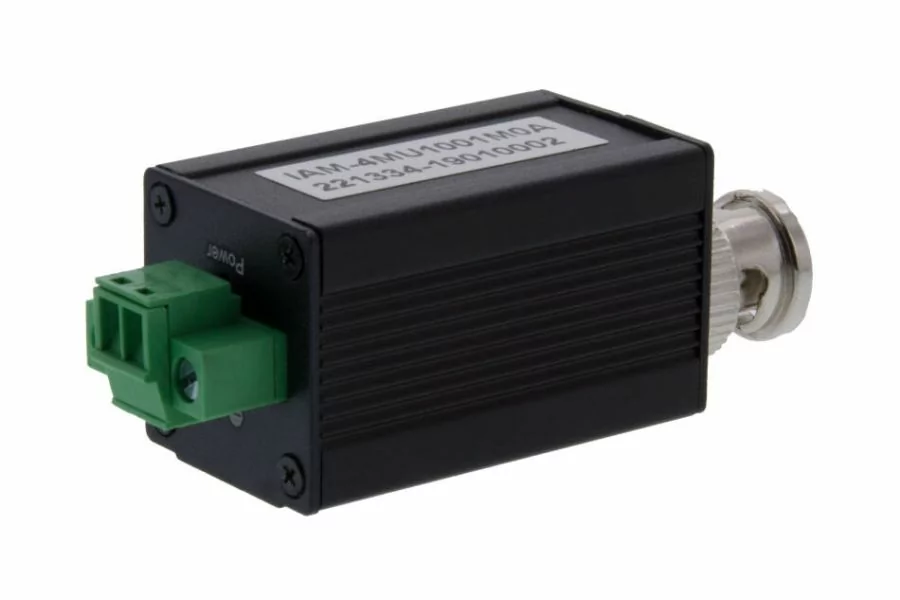

IAM-4MU1001M0A
