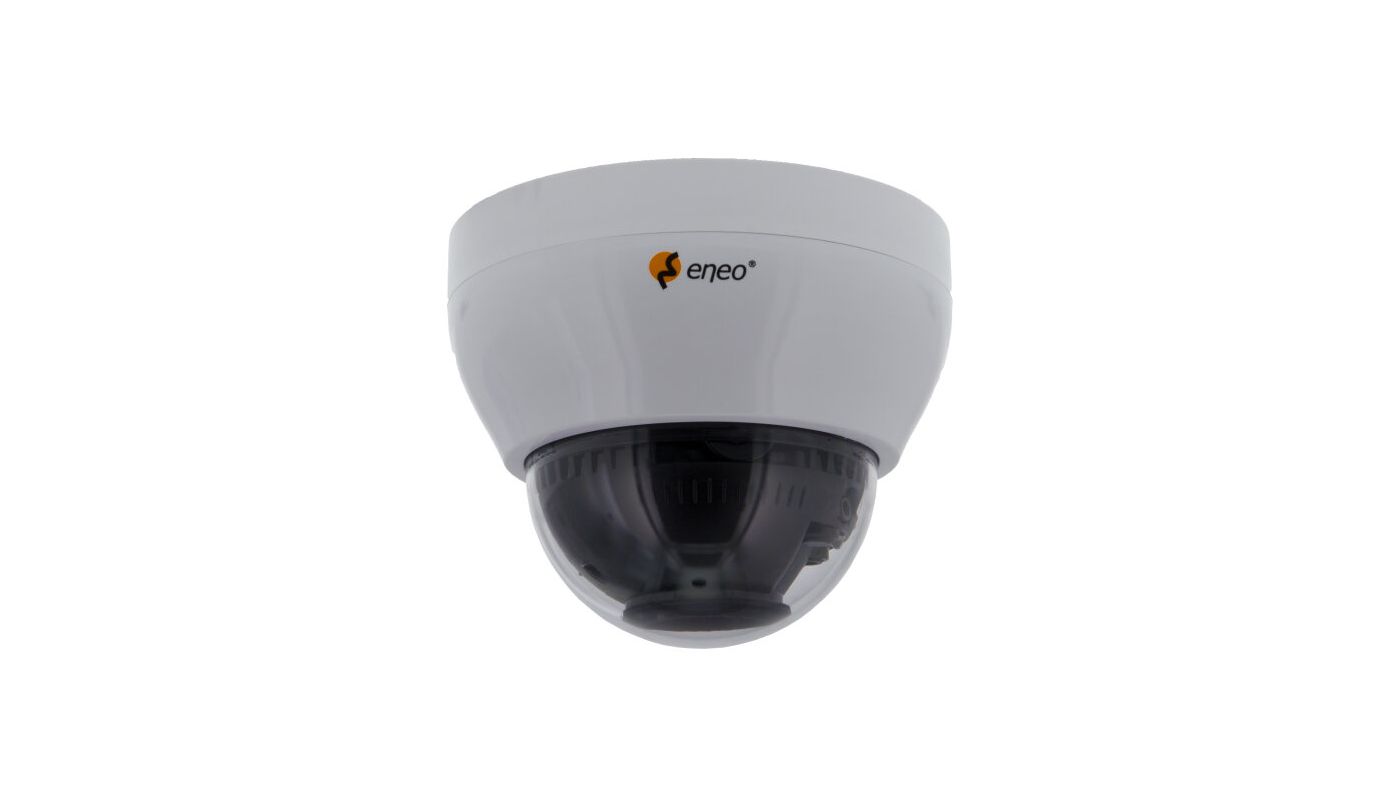

IPD-68M3611P5A

1/2,5" Network Dome, Fix, 3840x2160, Day&Night, DOL-WDR, 3,6-11mm, Infrared, Indoor
Art. No.
227050
  • 1/2.5" Sony STARVIS CMOS sensor
  • Resolution max. 3840x2160, 8 Megapixel
  • Motorised varifocal lens 3.6~11mm
  • DOL-WDR (120dB) by triple scan images at 30/25fps
  • VCA video analysis, ONVIF event mapping
  • Browser independent (IE, Edge, Safari, Firefox, Chrome)
  • Smart Codec H.265 ROI (Region of interest)
  • Quad Smart Streaming: H.265(+), H.264(+), MJPEG
  • Slot for Micro SD Card, HTML5 replay
  • Power supply PoE or 12VDC
  • Wedge adapter included (10° inclination)
  • Supports ONVIF Profile S and Profile T
Specifications
Series eneo Callisto Indoor, eneo LN-Series
Camera:
Camera type Dome
Sensor size 1/2.5"
Resolution Standard 4K Ultra HD
Imager CMOS, Sony STARVIS, Sensor IMX274
System True Day&Night
Sensitivity 0,2 Lux, at F1.5, 40IRE
Low Speed Shutter yes
Low speed shutter 1x~10x
Manual electronic shutter (MES) 1/25 ~ 1/10000sec.
Automatic electronic shutter (ESC) 1/25 ~ 1/10.000sec.
Wide Dynamic Range (WDR) DOL-WDR 120dB, D-WDR
Flickerless function yes
Backlight Compensation BLC, HLC
Day&Night switch ICR
Day&Night mode auto, day, night, night-color mode, extern (Sensor)
White balance ATW-Indoor, ATW-Outdoor, manual, Fluorescent light, Light bulb, Shade, Clear Sky, Flammes
Signal-to-noise ratio 50dB
Video:
Resolution 3840x2160 (16:9), 2592x1520 (16:9), 1920x1080 (16:9), 1600x900 (16:9), 1280x720 (16:9), 960x540 (16:9), 640x360 (16:9), 320x180 (16:9)
Image resolution max. 3840x2160
Stream types Multi Streaming
Image Transmission Rate 30 fps
Video compression H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Lens:
Lens Type Varifocal (motorized)
Zoom Factor 3x
Focal Length 3,6 - 11 mm
Digital Zoom yes
MOD (Mininum Object Distance) 0,5 m
Iris Control DC
Vertical Angle of View 46 - 21°
Horizontal Angle of View 84 - 40°
DORI:
Detect (25px/m) 85,3 - 211,1 m
Observe (62 px/m) 34,2 - 85 m
Recognize (125 px/m) 16,9 - 42,3 m
Identify (250 px/m) 7,9 - 20,8 m
Functions:
Multicast compliant yes
Motion Detector yes
Analysis functions motion detection, Field detection, Object left,removed, Defog, Line detection
Alarm processing recording internal storage, E-Mail, HTTP, FTP, Boost, TCP, UDP, Onvif Event Mapping
Rotation range +/-165°
Vertical tilt range +/-60°
Audio support no
Password protection yes
e-PTZ support yes
Internal storage microSDHC card, microSDXC card
Menu languages English, German, French, Korean
Privacy zone masking Areas-ON/OFF switchable
Remote configuration web browser
Web browser MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG, Mozilla: MJPEG, Google Chrome: MJPEG, Edge: MJPEG
User interface Type A (orange / grey)
Mirror function mirror, flip
Digital Noise Reduction yes
Network:
Network protocols TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour
Interfaces / Inputs/ Outputs:
Video outputs no
External connectors RJ-45, 12VDC input (DC plug), connection cable approx.55cm
Ethernet interface 10Base-T, 100Base-TX
Alarm inputs no
Alarm outputs no
Serial interfaces Ethernet
General:
Dimensions (HxWxD) 94x116mm
Weight 300g
llumination infrared
Illumination 2x High Power LEDs 850nm
Illumination range approx. 30m
Color (housing) white
Color (bubble) clear
Housing indoor
Hosuing material plastic
Heater no
Power consumption 8,5W
Blower yes
Mounting wall mount, ceiling mount
ONVIF ONVIF Profile S, ONVIF Profile T
Power over Ethernet IEEE 802.3af
SDK upon request
Supply voltage 12VDC, PoE
Operating temperature -10°C ~ +50°C
Text display supplied
Vandal proof yes
Parts supplied:
Parts supplied manual, bag of screws
