IPD-52F0028MAA
SKU
232572

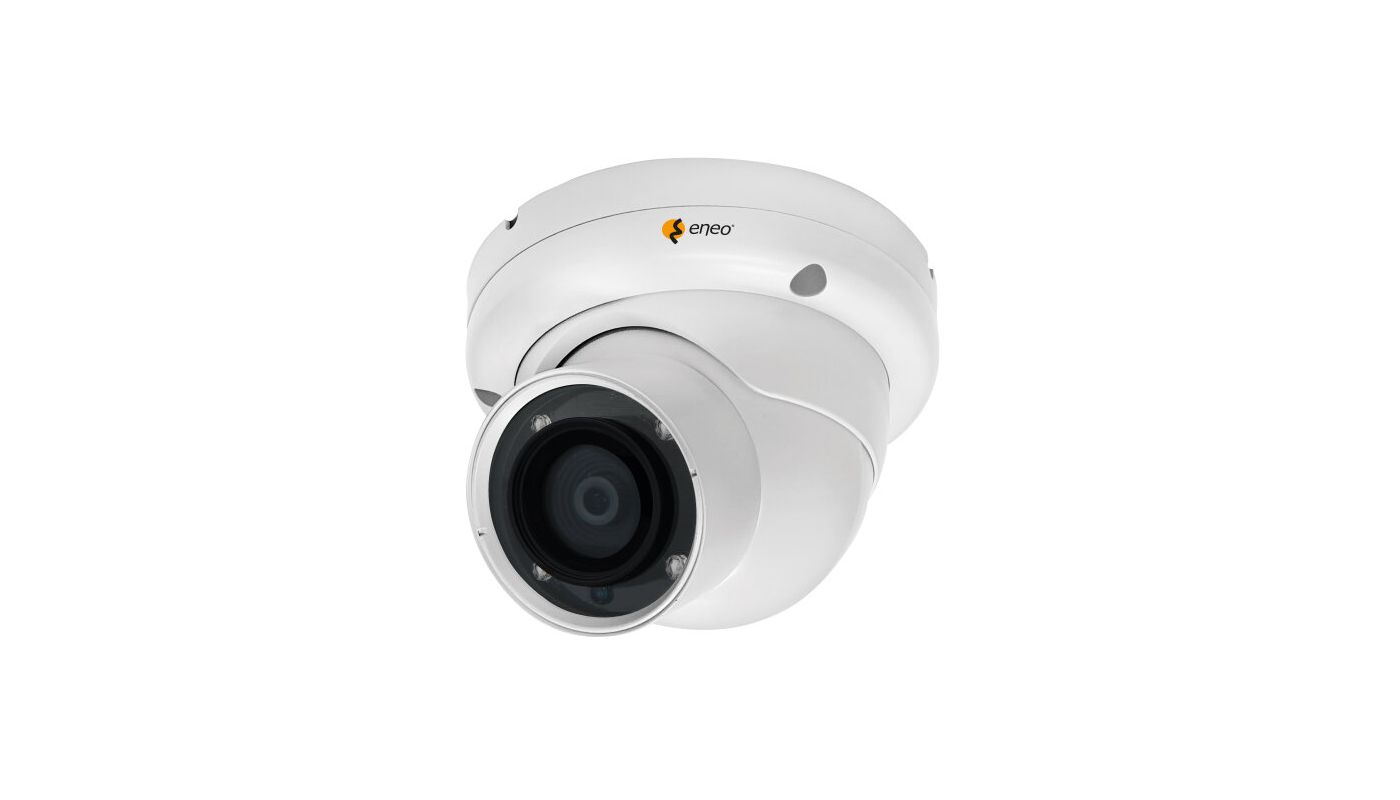

1/2.8" Network Dome, Fix 1920x1080, Day/Night, DOL-WDR, 2.8mm, Infrared, IP66
Main Features
1/2.8" Sony STARVIS CMOS Sensor
Excellent light sensitivity
Resolution max. 1920x1080 (Full HD)
Lens fixed focal length 2.8mm (HfoV 112°)
DOL-WDR (120dB) by triple scan images at 30/25fps
Motion Detection, Privacy Zones, Slow Shutter
Browser independent (IE, Edge, Safari, Firefox, Chrome)
Smart Codec H.265 ROI (Region of Interest)
Supports ONVIF Profile S and Profile T
Vertical View 90°/270° Modus, H-Flip, Mirror
Fix Dome Housing (metal), IP66
Power supply PoE or 12VDC
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Camera:
- Camera type
- Dome
- Sensor size
- 1/2.8"
- Resolution Standard
- HD 1080p
- Imager
- Sony STARVIS, Sensor IMX307, CMOS
- Sensitivity
- 0,006 Lux at F1,8, 40 IRE
- System
- True Day&Night
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1/25 ~ 1/25.000sec
- Automatic electronic shutter (ESC)
- 1/25 ~ 1/25.000sec
- Wide Dynamic Range (WDR)
- D-WDR
- Flickerless function
- yes
- Backlight compensation
- BLC, HLC
- Day&Night switch
- ICR
- Day&Night mode
- Automatic, Day, Night, extern (Sensor)
- White balance
- Automatic, Outdoor, Light bulb, Fluorescent light, Clear Sky, Shade, Manual
- Signal-to-noise ratio
- 50dB
- Video:
- Resolution
- 1920x1080 (16:9), 1280x720 (16:9)
- Image resolution max.
- 1920x1080
- Image display
- VerticalView 90°/270°, 16:9
- Stream types
- Multi Streaming
- Image Transmission Rate
- 30 fps
- Video compression
- H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
- Lens:
- Lens Type
- fixed focal length
- Focal Length
- 2,8 mm
- Digital Zoom
- yes
- MOD (Mininum Object Distance)
- 0,5 m
- Iris Control
- no
- DORI:
- Detect (25px/m)
- 45,9 m
- Observe (62 px/m)
- 18 m
- Recognize (125 px/m)
- 8,8 m
- Identify (250 px/m)
- 4,2 m
- Functions:
- Multicast compliant
- yes
- Motion detector
- yes
- Analysis functions
- Motion detection, Tampering Detection (TD)
- Alarm processing
- E-Mail, HTTP, FTP, Boost, TCP, UDP, Onvif Event Mapping
- Audio support
- no
- Password protection
- administrator & users
- e-PTZ support
- yes
- Internal storage
- no
- Menu languages
- English, German, French, Korean
- Privacy zone masking
- Areas-ON/OFF switchable
- Remote configuration
- Browser
- Web browser
- MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG, Mozilla: MJPEG, Google Chrome: MJPEG, Edge: MJPEG
- User interface
- Type A (orange / grey)
- Mirror function
- mirror, flip
- Digital Noise Reduction
- yes
- Network:
- Network protocols
- TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, SNMP
- Interfaces / Inputs/ Outputs:
- Video outputs
- no
- External connectors
- 12VDC input (DC plug), RJ-45
- Ethernet interface
- 100Base-TX, 10Base-T
- Alarm inputs
- no
- Alarm outputs
- no
- Serial interfaces
- Ethernet
- General:
- Brand
- ENEO
- Series
- eneo AN-Series
- Dimensions (HxWxD)
- 136x117mm
- Weight
- 730g
- Illumination
- 4x High Power LED 850nm, Infrared
- Illumination range
- approx. 30m
- Color (housing)
- Light Cool Gray 1C
- Housing
- Outdoor
- Hosuing material
- Aluminium
- Power consumption
- 12VDC, 7.5W, PoE
- Blower
- yes
- Mounting
- Ceiling mount, Wall mount
- ONVIF
- ONVIF Profile S, ONVIF Profile T
- Power over Ethernet
- IEEE 802.3af
- Window heater
- no
- Protection rating
- IP66
- SDK
- upon request
- Supply voltage
- 12VDC, PoE
- Operating temperature
- -20°C ~ +50°C
- Text display
- supplied
- Vandal proof
- no
- Parts supplied:
- Parts supplied
- manual, bag of screws
- Notes:
- Remarks
- NDAA compliance under Section 889, To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
- Other
- Imager
- CMOS
- Low Speed Shutter
- yes
- Backlight Compensation
- BLC, HLC
- Wide Dynamic Range (WDR)
- D-WDR, DOL-WDR 120dB
- Motion Detector
- yes
- llumination
- Infrared
- Vertical Angle of View
- 60°
- Horizontal Angle of View
- 112°
- Manufacturer order number
- 232572
