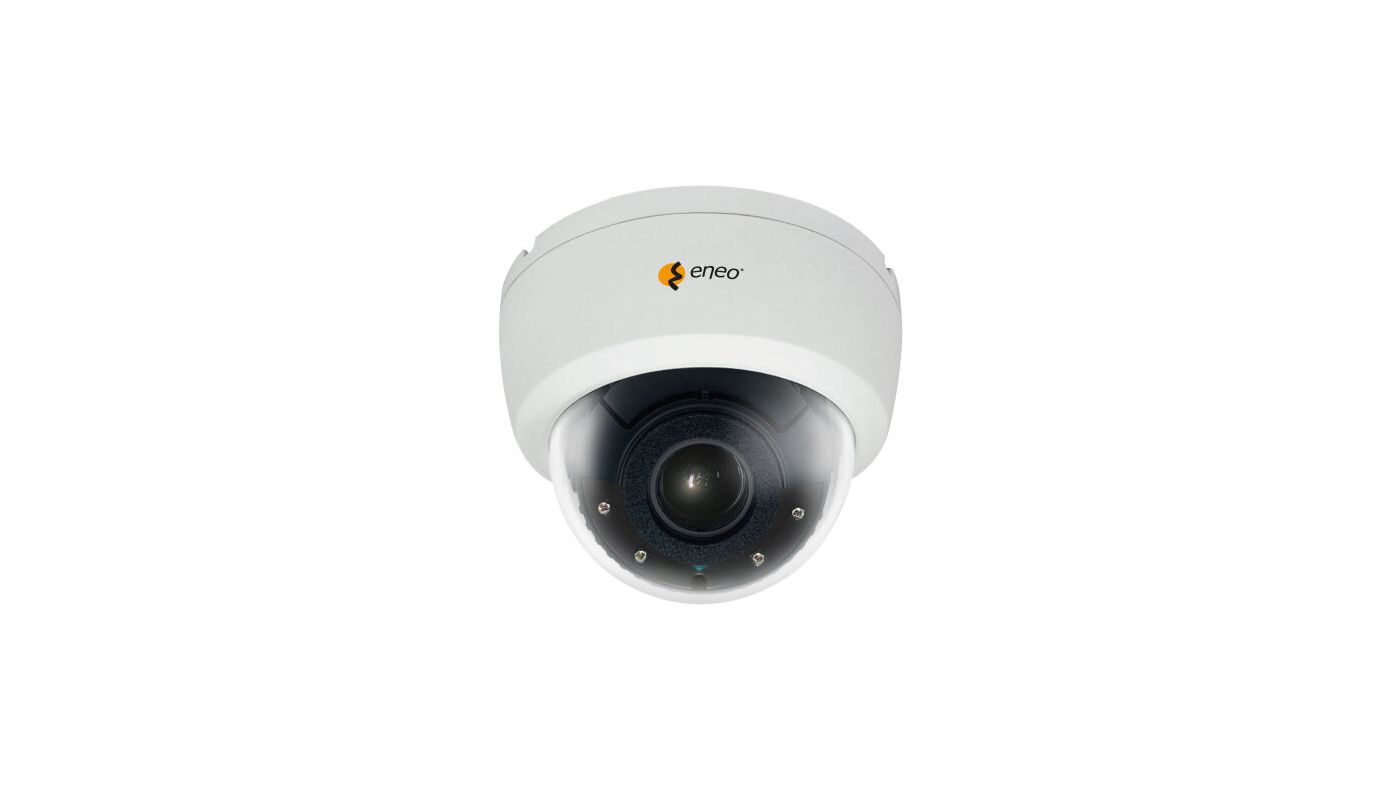

IPD-42F0028PAA

1/2.8" Network Dome, Fix, 1920x1080, Day/Night, DOL-WDR, 2.8mm, Infrared, Indoor
Art. No.
232569
  • 1/2.8" Sony STARVIS CMOS Sensor
  • Excellent light sensitivity
  • Resolution max. 1920x1080 (Full HD)
  • Lens fixed focal length 2.8mm (HfoV 112°)
  • DOL-WDR (120dB) by triple scan images at 30/25fps
  • Motion Detection, Privacy Zones, Slow Shutter
  • Browser independent (IE, Edge, Safari, Firefox, Chrome)
  • Smart Codec H.265 ROI (Region of Interest)
  • Supports ONVIF Profile S and Profile T
  • Vertical View 90°/270° Modus,H-Flip, Mirror
  • Compact Fix Dome Housing (plastic) for indoor
  • Power supply PoE or 12VDC
Specifications
Series eneo AN-Series
Camera:
Camera type Dome
Sensor size 1/2.8"
Resolution Standard HD 1080p
Imager CMOS, Sony STARVIS, Sensor IMX307
System True Day&Night
Sensitivity 0,006 Lux, at F1.8, 40IRE
Low Speed Shutter yes
Manual electronic shutter (MES) 1/25 ~ 1/25.000sec
Automatic electronic shutter (ESC) 1/25 ~ 1/25.000sec
Wide Dynamic Range (WDR) DOL-WDR 120dB, D-WDR
Flickerless function yes
Backlight Compensation BLC, HLC
Day&Night switch ICR
Day&Night mode auto, day, night, extern (Sensor)
White balance automatic, outdoor, Light bulb, Fluorescent light, Clear Sky, Shade, manual
Signal-to-noise ratio 50dB
Video:
Resolution 1920x1080 (16:9), 1280x720 (16:9)
Image resolution max. 1920x1080
Image display VerticalView 90°/270°, 16:9
Stream types Multi Streaming
Image Transmission Rate 30 fps
Video compression H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Lens:
Lens Type fixed focal length
Focal Length 2,8 mm
Digital Zoom yes
MOD (Mininum Object Distance) 0,5 m
Iris Control DC
DORI:
Detect (25px/m) 45,9 m
Observe (62 px/m) 18 m
Recognize (125 px/m) 8,8 m
Identify (250 px/m) 4,2 m
Functions:
Multicast compliant yes
Motion Detector yes
Analysis functions motion detection, tampering protection
Alarm processing E-Mail, HTTP, FTP, Boost, TCP, UDP, Onvif Event Mapping
Audio support no
Password protection administrator & users
e-PTZ support yes
Internal storage no
Menu languages English, German, French, Korean
Privacy zone masking Areas-ON/OFF switchable
Remote configuration web browser
Web browser MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG, Mozilla: MJPEG, Google Chrome: MJPEG, Edge: MJPEG
User interface Type A (orange / grey)
Mirror function mirror, flip
Digital Noise Reduction yes
Network:
Network protocols TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, SNMP
Interfaces / Inputs/ Outputs:
Video outputs no
External connectors 12VDC input (DC plug), RJ-45
Ethernet interface 10Base-T, 100Base-TX
Alarm inputs no
Alarm outputs no
Serial interfaces Ethernet
General:
Dimensions (HxWxD) 87x113mm
Weight 270g
llumination infrared
Illumination 4x High Power LEDs 850nm
Illumination range approx. 30m
Color (housing) white
Housing indoor
Hosuing material ABS plastic
Power consumption PoE, 7W, 12VDC, 6.5W
Blower yes
Mounting wall mount, ceiling mount
ONVIF ONVIF Profile S, ONVIF Profile T
Power over Ethernet IEEE 802.3af
Window heater no
SDK upon request
Supply voltage 12VDC, PoE
Operating temperature -10°C ~ +50°C
Text display supplied
Vandal proof no
Parts supplied:
Parts supplied manual, bag of screws
Notes:
Remarks NDAA compliance under Section 889, Part A.
