INR-58N640005A
SKU
238664

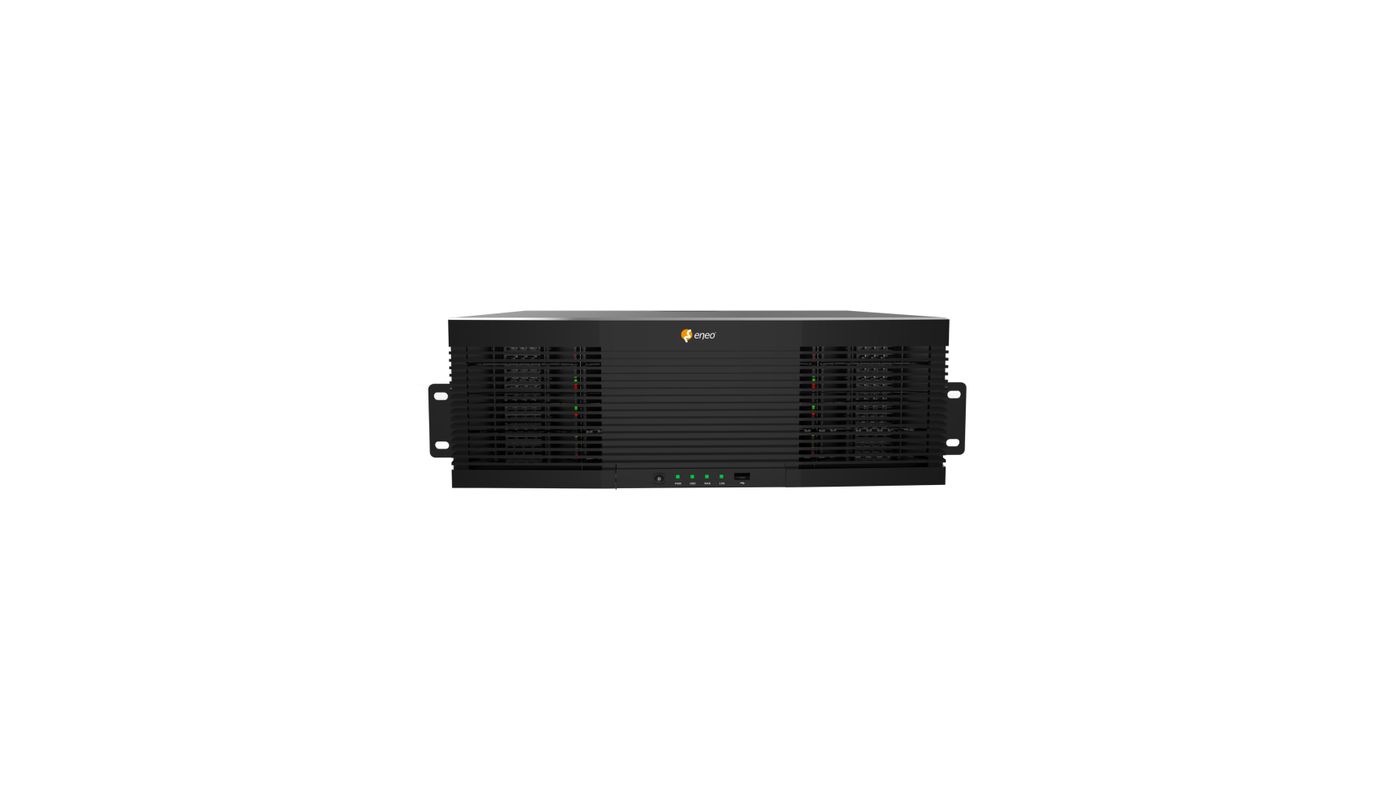

Network Video Recorder 64x IP, RAID, 16xSATA, 4xHDMI, H.265, H.264, without HDD
Main Features
Maximum resolution 12MP (recording)
Recording modes continuous, manual or AI-based
Maximum data rate input 640Mbps, output 640Mbps
Maximum 16 internal hard drives possible, hotswap capable
RAID 0,1,5,6,10 support
Supports 16 alarm inputs and 4 alarm outputs
4x HDMI output, 2x RJ45 network connection, 1xUSB connection
1 x audio input and output
eSATA connection for external memory expansion
Remote access via browser, eneo Insight or Insight mobile
ONVIF Profile S support, NDAA compliance
USB mouse and 19" mounting bracket included in the scope of delivery
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Video:
- Compression
- H.264, H.264+, H.265, H.265+
- Display:
- Live display
- 240fps @ 3840x2160, 480fps @ 2592x1520, 960fps @ 1920x1080
- Recording:
- Max. recording resolution
- 4000x3000
- Pre-alarm recording
- up to 5min.
- Backup
- Setup
- Functions:
- Motion detector
- integrated motion detector
- Analysis functions
- Depending on connected IP camera
- Alarm notification
- e-mail notification, alarm output, remote software, Live Popup, Buzzer, PTZ Preset, FTP, Push (Mobile), Spot Popup
- Alarm triggers
- disk error, video loss, motion detection, contact, AI
- Audio support
- yes
- Password protection
- administrator & users
- HDD hotswap
- yes
- Menu languages
- English, German, French, Spanish, Italian, Russian, Portugese, Polish, Turkish, Romanian, Danish, Dutch, Finnish, Bulgarian, Greek, Japanese, Korean, Thai, Arabic, Hebrew, Hindi
- Remote access
- Android, iPhone, remote software, WEB Browser (Java)
- Remote configuration
- Remote software
- Search function
- date/time, event, Thumbnail, text, museum, Instant Playback, VCA search
- Network:
- Network
- 2x 10/100/1000 Base-Tx, RJ45
- Network connection
- 2 x 10/100/1000BASE-T
- Network protocols
- TCP/IP, DHCP, HTTP, UPnP, SMTP, RTSP, RTP, FTP, NTP, SNMP, DNS, DDNS, HTTPS
- Data tranfer rate max.
- 1280 Mbps
- Data transfer rate incoming
- 640 Mbps
- Data transfer rate outgoing
- 640 Mbps
- Interfaces / Inputs/ Outputs:
- IP channels
- 64
- Channels total
- 64
- Monitor Outputs
- 4x HDMI
- Spot monitor
- no
- USB ports
- 1x USB 2.0, 2x USB 3.0
- Interfaces external storage
- 1x eSATA
- Alarm inputs
- 16
- Alarm output
- 4
- Audio inputs
- 1
- Audio output
- 1
- Serial interfaces
- RS-232, RS-485
- General:
- Brand
- ENEO
- Series
- eneo IN-Series
- Dimensions (HxWxD)
- 1498x440x460mm
- Weight
- 9kg
- 19" rack mount
- yes
- HDD slots
- 16x SATA
- Control units (external)
- mouse
- Internal HDD capacity
- 0 TB
- Max. internal HDD capacity
- 288 TB
- Integrated writer
- no
- Power consumption
- 8W, without HDD
- Blower
- yes
- Remote software
- eneo INsight
- ONVIF
- ONVIF Profile S, yes
- RAID
- + Hot Spare, RAID 0, RAID 1, RAID 10, RAID 5, RAID 6
- Supply voltage
- 100-240VAC; ATX250W intern
- Operating temperature
- -10°C ~ +50°C, @ Humidity 90% or less (non-condensing)
- Parts supplied:
- Parts supplied
- mouse, manual, 19" rack mount angle
- Other
- Operating system
- Linux
- Remarks
- IP cameras of the PXB, PXC, PXD and PTB series are not supported by this product, NDAA compliance under Section 889, To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
- Special features
- RAID0: Minimum 2 up to 8 pcs HDDs, without TB size requirement, RAID1: Minimum 2 pcs HDDs, without TB size requirement, RAID5: Minimum 3 up to 8 pcs HDDs with minimum 4TB size, RAID6: Minimum 4 up to 8 pcs HDDs with minimum 4TB size, RAID10: 4 oder 8 Festplatten, ohne TB-Größenanforderung, We recommend the use of Enterprise-Class hard drives
- Manufacturer order number
- 238664
Further product information
Before installing the device in a 19" rack, please ensure that a shelf or suitable slide rails are installed in the cabinet. It is not possible to support the recorder using only the 19" mounting brackets supplied. These are only used to fix the position of the device.To ensure heat dissipation and proper functioning of the device, it is forbidden to stack the device or place other heavy objects on top of it.Use of the 4 HDMI outputs: 3x HDMI supported resolutions: 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080 , 1920x1080 , 1600x1200，1920x1200, 3840x2160, 7680x4320; 1x HDMI supported resolutions: 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080; Note:If the output resolution of HDMI 1 is set to 8K, the maximum output resolution of HDMI 3 and 4 is limited to 1080P and HDMI 2 will be disabled.Downloads
