INR-28N320005A
SKU
234750

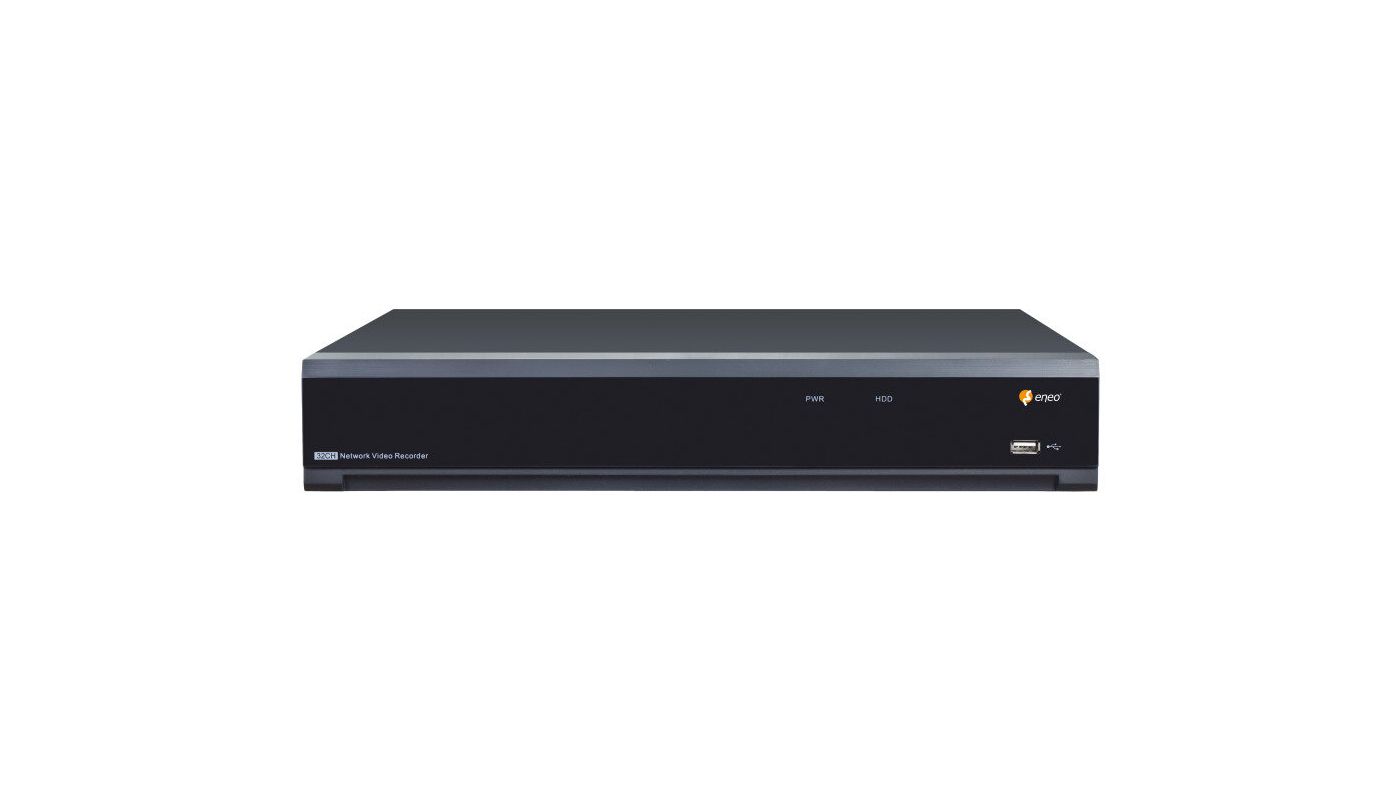

Network Video Recorder 32x IP total, 16x IP PoE, HDMI, 4xSATA, w/o HDD
Main Features
Maximum resolution 8MP (recording)
Recording and research AI analysis functions
Recording modes continuous, manual or AI-based
Maximum data rate input 256Mbps, output 128Mbps
Various options for alarm messages
Maximum 4 internal hard disk possible
Supports 16 x alarm inputs and 1 x alarm output
3 x USB inputs, 1 x RS-485, 1 x audio input and output
eSATA port for external storage expansion
NetDrive or cloud storage (Google Drive/Dropbox)
Remote access via browser, eneo Insight or Insight mobile
32 IP channels, 16 x RJ45 PoE port (220 Watt PoE budget)
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Video:
- Compression
- H.264, H.264+, H.265, H.265+
- Display:
- Playback
- 16 channel split, 4 channel split, 8 channel split, full screen, sequence
- Live display
- 60fps @ 3840x2160, 90fps @ 2592x1944, 120fps @ 2592x1520, 240fps @ 1920x1080
- Recording:
- Max. recording resolution
- 3840x2160
- Recording
- permanent, movement, event, manual, AI
- Pre-alarm recording
- up to 5sec.
- Backup
- Setup
- Functions:
- Motion detector
- integrated motion detector
- Analysis functions
- Depending on connected IP camera
- Alarm notification
- e-mail notification, alarm output, remote software, Live Popup, Buzzer, PTZ Preset, FTP, Push (Mobile), Spot Popup
- Alarm triggers
- disk error, video loss, motion detection, contact, AI
- Audio support
- yes
- Password protection
- administrator & users
- HDD hotswap
- no
- Menu languages
- English, German, French, Spanish, Italian, Russian, Portugese, Polish, Turkish, Romanian, Danish, Dutch, Finnish, Bulgarian, Greek, Japanese, Korean, Thai, Arabic, Hebrew, Hindi
- Remote access
- Android, iPhone, remote software, WEB Browser (Java)
- Remote configuration
- Remote software
- Search function
- date/time, event, Thumbnail, text, museum, Instant Playback, VCA search
- Covert camera mode
- yes
- Network:
- Network
- 1x 10/100/1000 Base-T RJ45
- Network connection
- 1 x 10/100/1000BASE-T, 16x PoE RJ45 10/100 Base-T
- Network protocols
- TCP/IP, DHCP, HTTP, UPnP, SMTP, RTSP, RTP, FTP, NTP, SNMP, DNS, DDNS, HTTPS
- Data tranfer rate max.
- 384 Mbps
- Data transfer rate incoming
- 256 Mbps
- Data transfer rate outgoing
- 128 Mbps
- Interfaces / Inputs/ Outputs:
- IP channels
- 32
- Channels total
- 32
- Monitor Outputs
- 1x HDMI (2MP), 1x HDMI (4K), VGA
- Spot monitor
- no
- USB ports
- 1x USB 3.0, 2x USB 2.0
- Interfaces external storage
- USB
- Interfaces external storage
- 1x eSATA, 1x NetHDD (SMB,NFS), Google Drive 2 channels, Dropbox 2 channels
- Alarm inputs
- 16
- Alarm output
- 1
- Audio inputs
- 1
- Audio output
- 1
- Serial interfaces
- RS-485
- General:
- Brand
- ENEO
- Series
- eneo IN-Series
- Dimensions (HxWxD)
- 378x325,8x66mm
- Weight
- 2.95kg
- 19" rack mount
- yes
- HDD slots
- 4x SATA
- Control units (external)
- mouse
- Internal HDD capacity
- 0 TB
- Max. internal HDD capacity
- 40 TB
- Integrated writer
- no
- Power consumption
- 12W, without HDD
- Blower
- yes
- Remote software
- eneo INsight
- ONVIF
- ONVIF Profile S, yes
- PoE budget
- 220 W
- Power over Ethernet
- IEEE 802.3af, IEEE 802.3at
- RAID
- n/a
- Supply voltage
- 230VAC
- Operating temperature
- 0°C ~ +40°C
- EAN/GTIN
- 4260229840016
- Parts supplied:
- Parts supplied
- HDD assembly-kit, mouse, 19" rack mount angle, manual
- Other
- Operating system
- Linux
- Remarks
- IP cameras of the PXB, PXC, PXD and PTB series are not supported by this product, NDAA compliance under Section 889, To record the maximum possible number of IP channels, two hard disks must be installed., Note: For two freely definable channels, the alarm recording can be saved in the cloud., To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
- Manufacturer order number
- 234750
