INP-54M2812M0A
SKU
236326

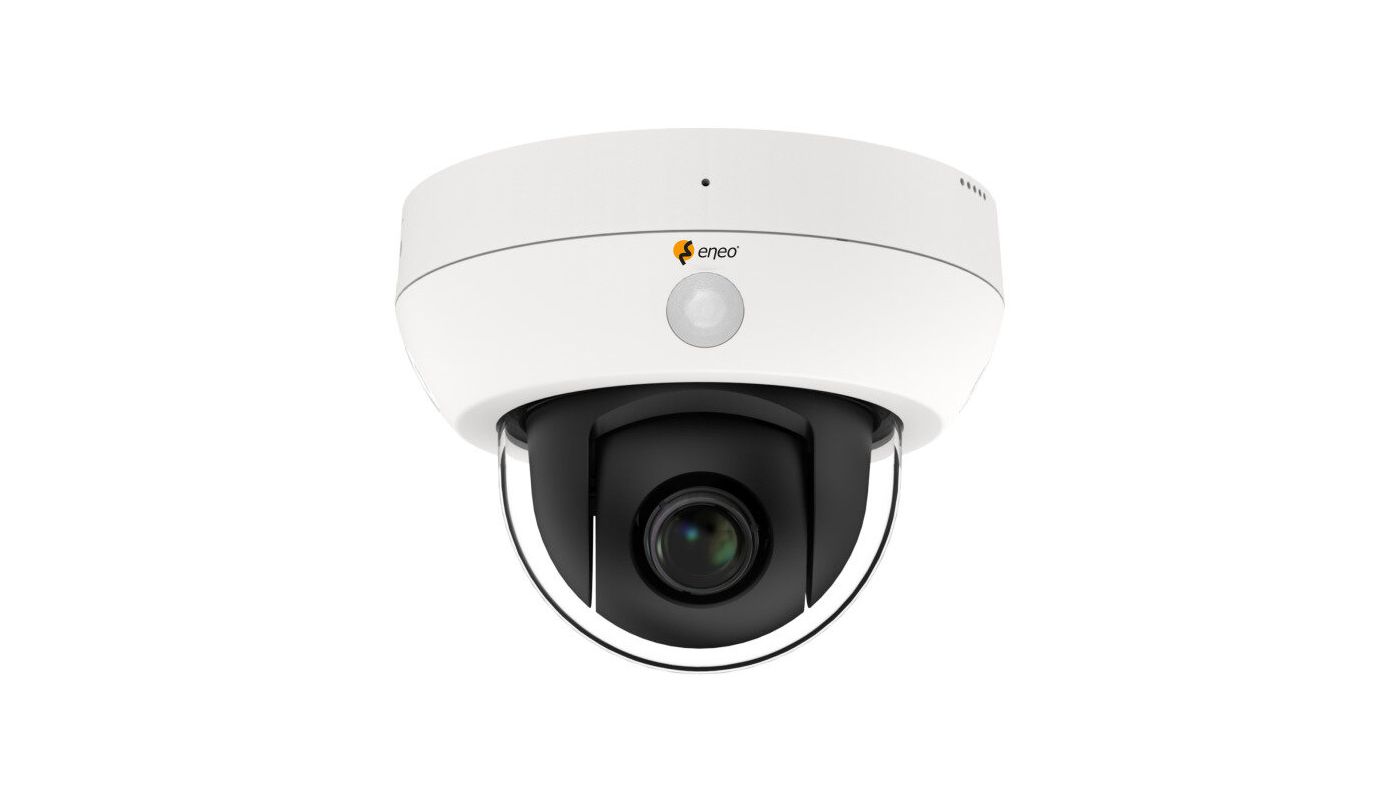

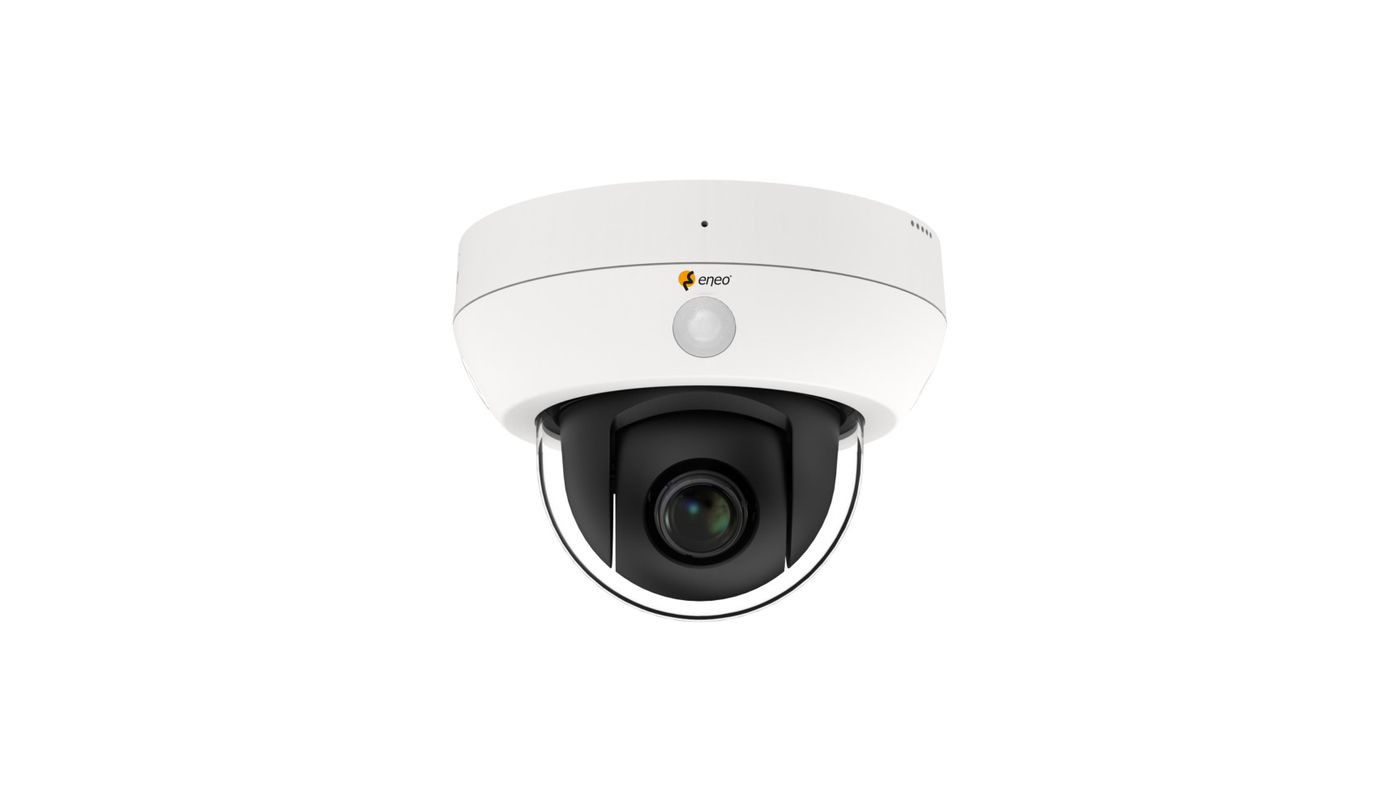

Network Dome, PTZ, 4x, 2560x1440, Day/Night, WDR, A Audio, 12VDC, PoE, IP66, IK10
Main Features
1/1.8" High Sensitivity SmartSens CMOS sensor,
Maximum resolution 2560x1440 pixels, 60fps
AI analysis functions including object classification
WDR 120dB, 3D-DNR noise reduction
Motorised varifocal lens 2.8-12mm
Smart Codec H.265/H.264, multi-streaming
Browser independent (Edge, Safari, Firefox, Chrome)
Supports ONVIF profiles S/T/G
Local storage via Micro SD card
Built-in loudspeaker and microphone
Power supply 12VDC or PoE IEEE 802.3af
IR and white light LED illumination, IP66, IK10
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Camera:
- Camera type
- PTZ
- Sensor size
- 1/1.8"
- Resolution Standard
- 4 Megapixel
- Imager
- SmartSens, SC4210, CMOS
- Sensitivity
- 0,001 Lux at F1,6
- System
- True Day&Night
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1/5 ~ 1/20.000sec.
- Automatic electronic shutter (ESC)
- 1/5 ~ 1/20.000sec.
- Wide Dynamic Range (WDR)
- WDR 120dB
- Flickerless function
- yes
- Backlight compensation
- BLC, HLC
- Day&Night switch
- ICR
- Day&Night mode
- Automatic, Day, Time
- White balance
- Automatic, Manual
- Signal-to-noise ratio
- 39dB
- Video:
- Resolution
- 2560x1440 (16:9), 2304x1296 (16:9), 1920x1080 (16:9), 1280x720 (16:9), 640x480 (4:3), 352:240 (4:3)
- Image resolution max.
- 2560x1440
- Image display
- 16:9, 4:3
- Stream types
- Triple-Stream(Main/Sub/Mobile)
- Image Transmission Rate
- 30 fps
- Video compression
- H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream)
- Lens:
- Lens Type
- Varifocal (motorized)
- Zoom Factor
- 4x
- Focal Length
- 2,8 - 12 mm
- Iris Control
- DC
- DORI:
- Detect (25px/m)
- 48,4 - 173 m
- Observe (62 px/m)
- 18,4 - 69,6 m
- Recognize (125 px/m)
- 8,7 - 34,8 m
- Identify (250 px/m)
- 3,6 - 17,1 m
- Functions:
- Multicast compliant
- yes
- Motion detector
- yes
- Analysis functions
- Attribute Detection (AD), Cross Counting (CC), Crowd Density Detection (CD), Face Attendance (FA), Face Detection (FD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), License Plate Detection (LPD), License Plate Recognition (LPR), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Queue Lenght Detection (QD), Rare Sound Detection (RSD), Stationary Object Detection (SOD)
- Alarm processing
- recording internal storage (SD card), E-Mail, HTTP, FTP, TCP, UDP, Siren, Strobe light, Cloud Upload
- Presets
- 255 presets
- Tours
- n/a
- Rotation range
- 350°
- Speed (manual)
- 50°/Sek.
- Speed (preset)
- 50°/Sek.
- Audio support
- yes
- Audio
- 93±3dB max., built-in loudspeaker, built-in microphone
- Password protection
- administrator & users
- Internal storage
- 256GB, microSDHC card, microSDXC card
- Menu languages
- English, German, French, Italian, Portugese, Spanish, Turkish, Russian, Japanese
- Privacy zone masking
- Areas-ON/OFF switchable
- Remote configuration
- Browser
- Web browser
- MS Internet Explorer 10/11, Safari , Firefox , Google Chrome , Edge
- Mirror function
- V flip, H-flip, H/V flip
- Digital Noise Reduction
- 3D-DNR, yes
- Network:
- Network protocols
- TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
- Interfaces / Inputs/ Outputs:
- External connectors
- RJ-45, 12VDC input (DC plug), connection cable approx.45cm, micro SD card slot 256 GB
- Ethernet interface
- 100Base-TX, 10Base-T
- Alarm inputs
- no
- Alarm outputs
- no
- Serial interfaces
- Ethernet
- General:
- Brand
- ENEO
- Series
- eneo IN-Series

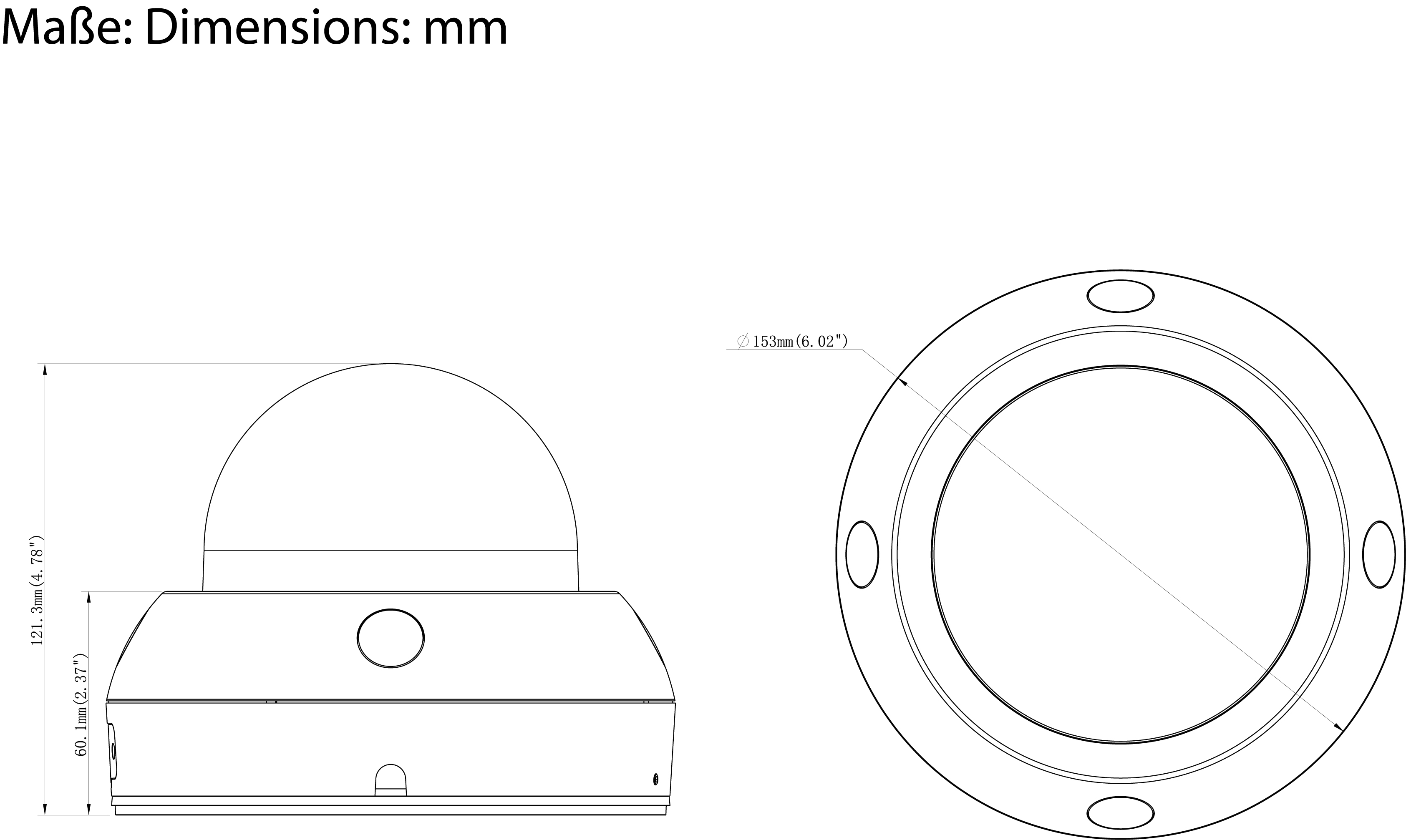

- Dimensions (HxWxD)
- 118,8x153mm
- Weight
- 950g
- Illumination
- 4x LED 850nm, 4x Whitelight LED, Infrared, White light
- Illumination range
- approx. 20m
- Color (housing)
- Pantone P 179-1, RAL9003
- Housing
- Outdoor
- Hosuing material
- Aluminium
- Heater
- no
- Integrated wall mount
- no
- Camera Type
- Face recognition, License plate recognition, People Count, Retail Intelligence
- Power consumption
- 15W
- Blower
- no
- Mounting
- Ceiling mount, Wall mount
- ONVIF
- ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
- Power over Ethernet
- IEEE 802.3af
- Protection rating
- IP66
- SDK
- upon request
- Supply voltage
- 12VDC, PoE
- Operating temperature
- -30°C ~ +60°C, @ Humidity 90% or less (non-condensing)
- Text display
- ON/OFF switchable
- Vandal proof
- yes
- Certifications
- IK10
- EAN/GTIN
- 4260229840528
- Parts supplied:
- Parts supplied
- manual, bag of screws
- Other
- Imager
- CMOS
- Backlight Compensation
- BLC, HLC
- Wide Dynamic Range (WDR)
- WDR 120dB
- Motion Detector
- yes
- llumination
- Infrared, White light
- Vertical Angle of View
- 59 - 27,1°
- Horizontal Angle of View
- 114,6 - 48,3°
- Remarks
- NDAA compliance under Section 889, The face recognition functions are only available with an inserted SD card or in conjunction with a recorder of the eneo IN series., To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
- Manufacturer order number
- 236326
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Documents PDF
- Quick reference guide for this product
- Documents PDF
- Kurz-Betriebsanleitung zum Produkt
- Documents PDF
- Detailed manual for this product
- Documents PDF
- Betriebsanleitung zum Produkt
- Documents PDF
- Declaration of Conformity in German and English
- Media ZIP
- Product Image in a high resolution for print
- Marketing Infos PDF | 1.1 MB
- Produkt Katalog
- Tools HTML | 914 B

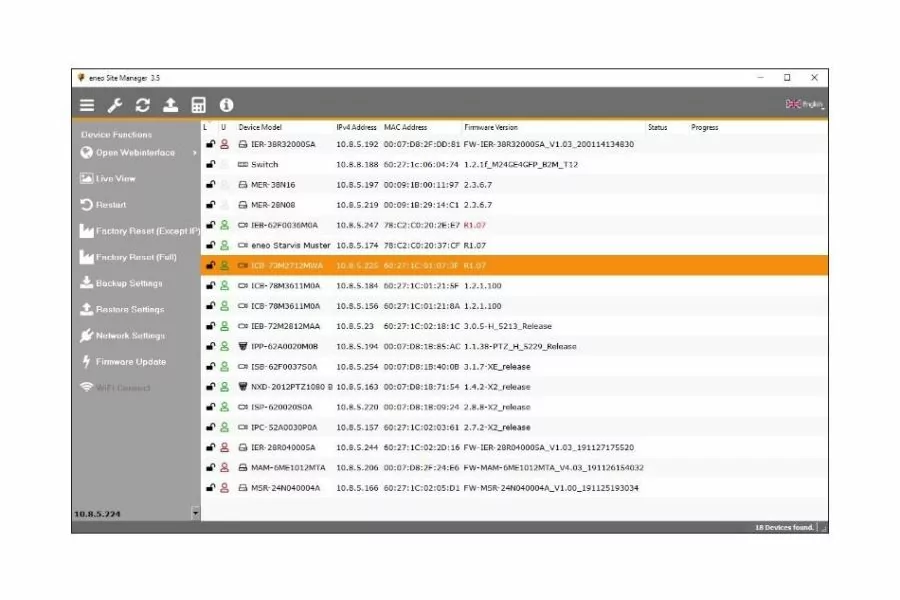

- eneoSite ManagerTool
