Brand

ENEO

EAN/GTIN

4260229840054

Manufacturer order number

235256

Series

eneo IN-Serie

Camera

Backlight compensation

Yes

Camera shape

Minsters

Chip size

1/2,8"

Day/night mode

Automatic,Day,Night,Image,Time

Day/night switching

Switchable IR Filter (ICR)

Flickerless function

Yes

Low Speed Shutter

Yes

Manual Electric Shutter (MES)

1-5~1-20,000sec.

Photosensitivity

0,002 Lux bei F1,0

Recording sensor

CMOS, Sony IMX415

Resolution standard

8 MP

Signal-to-noise ratio

39 dB

System

24h Color

White balance

Automatic,Manual

DORI

Detect (125px/m)

12 - 50,4 m

Identify (250px/m)

5,7 - 25,2 m

Perceiving (25px/m)

63,2 - 254,3 m

Watch (62px/m)

25 - 102,6 m

Lens

Aperture Range (F)

F1,0

Focal length

2,8 - 12 mm

Horizontal angle of view

107 - 34°

Lens Type

Varifocal (motorized)

MOD (Minimum Object Distance)

1.5 m

Vertical angle of view

56 - 19°

Zoomfactor (optical)

4

Video

Data stream types

Triple-Stream(Main/Sub/Mobile)

Image transfer rate max.

30 fps

Picture size

16:9, 4:3

Resolution (extended)

3840x2160 (16:9),2592x1944 (4:3),2592x1520 (16:9),2304x1296 (16:9),1920x1080 (16:9),1280x960 (4:3),1280x720 (16:9),640x480 (4:3),320x240 (4:3)

Video Compression

H.264, H.264+, H.265, H.265+, M-JPEG

Display

Image resolution max.

3840x2160

Functions

Alarm processing

recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,UDP,alarm out,Cloud Upload

Analysis

Image rotation for cameras mounted at a 90° angle, Abandoned and Removed Objects (SOD), Attendance (FA), Crowds (CD), Enter Region, Face Attributes (AD), Face Capture (FD), Face Recognition (FR), Heat Map (HM), Intrusion, Intrusion (PID), Leave Region, License plate recognition (LPD), License plate recognition (LPR), Line crossing (LCD), Manipulation (TD), Object Classification Human / Vehicle (PD&VD), Passage count (CC), Queues (QD), Rare Sounds (RSD)

Audio

2 Way Audio

Audio support

Yes

Browser

Edge, Firefox, Google Chrome, Safari

Digital Noise Reduction (DNR)

Yes

Internal memory

microSD card slot

Menu languages

English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish

Motion detector

Yes

Multicast

Yes

Password

Administrator and User

Privacy Zone

Areas-ON/OFF switchable

Turning range

350 °

Vertical tilt range

0~ +75°

Network

Network Protocols

DDNS, DHCP, DNA, FTP, HTTP, HTTPS, IEE 802.1, NTP, RTP, RTSP, SMTP, TCP-IP, UPnP

Security

Complicated password, IP address filtering, Password

Interfaces / Inputs/ Outputs

Alarm inputs

1

Control Interfaces

Ethernet

Ethernet interface

100Base-TX, 10Base-T

External connections

RJ-45,Alarm in/output,Audio input/output,12VDC input (DC plug),connection cable approx.45cm,micro SD card slot 256 GB

General

Audio compression

G.711

Camera Type

Domecamera

Certifications

IK10

Color (dome)

clear

Color (Housing)

RAL9003,Pantone P 179-1 / Other colors available upon request

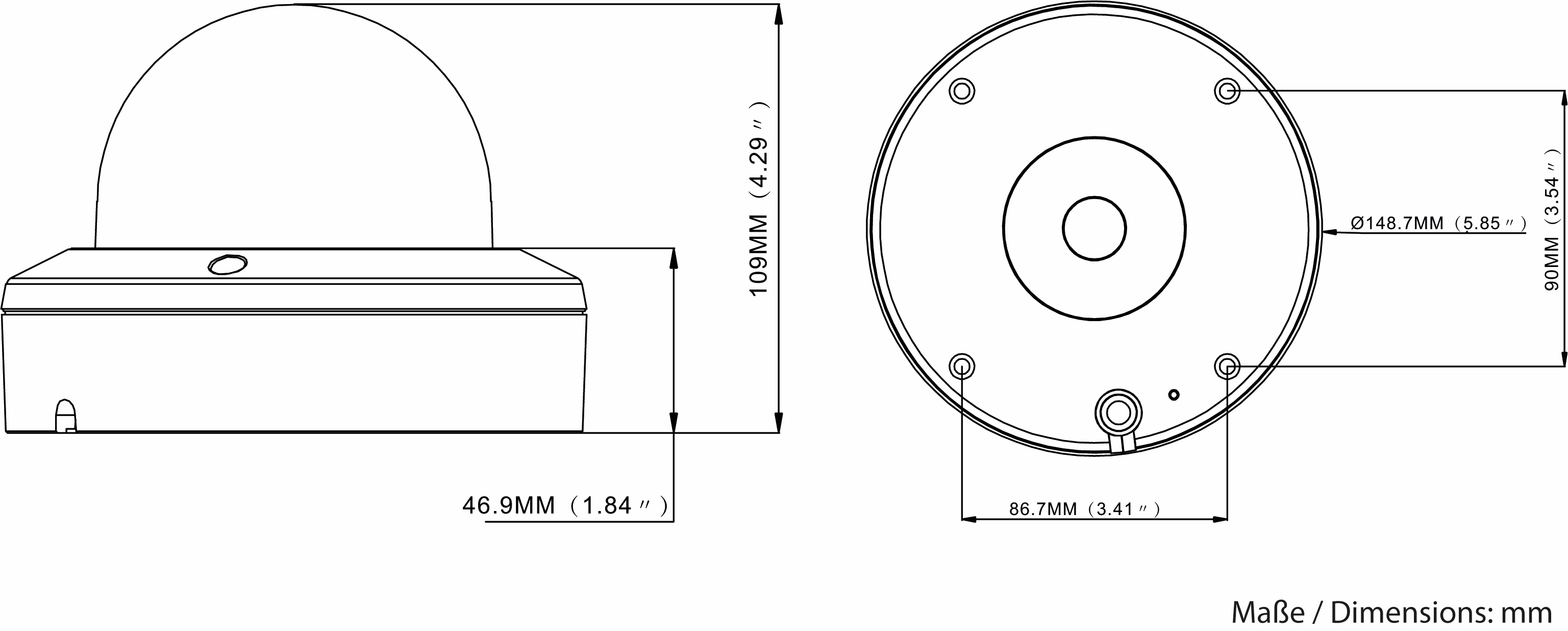

Dimensions (WxHxD) (extended)

148,7x109mm

ESC

1/5 ~ 1/20.000sec.

Heating

No

Housing material

Aluminium

Housing type

Outside

Illumination range

Approx. 30 m IR , Approx. 25 m white light

Lighting

Infrared, White

Mounting type

Ceiling, Wall

ONVIF

ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T

Power consumption

8 W

Power over Ethernet

IEEE 802.3af

Power supply

12VDC, Poe

Protection

IP67, NEMA 4X

SDK

upon request

Temperature Range (Operating)

-35°C ~ +55°C,@ Luftfeuchtigkeit 90% oder weniger (nicht kondensierend)

Text overlay

Switchable on/off

Vandalism-resistant

Yes

Weight

0.95 kg

Wide Dynamic Range (WDR)

WDR 120dB

Parts supplied

Scope of delivery

Quick installation guide,drilling template,4x wall plugs with screws,1x Torx wrench,waterproof cover for RJ45 connector

Notes

Remark

Face and license plate recognition require an SD card or an eneo IN recorder. For optimal results,use only eneo components. For mixed brands,we offer a compatibility check for a fee (info: item #229235 at VIDEOR).
