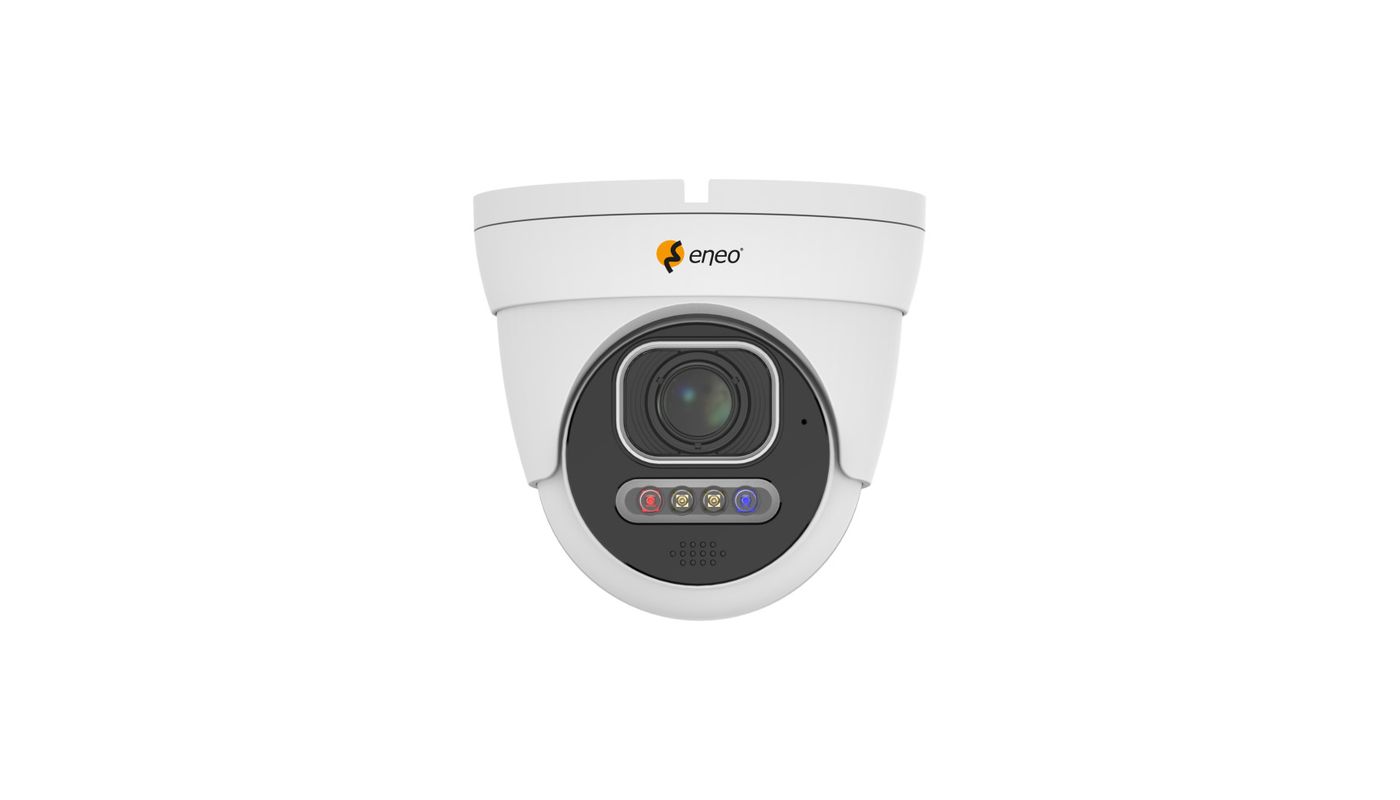

IND-58M2812MTA
SKU
236667
Network Dome Fix, Turret 3840x2160, Day/Night, WDR, AI 2,8-12mm, IR, 12VDC, PoE, IP67
Main Features
1/2.8" Sony STARVIS CMOS sensor
Maximum resolution 3840x2160 pixels, 30fps
AI analysis functions including object classification
WDR 120dB, 3D-DNR noise reduction
Motorised varifocal lens 2.8-12mm
Smart Codec H.265/H.264, multi-streaming
Browser independent (Edge, Safari, Firefox, Chrome)
Supports ONVIF profiles S/T/G
Local storage via Micro SD card
Supports audio and external alarm input and output
Supports active deterrent (light & siren)
IR and white light LED illumination, IP67
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Camera:
- Camera type
- Dome
- Sensor size
- 1/2.8"
- Resolution Standard
- 8 Megapixel
- Imager
- Sony STARVIS, Sensor IMX415, CMOS
- Sensitivity
- 0,007 Lux bei F1,0
- System
- 24h color
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1/5 ~ 1/20.000sec.
- Automatic electronic shutter (ESC)
- 1/5 ~ 1/20.000sec.
- Wide Dynamic Range (WDR)
- WDR 120dB
- Flickerless function
- yes
- Backlight compensation
- BLC, HLC
- Day&Night switch
- ICR
- Day&Night mode
- Automatic, Day, Night, Image, Time
- White balance
- Automatic, Manual
- Signal-to-noise ratio
- 44dB
- Video:
- Resolution
- 3840x2160 (16:9), 2592x1944 (4:3), 2592x1520 (16:9), 2304x1296 (16:9), 1920x1080 (16:9), 1280x960 (4:3), 1280x720 (16:9), 640x480 (4:3), 320x240 (4:3), 2880x1620 (16:9)
- Image resolution max.
- 3840x2160
- Image display
- 16:9, 4:3
- Stream types
- Triple-Stream(Main/Sub/Mobile)
- Image Transmission Rate
- 30 fps
- Video compression
- H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
- Lens:
- Lens Type
- Varifocal (motorized)
- Zoom Factor
- 4x
- Focal Length
- 2,8 - 12 mm
- Digital Zoom
- yes
- MOD (Mininum Object Distance)
- 1,5 m
- Iris Control
- DC
- DORI:
- Detect (25px/m)
- 92,5 - 357,2 m
- Observe (62 px/m)
- 59,9 - 144 m
- Recognize (125 px/m)
- 17,8 - 71,4 m
- Identify (250 px/m)
- 8,5 - 35,2 m
- Functions:
- Multicast compliant
- yes
- Motion detector
- yes
- Analysis functions
- Attribute Detection (AD), Cross Counting (CC), Crowd Density Detection (CD), Face Attendance (FA), Face Detection (FD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), License Plate Detection (LPD), License Plate Recognition (LPR), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Queue Lenght Detection (QD), Rare Sound Detection (RSD), Stationary Object Detection (SOD)
- Alarm processing
- recording internal storage (SD card), E-Mail, HTTP, FTP, TCP, UDP, alarm out, Cloud Upload
- Audio support
- yes
- Audio
- 93±3dB max., built-in loudspeaker, built-in microphone
- Password protection
- administrator & users
- Internal storage
- microSD-Kartenslot
- Menu languages
- English, German, French, Italian, Portugese, Spanish, Turkish, Russian, Japanese
- Privacy zone masking
- Areas-ON/OFF switchable
- Remote configuration
- Browser
- Web browser
- MS Internet Explorer 10/11, Safari , Firefox , Google Chrome , Edge
- Mirror function
- V flip, H-flip, H/V flip
- Digital Noise Reduction
- 3D-DNR, yes
- Network:
- Network protocols
- TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
- Interfaces / Inputs/ Outputs:
- Video outputs
- no
- External connectors
- RJ-45, Alarm in/output, 12VDC input (DC plug), connection cable approx.30cm, micro SD card slot 256 GB
- Ethernet interface
- 100Base-TX, 10Base-T
- Alarm inputs
- 1
- Alarm outputs
- 1
- Serial interfaces
- Ethernet
- General:
- Brand
- ENEO
- Series
- eneo IN-Series
- Dimensions (HxWxD)
- 135x126.5mm
- Weight
- 820g
- Illumination
- 2x High Power LEDs 850nm, 2x Whitelight LED, Infrared, White light
- Illumination range
- approx. 25m, approx.20m White Light
- Color (housing)
- Pantone P 179-1, RAL9003
- Housing
- Outdoor
- Hosuing material
- Aluminium
- Heater
- no
- Camera Type
- Face recognition, License plate recognition, People Count, Retail Intelligence
- Power consumption
- 8,6W
- Mounting
- Ceiling mount, Wall mount
- ONVIF
- ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
- Power over Ethernet
- IEEE 802.3af
- Protection rating
- IP67
- SDK
- upon request
- Supply voltage
- 12VDC, PoE
- Operating temperature
- -35°C ~ +60°C, @ Humidity 90% or less (non-condensing)
- Text display
- ON/OFF switchable
- Vandal proof
- no
- EAN/GTIN
- 4260229840559
- Parts supplied:
- Parts supplied
- manual, bag of screws
- Other
- Vertical Angle of View
- 56 - 19°
- Horizontal Angle of View
- 107 - 34°
- Remarks
- NDAA compliance under Section 889, The face detection and license plate recognition functions are only available with an inserted SD card or in conjunction with a recorder from the eneo IN series., To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
- Manufacturer order number
- 236667
