SKU 238647

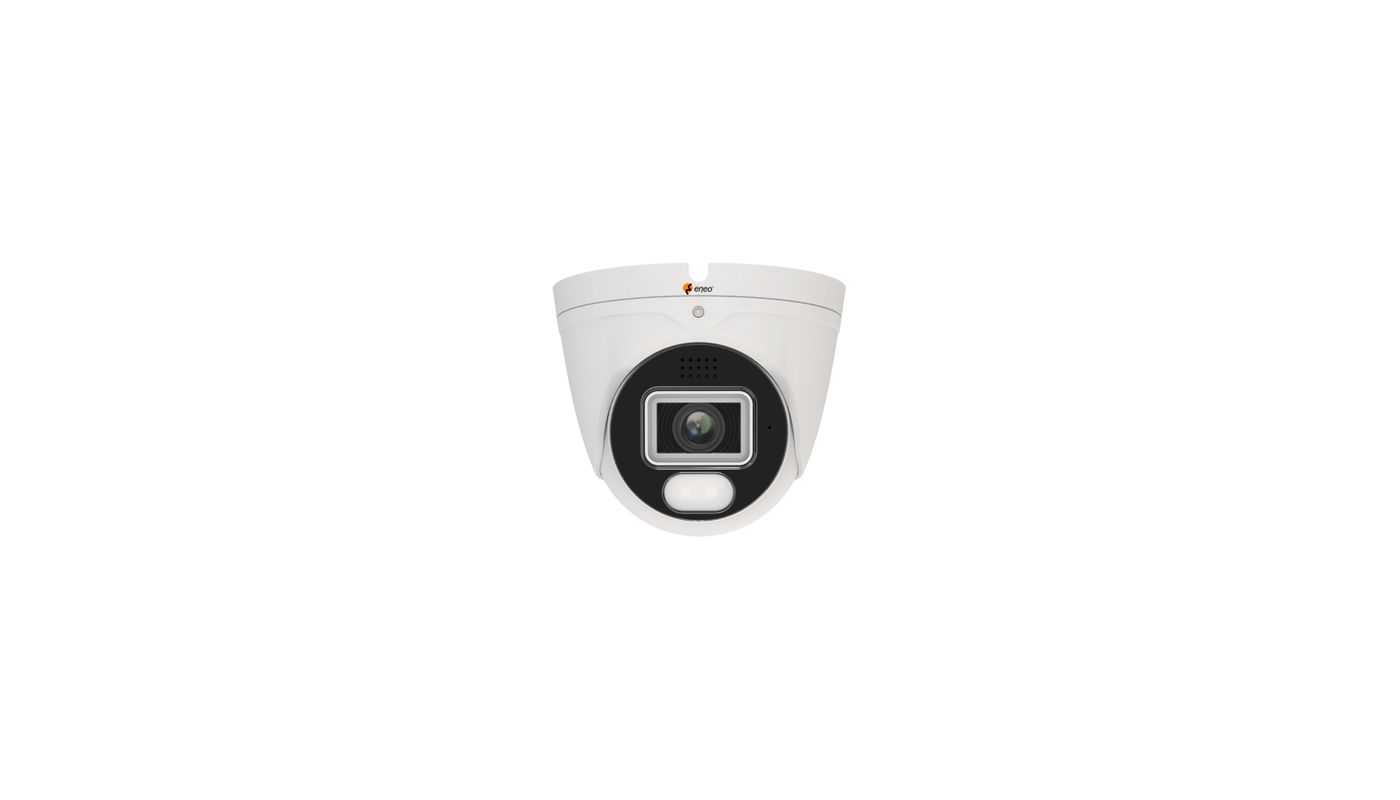

Network Dome Fix, Turret, Low Light, 3840x2160, Day/Night WDR, AI, 2,8mm, 12VDC, PoE, IP67

Main Features

1/1.8" Sony STARVIS CMOS sensor
Very good detail recognition even in dark areas
Maximum resolution 3840x2160 pixels, 30fps
AI analysis functions including object classification
WDR 120dB, 3D DNR noise reduction
Lens fixed focal length 2.8mm
Smart codec H.265/H.264, multi-streaming
Browser-independent (Edge, Safari, Firefox, Chrome)
Supports ONVIF profiles S/T/G
Local storage via micro SD card
NDAA compliance
White light LED illumination, IP67
arrow-right Buy now You will be redirected to our shop on Videor.com for purchase.

More Information

Camera:

Camera type
Dome
Sensor size
1/1.8"
Resolution Standard
8 Megapixel
Imager
Sensor IMX678, CMOS
Sensitivity
0.0005 Lux @ F1,0
System
24h color
Low speed shutter
yes
Manual electronic shutter (MES)
1/5 ~ 1/20.000sec.
Automatic electronic shutter (ESC)
1/5 ~ 1/20.000sec.
Wide Dynamic Range (WDR)
WDR 120dB
Flickerless function
yes
Backlight compensation
BLC, HLC
Day&Night switch
no
Day&Night mode
not available
White balance
Automatic, Manual
Signal-to-noise ratio
49dB
Video:

Resolution
3840x2160 (16:9), 2592x1944 (4:3), 3072x1728 (16:9), 2592x1520 (16:9), 2304x1296 (16:9), 1920x1080 (16:9), 640x480 (4:3), 320x240 (4:3)
Image resolution max.
3640x2160
Image display
16:9, 4:3
Stream types
Triple-Stream(Main/Sub/Mobile)
Image Transmission Rate
30 fps
Video compression
H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Lens:

Lens Type
fixed focal length
Focal Length
2,8 mm
Digital Zoom
yes
MOD (Mininum Object Distance)
0,7 m
Iris Control
DC
DORI:

Detect (25px/m)
84,4 m
Observe (62 px/m)
33,3 m
Recognize (125 px/m)
16,6 m
Identify (250 px/m)
7,8 m
Functions:

Multicast compliant
yes
Motion detector
yes
Analysis functions
Attribute Detection (AD), Cross Counting (CC), Crowd Density Detection (CD), Face Attendance (FA), Face Detection (FD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), License Plate Detection (LPD), License Plate Recognition (LPR), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Queue Lenght Detection (QD), Rare Sound Detection (RSD), Stationary Object Detection (SOD)
Alarm processing
recording internal storage (SD card), E-Mail, HTTP, FTP, TCP, UDP, Red & bule flashing lights, Siren, Cloud Upload
Audio support
yes
Audio
2 Way Audio, built-in loudspeaker, built-in microphone
Password protection
administrator & users
Internal storage
microSD-Kartenslot
Menu languages
English, German, French, Italian, Portugese, Spanish, Turkish, Russian, Japanese
Privacy zone masking
Areas-ON/OFF switchable
Remote configuration
Browser
Web browser
MS Internet Explorer 10/11, Safari , Firefox , Google Chrome , Edge
Mirror function
V flip, H-flip, H/V flip
Digital Noise Reduction
3D-DNR, yes
Network:

Network protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Interfaces / Inputs/ Outputs:

Video outputs
no
External connectors
RJ-45, 12VDC input (DC plug), connection cable approx.30cm, micro SD card slot 256 GB
Ethernet interface
100Base-TX, 10Base-T
Alarm inputs
nein
Alarm outputs
no
Serial interfaces
Ethernet
General:

Brand
ENEO
Series
eneo IN-Series
Dimensions (HxWxD)
97,9x115,5mm
Weight
575g
Illumination
2x Whitelight LED, White light
Illumination range
approx. 25m
Color (housing)
Pantone P 179-1, RAL9003
Housing
Outdoor
Hosuing material
Aluminium
Heater
no
Camera Type
Face recognition, License plate recognition, People Count, Retail Intelligence
Power consumption
12VDC: max. 5,1W , PoE: max. 6,5W
Blower
no
Mounting
Ceiling mount, Wall mount
ONVIF
ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3af
Protection rating
IP67
SDK
upon request
Supply voltage
12VDC, PoE
Operating temperature
-30°C ~ +55°C, @ Humidity 95% or less (non-condensing)
Text display
ON/OFF switchable
Vandal proof
no
Parts supplied:

Parts supplied
manual, bag of screws
Other

Vertical Angle of View
61°
Horizontal Angle of View
112°
Remarks
The face detection and license plate recognition functions are only available with an inserted SD card or in conjunction with a recorder from the eneo IN series., NDAA compliance under Section 889, To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
Manufacturer order number
238647

Further product information

  The eneo 8 megapixel dome camera offers advanced surveillance technology, ideal for use in demanding environments. Equipped with a highly sensitive 1/1.8" Sony STARVIS CMOS sensor, it guarantees exceptional detail detection, even in dimly lit areas. Thanks to the 4K resolution of 3840x2160 pixels at 30 frames per second, the camera delivers razor-sharp and smooth images that capture every movement precisely.The integrated AI analysis functions, including object classification, face and license plate recognition and people counting, enable smart and automated surveillance. These functions are ideal for use in retail, traffic monitoring and security applications. Thanks to the WDR of 120 dB and the 3D-DNR noise reduction, excellent images are achieved even in challenging lighting conditions and backlight.The fixed focal length of 2.8 mm offers comprehensive coverage with a horizontal angle of view of 112 °. With the integrated white light LED lighting and a range of up to 25 meters, surveillance is ensured even in complete darkness.Another highlight is the versatility in connectivity: Thanks to ONVIF profiles S, T and G, the camera can be easily integrated into existing surveillance systems. It is browser-independent, supports all common web browsers and offers 2-way audio for direct communication. Local storage via a MicroSD card provides additional flexibility when backing up data.With its robust IP67 aluminum housing, the camera is ideal for outdoor use and can withstand extreme weather conditions. Its compact design and low weight of 575 g enable easy installation on walls or ceilings.The eneo 8 megapixel dome camera combines advanced technology with reliable performance - perfect for professional use in any environment.
