SKU 238644

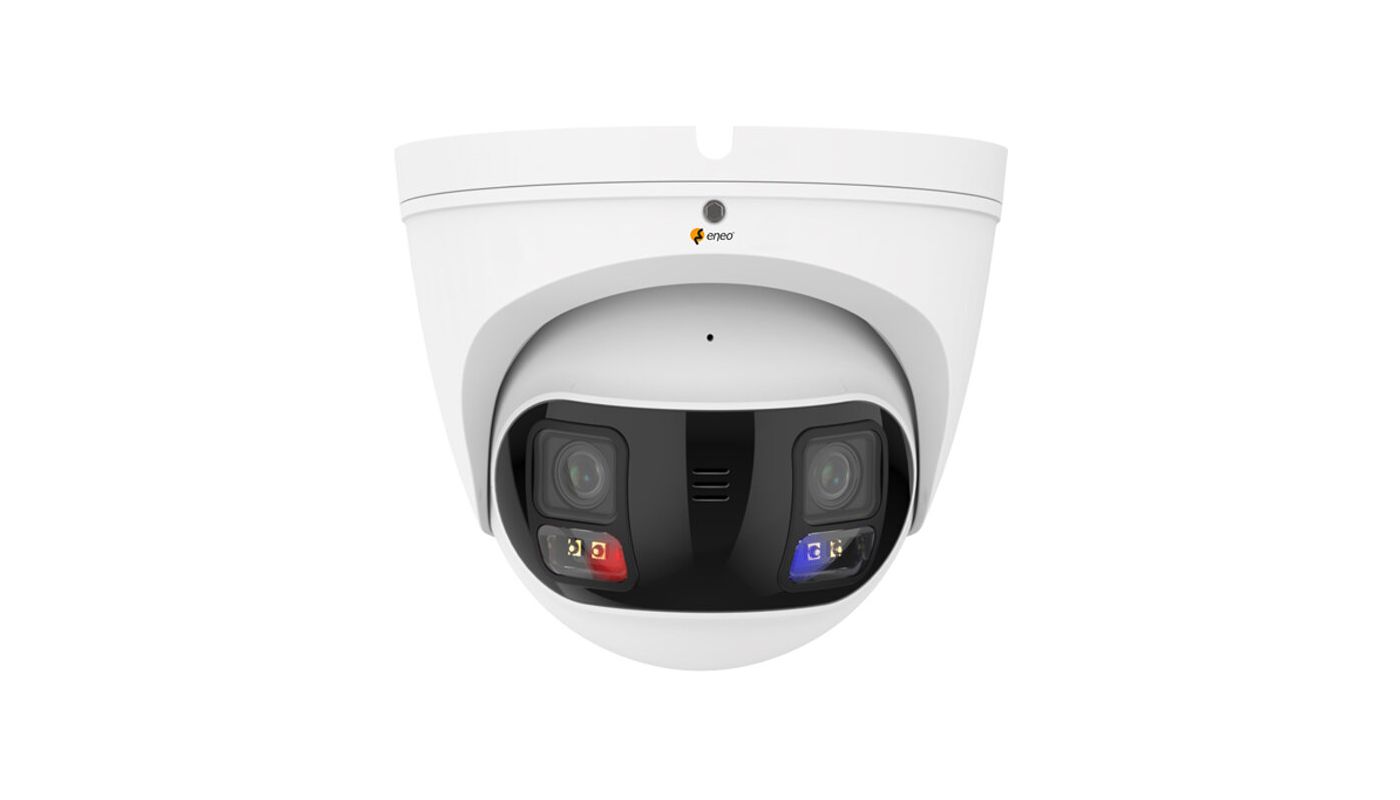

Network Dome, Turret, 2x Sensor, 180° Panorama, 3840x2160, 2.8mm, AI, DWDR, PoE, 12VDC, IP67

Main Features

Multisensor 2x 1/2.7’ CMOS sensor, panorama
Maximum resolution 5120x1440 pixels each, 15fps
Panorama ultra wide-angle camera 180° HFoV, 32:9
AI analysis functions including object classification
WDR, BLC, HLC and 3D-DNR noise reduction
Lenses with 2.8mm fixed focal length
Smart Codec H.265/H.264, dual streaming
Browser-independent (Edge, Safari, Firefox, Chrome)
Supports ONVIF profiles S/T/G and audio
Local storage via micro SD card
NDAA compliance
Integrated IR and white light LED illumination, IP67
arrow-right Buy now You will be redirected to our shop on Videor.com for purchase.

More Information

Camera:

Camera type
Dome
Sensor size
1/2.7"
Resolution Standard
8 Megapixel
Imager
Progressive scan, Sensor SC500AI, Chipset NT98529, CMOS
Sensitivity
0,001 Lux at F1,6
System
24h color, True Day&Night
Low speed shutter
yes
Manual electronic shutter (MES)
1/5 ~ 1/20.000sec.
Automatic electronic shutter (ESC)
1/5 ~ 1/20.000sec.
Wide Dynamic Range (WDR)
D-WDR
Flickerless function
yes
Backlight compensation
BLC, HLC
Day&Night switch
Electronic
Day&Night mode
Day, Night, Automatic, Time
White balance
Automatic, Manual
Video:

Resolution
5120x1440, 4608x1296, 4096x1152, 3840x1080, 3072x864, 1536x432, 1024x288
Image resolution max.
5120x1440
Image display
32:9
Stream types
Dual Streaming
Image Transmission Rate
15 fps
Video compression
H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Lens:

Lens Type
fixed focal length
Focal Length
2,8 mm
Digital Zoom
yes
MOD (Mininum Object Distance)
2 m
Iris Control
DC
DORI:

Detect (25px/m)
108,3 m
Observe (62 px/m)
40,1 m
Recognize (125 px/m)
21,7 m
Identify (250 px/m)
10,7 m
Functions:

Multicast compliant
yes
Motion detector
yes
Analysis functions
Cross Counting (CC), Crowd Density Detection (CD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), License Plate Recognition (LPR), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Queue Lenght Detection (QD), Rare Sound Detection (RSD), Region Entrance, Region Exiting
Alarm processing
recording internal storage (SD card), E-Mail, HTTP, FTP, TCP, UDP, Red & bule flashing lights, Siren, Cloud Upload
Audio support
yes
Audio
2 Way Audio, built-in loudspeaker, built-in microphone
Password protection
administrator & users
Internal storage
microSD-Kartenslot
Menu languages
English, German, French, Italian, Portugese, Spanish, Turkish, Russian, Japanese
Privacy zone masking
Areas-ON/OFF switchable
Remote configuration
Browser
Web browser
MS Internet Explorer 10/11, Safari , Firefox , Google Chrome , Edge
Mirror function
108° flip
Digital Noise Reduction
3D-DNR, yes
Network:

Network protocols
IPv4, IPv6, TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, UDP, PPPoE
Interfaces / Inputs/ Outputs:

Video outputs
no
External connectors
RJ-45, 12VDC input (DC plug), connection cable approx.30cm, micro SD card slot 256 GB
Ethernet interface
100Base-TX, 10Base-T
Alarm inputs
nein
Alarm outputs
no
Serial interfaces
Ethernet
General:

Brand
ENEO
Series
eneo IN-Series
Dimensions (HxWxD)
112,4x135mm
Weight
765g
Illumination
3xHigh power LEDs 850nm, 2x Whitelight LED, Infrared, White light
Illumination range
approx. 30m, Warm light approx. 15m
Color (housing)
Pantone P 179-1, RAL9003
Housing
Outdoor
Hosuing material
Aluminium
Heater
no
Camera Type
Multisensor Camera
Power consumption
max. 8,88W
Blower
no
Mounting
Ceiling mount, Wall mount
ONVIF
ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3af
Protection rating
IP67
SDK
upon request
Supply voltage
12VDC, PoE
Operating temperature
-30°C ~ +60°C, @ Humidity 90% or less (non-condensing)
Text display
ON/OFF switchable
Vandal proof
no
EAN/GTIN
4260229840726
Parts supplied:

Parts supplied
manual, bag of screws
Other

Horizontal Angle of View
180°
Remarks
To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR)., NDAA compliance under Section 889
Manufacturer order number
238644
