SKU 238645

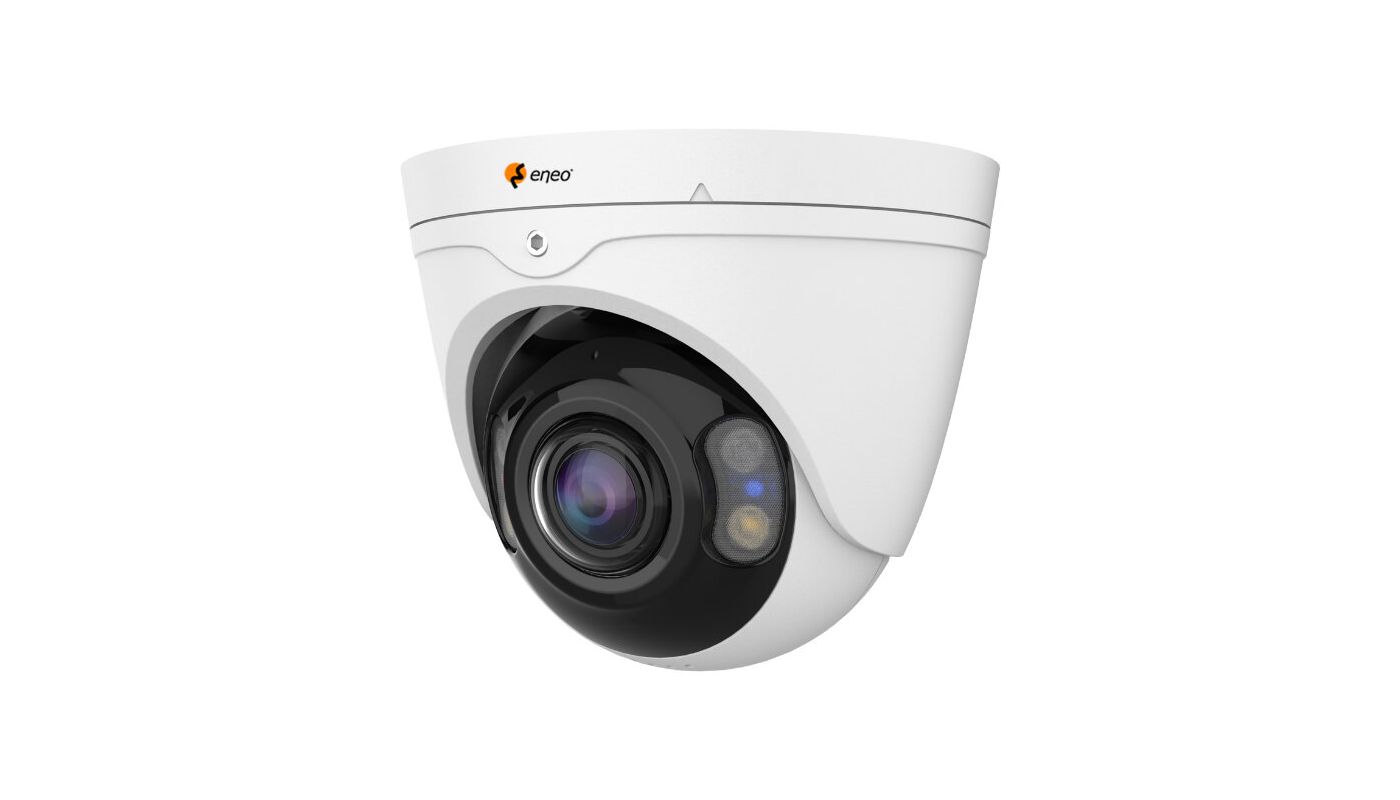

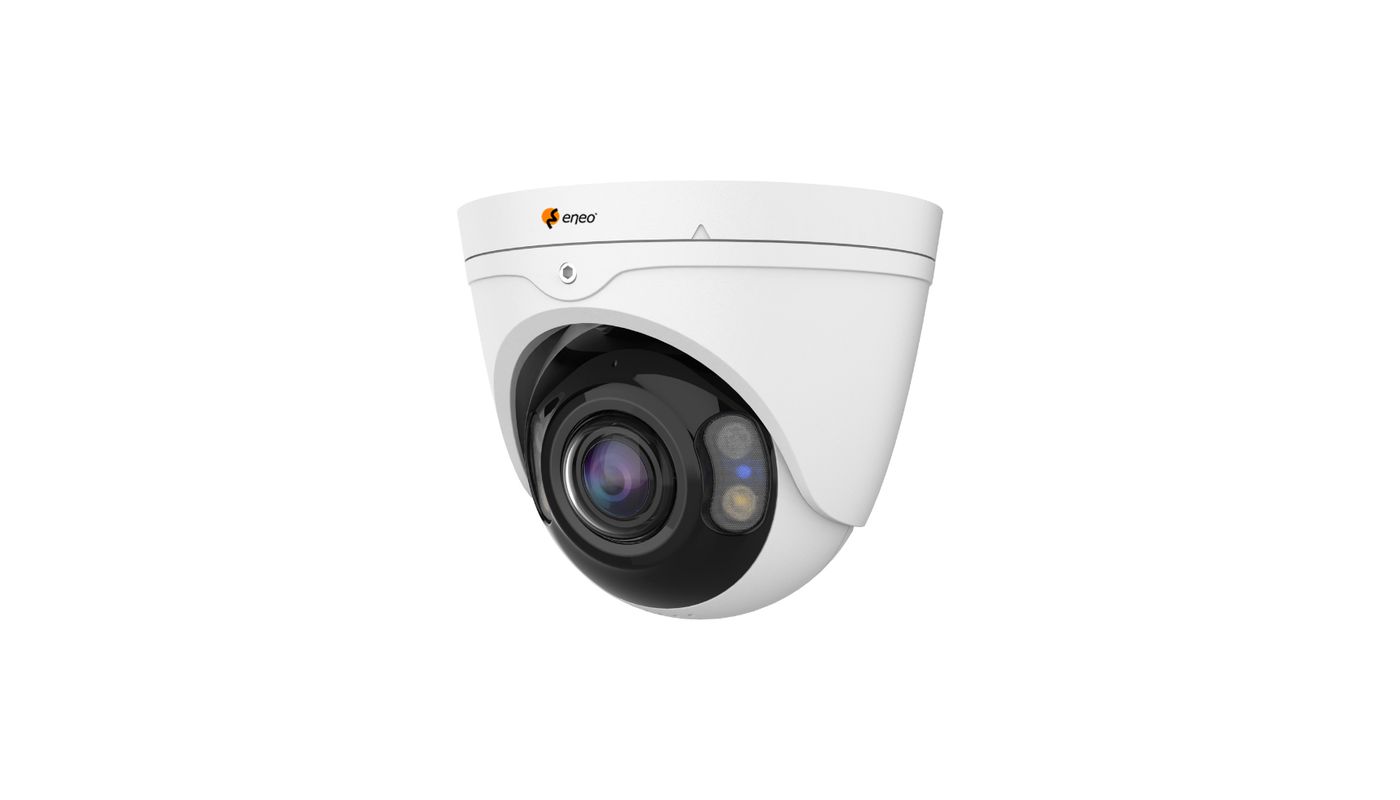

Network Dome Fix, Turret, 180° Panorama, 3840x2160, 2.0mm, AI, WDR, PoE, 12VDC, IP67

Main Features

1/2.8" Sony STARVIS CMOS sensor,
Maximum resolution 3840x2160 pixels, 20fps
Panorama ultra wide-angle camera 180° HFoV
AI analysis functions including object classification
WDR 120dB and 3D-DNR noise reduction
Lens 2.0mm fixed focal length
Smart codec H.265/H.264, multi-streaming
Browser-independent (Edge, Safari, Firefox, Chrome)
Supports ONVIF profiles S/T/G and audio
Local storage via micro SD card
NDAA compliance
Integrated IR and white light LED illumination, IP67
arrow-right Buy now You will be redirected to our shop on Videor.com for purchase.

More Information

Camera:

Camera type
Dome
Sensor size
1/2.8"
Resolution Standard
8 Megapixel
Imager
Progressive scan, CMOS
Sensitivity
0,007 Lux bei F1,0
System
True Day&Night
Manual electronic shutter (MES)
1/5 ~ 1/20.000sec.
Automatic electronic shutter (ESC)
1/5 ~ 1/20.000sec.
Wide Dynamic Range (WDR)
WDR
Backlight compensation
BLC
Day&Night switch
ICR
Day&Night mode
Day, Night, night-color mode, Time
White balance
Automatic, Manual
Video:

Resolution
3840x2160 (16:9) @20fps, 2592x1944 (4:3), 2592x1520 (16:9), 2304x1296 (16:9), 1920x1080 (16:9), 1280x960 (4:3), 1280x720 (16:9), 640x480 (4:3)
Image resolution max.
3840x2160
Image display
16:9, 4:3
Stream types
Triple-Stream(Main/Sub/Mobile)
Image Transmission Rate
20 fps
Video compression
H.264, H.265
Lens:

Lens Type
fixed focal length
Focal Length
2 mm
MOD (Mininum Object Distance)
0,6 m
Iris Control
DC
Functions:

Motion detector
yes
Analysis functions
Cross Counting (CC), Heat Map (HM), Human&Vehicle Detection (PD&VD), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Rare Sound Detection (RSD), Stationary Object Detection (SOD)
Alarm processing
Red & bule flashing lights, Siren
Audio support
yes
Audio
2 Way Audio, built-in loudspeaker, built-in microphone
Password protection
administrator & users
Internal storage
256GB, microSD-Kartenslot
OSD function control
analyse functions
Menu languages
English, German, French, Italian, Portugese, Spanish, Turkish, Russian, Japanese
Privacy zone masking
Areas-ON/OFF switchable
Remote configuration
Browser
Web browser
MS Internet Explorer 10/11, Safari , Firefox , Google Chrome , Edge
Digital Noise Reduction
3D-DNR, yes
Network:

Network connection
RJ-45
Network protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Interfaces / Inputs/ Outputs:

Video outputs
no
External connectors
RJ-45, 12VDC input (DC plug), connection cable approx.30cm, micro SD card slot 256 GB
Ethernet interface
100Base-TX, 10Base-T
Alarm inputs
ja
Alarm outputs
yes
Serial interfaces
Ethernet
General:

Brand
ENEO
Series
eneo IN-Series

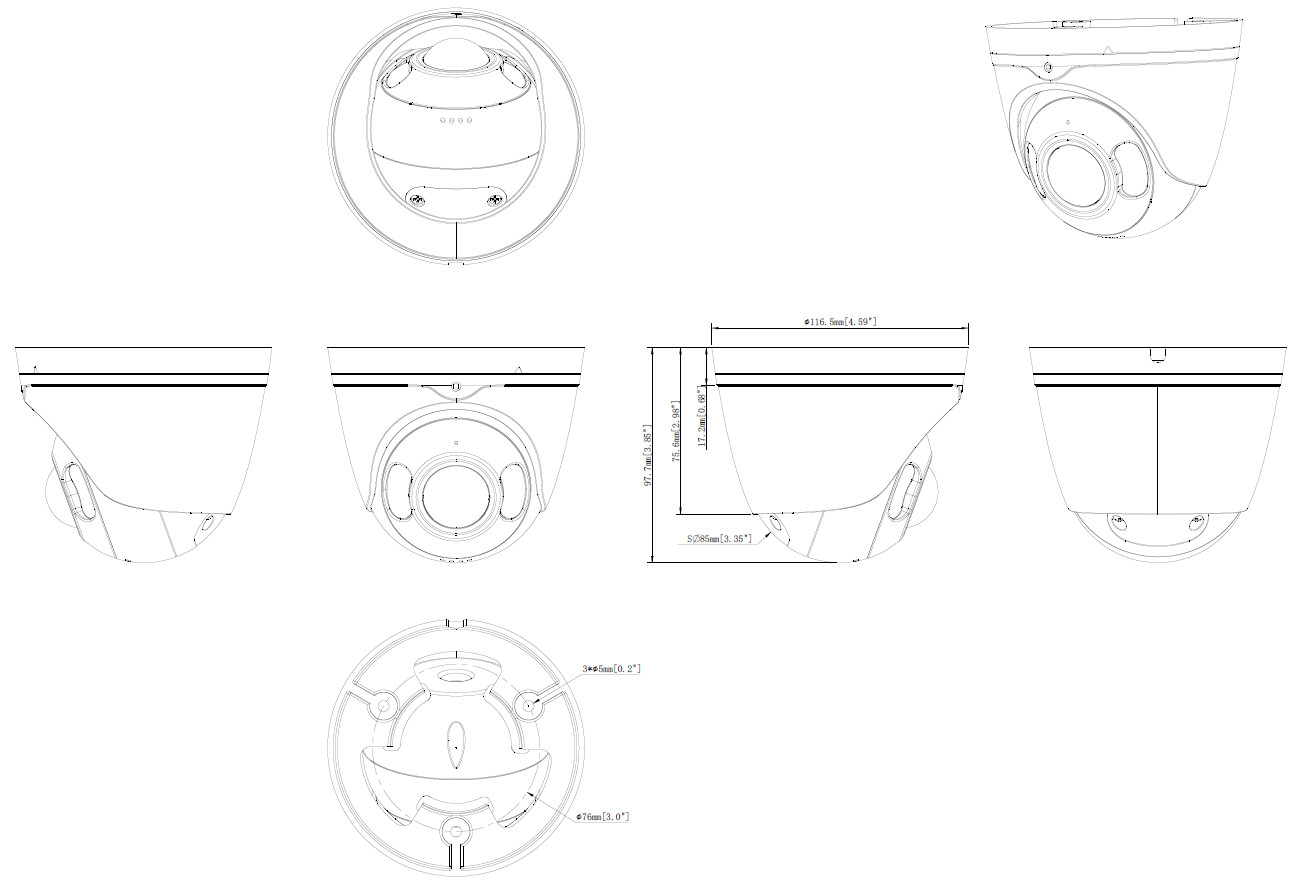

Dimensions (HxWxD)
116,5x97,7mm
Weight
587,5g
Illumination
2x High Power LEDs 850nm, 2x Whitelight LED, Infrared, White light
Illumination range
approx. 15m, approx. 25m, Infrared, White Light
Color (housing)
Pantone P 179-1, RAL9003
Housing
Outdoor
Hosuing material
Metal
Heater
no
Camera Type
Multidirektional Kamera
Power consumption
max. 13W
Blower
no
Mounting
Ceiling mount, Wall mount
ONVIF
ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3af
Protection rating
IP67
SDK
upon request
Supply voltage
12VDC, PoE
Operating temperature
-35°C ~ +60°C, @ Humidity 95% or less (non-condensing)
Text display
ON/OFF switchable
EAN/GTIN
4260229840733
Parts supplied:

Parts supplied
manual, bag of screws
Other

Imager
CMOS
Backlight Compensation
BLC
Wide Dynamic Range (WDR)
WDR
Motion Detector
yes
llumination
Infrared, White light
Vertical Angle of View
91°
Horizontal Angle of View
180°
Remarks
To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
Manufacturer order number
238645

Downloads

Data sheet PDF
Data sheet with specifications generated live from the product database
Documents PDF
Quick reference guide for this product
Documents PDF
Kurz-Betriebsanleitung zum Produkt
Documents PDF
Detailed manual for this product
Documents PDF
Betriebsanleitung zum Produkt
Documents PDF
Declaration of Conformity in German and English
Media ZIP
Product Image in a high resolution for print
Marketing Infos PDF | 2.5 MB
Produkt Katalog
Tools HTML | 914 B
eneoSite ManagerTool
Software HTML | 823 B
eneo_Product_Software_Download Portal
Firmware HTML | 835 B
Produkt Firmware_CAD Files
Marketing Infos PDF | 1.2 MB
Product Guide
Marketing Infos PDF | 154.2 kB
RTSP Streams Konfiguration für eneo Kameras und Rekorder
Marketing Infos PDF | 1.6 MB
Zubehörübersicht_eneo_IN-Serie
Marketing Infos PDF | 72.2 kB
Open Source Software License Information
Marketing Infos PDF | 93.9 kB
eneo IN-Serie_AI_Matrix
Marketing Infos PDF | 516.8 kB
FAQ für die KI-Funktionen der neuen eneo IN-Serie
Marketing Infos PDF | 467.8 kB
FAQ for the AI Functions of the new eneo IN series
Marketing Infos PDF | 148.2 kB
NDAA konforme Produkte
