This article is no longer available

SKU 233902

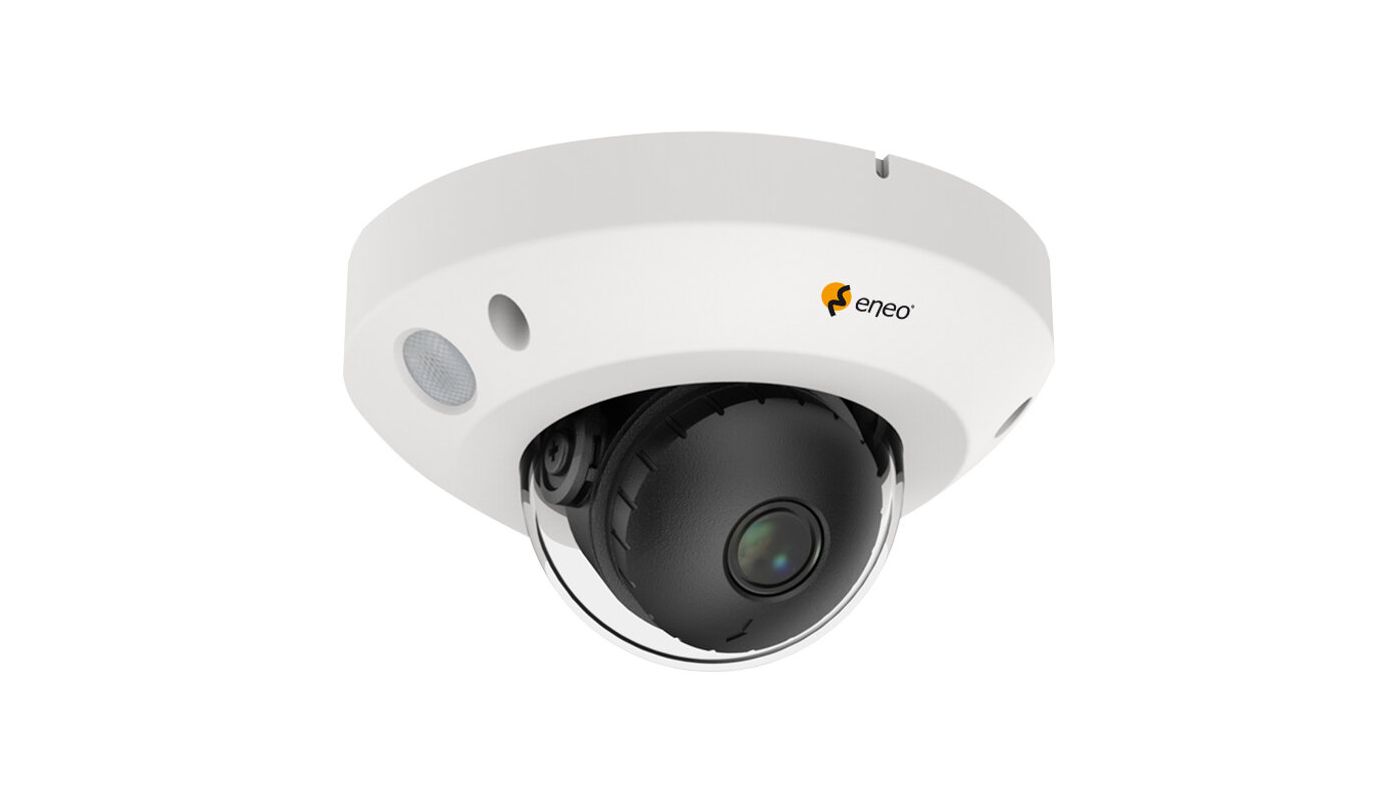

Mini Network Dome Fix, 2880x1620, Day/Night, WDR, AI, 2,8mm, IR, PoE, IP66

Main Features

1/2.7" CMOS sensor, maximum resolution 5 MP/30fps
AI analysis functions including object classification
WDR 120dB, 3D-DNR noise reduction
Fixed focal length lens 2.8mm (HFoV 110°)
Smart Codec H.265/H.264, multi-streaming
Browser independent (IE, Edge, Safari, Firefox, Chrome)
Supports ONVIF Profile S and Profile T
Multilingual menu navigation (OSD)
Local storage via Micro SD card
Supports audio (built-in microphone)
Power supply PoE IEEE 802.3af
IR LED illumination, IP66
arrow-right Buy now You will be redirected to our shop on Videor.com for purchase.

More Information

Camera:

Camera type
Dome
Sensor size
1/2.7"
Resolution Standard
5 Megapixel
Imager
SmartSens, SC500AI, CMOS
Sensitivity
0,004 Lux at F1,6
System
True Day&Night
Low speed shutter
yes
Manual electronic shutter (MES)
1/5 ~ 1/20.000sec.
Automatic electronic shutter (ESC)
1/5 ~ 1/20.000sec.
Wide Dynamic Range (WDR)
WDR 120dB
Flickerless function
yes
Backlight compensation
BLC, HLC
Day&Night switch
ICR
Day&Night mode
Automatic, Day, Night, Image, Time
White balance
Automatic, Manual
Signal-to-noise ratio
39dB
Video:

Resolution
2880x1620 (16:9), 2592x1520 (16:9), 2304x1296 (16:9), 1920x1080 (16:9), 1280x960 (4:3), 1280x720 (16:9), 640x480 (4:3), 320x240 (4:3)
Image resolution max.
2880x1620
Image display
16:9, 4:3, VerticalView
Stream types
Triple-Stream(Main/Sub/Mobile)
Image Transmission Rate
30 fps
Video compression
H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Lens:

Lens Type
fixed focal length
Focal Length
2,8 mm
Digital Zoom
yes
MOD (Mininum Object Distance)
1,8 m
Iris Control
DC
DORI:

Detect (25px/m)
64,4 m
Observe (62 px/m)
25,4 m
Recognize (125 px/m)
12,1 m
Identify (250 px/m)
5,4 m
Functions:

Multicast compliant
yes
Motion detector
yes
Analysis functions
Attribute Detection (AD), Cross Counting (CC), Crowd Density Detection (CD), Face Attendance (FA), Face Detection (FD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), License Plate Detection (LPD), License Plate Recognition (LPR), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Queue Lenght Detection (QD), Rare Sound Detection (RSD), Stationary Object Detection (SOD)
Alarm processing
recording internal storage (SD card), E-Mail, HTTP, FTP, TCP, UDP, Cloud Upload
Audio support
yes
Audio
1 Way Audio, built-in microphone
Password protection
administrator & users
Internal storage
microSD-Kartenslot
Menu languages
English, German, French, Italian, Portugese, Spanish, Turkish, Russian, Japanese
Privacy zone masking
Areas-ON/OFF switchable
Remote configuration
Browser
Web browser
MS Internet Explorer 10/11, Safari , Firefox , Google Chrome , Edge
Mirror function
V flip, H-flip, H/V flip
Digital Noise Reduction
3D-DNR, yes
Network:

Network protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Interfaces / Inputs/ Outputs:

External connectors
RJ-45, micro SD card slot 256 GB
Ethernet interface
100Base-TX, 10Base-T
Alarm inputs
nein
Alarm outputs
no
Serial interfaces
Ethernet
General:

Brand
ENEO
Series
eneo IN-Series
Dimensions (HxWxD)
115,3x64,3mm
Weight
265g
Illumination
1x High Power LED 850nm, Infrared
Illumination range
approx. 20m
Color (housing)
Pantone P 179-1, RAL9003
Color (bubble)
clear
Housing
Outdoor
Hosuing material
Aluminium, Plastic
Heater
no
Camera Type
Face recognition, License plate recognition, People Count, Retail Intelligence
Power consumption
4.5W
Blower
no
Mounting
Ceiling mount, Wall mount
ONVIF
ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3af
Protection rating
IP66
SDK
upon request
Supply voltage
PoE
Operating temperature
-35°C ~ +60°C, @ Humidity 90% or less (non-condensing)
Text display
ON/OFF switchable
Vandal proof
no
EAN/GTIN
4260229840009
Parts supplied:

Parts supplied
manual, bag of screws
Other

Vertical Angle of View
58°
Horizontal Angle of View
110°
Remarks
NDAA compliance under Section 889, The face detection and license plate recognition functions are only available with an inserted SD card or in conjunction with a recorder from the eneo IN series., To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
Manufacturer order number
233902
