IND-45F0022M0A
SKU
236320

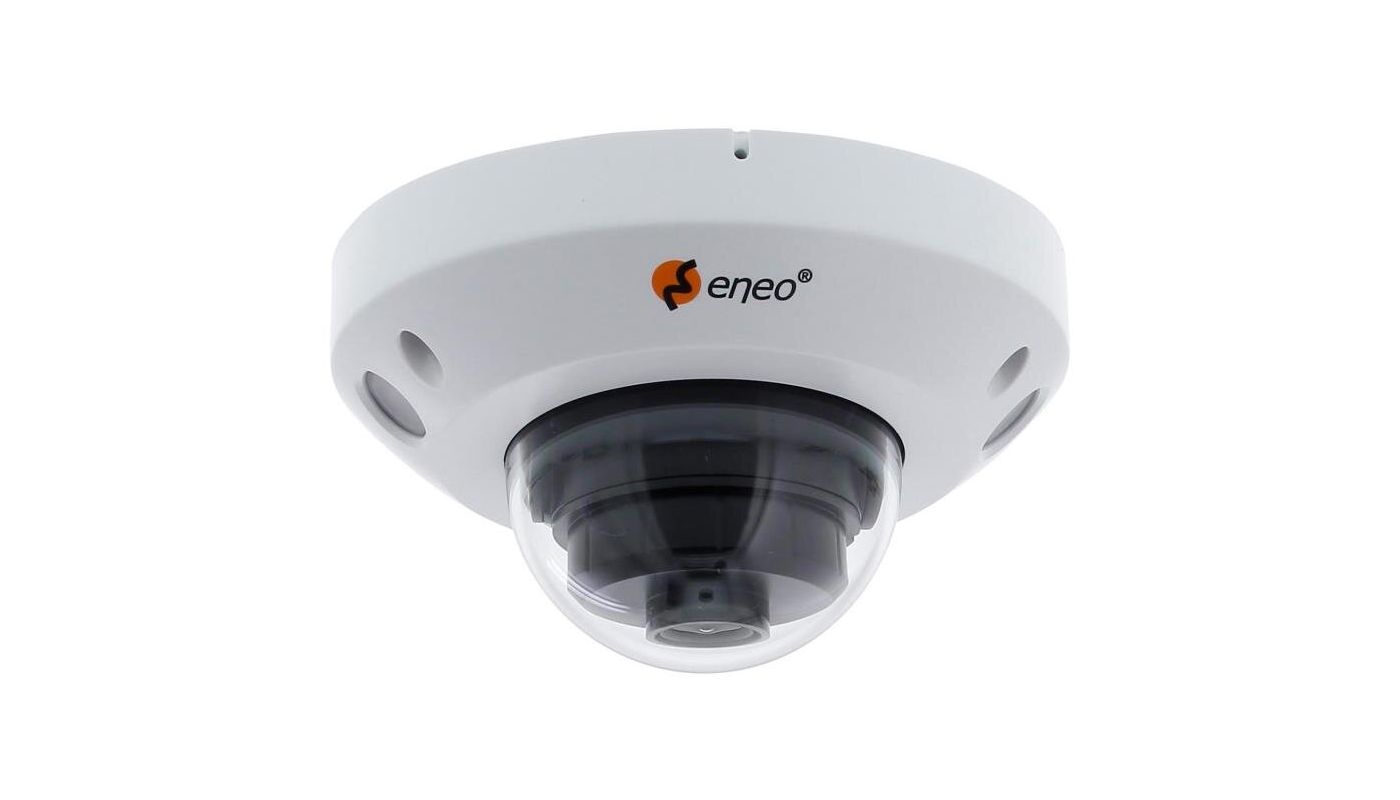

Mini Network Dome Fix, 2880x1620, TDay/Night, WDR, AI 2,2mm, IR, 12VDC, PoE, IP66
Main Features
1/2.7" CMOS sensor, maximum resolution 5 MP/30fps
AI analysis functions including object classification
WDR 120dB, 3D-DNR noise reduction
Fixed focal length lens 2.2mm (HFoV 156°)
Smart Codec H.265/H.264, multi-streaming
Browser independent (IE, Edge, Safari, Firefox, Chrome)
Supports ONVIF Profile S and Profile T
Multilingual menu navigation (OSD)
Local storage via Micro SD card
Supports audio (built-in microphone)
Power supply PoE IEEE 802.3af
IR LED illumination, IP66
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Camera:
- Camera type
- Dome
- Sensor size
- 1/2.7"
- Resolution Standard
- 5 Megapixel
- Imager
- SmartSens, SC500AI, CMOS
- Sensitivity
- 0,002 Lux at F1,6
- System
- True Day&Night
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1/5 ~ 1/20.000sec.
- Automatic electronic shutter (ESC)
- 1/5 ~ 1/20.000sec.
- Wide Dynamic Range (WDR)
- WDR 120dB
- Flickerless function
- yes
- Backlight compensation
- BLC, HLC
- Day&Night switch
- ICR
- Day&Night mode
- Automatic, Day, Night, Image, Time
- White balance
- Automatic, Manual
- Signal-to-noise ratio
- 39dB
- Video:
- Resolution
- 2880x1620 (16:9), 2592x1520 (16:9), 2304x1296 (16:9), 1920x1080 (16:9), 1280x960 (4:3), 1280x720 (16:9), 640x480 (4:3), 320x240 (4:3)
- Image resolution max.
- 2880x1620
- Image display
- 16:9, 4:3, VerticalView
- Stream types
- Triple-Stream(Main/Sub/Mobile)
- Image Transmission Rate
- 30 fps
- Video compression
- H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
- Lens:
- Lens Type
- fixed focal length
- Focal Length
- 2,2 mm
- Digital Zoom
- yes
- MOD (Mininum Object Distance)
- 1,8 m
- Iris Control
- DC
- DORI:
- Detect (25px/m)
- 57,2 m
- Observe (62 px/m)
- 20,7 m
- Recognize (125 px/m)
- 9,7 m
- Identify (250 px/m)
- 4,3 m
- Functions:
- Multicast compliant
- yes
- Motion detector
- yes
- Analysis functions
- Attribute Detection (AD), Cross Counting (CC), Crowd Density Detection (CD), Face Attendance (FA), Face Detection (FD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), License Plate Detection (LPD), License Plate Recognition (LPR), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Queue Lenght Detection (QD), Rare Sound Detection (RSD), Stationary Object Detection (SOD)
- Alarm processing
- recording internal storage (SD card), E-Mail, HTTP, FTP, TCP, UDP, Cloud Upload
- Audio support
- yes
- Audio
- 1 Way Audio, built-in microphone
- Password protection
- administrator & users
- Internal storage
- 256GB, microSDHC card, microSDXC card
- Menu languages
- English, German, French, Italian, Portugese, Spanish, Turkish, Russian, Japanese
- Privacy zone masking
- Areas-ON/OFF switchable
- Remote configuration
- Browser
- Web browser
- MS Internet Explorer 10/11, Safari , Firefox , Google Chrome , Edge
- Mirror function
- V flip, H-flip, H/V flip
- Digital Noise Reduction
- 3D-DNR, yes
- Network:
- Network protocols
- TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
- Interfaces / Inputs/ Outputs:
- External connectors
- RJ-45, micro SD card slot 256 GB
- Ethernet interface
- 100Base-TX, 10Base-T
- Alarm inputs
- no
- Alarm outputs
- no
- Serial interfaces
- Ethernet
- General:
- Brand
- ENEO
- Series
- eneo IN-Series
- Dimensions (HxWxD)
- 115,3x64,3mm
- Weight
- 265g
- Illumination
- 1x High Power LED 850nm, Infrared
- Illumination range
- approx. 20m
- Color (housing)
- Pantone P 179-1, RAL9003
- Color (bubble)
- clear
- Housing
- Outdoor
- Hosuing material
- Aluminium, Plastic
- Heater
- no
- Camera Type
- Face recognition, License plate recognition, People Count, Retail Intelligence
- Power consumption
- 4.5W
- Blower
- no
- Mounting
- Ceiling mount, Wall mount
- ONVIF
- ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
- Power over Ethernet
- IEEE 802.3af
- Protection rating
- IP66
- SDK
- upon request
- Supply voltage
- PoE
- Operating temperature
- -35°C ~ +60°C, @ Humidity 90% or less (non-condensing)
- Text display
- ON/OFF switchable
- Vandal proof
- no
- EAN/GTIN
- 4260229840542
- Parts supplied:
- Parts supplied
- manual, bag of screws
- Other
- Imager
- CMOS
- Low Speed Shutter
- yes
- Backlight Compensation
- BLC, HLC
- Wide Dynamic Range (WDR)
- WDR 120dB
- Motion Detector
- yes
- llumination
- Infrared
- Vertical Angle of View
- 81°
- Horizontal Angle of View
- 156°
- Remarks
- NDAA compliance under Section 889, The face detection and license plate recognition functions are only available with an inserted SD card or in conjunction with a recorder from the eneo IN series., To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
- Manufacturer order number
- 236320
