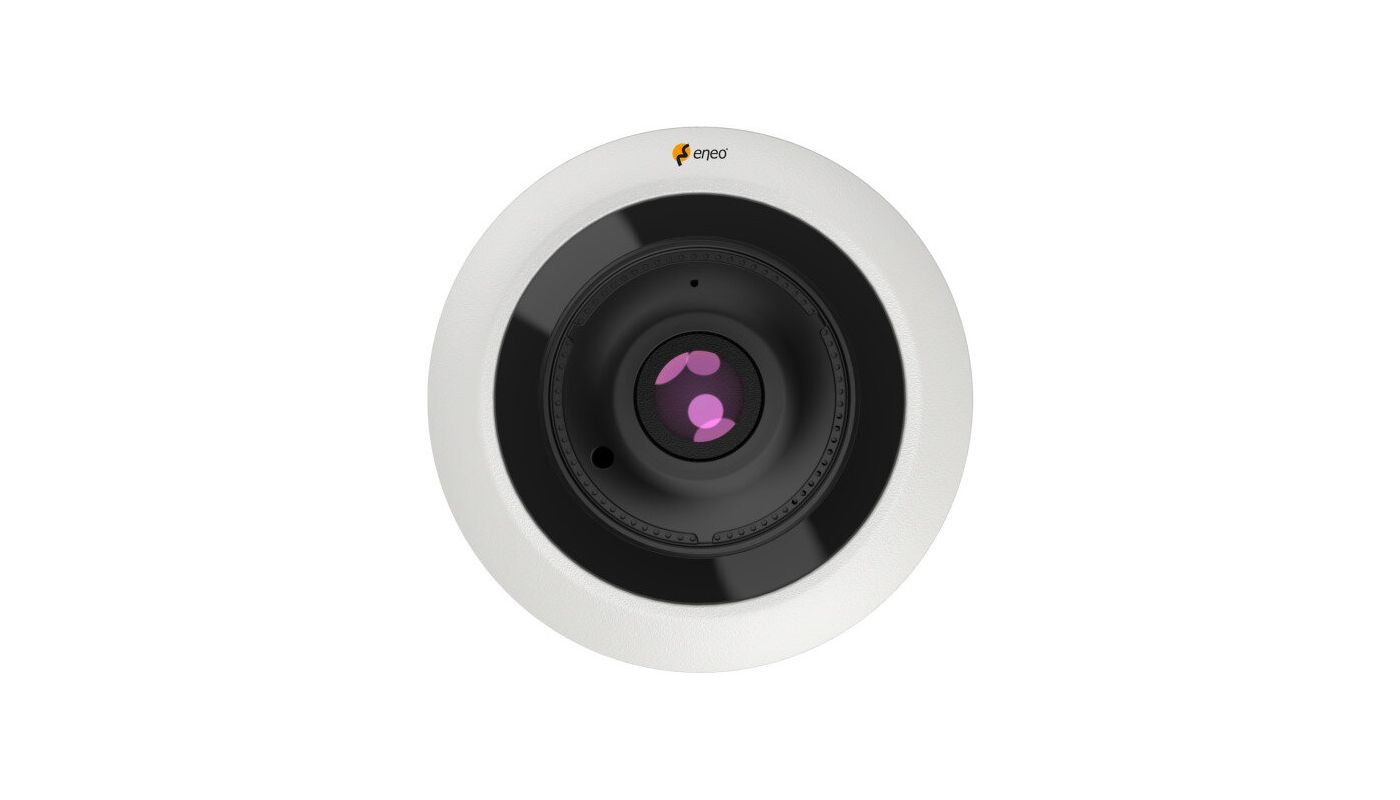

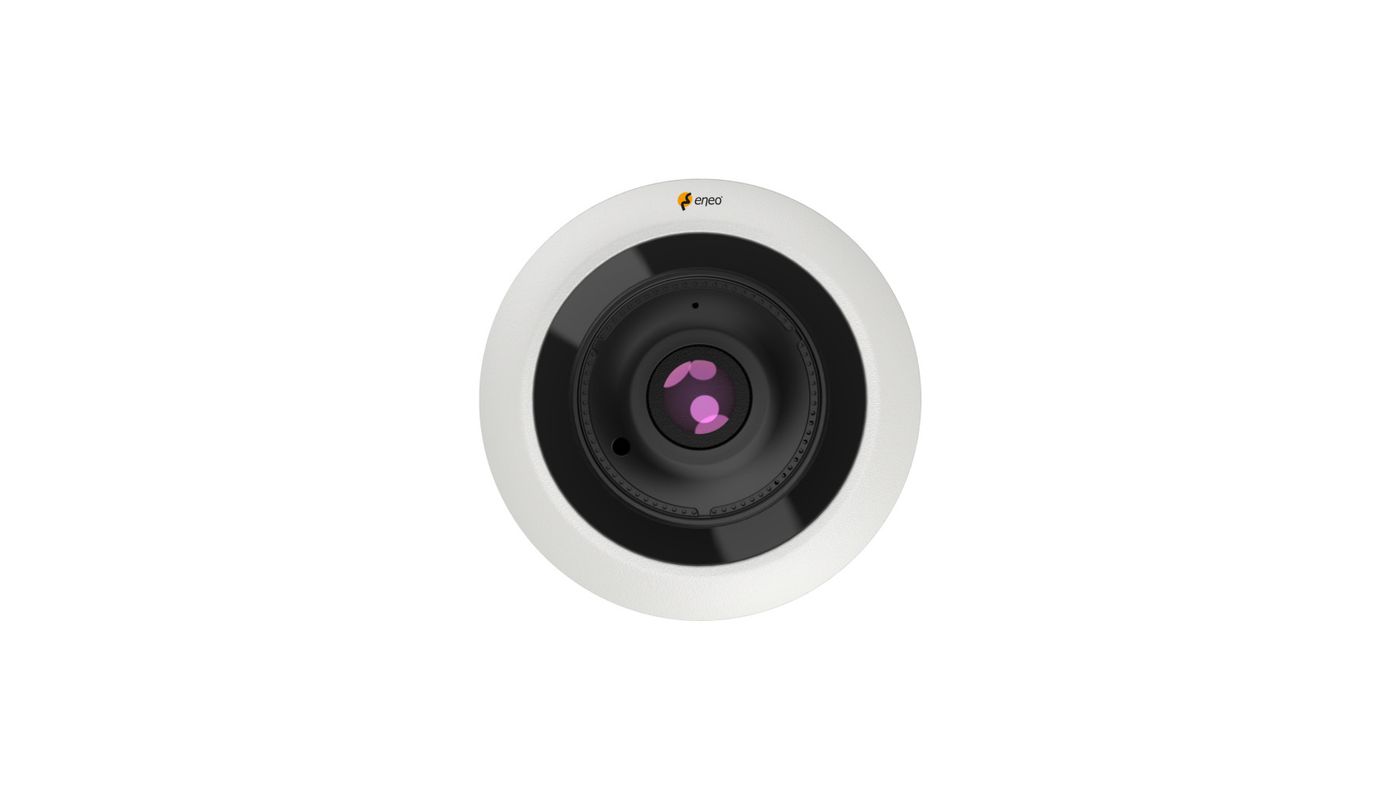

eneo IND-32F0016P0A
SKU
236318
Network Dome Camera Fix, FishEye 360° 4000x3000, Day/Night, DWDR, 1,6mm, IR, 12VDC, PoE, IP66
Main Features
1/2.3" Omnivision CMOS sensor
1.6mm fixed focal length FishEye lens
360° panoramic view,ceiling, wall
Integration with eneo INsight software & App
Day/night function, 3D-DNR, slow speed shutter
Resolution max. 4000x3000@15fps
Smart Codec H.265/H.264, Multi-Streaming
Triple stream (main, sub, mobile)
Browser independent (Edge, Safari, Firefox, Chrome)
IR-LED illumination, microphone and loudspeaker integrated
NDAA compliance
For indoor and outdoor use, IP66
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Manufacturer order number
- 236318
- Brand
- ENEO
- EAN/GTIN
- 4260229840573
- Series
- eneo IN-Serie
Camera
- Camera shape
- Minsters
- Chip size
- 1/2,3"
- Resolution standard
- 12 MP
- Recording sensor
- CMOS, OmmiVision OV12895-J94A
- Photosensitivity
- 0,01 Lux bei F1,6
- System
- True Day&Night
- Low Speed Shutter
- Yes
- Manual Electric Shutter (MES)
- 1-5~1-20,000sec.
- Flickerless function
- Yes
- Backlight compensation
- Yes
- Day/night switching
- Switchable IR Filter (ICR)
- Day/night mode
- Automatic,Day,Night,Image,Time
- White balance
- Automatic,Manual
- Signal-to-noise ratio
- 39 dB
Video
- Resolution (extended)
- 4000x3000,3000x3000,2560x2560,2160x2160,1520x1520,1280x960,1080x1080,720x720,640x480
- Picture size
- 360° panorama
- Video Compression
- H.264, H.264+, H.265, H.265+, M-JPEG
- Data stream types
- Triple-Stream(Main/Sub/Mobile)
- Image transfer rate max.
- 15 fps
Lens
- Lens Type
- Prime lens
- Focal length
- 1,6 mm
- MOD (Minimum Object Distance)
- 0.3 m
- Vertical angle of view
- 180°
- Horizontal angle of view
- 360°
Display
- Image resolution max.
- 4000x3000
DORI
- Perceiving (25px/m)
- 38,4 m
- Watch (62px/m)
- 15,4 m
- Detect (125px/m)
- 7,6 m
- Identify (250px/m)
- 3,8 m
Functions
- Multicast
- Yes
- Motion detector
- No
- Analysis
- Object Classification Human / Vehicle (PD&VD)
- Alarm processing
- recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,UDP,alarm out,Siren,Cloud Upload
- Audio support
- Yes
- Audio
- 93±3dB max., Built-in microphone, Built-in speaker
- Password
- Administrator and User
- Internal memory
- microSD card slot
- Menu languages
- English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish
- Browser
- Edge, Firefox, Google Chrome, Safari
- Digital Noise Reduction (DNR)
- Yes
- Privacy Zone
- Areas-ON/OFF switchable
Network
- Network Protocols
- DDNS, DHCP, DNA, FTP, HTTP, HTTPS, IEE 802.1, NTP, RTP, RTSP, SMTP, TCP-IP, UPnP
Interfaces / Inputs/ Outputs
- External connections
- RJ-45,Alarm in/outputs,12VDC input (DC plug),micro SD card slot 256 GB
- Ethernet interface
- 100Base-TX, 10Base-T
- Alarm inputs
- 1
- Control Interfaces
- Ethernet
General
- Wide Dynamic Range (WDR)
- D-WDR
- Lighting
- Infrared
- Dimensions (WxHxD) (extended)
- 120x55mm
- Weight
- 0.4 kg
- Illumination range
- Approx. 10m
- Color (Housing)
- RAL9003,Pantone P 179-1 / Other colors available upon request
- Housing type
- Outside
- Housing material
- Metal, Plastic
- Heating
- No
- Camera Type
- Fisheye Camera
- Power consumption
- 9 W
- Mounting type
- Ceiling, Wall
- ONVIF
- ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
- Power over Ethernet
- IEEE 802.3af
- ESC
- 1/5 ~ 1/20.000sec.
- Protection
- IP66, NEMA 4X
- SDK
- upon request
- Power supply
- 12VDC, Poe
- Temperature Range (Operating)
- -35°C ~ +60°C,@ Luftfeuchtigkeit 90% oder weniger (nicht kondensierend)
- Text overlay
- Switchable on/off
Parts supplied
- Scope of delivery
- Quick installation guide,drilling template,3x wall plugs with screws,1x waterproof cover for RJ45 connector
Notes
- Remark
- From firmware version 8.2.4.1,the analysis function Object Classification Human / Vehicle (PD&VD) is available
