SKU 236661

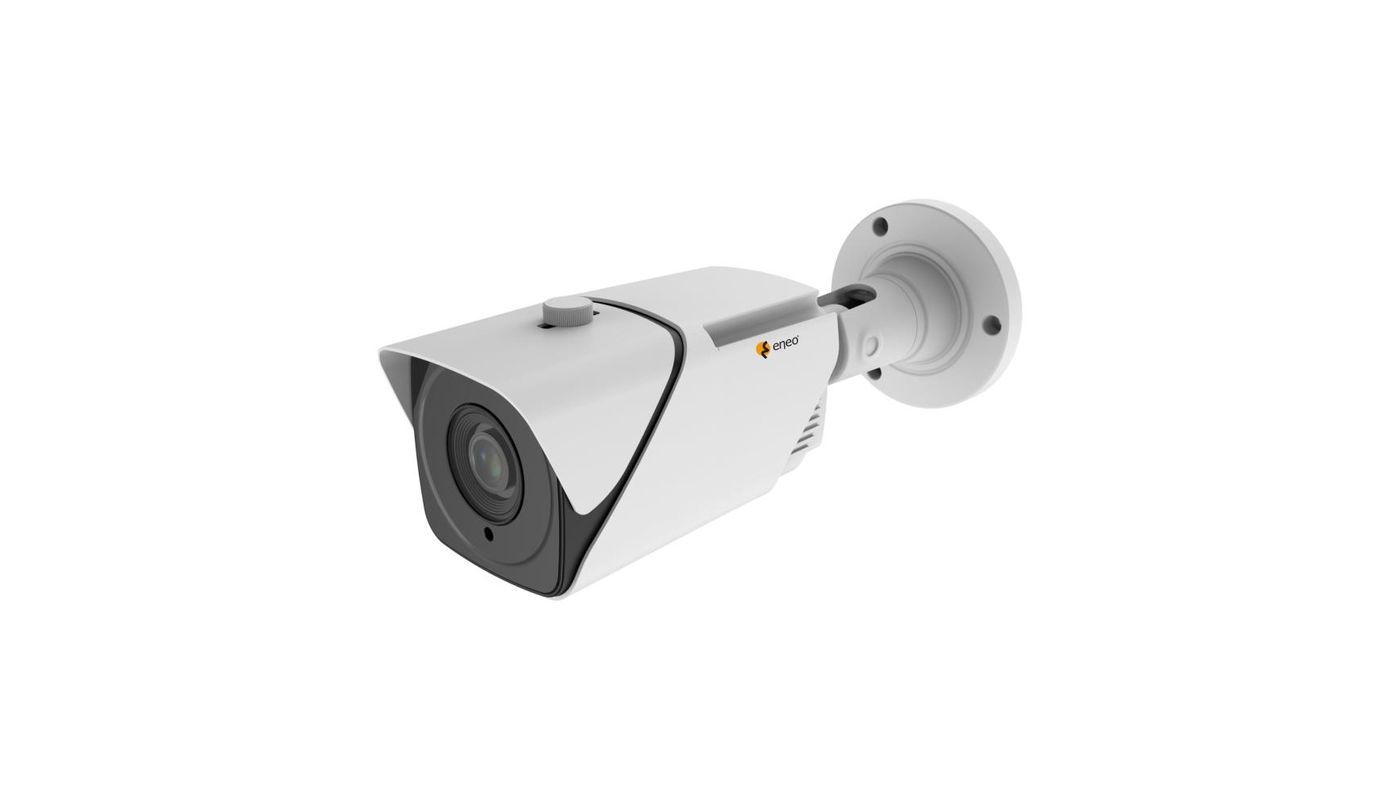

Netzwerk Kamera Bullet, Network Camera Bullet, 5,0-50mm, IR, 12VDC, PoE, IP67

Main Features

1/2.7" Omnivision CMOS sensor,
Maximum resolution 2592x1944 pixels, 30fps
AI analysis functions including object classification
WDR 120dB, 3D-DNR noise reduction
Motorised varifocal lens 5.0-50mm
Smart Codec H.265/H.264, multi-streaming
Browser independent (Edge, Safari, Firefox, Chrome)
Supports ONVIF profiles S/T/G
Local storage via Micro SD card
Supports audio and external alarm input and output
Power supply 12VDC or PoE IEEE 802.3af
IR LED illumination, IP67
arrow-right Buy now You will be redirected to our shop on Videor.com for purchase.

More Information

Camera:

Camera type
Bullet
Sensor size
1/2.7"
Resolution Standard
5 Megapixel
Imager
OmniVision, OS05A20, CMOS
System
True Day&Night
Low speed shutter
yes
Manual electronic shutter (MES)
1/5 ~ 1/20.000sec.
Automatic electronic shutter (ESC)
1/5 ~ 1/20.000sec.
Wide Dynamic Range (WDR)
WDR 120dB
Flickerless function
yes
Backlight compensation
BLC, HLC
Day&Night switch
ICR
Day&Night mode
Automatic, Day, Night, Image, Time
White balance
Automatic, Manual
Signal-to-noise ratio
39dB
Video:

Resolution
2592x1944 (4:3), 2592x1520 (16:9), 2304x1296 (16:9), 1920x1080 (16:9), 1280x960 (4:3), 640x480 (4:3), 320x240 (4:3)
Image resolution max.
2592x1944
Image display
16:9, 4:3, VerticalView
Stream types
Triple-Stream(Main/Sub/Mobile)
Image Transmission Rate
30 fps
Video compression
H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Lens:

Lens Type
Varifocal (motorized)
Zoom Factor
10x
Focal Length
5 - 50 mm
Digital Zoom
yes
MOD (Mininum Object Distance)
0,2 m
Iris control
DC
DORI:

Detect (25px/m)
102,4 - 964 m
Observe (62 px/m)
41 - 385 m
Recognize (125 px/m)
20,1 - 193,2 m
Identify (250 px/m)
9,6 - 97 m
Functions:

Multicast compliant
yes
Motion detector
yes
Analysis functions
Attribute Detection (AD), Cross Counting (CC), Crowd Density Detection (CD), Face Attendance (FA), Face Detection (FD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), License Plate Detection (LPD), License Plate Recognition (LPR), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Queue Lenght Detection (QD), Rare Sound Detection (RSD), Stationary Object Detection (SOD)
Alarm processing
recording internal storage (SD card), E-Mail, HTTP, FTP, TCP, UDP, alarm out, Cloud Upload
Audio support
yes
Audio
1/1 Line input and output, 2 Way Audio
Password protection
administrator & users
Internal storage
256GB, microSDHC card, microSDXC card
Menu languages
English, German, French, Italian, Portugese, Spanish, Turkish, Russian, Japanese
Privacy zone masking
Areas-ON/OFF switchable
Remote configuration
Browser
Web browser
MS Internet Explorer 10/11, Safari , Firefox , Google Chrome , Edge
Mirror function
V flip, H-flip, H/V flip
Digital noise reduction (DNR)
3D-DNR, yes
Network:

Network protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Interfaces / Inputs/ Outputs:

Video outputs
no
External connectors
RJ-45, Alarm in/output, Audio input/output, 12VDC input (DC plug), connection cable approx.30cm, micro SD card slot 256 GB
Ethernet interface
100Base-TX, 10Base-T
Alarm inputs
1
Alarm outputs
1
Serial interfaces
Ethernet
General:

Brand
ENEO
Series
eneo IN-Series
Dimensions (HxWxD)
89.95x96.70x301.11mm
Illumination
8x High Power LED 850nm, Infrared
Illumination range
approx. 80m
Color (housing)
Pantone P 179-1, RAL9003
Housing
Outdoor
Hosuing material
Aluminium
Heater
no
Integrated wall mount
yes
Camera Type
Face recognition, License plate recognition, People Count, Retail Intelligence
Power consumption
12W
Blower
no
Mounting
Ceiling mount, Wall mount
ONVIF
ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3af
Protection rating
IP67
SDK
upon request
Sunshield
yes
Supply voltage
12VDC, PoE
Operating temperature
-35°C ~ +60°C, @ Humidity 90% or less (non-condensing)
Text display
ON/OFF switchable
Vandal proof
no
EAN/GTIN
4260229840504
Parts supplied:

Parts supplied
manual, bag of screws
Other

Imager
CMOS
Low Speed Shutter
yes
Digital Noise Reduction
yes
Backlight Compensation
BLC, HLC
Wide Dynamic Range (WDR)
WDR 120dB
Motion Detector
yes
Objektiv Typ
Varifocal (motorized)
Iris Control
DC
llumination
Infrared
Vertical Angle of View
33 - 5°
Horizontal Angle of View
45 - 7°
Supply voltage
12VDC, PoE
Remarks
NDAA compliance under Section 889, The face detection and license plate recognition functions are only available with an inserted SD card or in conjunction with a recorder from the eneo IN series.
Manufacturer order number
236661
